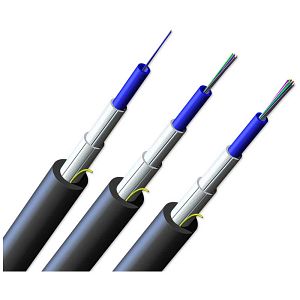

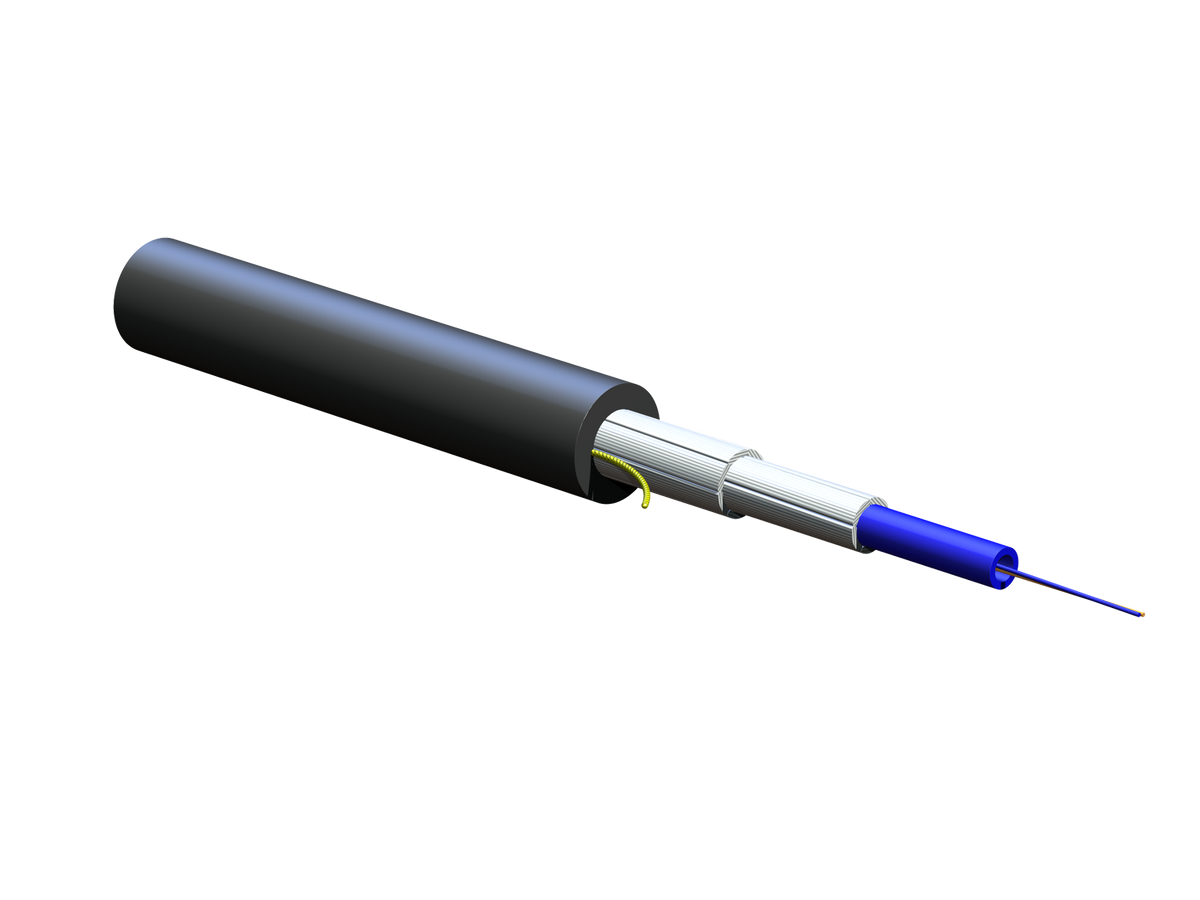

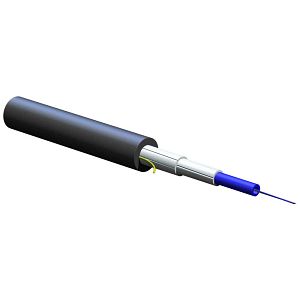

Corning 002TSF-T4180D20 | FREEDM LST Loose Tube, Gel-Free Cable, Riser
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
Corning FREEDM LST gel-free cables are flame-retardant, indoor/outdoor, riser-rated cables designed for interbuilding and intrabuilding backbones in aerial, duct and riser applications. With a riser rating, there is no need for a transition splice when entering the building. Available in a compact design, these cables are protected against water penetration by innovative water blocking tapes and yarns that swell to absorb water. Waterblocking without the use of messy gels provides more efficient and craft-friendly cable preparation, allows easier cable access and simplifies the use of buffer tube fan-out kits. The buffer tubes and fibers in each tube are color coded for quick, easy identification.
Note: This cable is available in 12 different jacket colors – blue, orange, green, brown, slate, white, red, black, yellow, violet, rose and aqua. The colored jacket allows for easy visual identification of the cables while still providing all of the required environmental protection of an indoor/outdoor cable jacket. Black is the standard jacket color using the part numbers shown here. Contact Customer Care at 1-800-743-2675 to order other color options.
Corning - 002TSF-T4180D20 - Features
- Riser rating
- No transition splices when entering buildings
- Gel-free waterblocking technology
- Craft-friendly cable preparation
- Color-coded fibers
- Quick and easy identification
- All-dielectric construction
- Requires no grounding or bonding
- UV-resistant, flame-retardant jacket
- Rugged, durable and easy to strip
- Common installations
- Outdoor aerial and duct
- Riser rating
- No transition splices when entering buildings Gel-free waterblocking technology
- Craft-friendly cable preparation Color-coded fibers
- Quick and easy identification All-dielectric construction
- Requires no grounding or bonding UV-resistant, ame-retardant jacket
- Rugged, durable and easy to strip Common installations
- Outdoor aerial and duct; indoor vertical riser and general purpose horizontal according to NEC Article 770
Specifications
Specifications
Corning - 002TSF-T4180D20 - Product Categories
- Shop by Manufacturer/Corning
- Wire & Cable
- Voice and Data Cable
- Indoor - Outdoor Fiber Optic Cable
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor Riser Cables
Corning - 002TSF-T4180D20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 002TSF-T4180D20 |
| EAN Code | 4056418170817 |
| Environment | Indoor/Outdoor |
| Cable Type | Loose Tube |
| Product Type | Dielectric |
| Fiber Category | 50 µm MM (OM3) |
| Flame Rating | Riser (OFNR) |
| Application | Aerial, Direct Buried, Duct, General Purpose Horizontal |
| Fiber Count | 2 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNR, CSA OFN FT-4 |
| Common Installations | Outdoor aerial and duct, indoor vertical riser and general purpose horizontal according to National Electrical Code (NEC) Article 770 |
| Design and Test Criteria | ANSI/ICEA S-104-696 |
| Environmental Conditions | - |
| Temperature Range, Installation | -10 °C to -10 °C (14 °F to 14 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |
| Notes | Operation: -40°C (-40°F) minimum operation temperature for 50 ?m multimode optical fiber types |

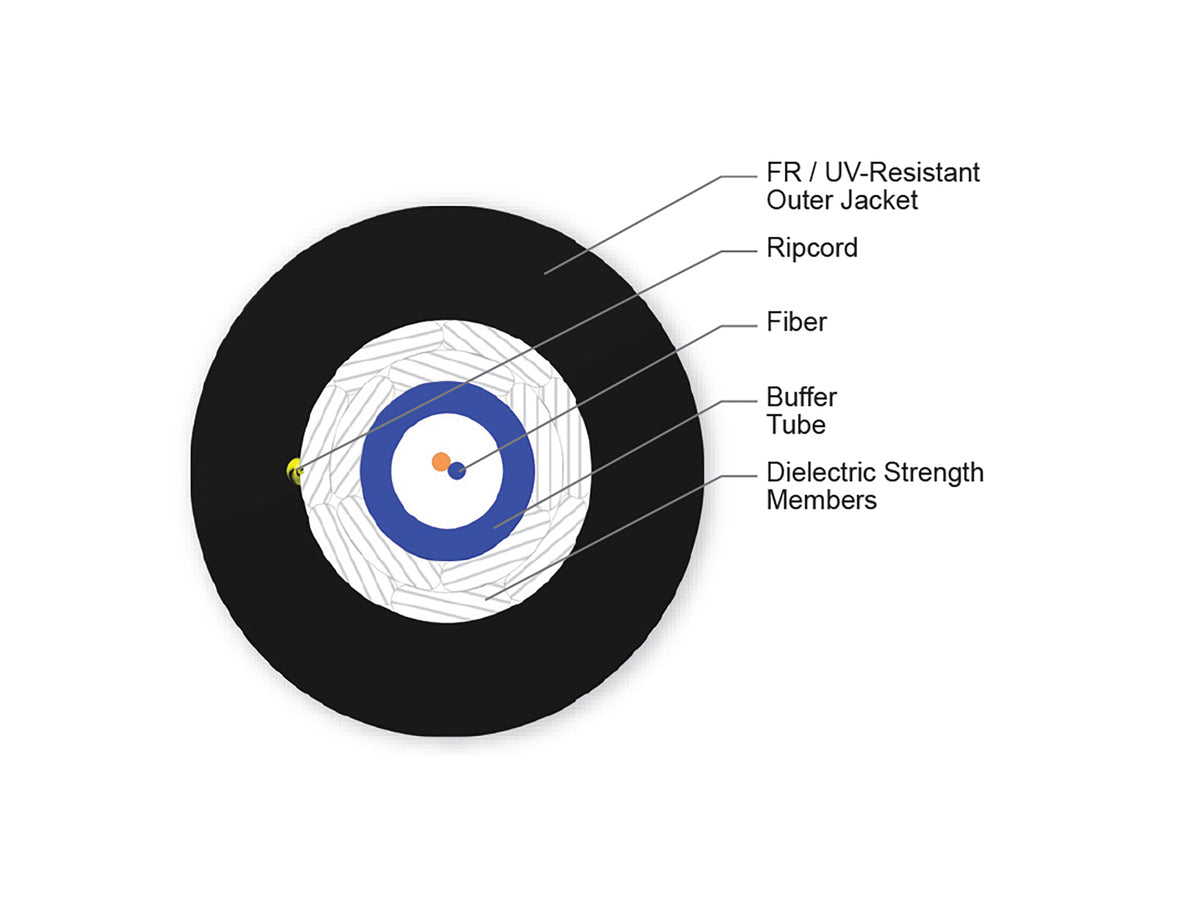

| Cable Design | - |
| Fiber Count | 2 |
| Number of Ripcords | 1 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tensile Strength Elements and/or Armoring - Layer 2 | Water-swellable dielectric strength members |
| Number of Active Tubes | 1 |
| Number of Tube Positions | 1 |
| Fiber Coloring | Blue, Orange |
| Fibers per Tube | 2 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 400 N (89.92 lbf) |
| Max. Tensile Strength, Short-Term | 1350 N (303.49 lbf) |
| Min. Bend Radius Installation | 111 mm (4.37 in) |
| Min. Bend Radius Operation | 37 mm (1.46 in) |
| Nominal Outer Diameter | 7.4 mm (0.29 in ) |
| Notes | Actual cable outer diameter may vary ± 0.3 mm |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 80 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 2000 MHz*km / - |
| Maximum Attenuation | 3.0 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 1500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 300 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM3 |
| Ordering Information | - |
| Weight | 56 kg/km (37.63 lb/1000 ft) |
