Corning 002U51-31331-24 | Zipcord Tight-Buffered Cable, Riser
Regular price
$1.45
Unit price
Brand: Corning
|
SKU:
371-COROS2-ZIPZBL-02
Regular price
$1.45
Unit price
Description
Description

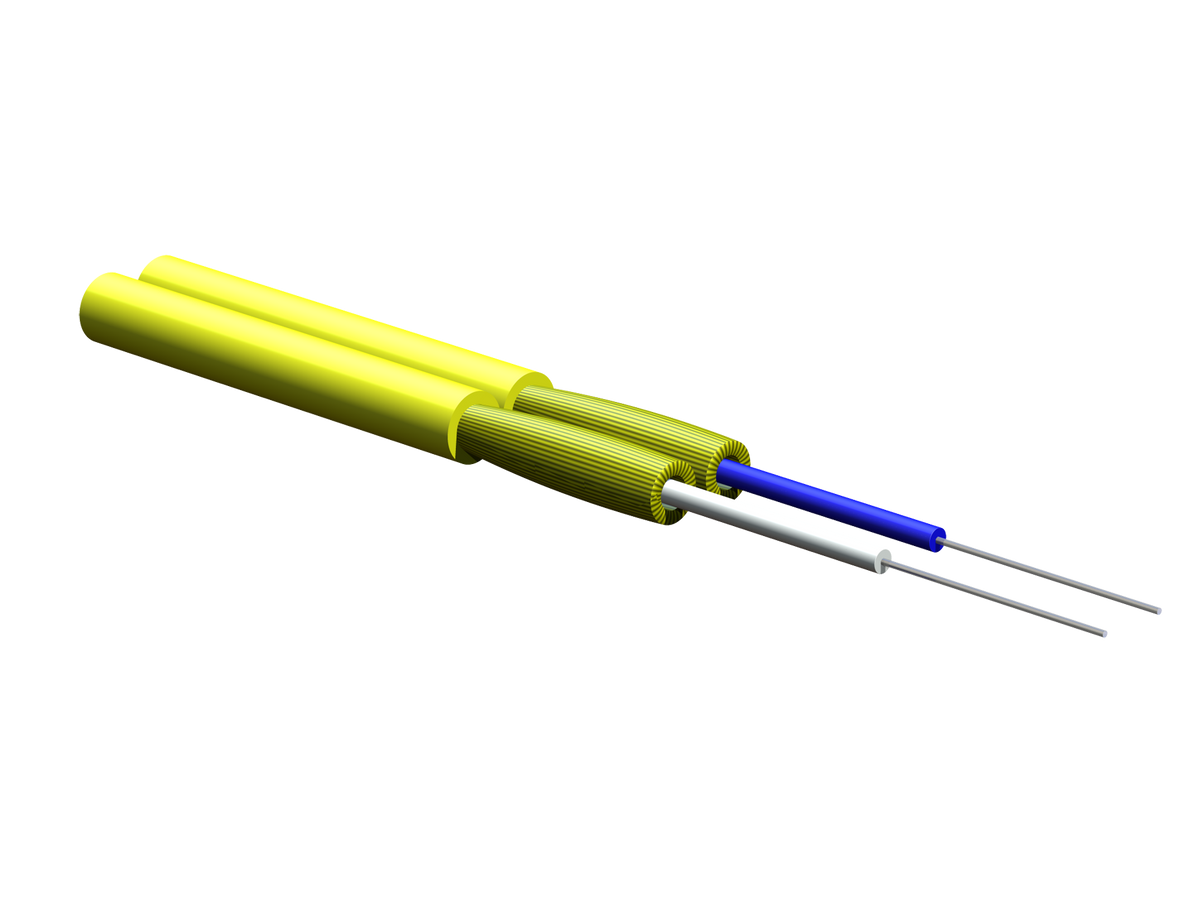

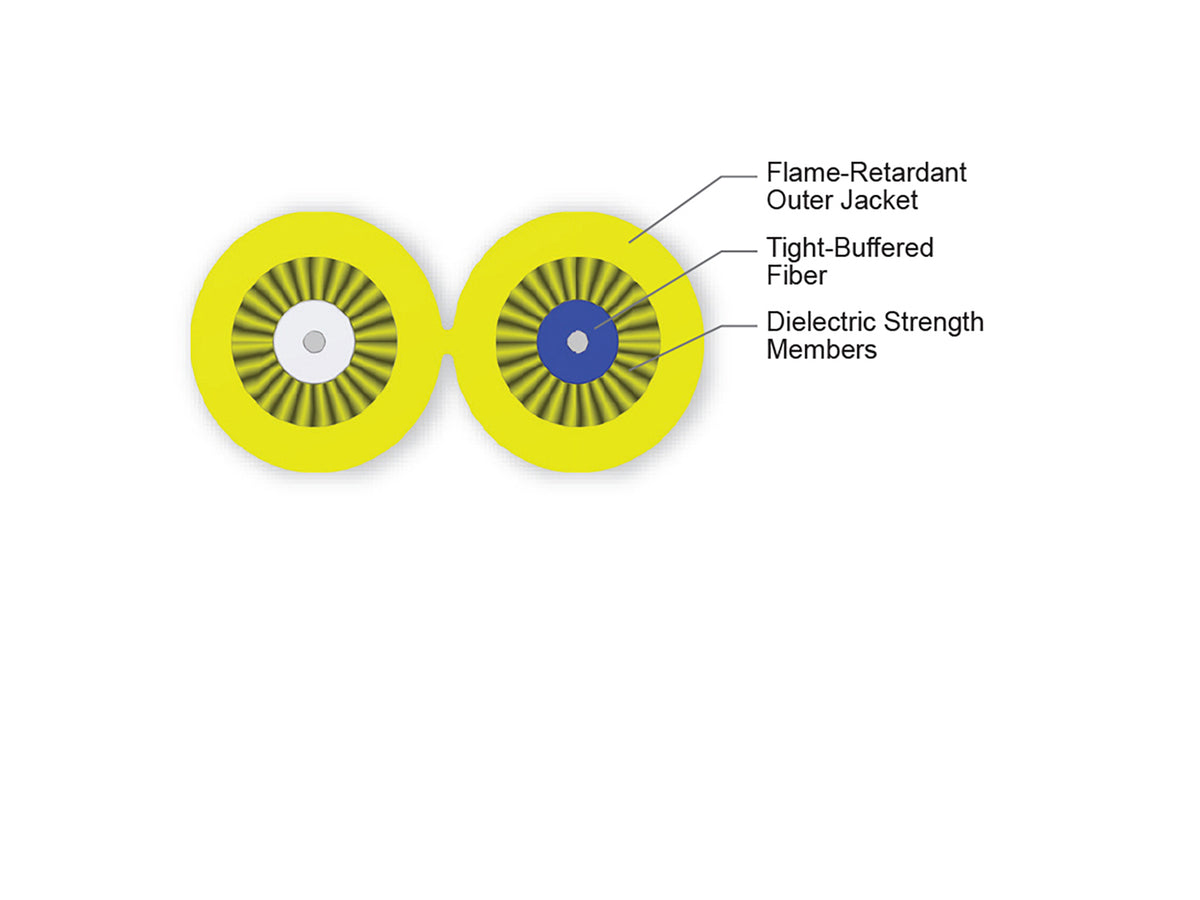

Corning 002U51-31331-24 | Zipcord Tight-Buffered Cable, Riser 2 F, 2.0 mm diameter, ClearCurve ZBL, Single-mode (OS2)
Corning - 002U51-31331-24 - Features
- All-dielectric strength member
- Mechanical durability
Specifications
Specifications
Corning - 002U51-31331-24 - Product Categories
- Shop by Manufacturer/Corning
- Data Communications and Networking
- Fiber Optic Cable
- Fiber Optic Indoor Cable
- Fiber Optic Cables
- Indoor
- Indoor Riser Cables
Corning - 002U51-31331-24 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 002U51-31331-24 |
| EAN Code | 4056418183411 |
| Environment | Indoor |
| Cable Type | Tight-Buffered |
| Product Type | Interconnect |
| Fiber Category | ClearCurve ZBL |
| Flame Rating | Riser (OFNR) |
| Application | General Purpose Horizontal, Vertical Riser |
| Fiber Count | 2 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNR, UL 1666, CSA FT-4, ICEA S-83-596 |
| Flame Test Method | UL-1666 and CSA FT-4 (for riser and general building applications), ICEA S-83-596 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 60 °C (32 °F to 140 °F ) |
| Temperature Range, Operation | 0 °C to 70 °C (32 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Cable Design | - |
| Fiber Count | 2 |
| Outer Jacket Color | Yellow |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Number of Subunits | 2 |
| Tight Buffer Color | Blue, White |
| Flame Rating | Riser (OFNR) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Short-Term | 220 N (49.46 lbf) |
| Min. Bend Radius Installation | 50 mm (1.97 in) |
| Min. Bend Radius Operation | 10 mm (0.39 in) |
| Nominal Outer Diameter | 2 mm x 4.45 mm (0.08 in x 0.18 in ) |
| Max. Tensile Strength, Long-Term | 100 N (22.48 lbf) |
| Optical Characteristics | - |
| Fiber Code | U |
| Fiber Name | ClearCurve ZBL |
| Fiber Type | Single-mode |
| Performance Option Code | 31 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.657.B3/G.652.D |
| Ordering Information | - |
| Weight | 74 kg/km (49.73 lb/1000 ft) |
| Type | Interconnect Cable |
| Application | Indoor |
| Cable Type | Tight Buffered |
| Transmission Mode | Singlemode |
| Fiber Type | OS2 |
| Jacket Flame Rating | OFNR FT4 |
| Jacket Material | Flame Retardant |
| Jacket Color | Blue |
| Fiber Count | 2 |
| Outside Diameter | 0.08 x 0.18 in. (2 x 4.45mm) |
| Construction | Tight Buffer, 2mm Zipcord |
