Brand: Corning
|
SKU:
370-COROS2TB16AWG-2X

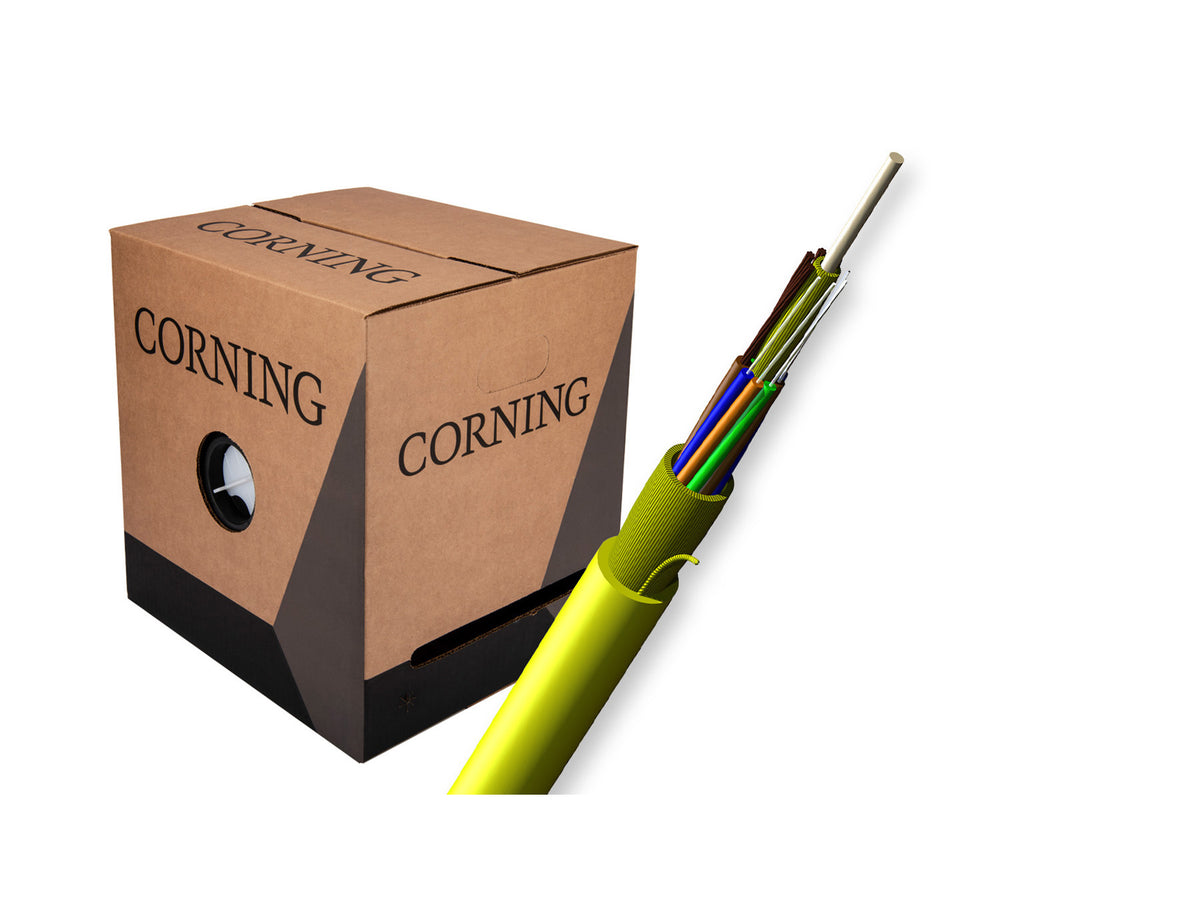

Corning 002Z68-21Y31MB1 | Reel in a Box, ActiFi Composite Cable, Tight-Buffered, Indoor, Plenum
Regular price
$2.55
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 002Z68-21Y31MB1 | Reel in a Box, ActiFi Composite Cable, Ti...
Regular price
$2.55
Unit price
Brand: Corning
|
SKU:
370-COROS2TB16AWG-2X
Regular price
$2.55
Unit price
Description
Description
Corning 002Z68-21Y31MB1 | Reel in a Box, ActiFi Composite Cable, Tight-Buffered, Indoor, Plenum 2 F, 2 Cu Conductor, 16AWG, 500 ft.
Corning - 002Z68-21Y31MB1 - Features
- Stackable, lightweight and small-form boxes
- More manageable storage, transport and organization
- Countdown jacket print
- Indicates available cable remaining on the reel for easier inventory management
- Lower operating expense
- Cable cutting lowers operating expenses for our distributors and end users
- Increase efficiency
- Reduces time spent on reel management
- No additional equipment
- Reel supports and cable spooling equipment not needed
- Brake mechanism
- Allows reel locking and control of tension during cable pulls
- Mutual capacitance between adjacent conductors
- <50 pF/ft
- Conductor color code
- Closely follows Telcordia fiber color code
Specifications
Specifications
Corning - 002Z68-21Y31MB1 - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Copper Cabling Infrastructure
- Voice and Data Cable
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 002Z68-21Y31MB1 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 002Z68-21Y31MB1 |
| Environment | Indoor |
| Cable Type | 900 µm Tight-Buffered |
| Product Type | Distribution |
| Fiber Category | SMF-28 Ultra fiber |
| Application | Plenum |
| Fiber Count | 2 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) Article 800 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 60 °C (32 °F to 140 °F ) |
| Temperature Range, Operation | 0 °C to 70 °C (32 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Cable Design | - |
| Central Element | Yarn |
| Fiber Count | 2 |
| Outer Jacket Color | Yellow |
| Outer Jacket Material | Flame-retardant |
| Conductor | 16 AWG |
| Fiber Coloring | Blue, Orange |
| Number of Conductors | 2 |
| Flame Rating | Plenum (OFNP) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 100 N (22.48 lbf) |
| Max. Tensile Strength, Short-Term | 334 N (75.09 lbf) |
| Min. Bend Radius Installation | 102.87 mm (4.05 in) |
| Min. Bend Radius Operation | 68.58 mm (2.7 in) |
| Nominal Outer Diameter | 0 mm (0 in ) |
| Optical Characteristics | - |
| Fiber Code | Z |
| Fiber Name | SMF-28 Ultra fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 31 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.4 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D/G.657.A1 |
| Ordering Information | - |
| Weight | 621 kg/km (417.29 lb/1000 ft) |
| Packaging Method | Reel in a Box |
| Conductor Type | SOLID |
| Conductor/Pair Count | 2 CONDUCTOR |
| Jacket Color | BLACK |
| Type | COMPOSITE |
| UNSPSC Code | 26121600 |
