Brand: Corning
|
SKU:
370-COROS2-TBP-02

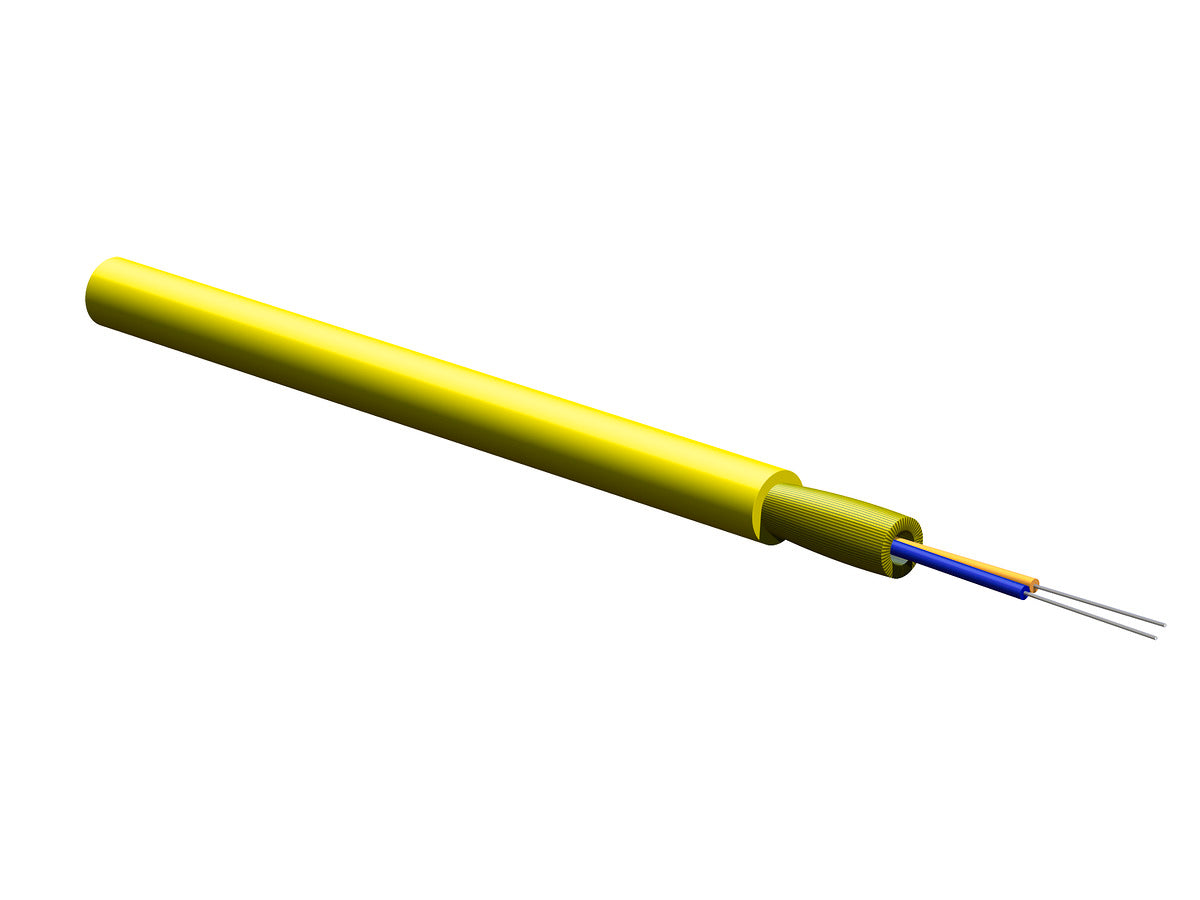

Corning 002Z88-31131-29 | MIC Tight-Buffered Cable, Plenum 2 F, SMF-28 Ultra fiber, Single-mode (OS2)
Regular price
$1.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 002Z88-31131-29 | MIC Tight-Buffered Cable, Plenum 2 F, SM...
Regular price
$1.47
Unit price
Brand: Corning
|
SKU:
370-COROS2-TBP-02
Regular price
$1.47
Unit price
Shipping calculated at checkout.
Description
Description
Corning 002Z88-31131-29 | MIC Tight-Buffered Cable, Plenum 2 F, SMF-28 Ultra fiber, Single-mode (OS2)
Specifications
Specifications
Corning - 002Z88-31131-29 - Product Categories
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 002Z88-31131-29 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 002Z88-31131-29 |
| Item Description | MIC Tight-Buffered Cable, Plenum 2 F, SMF-28 Ultra fiber, Single-mode (OS2) |
| General Specifications | - |
| Product Number | 002Z88-31131-29 |
| EAN Code | 4059496688502 |
| Environment | Indoor |
| Cable Type | Tight-Buffered |
| Product Type | Distribution |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Plenum (OFNP) |
| Application | General Purpose Horizontal, Plenum, Vertical Riser |
| Fiber Count | 2 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNP, FT-6 |
| Flame Test Method | NFPA 262 and CSA FT-6 (for plenum, riser and general building applications), ICEA S-83-596 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0°C to 60°C (32°F to 140°F ) |
| Temperature Range, Operation | 0°C to 70°C (32°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |
| Cable Design | - |
| Central Element | Yarn |
| Fiber Count | 2 |
| Outer Jacket Color | Yellow |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tight Buffer Color | Blue, Orange |
| Flame Rating | Plenum (OFNP) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term, ?12F | 132N (29.67lbf) |
| Max. Tensile Strength, Long-Term, >12F | 200N (44.96lbf) |
| Max. Tensile Strength, Short-Term, ?12F | 440N (98.92lbf) |
| Max. Tensile Strength, Short-Term, >12F | 660N (148.37lbf) |
| Min. Bend Radius Installation | 75mm (2.95in) |
| Min. Bend Radius Operation | 50mm (1.97in) |
| Optical Characteristics | - |
| Fiber Code | Z |
| Fiber Name | SMF-28 Ultra fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 31 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.4 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D/G.657.A1 |
| Dimensions | - |
| Cable Weight | 2.01kg/km (1.35lb/1000 ft) |
