Corning 002ZDF-21X01M20 | ActiFi Composite Cable, Loose Tube, Indoo...
Description
Description

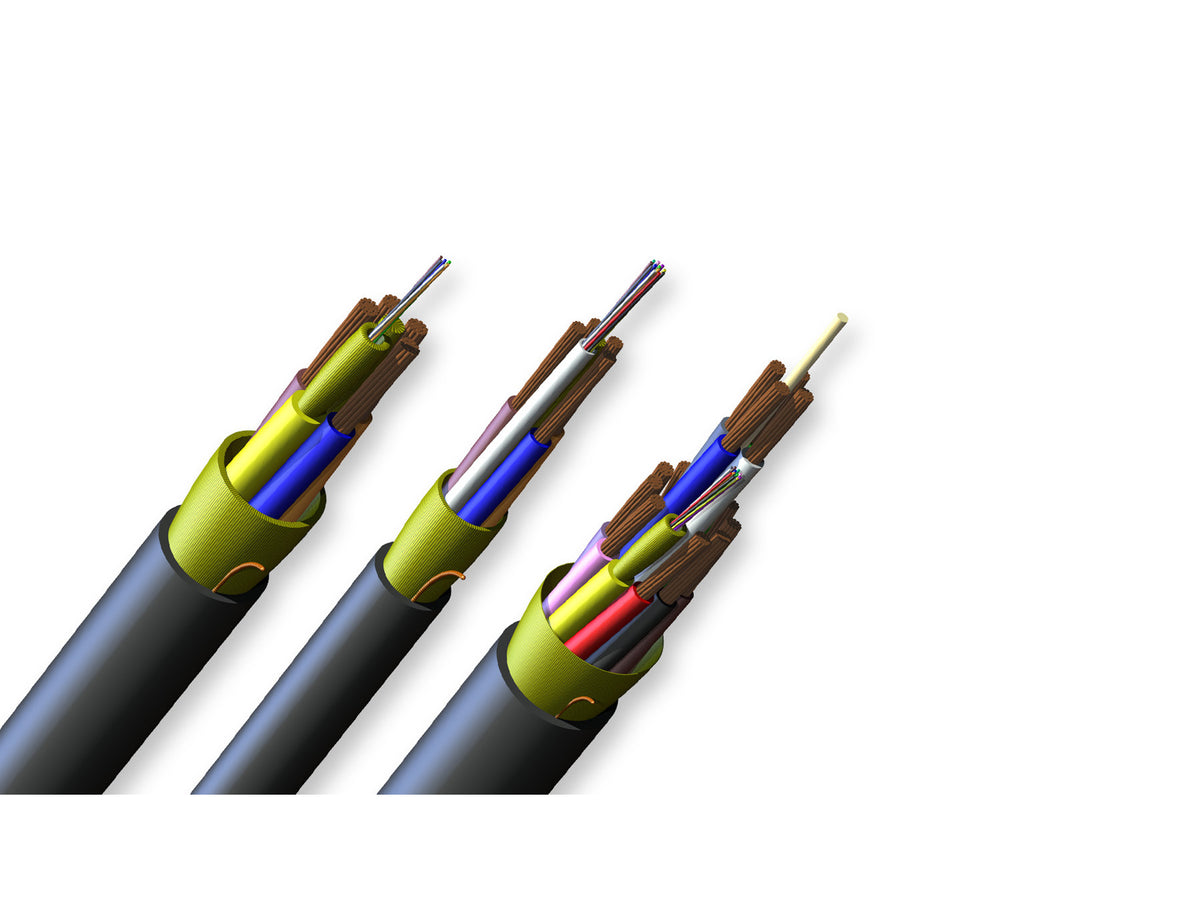

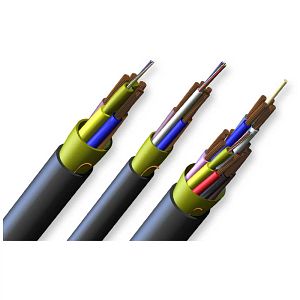

Corning's ActiFi FREEDM Composite Class 3 Limited Power Cables provide the ultimate solution for indoor/outdoor remote powering of distributed antenna systems, optical networks, small cells and more. The design uses fiber and linear laid copper conductors rated at 300 VAC. These cables are suitable for use with Digital Electricity and +/-190VDC installations in accordance with NEC Article 830.15. They may also be used with low-voltage installations in accordance with NEC Article 725.
Corning's ActiFi FREEDM cables also provide a time- and cost-saving solution for installations requiring remotely powered equipment. By integrating linear laid copper and loose-tube fiber in one cable, ActiFi cables eliminate the need to install separate power and fiber cables. This saves installation time, labor costs and duct or tray space. This compact and versatile design is available with an interlocking armor option for additional protection where conduit may not be feasible.
When installing this cable in duct, the cable end should be sealed to prevent water ingression from the end of the cable.
Corning - 002ZDF-21X01M20 - Features
- 12, 14, 16, 18, or 20 AWG copper conductors
- Power transmission with flexibility in design
- 2, 4, 6, 8, 12 or 24 ClearCurve
- Ultra fibers
- Individual fibers
- Easily accessible for termination
- Mutual capacitance between adjacent conductors
- <50 pF/ft
- 2-in-1 composite cable design
- One cable meets power and signal needs
- Conductor color code
- Closely follows Telcordia fiber color code
- Conductor insulation material and thickness
- PVC insulation, thickness varies depending on AWG size
- Common Installations
- Compliant with
Specifications
Specifications
Corning - 002ZDF-21X01M20 - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Copper Cabling Infrastructure
- Voice and Data Cable
- DataComm
- Communications Cable
- Fiber Optic Cable
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor Riser Cables
Corning - 002ZDF-21X01M20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 002ZDF-21X01M20 |
| Environment | Indoor/Outdoor |
| Cable Type | Loose Tube |
| Fiber Category | SMF-28 Ultra fiber |
| Flame Rating | Riser-CL3R |
| Application | Vertical Riser |
| Fiber Count | 2 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) Article 800 |
| Design and Test Criteria | ICEA S-120-742, UL 13, 300 VAC, 80 C, ICEA S-83-596 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 0 °C (32 °F to 32 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |
| Cable Design | - |
| Central Element | Yarn |
| Fiber Count | 2 |
| Buffer Tube Color Coding | Yellow |
| Number of Ripcords | 1 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-retardant |
| Buffer Tube Color | Yellow |
| Buffer Tube Diameter | 3 mm (0.12 in) |
| Conductor | 14 AWG |
| Number of Active Tubes | 1 |
| Number of Conductors | 2 |
| Number of Tube Positions | 1 |
| Fiber Coloring | Blue, Orange |
| Fibers per Tube | 2 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 200 N (44.96 lbf) |
| Min. Bend Radius Installation | 114 mm (4.49 in) |
| Min. Bend Radius Operation | 76.2 mm (3 in) |
| Nominal Outer Diameter | 7.5 mm (0.3 in ) |
| Optical Characteristics | - |
| Fiber Code | Z |
| Fiber Name | SMF-28 Ultra fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | ITU-T G.657.A1 |
| Ordering Information | - |
| Weight | 5655 kg/km (3799.98 lb/1000 ft) |
| Conductor Type | STRANDED |
| Conductor/Pair Count | 2 CONDUCTOR |
| Type | COMPOSITE |
| UNSPSC Code | 26121600 |
