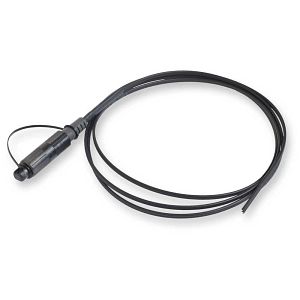

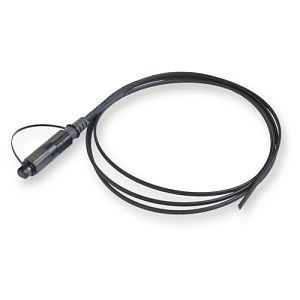

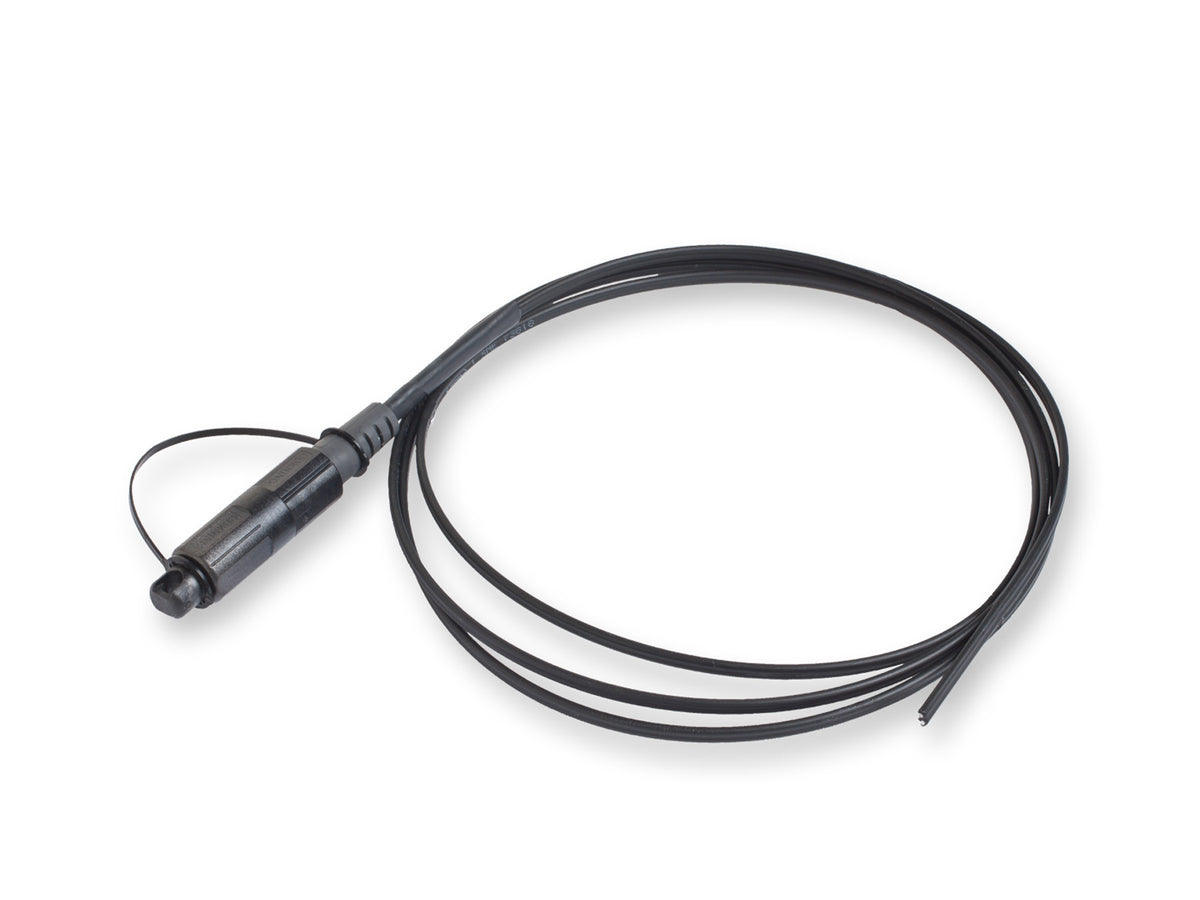

Corning 004301EB4FR350F-P | OptiTap FastAccess Technology ROC Drop Assembly, 1 F, OptiTap to stub end
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 004301EB4FR350F-P | OptiTap FastAccess Technology ROC Drop ...
Description
Description
As an industry leader in optical connectivity products, Corning designs and manufactures the ROC drop cable assembly with factory-terminated, environmentally sealed and hardened connectors to reduce the cost and time of drop cable deployment. Corning OptiTap connector design provides superior durability and reliability in the drop segment of the network. This new assembly also offers significant improvements in cable management.
Corning - 004301EB4FR350F-P - Features
- Smaller profile and reduced bend-radius
- Designed for rapid connection to external flush-mounted bulkhead adapters on terminals or closures
- Robust design keeps connector intact during installation
- Integral pulling eye/connector cap designed for 100 lb maximum pulling tension
Specifications
Specifications
Corning - 004301EB4FR350F-P - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Cable Assemblies
- Fiber Optic Cable Assemblies
- Outdoor Cable Assemblies
- Simplex Outdoor Cable Assemblies
Corning - 004301EB4FR350F-P - Specifications
| General Specifications | - |
|---|---|
| Product Number | 004301EB4FR350F-P |
| EAN Code | 4056418601830 |
| Fiber Category | Single-mode (OS2) |
| Cable Assembly Type | Drop Assemblies |
| Application | Direct Buried, Aerial, Duct |
| Cable Type | ROC dielectric drop, 900 µm |
| Packaging | Individual Pack |
| Termination | One end |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | ROC drop cable fully compliant with Telcordia GR-20 requirements |
| Design and Test Criteria | Telcordia GR-3120 |
| Environmental Conditions | - |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Design | - |
| Fiber Count | 1 |
| Fiber Type | Single-mode |
| Mechanical Specifications | - |
| Cold Mate/Demate | -40 °C (-40 °F) |
| Cable Length | 107 m (350.96 ft) |
| Axial Pull, Plug to Cable, Through the Dust Cap | 100 lb in axial pull with load applied to the dust cap |
| Axial Pull Plug to Adapter Coupling Strength | 222.41 lb |
| Specifications - Connector A | - |
| Connector Type | No connector |
| Specifications - Connector B | - |
| Reflectance, Typical | -65 dB |
| Insertion Loss, Typical | ? 0.15 dB |
| Connector Type | SC APC OptiTap Connector |
| Shipping Dimensions | - |
| Height | 838 mm (32.99 in) |
| Width | 178 mm (7.01 in) |
| Depth | 838 mm (32.99 in) |
| Ordering Information | - |
| Weight | 1.81 kg |
| Packaging Method | Reel |
| Units per Delivery | 1/1" |
| ECCN | 5A991.d |
| Country of Origin | MX - Mexico |
