Brand: Corning
|
SKU:
956139

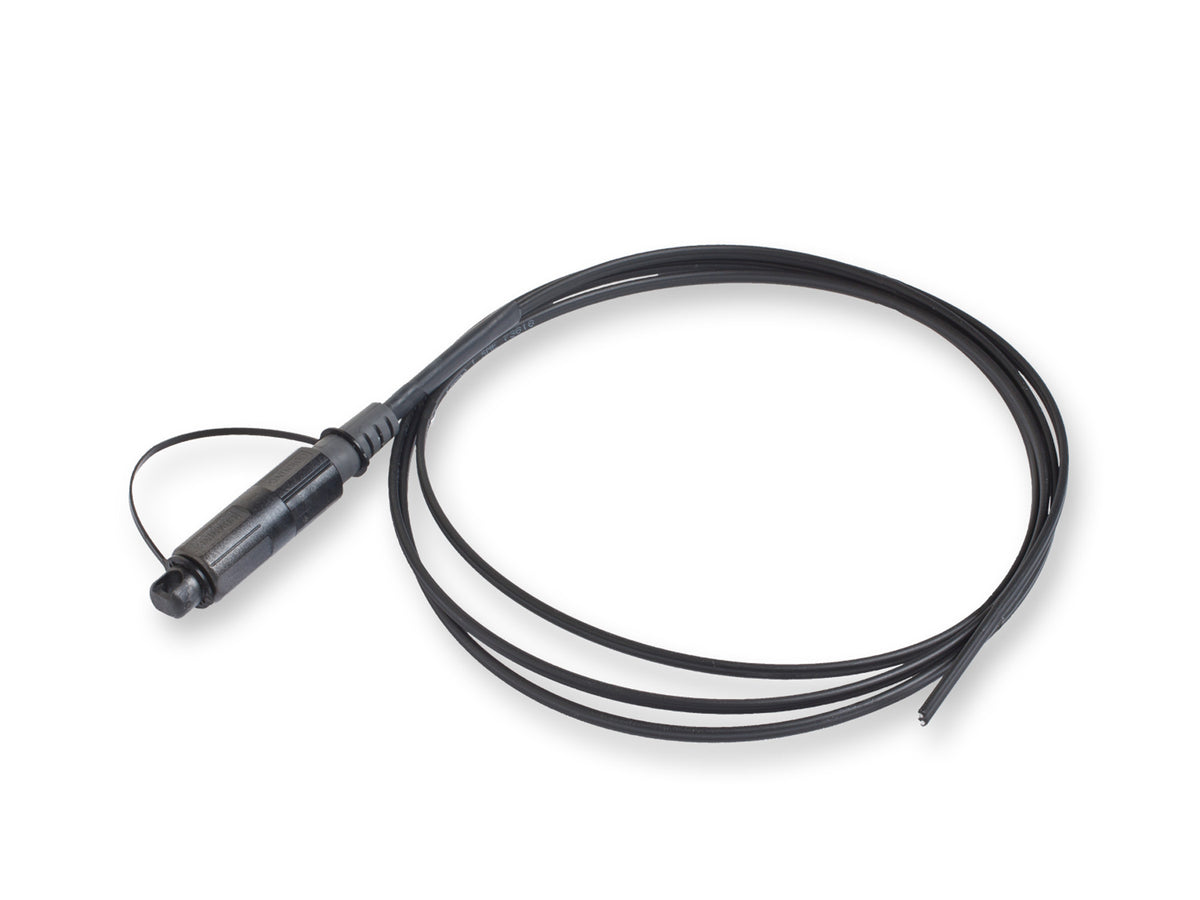

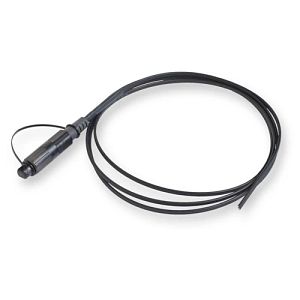

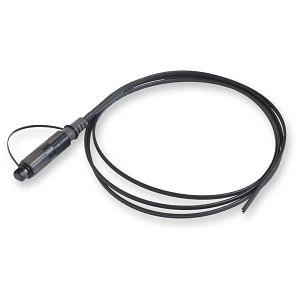

Corning 004301EB4FRA00F-P | OptiTap FastAccess Technology ROC Drop Assembly, 1 F, OptiTap to stub end
Regular price
$395.67
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 004301EB4FRA00F-P | OptiTap FastAccess Technology ROC Drop ...
Regular price
$395.67
Unit price
Description
Description
Corning 004301EB4FRA00F-P | OptiTap FastAccess Technology ROC Drop Assembly, 1 F, OptiTap to stub end Dielectric, Single-mode (OS2), 1000 ft
Corning - 004301EB4FRA00F-P - Features
- Smaller profile and reduced bend-radius
- Designed for rapid connection to external flush-mounted bulkhead adapters on terminals or closures
- Robust design keeps connector intact during installation
- Integral pulling eye/connector cap designed for 100 lb maximum pulling tension
Specifications
Specifications
Corning - 004301EB4FRA00F-P - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Cable Assemblies
- Fiber Optic Cable Assemblies
- Outdoor Cable Assemblies
- Simplex Outdoor Cable Assemblies
Corning - 004301EB4FRA00F-P - Specifications
| General Specifications | - |
|---|---|
| Product Number | 004301EB4FRA00F-P |
| EAN Code | 4056418758572 |
| Fiber Category | Single-mode (OS2) |
| Cable Assembly Type | Drop Assemblies |
| Application | Direct Buried, Aerial, Duct |
| Cable Type | ROC dielectric drop, 900 µm |
| Packaging | Individual Pack |
| Termination | One end |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | ROC drop cable fully compliant with Telcordia GR-20 requirements |
| Design and Test Criteria | Telcordia GR-3120 |
| Environmental Conditions | - |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Design | - |
| Fiber Count | 1 |
| Fiber Type | Single-mode |
| Mechanical Specifications | - |
| Cold Mate/Demate | -40 °C (-40 °F) |
| Cable Length | 305 m (1000.4 ft) |
| Axial Pull, Plug to Cable, Through the Dust Cap | 100 lb in axial pull with load applied to the dust cap |
| Axial Pull Plug to Adapter Coupling Strength | 222.41 lb |
| Specifications - Connector A | - |
| Connector Type | No connector |
| Specifications - Connector B | - |
| Reflectance, Typical | -65 dB |
| Insertion Loss, Typical | ? 0.15 dB |
| Connector Type | SC APC OptiTap Connector |
| Shipping Dimensions | - |
| Height | 838 mm (32.99 in) |
| Width | 178 mm (7.01 in) |
| Depth | 838 mm (32.99 in) |
| Ordering Information | - |
| Weight | 4.76 kg |
| Packaging Method | Reel |
| Units per Delivery | 1/1" |
| ECCN | 5A991.d |
| Country of Origin | MX - Mexico |
| UNSPSC | 26121650 |
| Length | 305 m. |
| No. of Connectors | 1 |
| Connector Configurations | SC/APC |
| Fiber Category | Singlemode - OS2 |
