Brand: Corning
|
SKU:
10155661

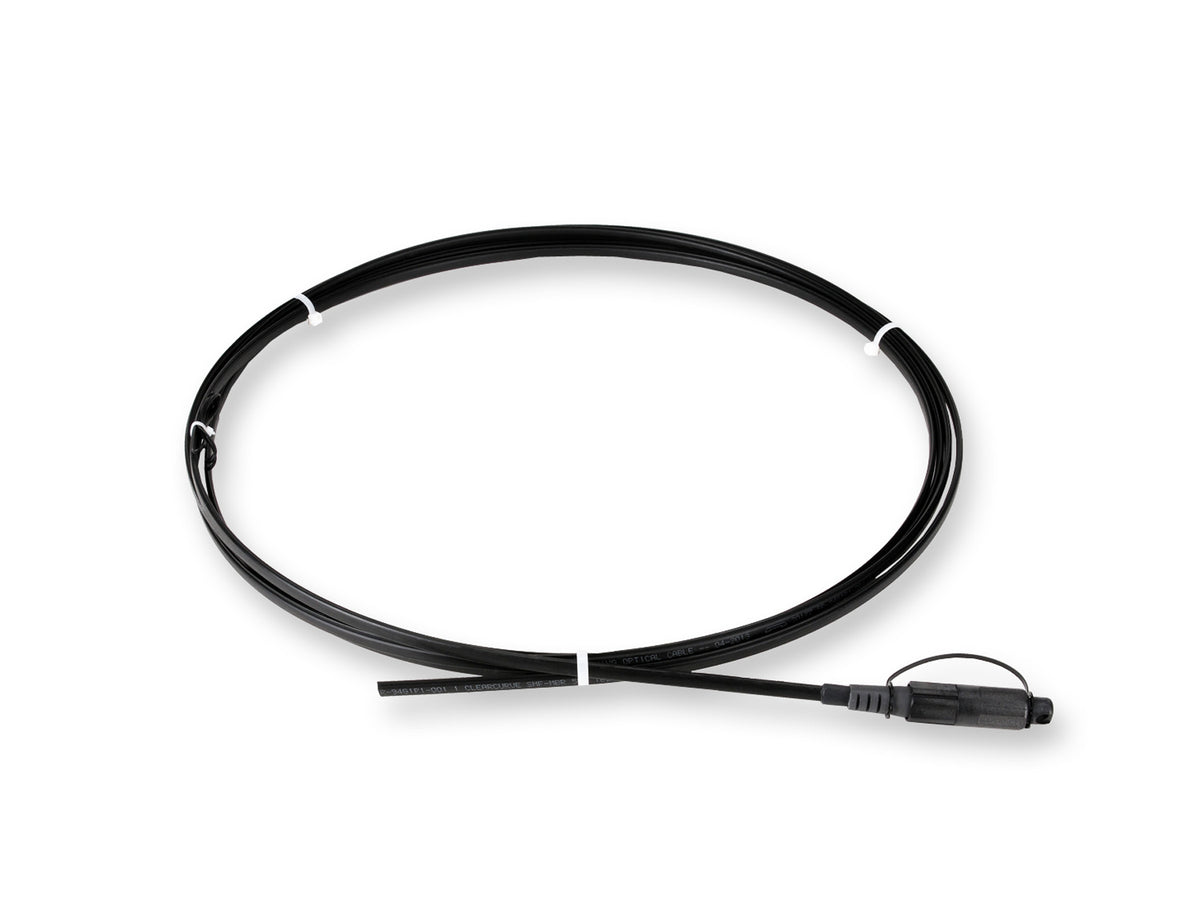

Corning 004301UB1TD250F | OptiTap SST-Drop Indoor/Outdoor Cable Assembly, OptiTap to stub end, 1F, Toneable, Gel-Free
Regular price
$183.32
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 004301UB1TD250F | OptiTap SST-Drop Indoor/Outdoor Cable Ass...
Regular price
$183.32
Unit price
Description
Description
Corning 004301UB1TD250F | OptiTap SST-Drop Indoor/Outdoor Cable Assembly, OptiTap to stub end, 1F, Toneable, Gel-Free Bend-insensitive Single-mode (OS2), 250 ft, bulk pack
Corning - 004301UB1TD250F - Features
- OptiTap connector technology
- Industry standard for existing FTTx installations
- Robust design keeps connector intact during installation
- Integral pulling eye/connector cap designed for 100 lb maximum pulling tension
- Flexible connector offerings
- OptiTap Connector SC APC or pigtailed versions to accommodate any ONT interface
- Indoor/outdoor compact drop cable in standard SST-Drop cable design
- Eliminates need for transition in indoor ONT
Specifications
Specifications
Corning - 004301UB1TD250F - Product Categories
- Shop by Manufacturer/Corning
- Fiber Optic Cable Assemblies
- Outdoor Cable Assemblies
- Simplex Outdoor Cable Assemblies
Corning - 004301UB1TD250F - Specifications
| General Specifications | - |
|---|---|
| Product Number | 004301UB1TD250F |
| EAN Code | 4056418601892 |
| Fiber Category | Bend-insensitive SM (OS2) |
| Cable Assembly Type | Drop Assemblies |
| Environment | Indoor/Outdoor |
| Application | Direct Buried, Aerial, Duct |
| Cable Type | SST-Drop toneable |
| Packaging | Bulk Pack |
| Termination | One end |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | SST-Drop cable fully compliant with Telcordia GR-20 requirements |
| Design and Test Criteria | Telcordia GR-3120 |
| Environmental Conditions | - |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Design | - |
| Fiber Count | 1 |
| Fiber Type | Single-mode |
| Mechanical Specifications | - |
| Cold Mate/Demate | -40 °C (-40 °F) |
| Cable Length | 76.2 m (249.94 ft) |
| Axial Pull, Plug to Cable, Through the Dust Cap | 100 lb in axial pull with load applied to the dust cap |
| Axial Pull Plug to Adapter Coupling Strength | 222.41 lb |
| Specifications - Connector A | - |
| Connector Type | No connector |
| Specifications - Connector B | - |
| Reflectance, Typical | -65 dB |
| Insertion Loss, Typical | ? 0.15 dB |
| Connector Type | SC APC OptiTap Connector |
| Shipping Dimensions | - |
| Height | 508 mm (20 in) |
| Width | 533 mm (20.98 in) |
| Depth | 508 mm (20 in) |
| Ordering Information | - |
| Weight | 8.18 kg |
| Packaging Method | Box |
| Units per Delivery | 5/1" |
