Brand: Corning
|
SKU:
968404

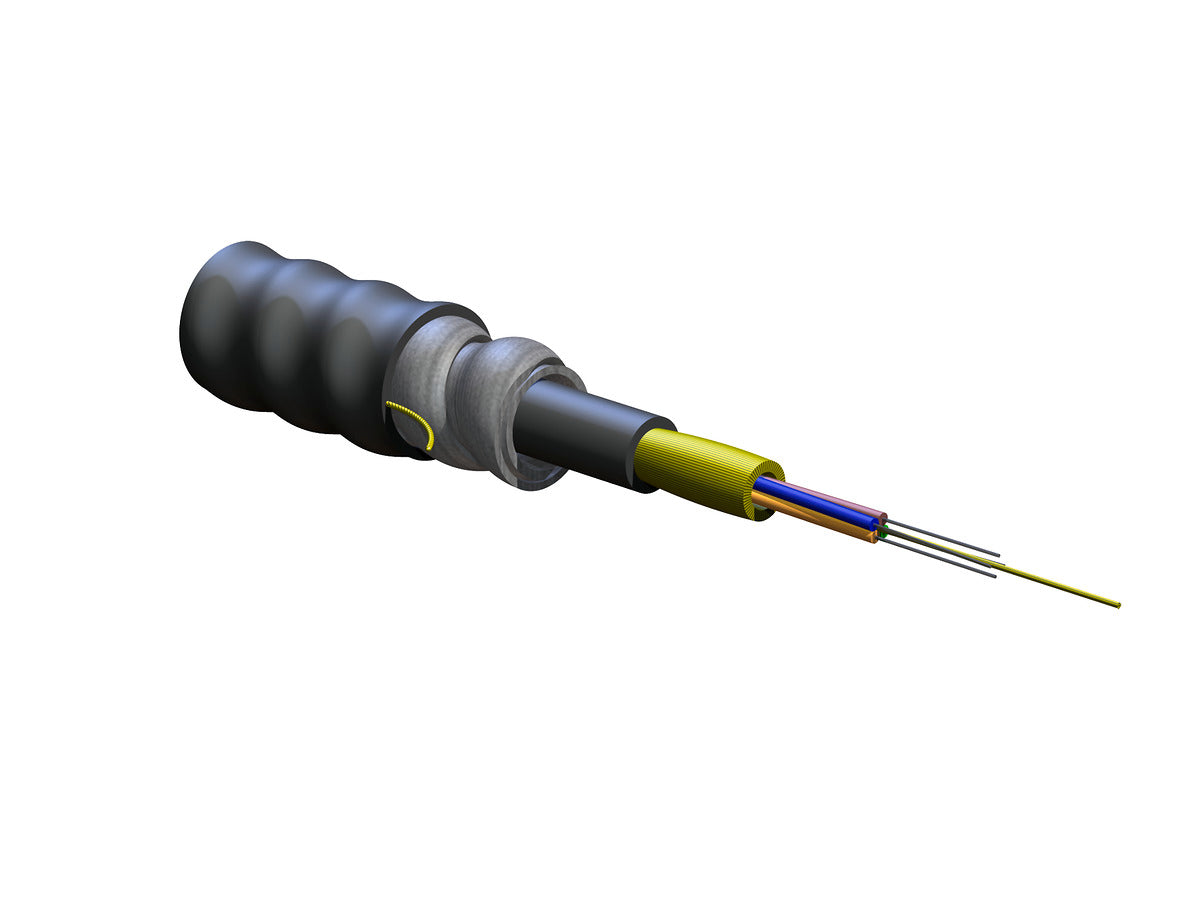

Corning 004E8F-31131-A1 | FREEDM One Tight-Buffered, Interlocking Armored Cable, Riser 4 F, Single-mode (OS2)
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 004E8F-31131-A1 | FREEDM One Tight-Buffered, Interlocking A...
Regular price
$3.00
Unit price
Description
Description
Corning 004E8F-31131-A1 | FREEDM One Tight-Buffered, Interlocking Armored Cable, Riser 4 F, Single-mode (OS2)
Specifications
Specifications
Corning - 004E8F-31131-A1 - Product Categories
- Fiber Optic Cables
- Indoor/Outdoor
- Indoor/Outdoor Riser Cables
Corning - 004E8F-31131-A1 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 004E8F-31131-A1 |
| Item Description | FREEDM One Tight-Buffered, Interlocking Armored Cable, Riser 4 F, Single-mode (OS2) |
| General Specifications | - |
| Product Number | 004E8F-31131-A1 |
| EAN Code | 4056418149912 |
| Environment | Indoor/Outdoor |
| Cable Type | Tight-Buffered |
| Product Type | Interlocking Armor |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Riser (OFCR) |
| Application | Aerial, Direct Buried, Duct, General Purpose Horizontal, Vertical Riser |
| Fiber Count | 4 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFCR, UL 1666, CSA FT-4, ICEA S-104-696 |
| Environmental Conditions | - |
| Temperature Range, Installation | -10°C to 60°C (14°F to 140°F ) |
| Temperature Range, Operation | -40°C to 70°C (-40°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |

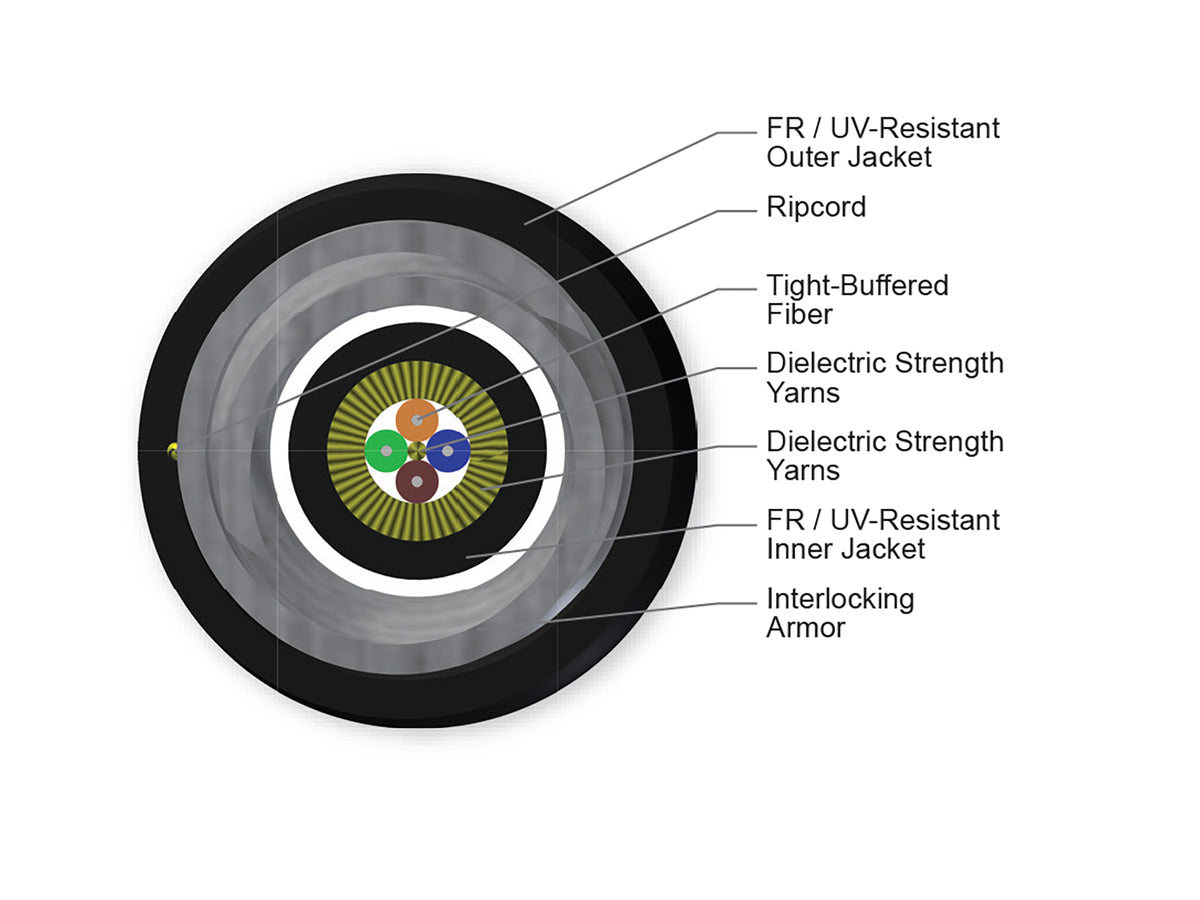

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 4 |
| Number of Ripcords | 2 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Water-Swellable Strength Yarns |
| Tensile Strength Elements and/or Armoring - Layer 2 | Interlocking Armor |
| Inner Jacket Material | Flame-Retardant, UV-Resistant |
| Tight Buffer Color | Blue, Orange, Green, Brown |
| Flame Rating | Riser (OFCR) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 200N (44.96lbf) |
| Max. Tensile Strength, Short-Term | 675N (151.75lbf) |
| Min. Bend Radius Installation | 169.5mm (6.67in) |
| Min. Bend Radius Operation | 113mm (4.45in) |
| Nominal Inner Cable Diameter | 5.5mm (0.22in) |
| Nominal Outer Diameter | 11.3mm (0.44in) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | SMF-28e+ fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 31 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.4 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Dimensions | - |
| Cable Weight | 101.1kg/km (67.94lb/1000 ft) |
