Brand: Corning
|
SKU:
373-COROM1-TB-F02-04

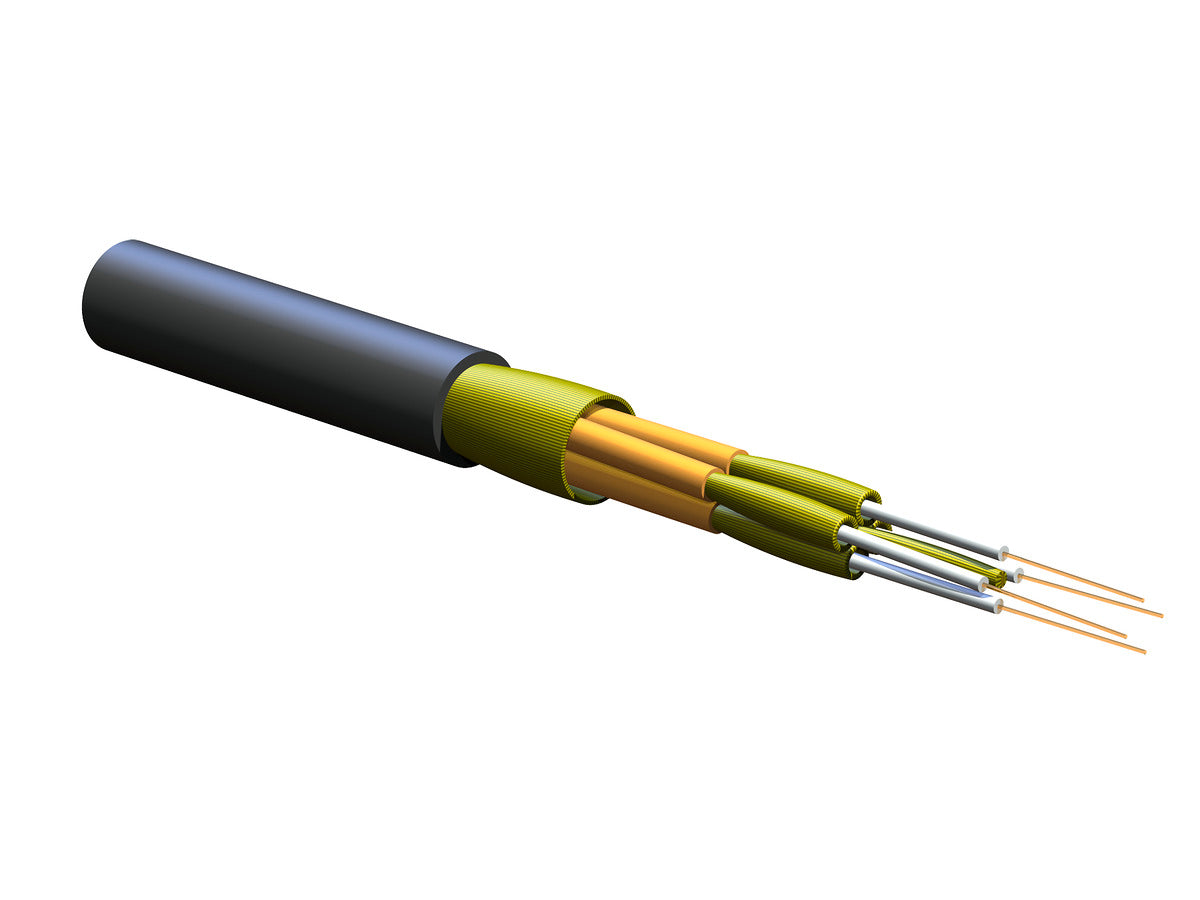

Corning 004K6F-31330-29 | FREEDM Fan-Out Tight-Buffered Cable, Riser 4 F, 62.5 µm multimode (OM1)
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 004K6F-31330-29 | FREEDM Fan-Out Tight-Buffered Cable, Rise...
Regular price
$3.00
Unit price
Brand: Corning
|
SKU:
373-COROM1-TB-F02-04
Regular price
$3.00
Unit price
Shipping calculated at checkout.
Description
Description
Corning 004K6F-31330-29 | FREEDM Fan-Out Tight-Buffered Cable, Riser 4 F, 62.5 µm multimode (OM1)
Specifications
Specifications
Corning - 004K6F-31330-29 - Product Categories
- Fiber Optic Cables
- Indoor/Outdoor
- Indoor/Outdoor Riser Cables
Corning - 004K6F-31330-29 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 004K6F-31330-29 |
| Item Description | FREEDM Fan-Out Tight-Buffered Cable, Riser 4 F, 62.5 µm multimode (OM1) |
| General Specifications | - |
| Product Number | 004K6F-31330-29 |
| EAN Code | 4056418152356 |
| Environment | Indoor/Outdoor |
| Cable Type | Tight-Buffered |
| Product Type | Dielectric |
| Fiber Category | 62.5 µm MM (OM1) |
| Flame Rating | Riser (OFNR) |
| Application | Direct Buried, Duct, General Purpose Horizontal |
| Fiber Count | 4 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNR |
| Design and Test Criteria | ANSI/ICEA S-104-696, CSA FT-4 |
| Environmental Conditions | - |
| Temperature Range, Installation | -10°C to 70°C (14°F to 158°F ) |
| Temperature Range, Operation | -40°C to 70°C (-40°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |
| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 4 |
| Buffer Tube Diameter | 2mm (0.08in) |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Fiber Coloring | Orange |
| Number of Active Tubes | 4 |
| Fibers per Tube | 1 |
| Number of Tube Positions | 4 |
| Flame Rating | Riser (OFNR) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Short-Term | 660N (148.37lbf) |
| Min. Bend Radius Installation | 105mm (4.13in) |
| Min. Bend Radius Operation | 70mm (2.76in) |
| Optical Characteristics | - |
| Fiber Code | K |
| Fiber Name | 62.5 µm MM (OM1) |
| Performance Option Code | 30 |
| Fiber Core Diameter | 62.5µm |
| Minimum Effective Modal Bandwidth (EMB) | 220 MHz |
| Maximum Attenuation | 3.4 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 200 MHz / 500 MHz |
| Serial 1 Gigabit Ethernet | 300 m / 550 m |
| Serial 10 Gigabit Ethernet | 33 m / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM1 |
| Dimensions | - |
| Cable Weight | 32kg/km (21.5lb/1000 ft) |
