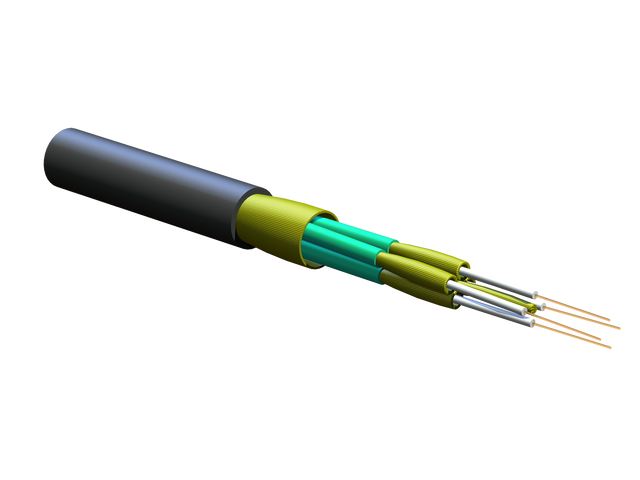

Corning 004T6F-31390-29 | FREEDM Fan-Out Tight-Buffered Cable, Riser
Regular price
$3.03
Unit price
Description
Description
Corning 004T6F-31390-29 | FREEDM Fan-Out Tight-Buffered Cable, Riser 4 F, 50 µm multimode (OM4)
Corning - 004T6F-31390-29 - Features
- 900 µm buffered fibers
- Easy, consistent stripping
- 2.0 mm subunits
- Easy field terminations
- Flame-retardant jacket
- Rugged and durable
- Temperature- and water-resistant
- Superior protection
- All-dielectric construction
- Requires no grounding or bonding
Specifications
Specifications
Corning - 004T6F-31390-29 - Product Categories
- Shop by Manufacturer/Corning
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor Riser Cables
Corning - 004T6F-31390-29 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 004T6F-31390-29 |
| EAN Code | 4056418149059 |
| Environment | Indoor/Outdoor |
| Cable Type | Tight-Buffered |
| Product Type | Dielectric |
| Fiber Category | 50 µm MM (OM4) |
| Flame Rating | Riser (OFNR) |
| Application | Direct Buried, Duct, General Purpose Horizontal |
| Fiber Count | 4 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNR |
| Design and Test Criteria | ANSI/ICEA S-104-696, CSA FT-4 |
| Environmental Conditions | - |
| Temperature Range, Installation | -10 °C to 70 °C (14 °F to 158 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

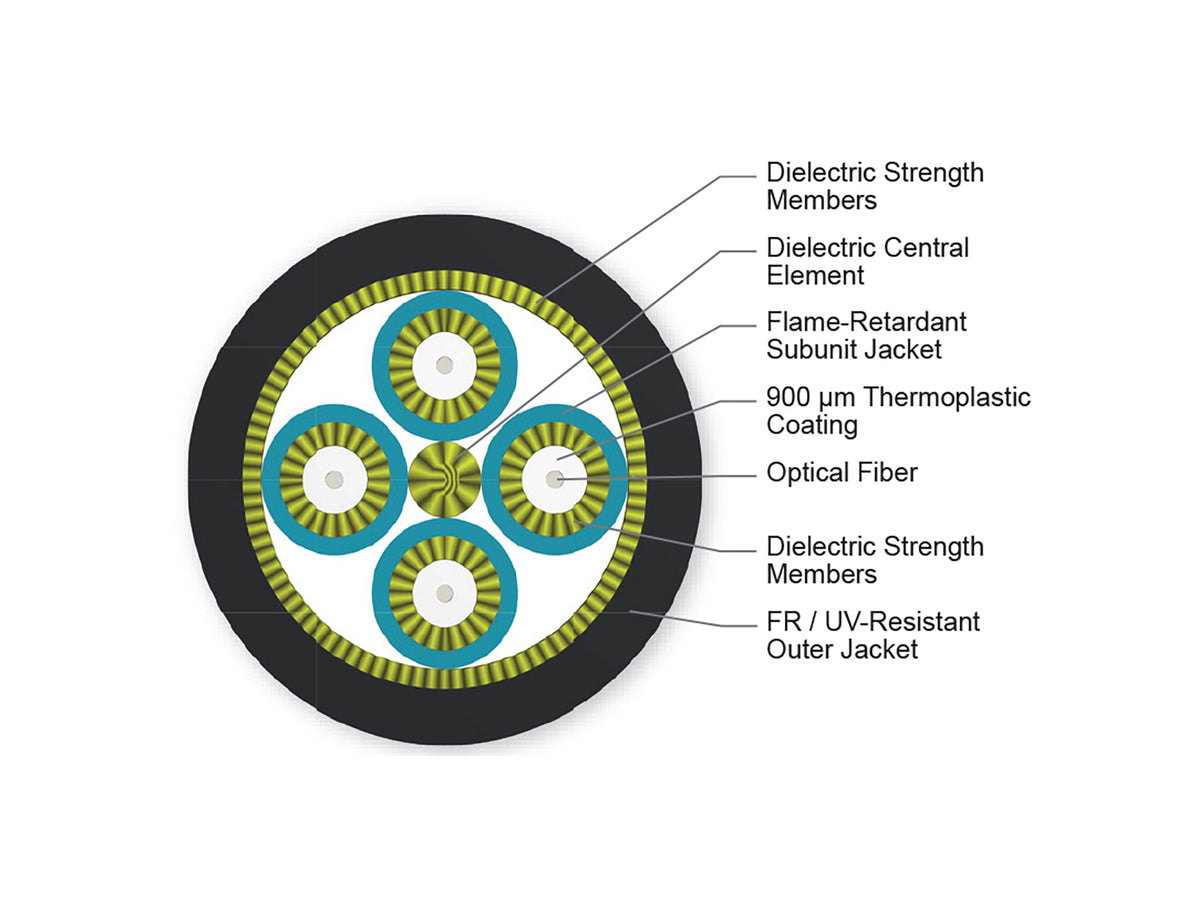

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 4 |
| Buffer Tube Diameter | 2 mm (0.08 in) |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Fiber Coloring | Aqua |
| Number of Active Tubes | 4 |
| Fibers per Tube | 1 |
| Buffer Tube Color Coding | Aqua |
| Number of Tube Positions | 4 |
| Flame Rating | Riser (OFNR) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Short-Term | 660 N (148.37 lbf) |
| Min. Bend Radius Installation | 105 mm (4.13 in) |
| Min. Bend Radius Operation | 70 mm (2.76 in) |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 90 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 4700 MHz*km / - |
| Maximum Attenuation | 2.8 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 3500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 550 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM4 |
| Ordering Information | - |
| Weight | 32 kg/km (21.5 lb/1000 ft) |
