Brand: Corning
|
SKU:
371-COROM3-TBA-04

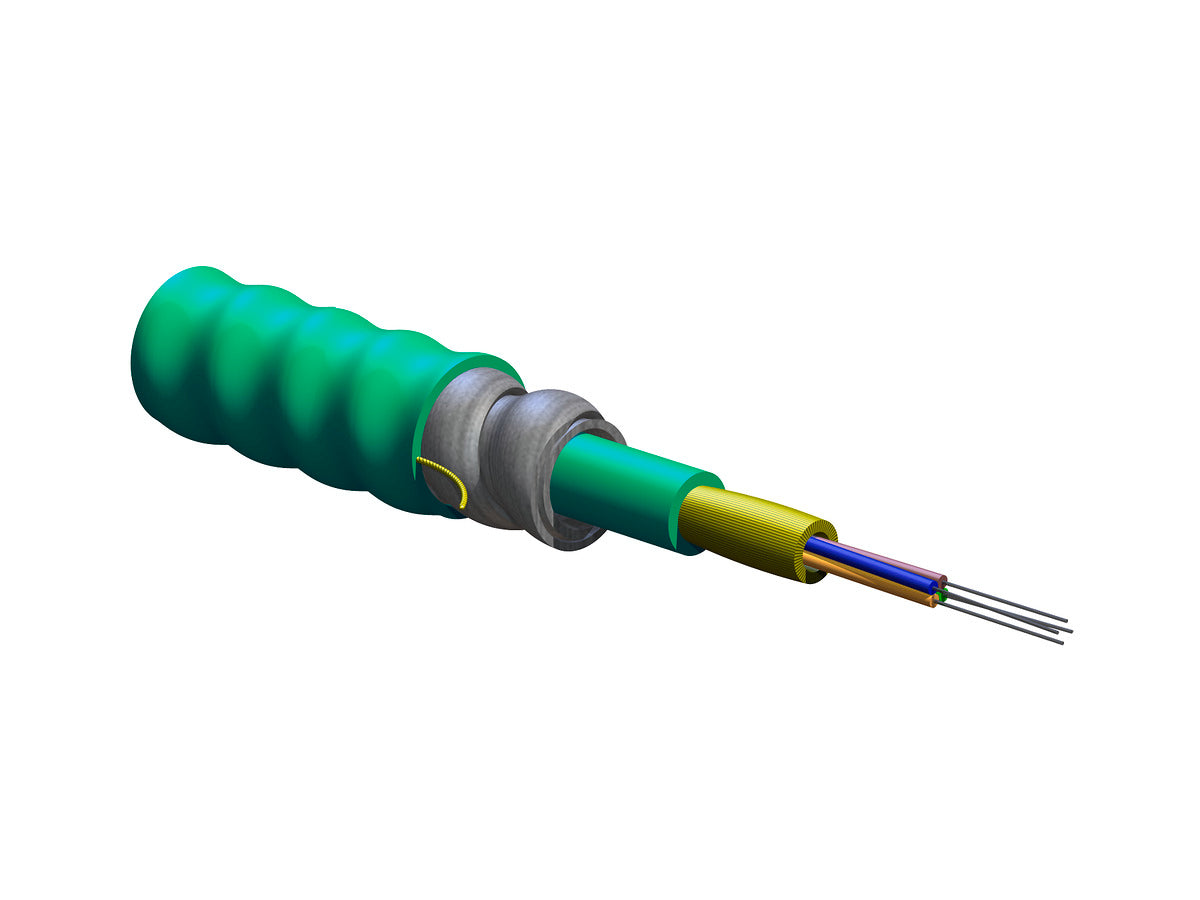

Corning 004T81-31180-A1 | MIC Tight-Buffered, Interlocking Armored Cable, Riser 4 F, 50 µm multimode (OM3)
Regular price
$3.03
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 004T81-31180-A1 | MIC Tight-Buffered, Interlocking Armored ...
Regular price
$3.03
Unit price
Brand: Corning
|
SKU:
371-COROM3-TBA-04
Regular price
$3.03
Unit price
Shipping calculated at checkout.
Description
Description
Corning 004T81-31180-A1 | MIC Tight-Buffered, Interlocking Armored Cable, Riser 4 F, 50 µm multimode (OM3)
Specifications
Specifications
Corning - 004T81-31180-A1 - Product Categories
- Fiber Optic Cables
- Indoor
- Indoor Riser Cables
Corning - 004T81-31180-A1 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 004T81-31180-A1 |
| Item Description | MIC Tight-Buffered, Interlocking Armored Cable, Riser 4 F, 50 µm multimode (OM3) |
| General Specifications | - |
| Product Number | 004T81-31180-A1 |
| EAN Code | 4056418165165 |
| Environment | Indoor |
| Cable Type | Tight-Buffered |
| Product Type | Interlocking Armor |
| Fiber Category | 50 µm MM (OM3) |
| Flame Rating | Riser (OFCR) |
| Application | General Purpose Horizontal, Vertical Riser |
| Fiber Count | 4 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFCR, UL 1666, CSA FT-4, ICEA S-83-596 |
| Flame Test Method | Flame retardant according to IEC 60332-1-2 (single cable) and IEC 60332-3-24 (bunch of cables), Reaction to fire according to EN 50575 and EN 13501-6, Low smoke according to IEC 61034 and zero halogen to IEC 60754-1, Non-corrosive according to IEC 60754-2 |
| Environmental Conditions | - |
| Temperature Range, Installation | -10°C to 60°C (14°F to 140°F ) |
| Temperature Range, Operation | -20°C to 70°C (-4°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |

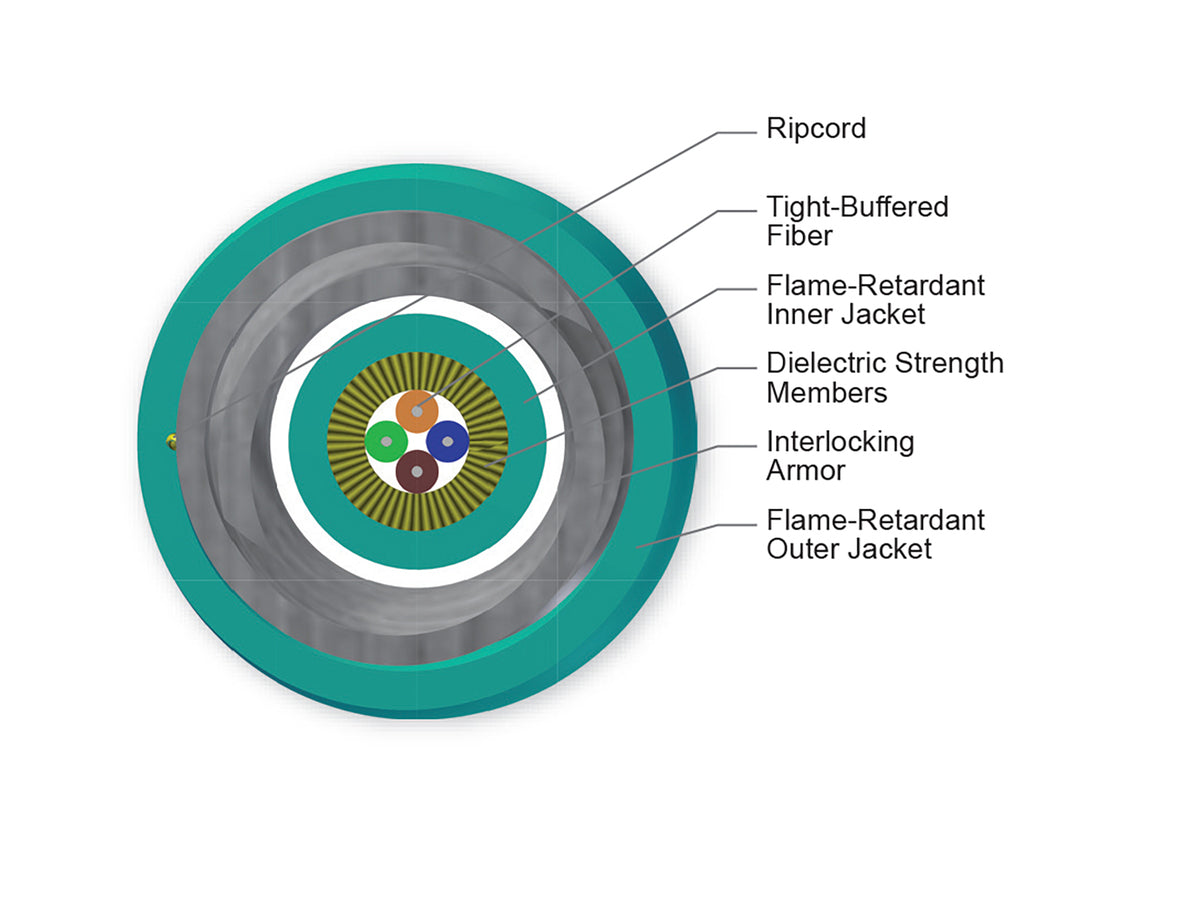

| Cable Design | - |
| Central Element | Yarn |
| Fiber Count | 4 |
| Number of Ripcords | 1 |
| Outer Jacket Color | Aqua |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Inner Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 3 | Interlocking Armor |
| Tight Buffer Color | Blue, Orange, Green, Brown |
| Flame Rating | Riser (OFCR) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term, ?12F | 200N (44.96lbf) |
| Max. Tensile Strength, Long-Term, >12F | 400N (89.92lbf) |
| Max. Tensile Strength, Short-Term, ?12F | 660N (148.37lbf) |
| Max. Tensile Strength, Short-Term, >12F | 1320N (296.75lbf) |
| Min. Bend Radius Installation | 170mm (6.69in) |
| Min. Bend Radius Operation | 113mm (4.45in) |
| Nominal Inner Cable Diameter | 459mm (18.07in) |
| Nominal Outer Diameter | 11.3mm (0.44in) |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 80 |
| Fiber Core Diameter | 50µm |
| Minimum Effective Modal Bandwidth (EMB) | 2000 MHz*km / - |
| Maximum Attenuation | 2.8 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 1500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 300 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM3 |
| Dimensions | - |
| Cable Weight | 924kg/km (620.9lb/1000 ft) |
