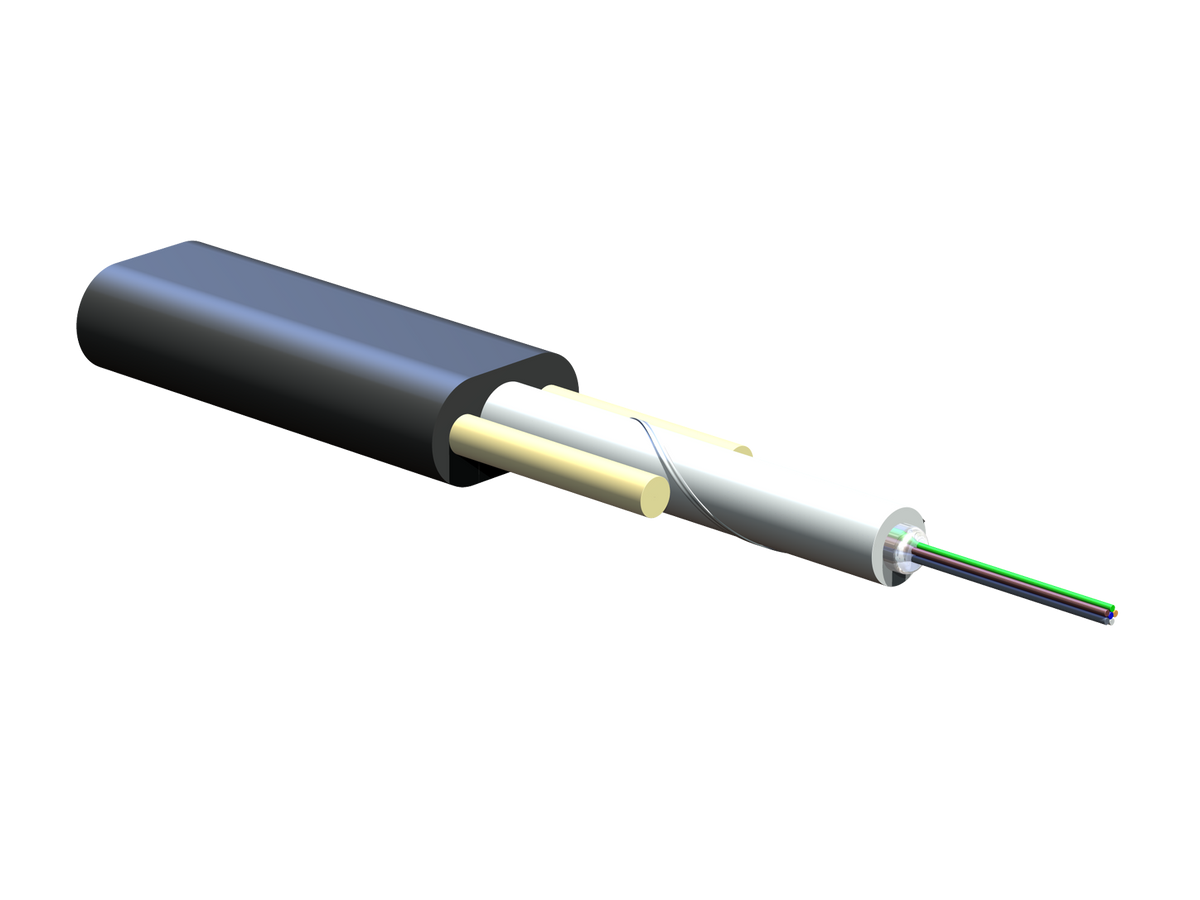

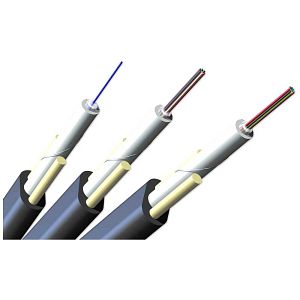

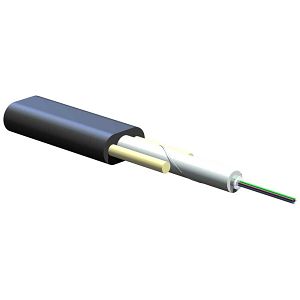

Corning 006EBZ-14101A20 | SST-Drop FREEDM LSZH Riser Cable
Regular price
$1.45
Unit price
Brand: Corning
|
SKU:
9795693
Regular price
$1.45
Unit price
Description
Description
Corning 006EBZ-14101A20 | SST-Drop FREEDM LSZH Riser Cable 6 F, Single-mode (OS2)
The cable jacket consists of a flame-retardant, non-halogenated, limited-smoke material that provides UV and chemical resistance. The all dielectric design eliminates any bonding and grounding requirements.
Standards RoHS: Free of hazardous substances according to RoHS 2011/65/EU Design and Test Criteria: ANSI/ICEA S-110-717, Telcordia GR-20-CORE, Telcordia GR-409-CORE
Corning - 006EBZ-14101A20 - Features
- 900 µm tight buffers (TB3)
- Easy to strip up to 100 mm
- All-dielectric design
- Eliminates bonding and grounding
- Works with industry-standard wedge clamps
- Ease of use
- UV-resistant, flame-retardant low-smoke/zero-halogen (LSZH) jacket
- Rugged, durable and easy to strip
- Tray-rated per UL 13
- UL 1277
- Available in preconnectorized assemblies
- Cable option for AnyLAN
- 900 um tight buffers (TB3)
- Easy to strip up to 100 mm All-dielectric design
- Eliminates bonding and grounding Works with industry-standard wedge clamps
- Ease of use UV-resistant, flame-retardant low-smoke/zero-halogen (LSZH) jacket
- Rugged, durable and sy to strip Tray-rated per UL 13; UL 444; UL 1277; UL 1666; CSA 22.2 No. 230 and No. 232
- Tested to industrial ruggedness standards Available in preconnectorized assemblies
- Cable option for AnyLAN
Specifications
Specifications
Corning - 006EBZ-14101A20 - Product Categories
- Shop by Manufacturer/Corning
- Hardware
- Tools and Supplies
- Miscellaneous
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor Aerial Cables
Corning - 006EBZ-14101A20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 006EBZ-14101A20 |
| EAN Code | 4056418180892 |
| Environment | Indoor/Outdoor |
| Cable Type | FREEDM LSZH Flat-Drop |
| Product Type | Dielectric |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | LSZH/FRNC |
| Application | Aerial, Direct Buried, Duct, Self-Supporting |
| Fiber Count | 6 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | Compact Drop Subunit listed to National Electrical Code (NEC) OFNR, CSA FT-4 |
| Design and Test Criteria | ANSI/ICEA S-110-717, Telcordia GR-20-CORE, Telcordia GR-409-CORE |
| Environmental Conditions | - |
| Temperature Range, Installation | -30 °C to 70 °C (-22 °F to 158 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

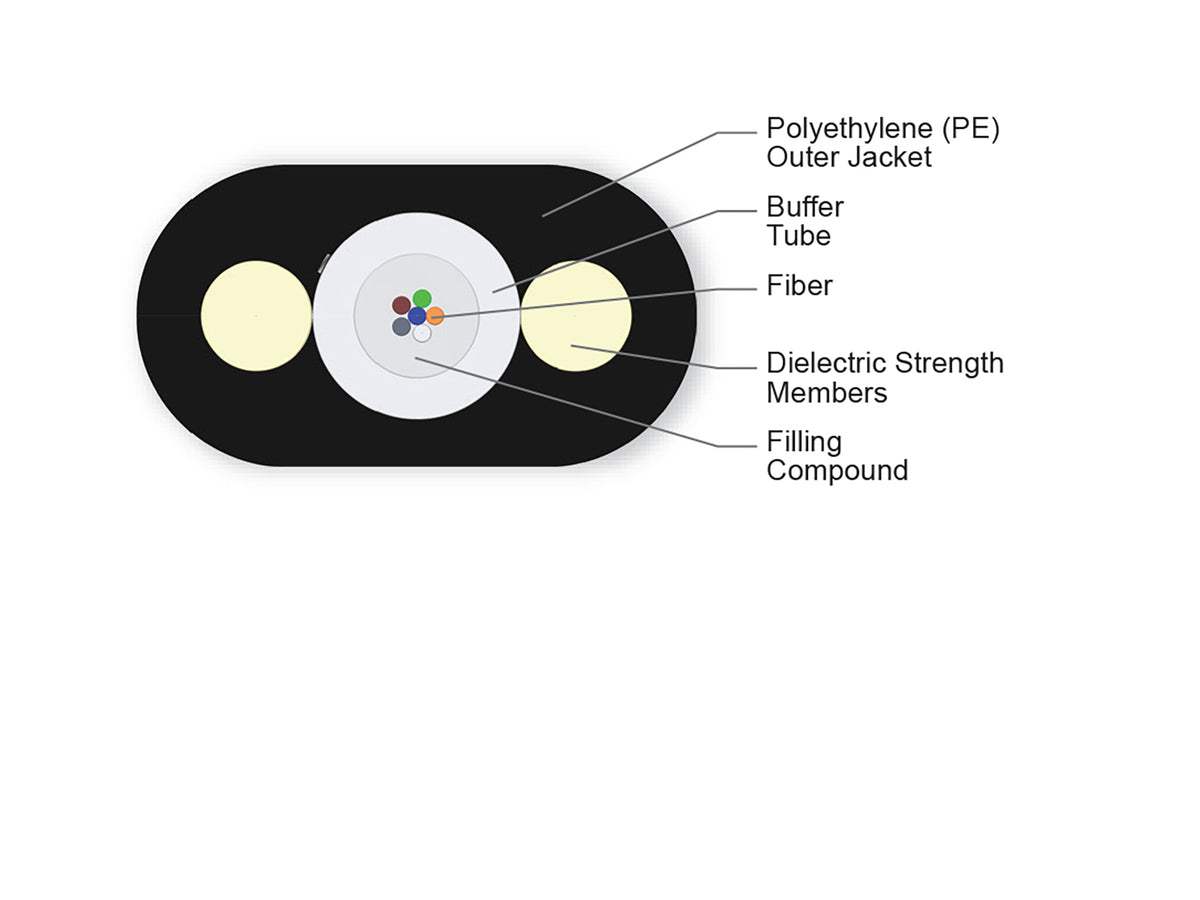

| Cable Design | - |
| Central Element | FRNC/LSZH |
| Fiber Count | 6 |
| Buffer Tube Color Coding | Blue, Orange, Green, Brown, Slate, White |
| Outer Jacket Color | Black |
| Outer Jacket Material | LSZH/FRNC |
| Buffer Tube Color | Blue, Orange, Green, Brown, Slate, White |
| Buffer Tube Diameter | 3 mm (0.12 in) |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 400 N (89.92 lbf) |
| Max. Tensile Strength, Short-Term | 1350 N (303.49 lbf) |
| Min. Bend Radius Installation | 80 mm (3.15 in) |
| Nominal Outer Diameter | 8.1 mm x 4.4 mm (0.32 in x 0.17 in ) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 46 kg/km (30.91 lb/1000 ft) |
| ECCN | 5A991.d |
| Country of Origin | US - United States |
| UNSPSC | 26121607 |
| Brand | SST-Drop, FREEDM |
| Flammability Rating | Riser |
| Fiber Count | 6 |
