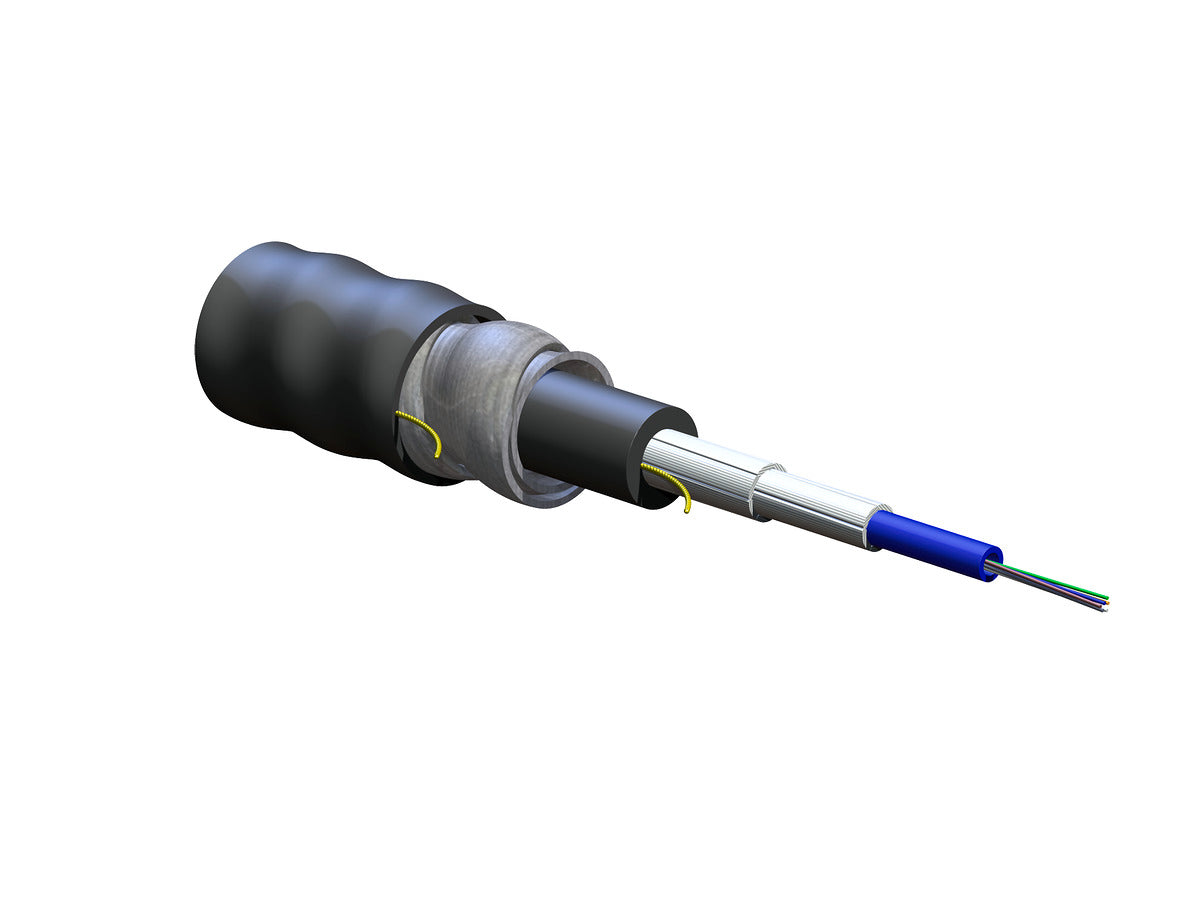

Corning 006ESF-T4101DA1 | FREEDM LST Loose Tube, Gel-Free, Interlocking Armored Cable, Riser 6 F, Single-mode (OS2)
Regular price
$3.06
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 006ESF-T4101DA1 | FREEDM LST Loose Tube, Gel-Free, Interloc...
Regular price
$3.06
Unit price
Brand: Corning
|
SKU:
373-COR8.3LTA-06-CEN
Regular price
$3.06
Unit price
Shipping calculated at checkout.
Description
Description
Corning 006ESF-T4101DA1 | FREEDM LST Loose Tube, Gel-Free, Interlocking Armored Cable, Riser 6 F, Single-mode (OS2)
Specifications
Specifications
Corning - 006ESF-T4101DA1 - Product Categories
- Fiber Optic Cables
- Indoor/Outdoor
- Indoor/Outdoor Riser Cables
Corning - 006ESF-T4101DA1 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 006ESF-T4101DA1 |
| Item Description | FREEDM LST Loose Tube, Gel-Free, Interlocking Armored Cable, Riser 6 F, Single-mode (OS2) |
| General Specifications | - |
| Product Number | 006ESF-T4101DA1 |
| EAN Code | 4056420000000 |
| Environment | Indoor/Outdoor |
| Cable Type | Loose Tube |
| Product Type | Interlocking Armor |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Riser (OFCR) |
| Application | Aerial, Direct Buried, Duct, General Purpose Horizontal, Vertical Riser |
| Fiber Count | 6 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFCR, CSA OFC FT-4 |
| Common Installations | Outdoor aerial and duct, indoor vertical riser and general purpose horizontal according to National Electrical Code (NEC) Article 770 |
| Design and Test Criteria | ANSI/ICEA S-104-696 |
| Environmental Conditions | - |
| Temperature Range, Installation | -10°C to 60°C (14°F to 140°F ) |
| Temperature Range, Operation | -40°C to 70°C (-40°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |

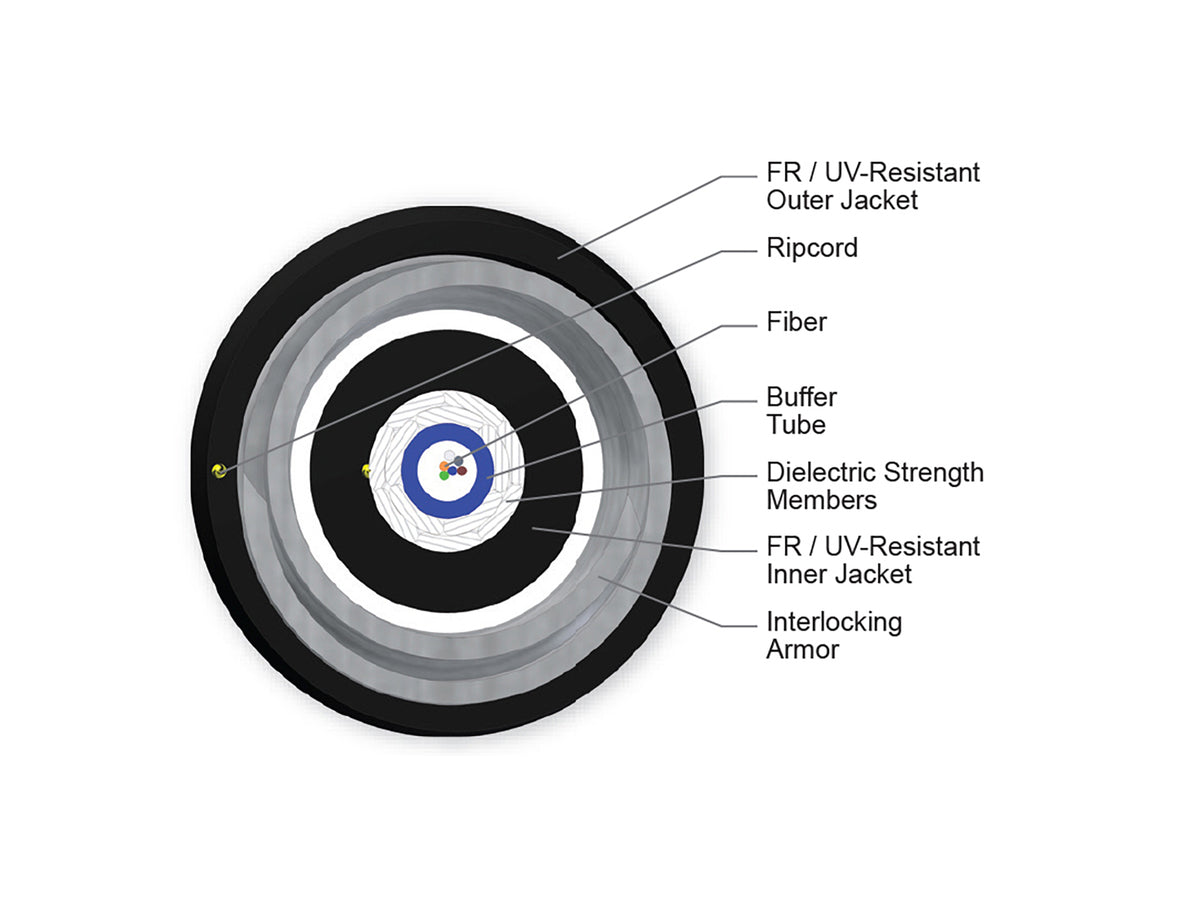

| Cable Design | - |
| Fiber Count | 6 |
| Number of Ripcords | 1 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Water-swellable dielectric strength members |
| Tensile Strength Elements and/or Armoring - Layer 2 | Interlocking Armor |
| Inner Jacket Material | Flame-Retardant, UV-Resistant |
| Number of Active Tubes | 1 |
| Number of Tube Positions | 1 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White |
| Fibers per Tube | 6 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 400N (89.92lbf) |
| Max. Tensile Strength, Short-Term | 1350N (303.49lbf) |
| Min. Bend Radius Installation | 205mm (8.07in) |
| Min. Bend Radius Operation | 137mm (5.39in) |
| Nominal Outer Diameter | 13.7mm (0.54in) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 01 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Dimensions | - |
| Cable Weight | 182kg/km (122.3lb/1000 ft) |
