Brand: Corning
|
SKU:
370-647-FDDI2.0-06

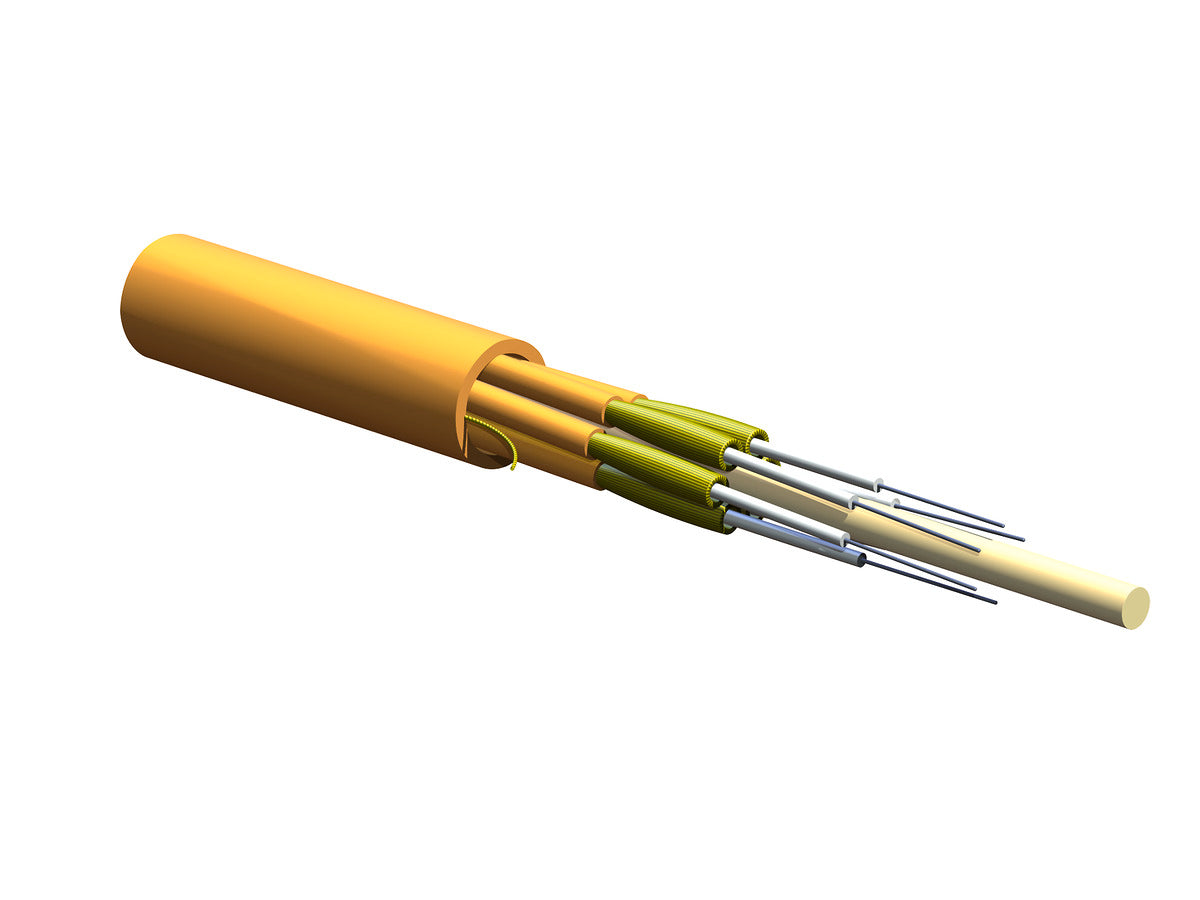

Corning 006K61-31330-24 | Fan-Out Tight-Buffered Cable, Riser 6 F, 2.0 mm Subunits, 62.5 µm multimode (OM1)
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 006K61-31330-24 | Fan-Out Tight-Buffered Cable, Riser 6 F,...
Regular price
$3.00
Unit price
Brand: Corning
|
SKU:
370-647-FDDI2.0-06
Regular price
$3.00
Unit price
Shipping calculated at checkout.
Description
Description
Corning 006K61-31330-24 | Fan-Out Tight-Buffered Cable, Riser 6 F, 2.0 mm Subunits, 62.5 µm multimode (OM1)
Specifications
Specifications
Corning - 006K61-31330-24 - Product Categories
- Fiber Optic Cables
- Indoor
- Indoor Riser Cables
Corning - 006K61-31330-24 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 006K61-31330-24 |
| Item Description | Fan-Out Tight-Buffered Cable, Riser 6 F, 2.0 mm Subunits, 62.5 µm multimode (OM1) |
| General Specifications | - |
| Product Number | 006K61-31330-24 |
| EAN Code | 4056418191201 |
| Environment | Indoor |
| Cable Type | Tight-Buffered |
| Product Type | Distribution |
| Fiber Category | 62.5 µm MM (OM1) |
| Flame Rating | Riser (OFNR) |
| Application | General Purpose Horizontal, Vertical Riser |
| Fiber Count | 6 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNR, CSA FT-4, ICEA S-83-596 |
| Flame Test Method | UL-1666 (for riser and general building applications) |
| Environmental Conditions | - |
| Temperature Range, Installation | -10°C to 60°C (14°F to 140°F ) |
| Temperature Range, Operation | -20°C to 70°C (-4°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |

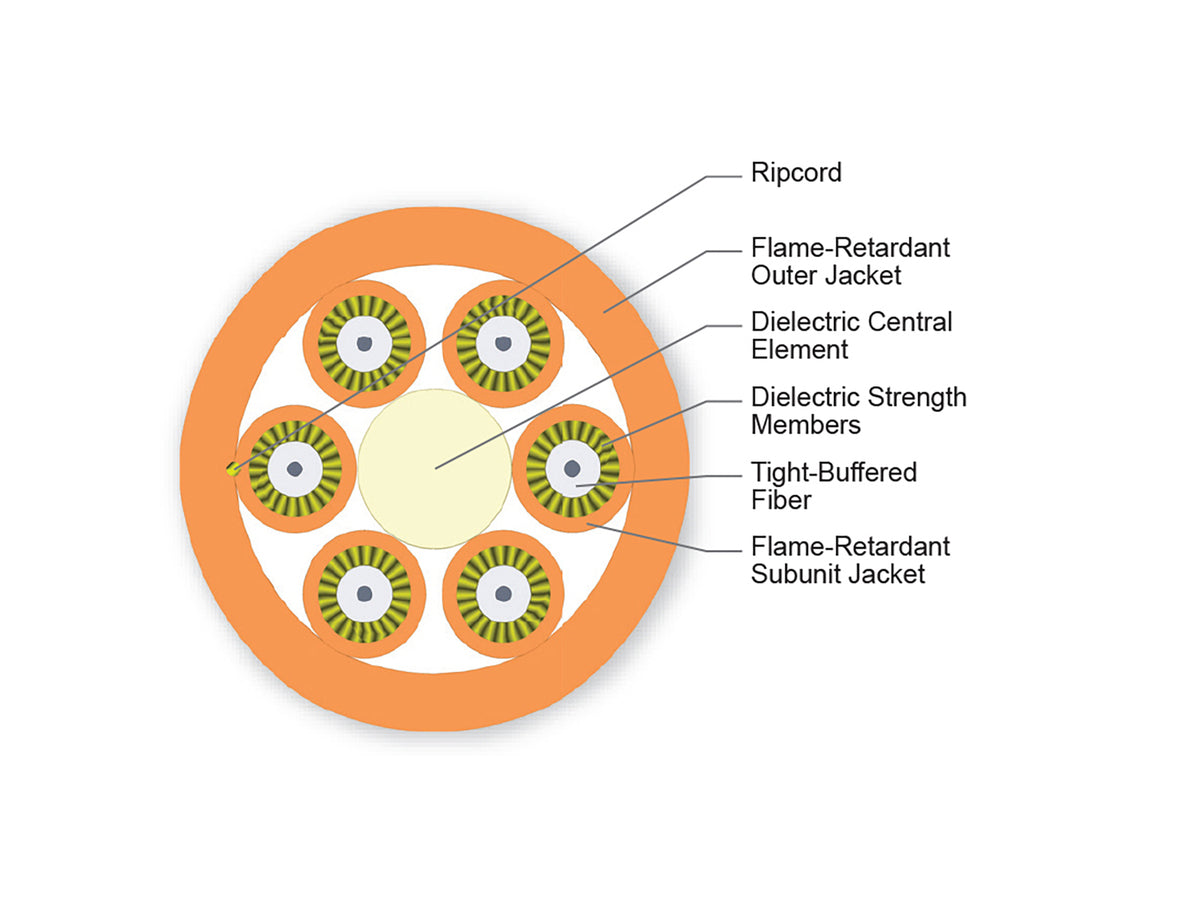

| Cable Design | - |
| Central Element | GRP |
| Fiber Count | 6 |
| Number of Ripcords | 1 |
| Outer Jacket Color | Orange |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tensile Strength Elements and/or Armoring - Layer 2 | Dielectric strength members |
| Number of Subunits | 6 |
| Subunit Color | Orange |
| Subunit Diameter | 2mm (0.08in) |
| Subunit Jacket Material | Flame-retardant |
| Tight Buffer Color | White |
| Flame Rating | Riser (OFNR) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Short-Term | 660N (148.37lbf) |
| Min. Bend Radius Installation | 125mm (4.92in) |
| Min. Bend Radius Operation | 83mm (3.27in) |
| Optical Characteristics | - |
| Fiber Code | K |
| Fiber Name | 62.5 µm MM (OM1) |
| Performance Option Code | 30 |
| Fiber Core Diameter | 62.5µm |
| Minimum Effective Modal Bandwidth (EMB) | 220 MHz |
| Maximum Attenuation | 3.4 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 200 MHz / 500 MHz |
| Serial 1 Gigabit Ethernet | 300 m / 550 m |
| Serial 10 Gigabit Ethernet | 33 m / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM1 |
| Dimensions | - |
| Cable Weight | 60kg/km (40.32lb/1000 ft) |
