Brand: Corning
|
SKU:
373-COROM1-TBRA-06
Corning 006K8F-31130-A1 | FREEDM One Tight-Buffered, Interlocking Armored Cable, Riser
Regular price
$4.54
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 006K8F-31130-A1 | FREEDM One Tight-Buffered, Interlocking A...
Regular price
$4.54
Unit price
Brand: Corning
|
SKU:
373-COROM1-TBRA-06
Regular price
$4.54
Unit price
Description
Description

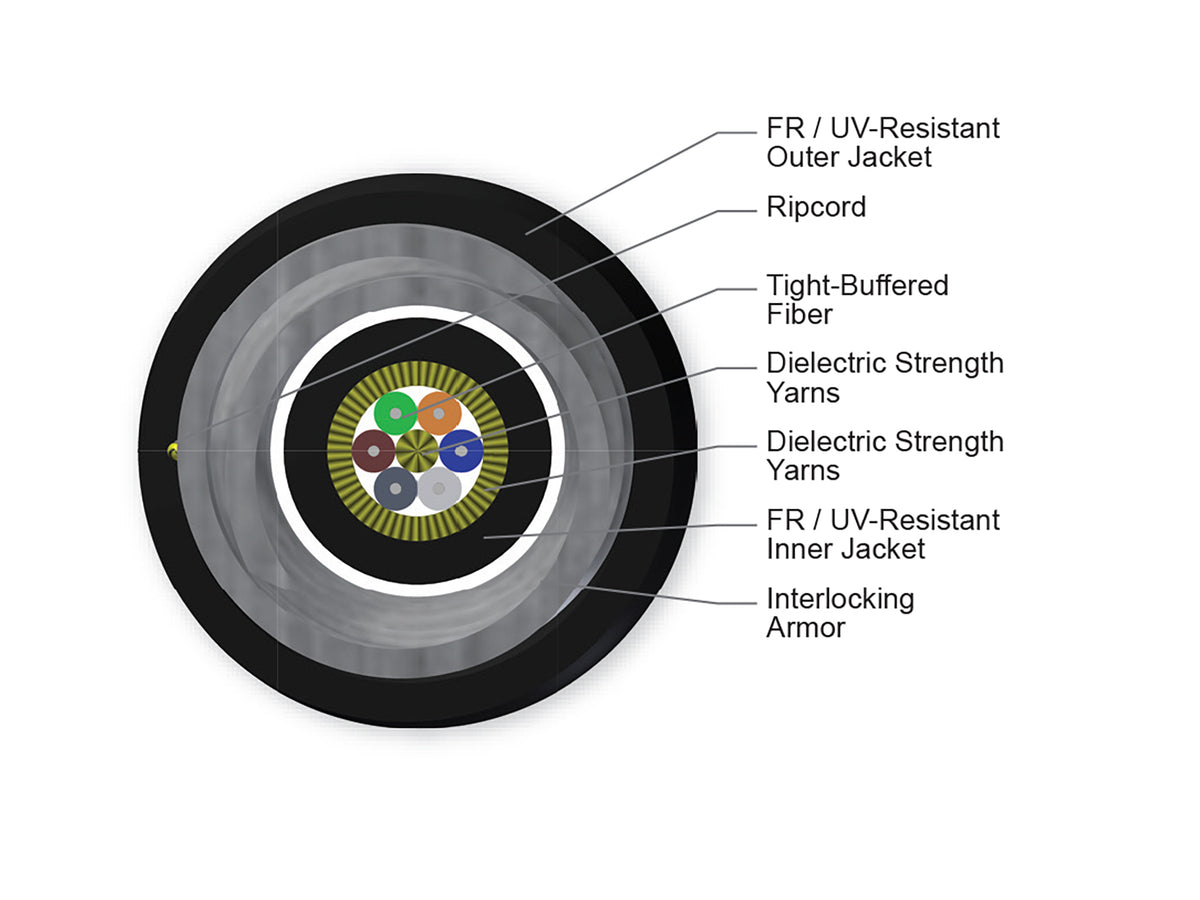

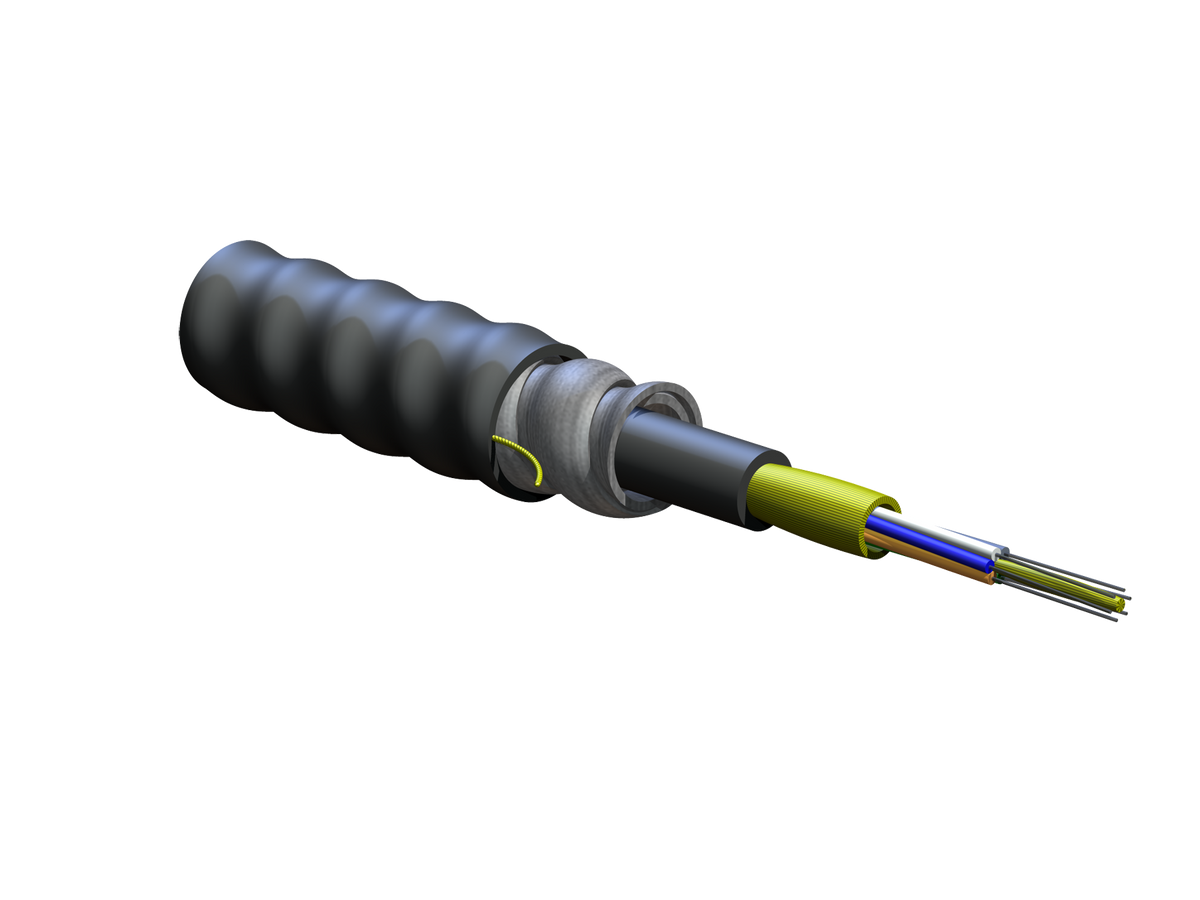

Corning 006K8F-31130-A1 | FREEDM One Tight-Buffered, Interlocking Armored Cable, Riser 6 F, 62.5 µm multimode (OM1)
Corning - 006K8F-31130-A1 - Features
- Waterblocking technology
- OSP (outdoor) applications
- Flexible, interlocking armor design
- Seven times crush protection compared to non-armored cables
- UV-resistant, flame-retardant jacket
- Rugged, durable and easy to strip
Specifications
Specifications
Corning - 006K8F-31130-A1 - Product Categories
- Shop by Manufacturer/Corning
- Data Communications and Networking
- Fiber Optic Cable
- Fiber Optic Indoor | Outdoor Cable
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor Riser Cables
Corning - 006K8F-31130-A1 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 006K8F-31130-A1 |
| EAN Code | 4056418199047 |
| Environment | Indoor/Outdoor |
| Cable Type | Tight-Buffered |
| Product Type | Interlocking Armor |
| Fiber Category | 62.5 µm MM (OM1) |
| Flame Rating | Riser (OFCR) |
| Application | Aerial, Direct Buried, Duct, General Purpose Horizontal, Vertical Riser |
| Fiber Count | 6 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFCR, UL 1666, CSA FT-4, ICEA S-104-696 |
| Environmental Conditions | - |
| Temperature Range, Installation | -10 °C to 60 °C (14 °F to 140 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 6 |
| Number of Ripcords | 2 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Water-swellable strength members |
| Tensile Strength Elements and/or Armoring - Layer 2 | Interlocking Armor |
| Inner Jacket Material | Flame-Retardant, UV-Resistant |
| Tight Buffer Color | Blue, Orange, Green, Brown, Slate, White |
| Flame Rating | Riser (OFCR) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Short-Term | 675 N (151.75 lbf) |
| Min. Bend Radius Installation | 169.5 mm (6.67 in) |
| Min. Bend Radius Operation | 113 mm (4.45 in) |
| Nominal Outer Diameter | 11.3 mm (0.44 in ) |
| Optical Characteristics | - |
| Fiber Code | K |
| Fiber Name | 62.5 µm MM (OM1) |
| Performance Option Code | 30 |
| Fiber Core Diameter | 62.5 µm |
| Minimum Effective Modal Bandwidth (EMB) | 220 MHz |
| Maximum Attenuation | 3.4 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 200 MHz / 500 MHz |
| Serial 1 Gigabit Ethernet | 300 m / 550 m |
| Serial 10 Gigabit Ethernet | 33 m / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM1 |
| Ordering Information | - |
| Weight | 1006 kg/km (676 lb/1000 ft) |
| Type | Indoor Outdoor Cable |
| Application | Indoor/Outdoor |
| Cable Type | Tight Buffered |
| Transmission Mode | Multimode |
| Fiber Type | OM1 |
| Jacket Flame Rating | OFCR FT4 |
| Jacket Material | Flame Retardant, UV-Resistant |
| Jacket Color | Black |
| Fiber Count | 6 |
| Speed | 62.5um |
| Outside Diameter | 0.45 in. (11.5mm) |
| Armored | Yes |
| Armor Type | Interlocking Aluminum |
| Construction | Tight Buffer |
