Brand: Corning
|
SKU:
373-COROM4-LTDP-06
Corning 006TSP-T4190D20 | FREEDM LST Loose Tube, Gel-Free Cable, Plenum
Regular price
$7.09
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 006TSP-T4190D20 | FREEDM LST Loose Tube, Gel-Free Cable, Pl...
Regular price
$7.09
Unit price
Brand: Corning
|
SKU:
373-COROM4-LTDP-06
Regular price
$7.09
Unit price
Shipping calculated at checkout.
Description
Description

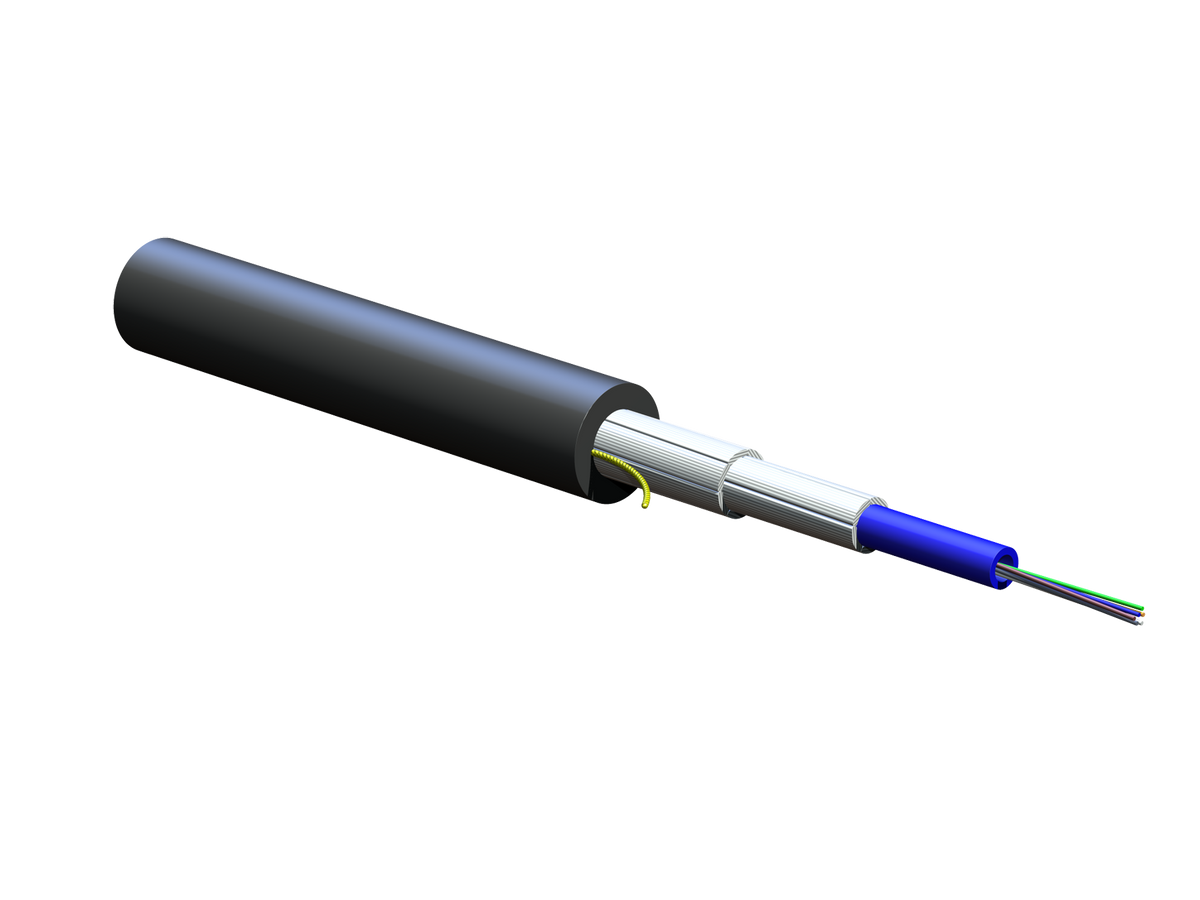

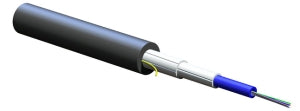

Corning 006TSP-T4190D20 | FREEDM LST Loose Tube, Gel-Free Cable, Plenum 6 F, 50 µm multimode (OM4)
Corning - 006TSP-T4190D20 - Features
- Gel-free waterblocking technology
- Craft-friendly cable preparation
- Loose tube design
- Stable performance and compatibility with all common fiber types
- Color-coded fibers
- Quick and easy identification
- All-dielectric construction
- Requires no grounding or bonding
- All-dielectric strength member
- Mechanical durability
Specifications
Specifications
Corning - 006TSP-T4190D20 - Product Categories
- Shop by Manufacturer/Corning
- Wire & Cable
- Voice and Data Cable
- Indoor - Outdoor Fiber Optic Cable
- Data Communications and Networking
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor Plenum Cables
Corning - 006TSP-T4190D20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 006TSP-T4190D20 |
| EAN Code | 4056418176697 |
| Environment | Indoor/Outdoor |
| Cable Type | Loose Tube |
| Product Type | Dielectric |
| Fiber Category | 50 µm MM (OM4) |
| Flame Rating | Plenum (OFNP) |
| Application | Aerial, Direct Buried, General Purpose Horizontal |
| Fiber Count | 6 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNP, CSA FT-6 |
| Design and Test Criteria | ANSI/ICEA S-104-696, NFPA 262 (for plenum, riser and general building applications) |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 0 °C (32 °F to 32 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |

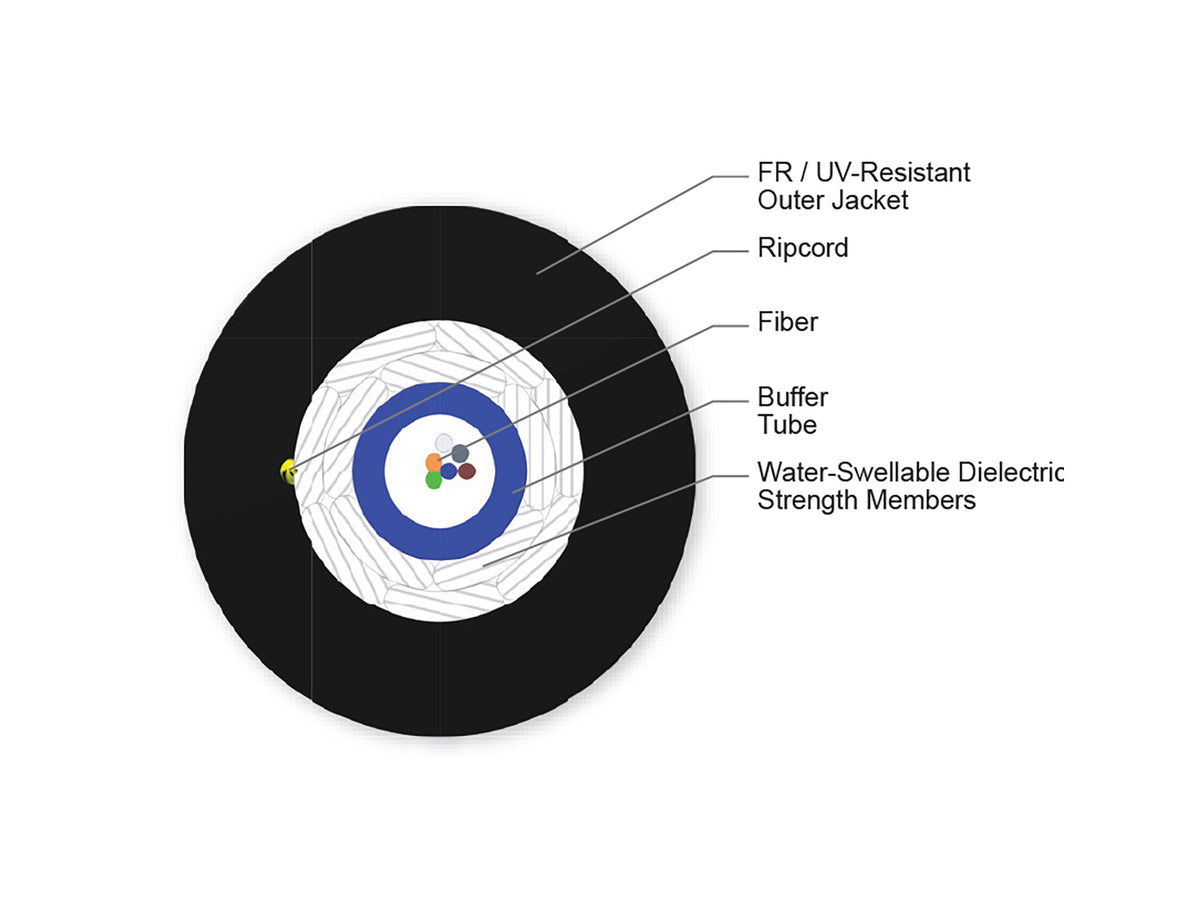

| Cable Design | - |
| Fiber Count | 6 |
| Buffer Tube Color Coding | Aqua |
| Number of Ripcords | 2 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Buffer Tube Color | Aqua |
| Number of Active Tubes | 1 |
| Number of Tube Positions | 1 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White |
| Fibers per Tube | 6 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 400 N (89.92 lbf) |
| Max. Tensile Strength, Short-Term | 1350 N (303.49 lbf) |
| Min. Bend Radius Installation | 111 mm (4.37 in) |
| Min. Bend Radius Operation | 74 mm (2.91 in) |
| Nominal Outer Diameter | 7.4 mm (0.29 in ) |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 90 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 4700 MHz*km / - |
| Maximum Attenuation | 3.0 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 3500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1100 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 550 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM4 |
| Ordering Information | - |
| Weight | 6098 kg/km (4097.67 lb/1000 ft) |
| Type | Indoor Outdoor Cable |
| Application | Indoor/Outdoor |
| Cable Type | Loose Tube |
| Transmission Mode | Multimode |
| Fiber Type | OM4 |
| Jacket Flame Rating | OFNP FT6 |
| Jacket Material | Flame Retardant, UV-Resistant |
| Jacket Color | Black |
| Fiber Count | 6 |
| Speed | 50um |
| Outside Diameter | 0.29 in. (7.4mm) |
| Water Blocking | Gel-free |
| Construction | Loose Tube, Gel-Free |
