Brand: Corning
|
SKU:
370-COROS2-LT2-14G-6

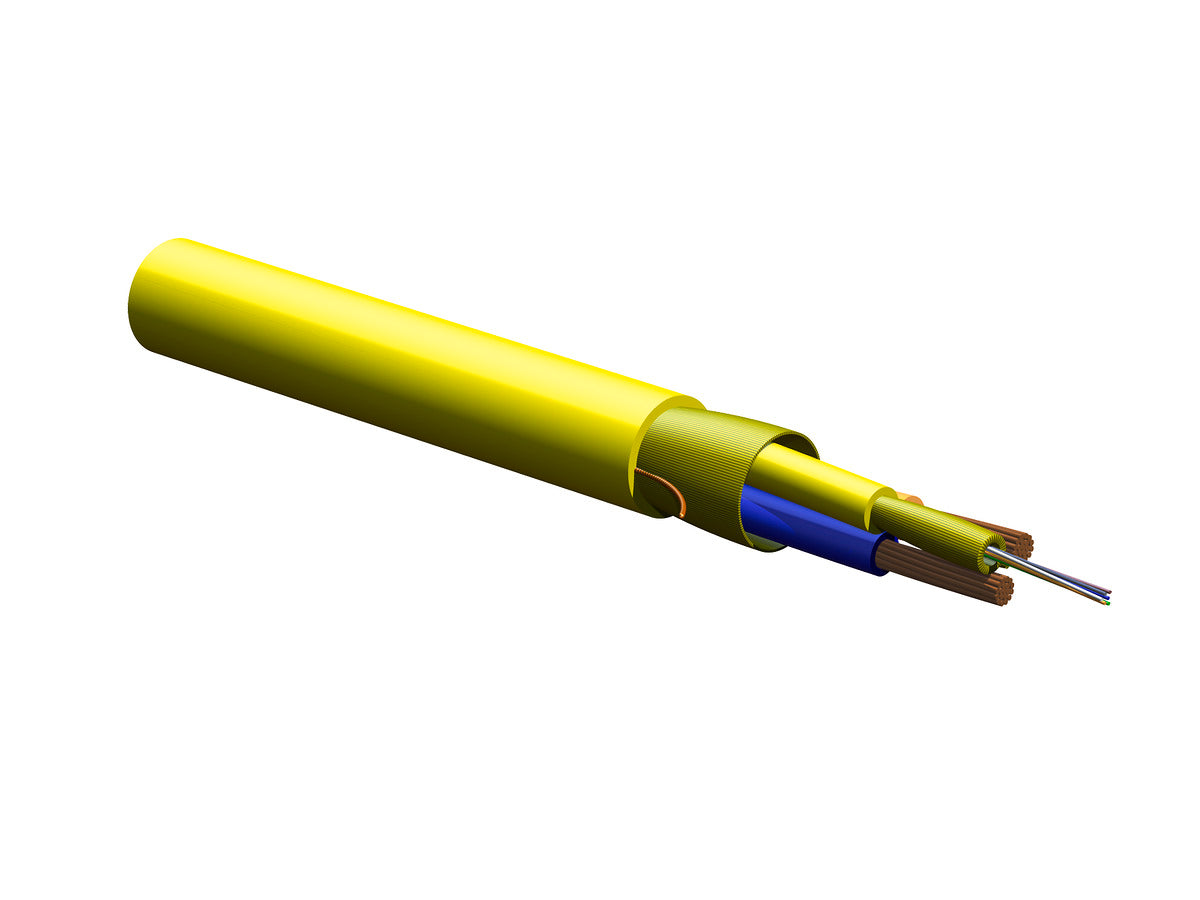

Corning 006ZD8-21X01M20 | ActiFi Composite Cable, Loose Tube, Indoor, Plenum 6 F, 2 Cu Conductor, 14AWG
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 006ZD8-21X01M20 | ActiFi Composite Cable, Loose Tube, Indoo...
Regular price
$3.00
Unit price
Brand: Corning
|
SKU:
370-COROS2-LT2-14G-6
Regular price
$3.00
Unit price
Shipping calculated at checkout.
Description
Description
Corning 006ZD8-21X01M20 | ActiFi Composite Cable, Loose Tube, Indoor, Plenum 6 F, 2 Cu Conductor, 14AWG
Specifications
Specifications
Corning - 006ZD8-21X01M20 - Product Categories
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 006ZD8-21X01M20 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 006ZD8-21X01M20 |
| Item Description | ActiFi Composite Cable, Loose Tube, Indoor, Plenum 6 F, 2 Cu Conductor, 14AWG |
| General Specifications | - |
| Product Number | 006ZD8-21X01M20 |
| Environment | Indoor |
| Cable Type | Loose Tube |
| Fiber Category | SMF-28 Ultra fiber |
| Flame Rating | Plenum CL3P |
| Application | Plenum |
| Fiber Count | 6 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) Article 800 |
| Common Installations | Compliant with ICEA S-83-596 (compliant at tensile loads listed in the specifications table) |
| Design and Test Criteria | ICEA S-120-742, UL 13, 300 VAC, 80 C, ICEA S-83-596 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0°C to 60°C (32°F to 140°F ) |
| Temperature Range, Operation | 0°C to 70°C (32°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |

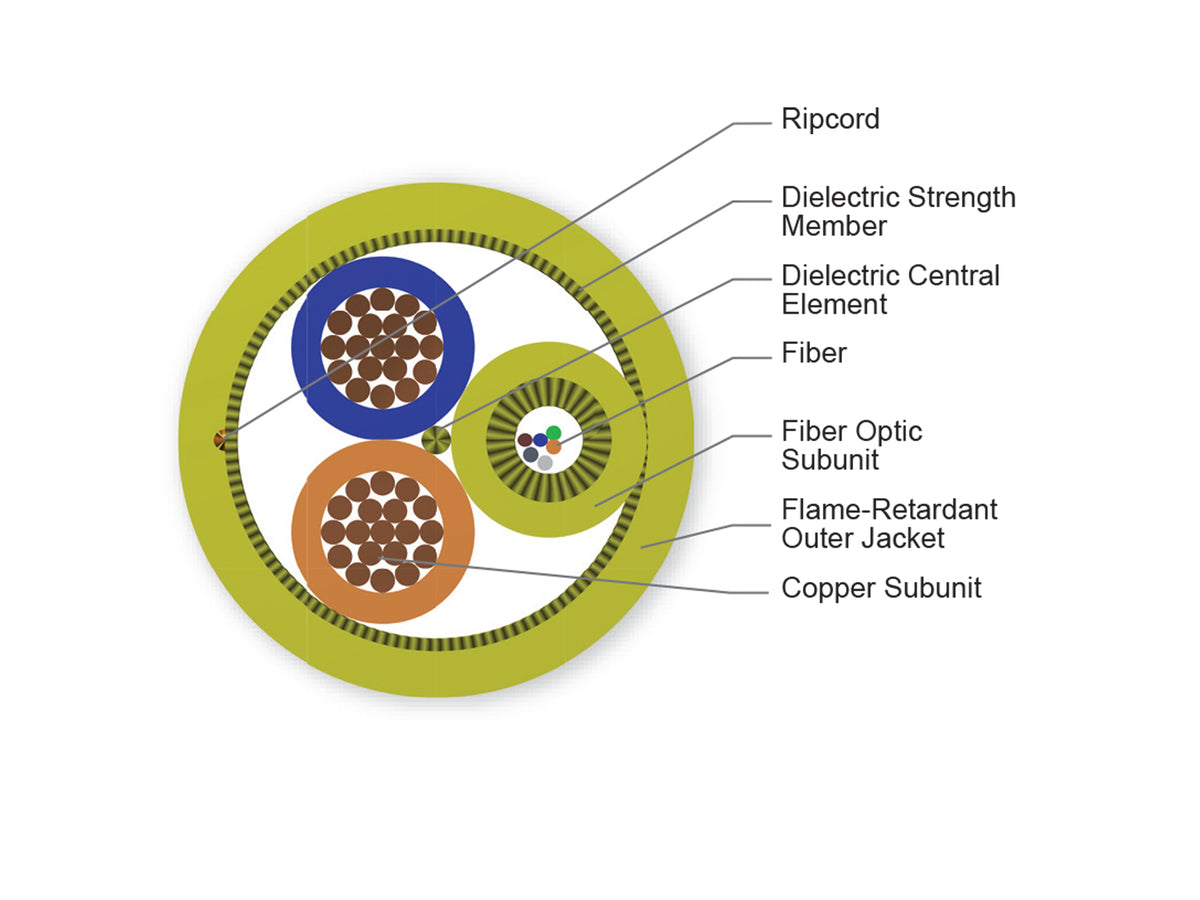

| Cable Design | - |
| Central Element | Yarn |
| Fiber Count | 6 |
| Number of Ripcords | 1 |
| Outer Jacket Color | Yellow |
| Outer Jacket Material | Flame-retardant |
| Buffer Tube Color | Yellow |
| Buffer Tube Diameter | 3mm (0.12in) |
| Conductor | 14 AWG |
| Number of Active Tubes | 1 |
| Number of Conductors | 2 |
| Number of Tube Positions | 1 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White |
| Fibers per Tube | 6 |
| Color Code Standards | Telcordia |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 200N (44.96lbf) |
| Max. Tensile Strength, Short-Term | 667N (149.95lbf) |
| Min. Bend Radius Installation | 126mm (4.96in) |
| Min. Bend Radius Operation | 83.82mm (3.3in) |
| Nominal Outer Diameter | 8.3mm (0.33in) |
| Optical Characteristics | - |
| Fiber Code | Z |
| Fiber Name | SMF-28 Ultra fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 01 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | ITU-T G.657.A1 |
| Dimensions | - |
| Cable Weight | 8701kg/km (5846.8lb/1000 ft) |
