Brand: Corning | SKU: 10180545

Corning 006ZSF-T4101D20 | FREEDM LST Loose Tube, Gel-Free Cable, Riser

Regular price $1.72
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

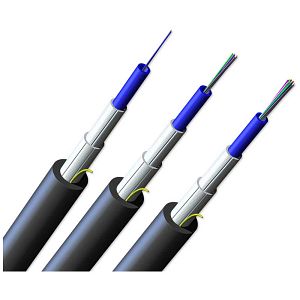

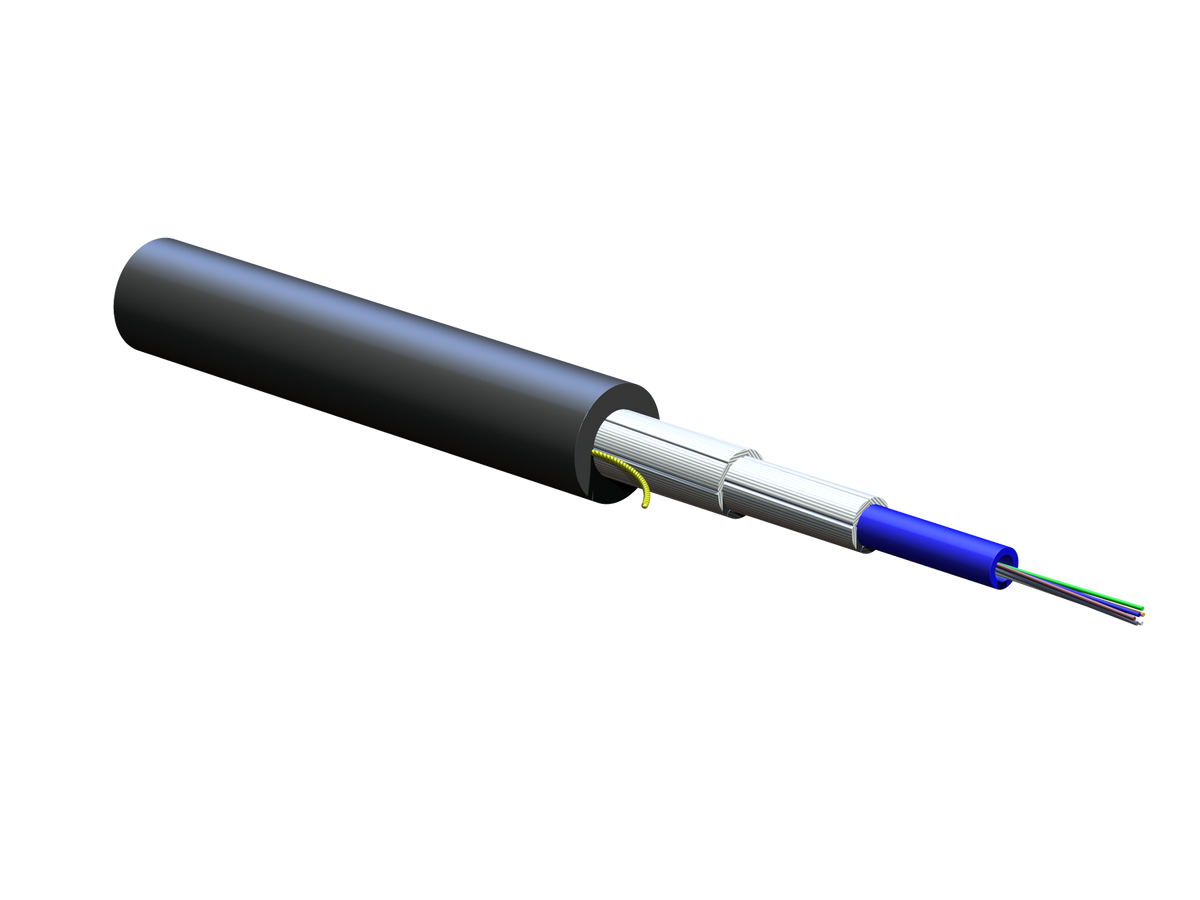

Corning 006ZSF-T4101D20 | FREEDM LST Loose Tube, Gel-Free Cable, Riser  6 F, SMF-28 Ultra fiber, Single-mode (OS2)

Corning FREEDM LST gel-free cables are flame-retardant, indoor/outdoor, riser-rated cables designed for interbuilding and intrabuilding backbones in aerial, duct and riser applications. With a riser rating, there is no need for a transition splice when entering the building. Available in a compact design, these cables are protected against water penetration by innovative waterblocking tapes and yarns that swell to absorb water. Waterblocking without the use of messy gels provides more efficient and craft-friendly cable preparation, allows easier cable access and simplifies the use of buffer tube fan-out kits. The buffer tubes and fibers in each tube are color coded for quick, easy identification.

Note: This cable is available in 12 different jacket colors – blue, orange, green, brown, slate, white, red, black, yellow, violet, rose and aqua. The colored jacket allows for easy visual identification of the cables while still providing all of the required environmental protection of an indoor/outdoor cable jacket. Black is the standard jacket color using the part numbers shown here. Contact Customer Care at 1-800-743-2675 to order other color options.

Corning - 006ZSF-T4101D20 - Features

  • Riser rating
  • No transition splices when entering buildings
  • Gel-free waterblocking technology
  • Craft-friendly cable preparation
  • Color-coded fibers
  • Quick and easy identification
  • All-dielectric construction
  • Requires no grounding or bonding
  • UV-resistant, flame-retardant jacket
  • Rugged, durable and easy to strip
  • Common installations
  • Outdoor aerial and duct

Specifications

Corning - 006ZSF-T4101D20 - Product Categories

  • Shop by Manufacturer/Corning
  • DataComm
  • Communications Cable
  • Fiber Optic Cable
  • Fiber Optic Cables
  • Indoor|Outdoor
  • Indoor|Outdoor Riser Cables

Corning - 006ZSF-T4101D20 - Specifications

General Specifications-
Product Number006ZSF-T4101D20
EAN Code4056418137995
EnvironmentIndoor/Outdoor
Cable TypeLoose Tube
Product TypeDielectric
Fiber CategorySMF-28 Ultra fiber
Flame RatingRiser (OFNR)
ApplicationAerial, Direct Buried, Duct, General Purpose Horizontal, Vertical Riser
Fiber Count6
Standards-
RoHSFree of hazardous substances according to RoHS 2011/65/EU
Approvals and ListingsNational Electrical Code (NEC) OFCR, CSA OFC FT-4
Common InstallationsOutdoor aerial and duct, indoor vertical riser and general purpose horizontal according to National Electrical Code (NEC) Article 770
Design and Test CriteriaANSI/ICEA S-104-696
Environmental Conditions-
Temperature Range, Installation-10 °C to -10 °C (14 °F to 14 °F )
Temperature Range, Operation-40 °C to 70 °C (-40 °F to 158 °F )
Temperature Range, Storage-40 °C to -40 °C (-40 °F to -40 °F )
NotesCorning recommends storing cable in a proper temperature environment prior to installation to allow the cable temperature to meet installation temperature range specifications for best installation results.

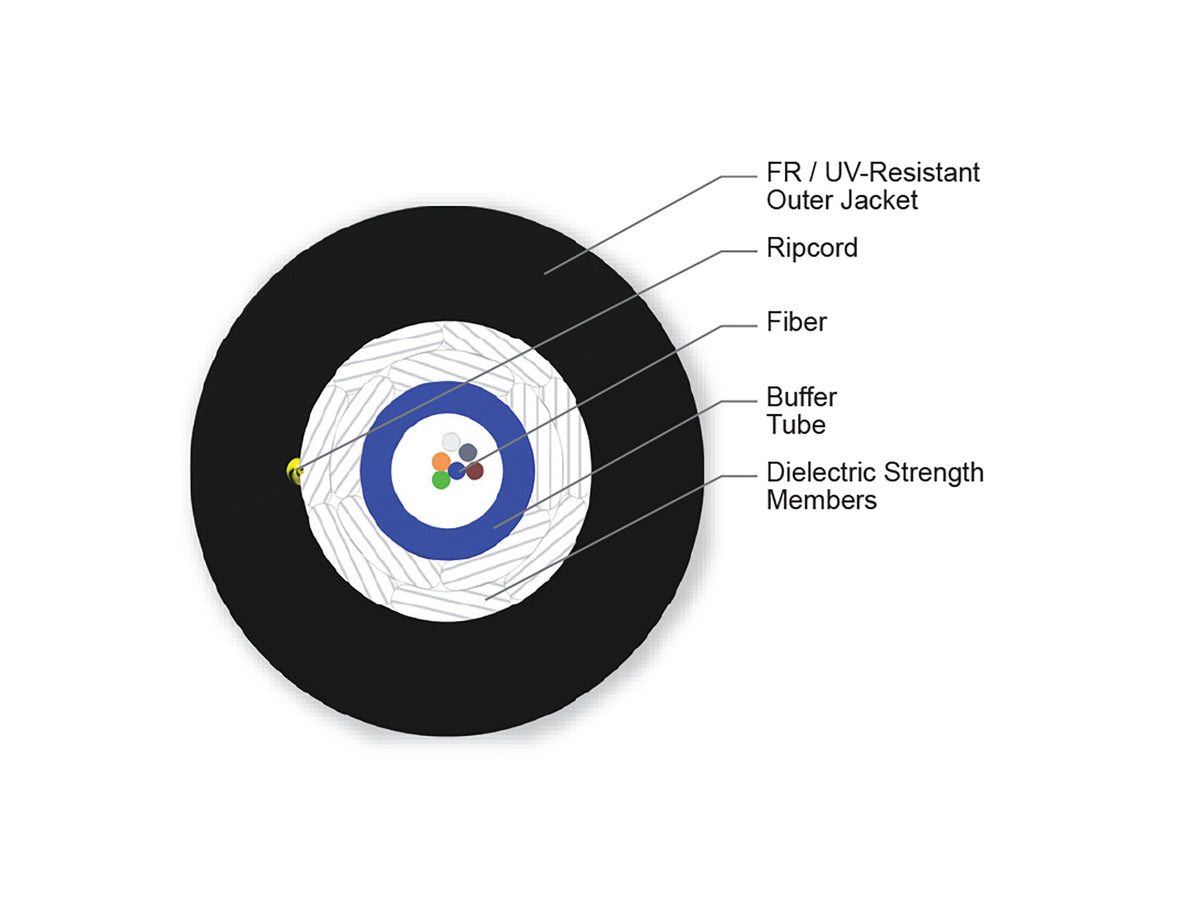

Cable Design-
Fiber Count6
Number of Ripcords1
Outer Jacket ColorBlack
Outer Jacket MaterialFlame-Retardant, UV-Resistant
Tensile Strength Elements and/or Armoring - Layer 1Dielectric strength members
Tensile Strength Elements and/or Armoring - Layer 2Water-swellable dielectric strength members
Number of Active Tubes1
Number of Tube Positions1
Fiber ColoringBlue, Orange, Green, Brown, Slate, White
Fibers per Tube6
Mechanical Specifications-
Max. Tensile Strength, Long-Term400 N (89.92 lbf)
Max. Tensile Strength, Short-Term1350 N (303.49 lbf)
Min. Bend Radius Installation111 mm (4.37 in)
Min. Bend Radius Operation37 mm (1.46 in)
Nominal Outer Diameter7.4 mm (0.29 in )
NotesActual cable outer diameter may vary ± 0.3 mm
Optical Characteristics-
Fiber CodeZ
Fiber NameSMF-28 Ultra fiber
Fiber TypeSingle-mode
Performance Option Code1
Maximum Attenuation0.4 dB/km / 0.4 dB/km / 0.3 dB/km
Wavelengths1310 nm / 1383 nm / 1550 nm
Fiber CategoryITU-T G.657.A1
Ordering Information-
Weight56 kg/km (37.63 lb/1000 ft)
