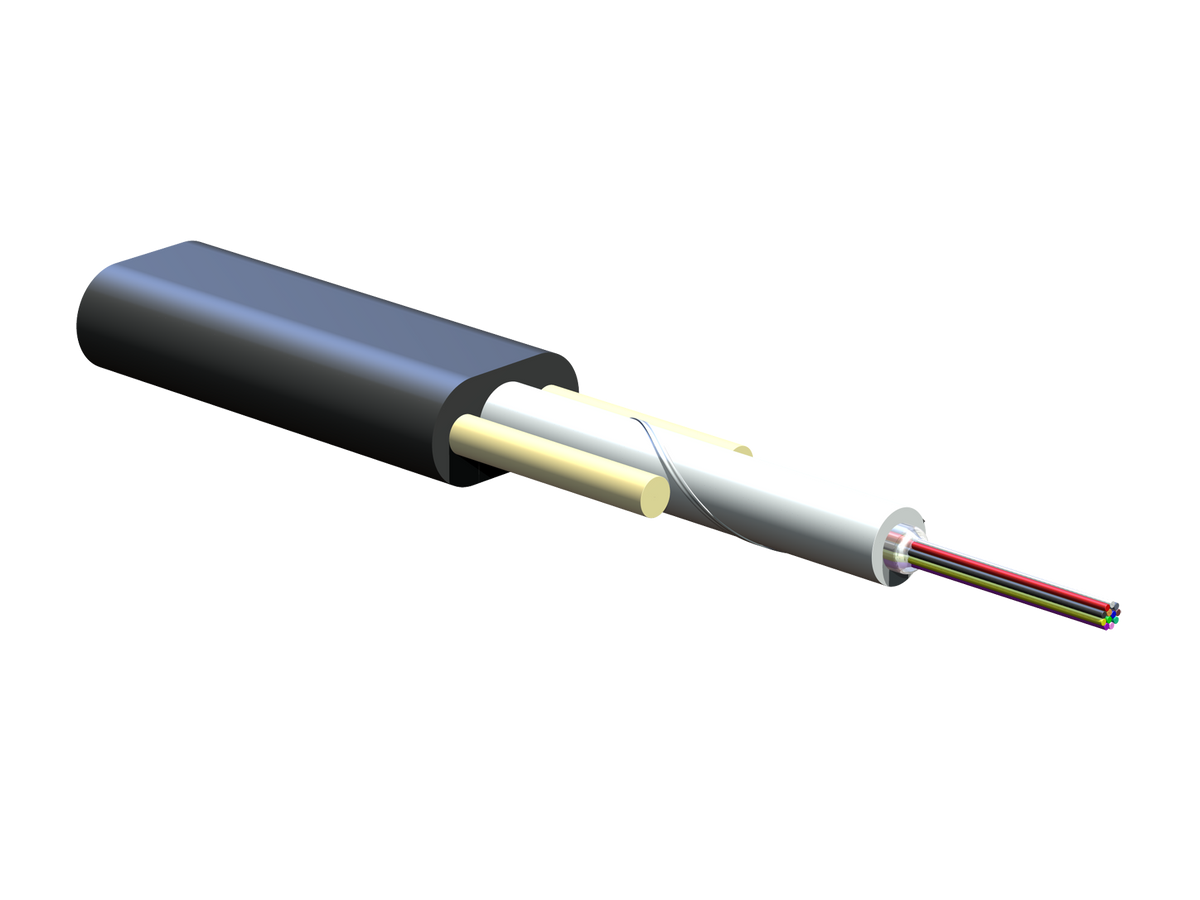

Corning 012EB4-14101A20 | SST-Drop Single-Tube, Gel-Filled Cable
Regular price
$1.36
Unit price
Brand: Corning
|
SKU:
372-COROS2-LTDROP-12
Regular price
$1.36
Unit price
Description
Description
Corning 012EB4-14101A20 | SST-Drop Single-Tube, Gel-Filled Cable 12 F, Single-mode (OS2)
Corning - 012EB4-14101A20 - Features
- Flexible, craft-friendly buffer tubes
- Facilitate easy routing in closures
- SZ-stranded, loose tube design
- Isolates fibers from installation and environmental rigors and facilitates mid-span access
- Dielectric central strength member
- No preferential bend and requires no bonding or grounding
- Polyethylene jacket
- Rugged, durable and easy to strip (while providing superior protection against UV radiation, fungus, abrasion and other environmental factors)
Specifications
Specifications
Corning - 012EB4-14101A20 - Product Categories
- Shop by Manufacturer/Corning
- Wire & Cable
- Voice and Data Cable
- Outdoor Fiber Optic Cable
- Data Communications and Networking
- Fiber Optic Cables
- Outdoor
- Outdoor Duct Cables
Corning - 012EB4-14101A20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 012EB4-14101A20 |
| EAN Code | 4056418186672 |
| Environment | Outdoor |
| Cable Type | Drop |
| Product Type | Self-Supporting |
| Fiber Category | Single-mode (OS2) |
| Application | Self-Supporting |
| Fiber Count | 12 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | USDA Rural Development Programs |
| Environmental Conditions | - |
| Temperature Range, Installation | -30 °C to 70 °C (-22 °F to 158 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

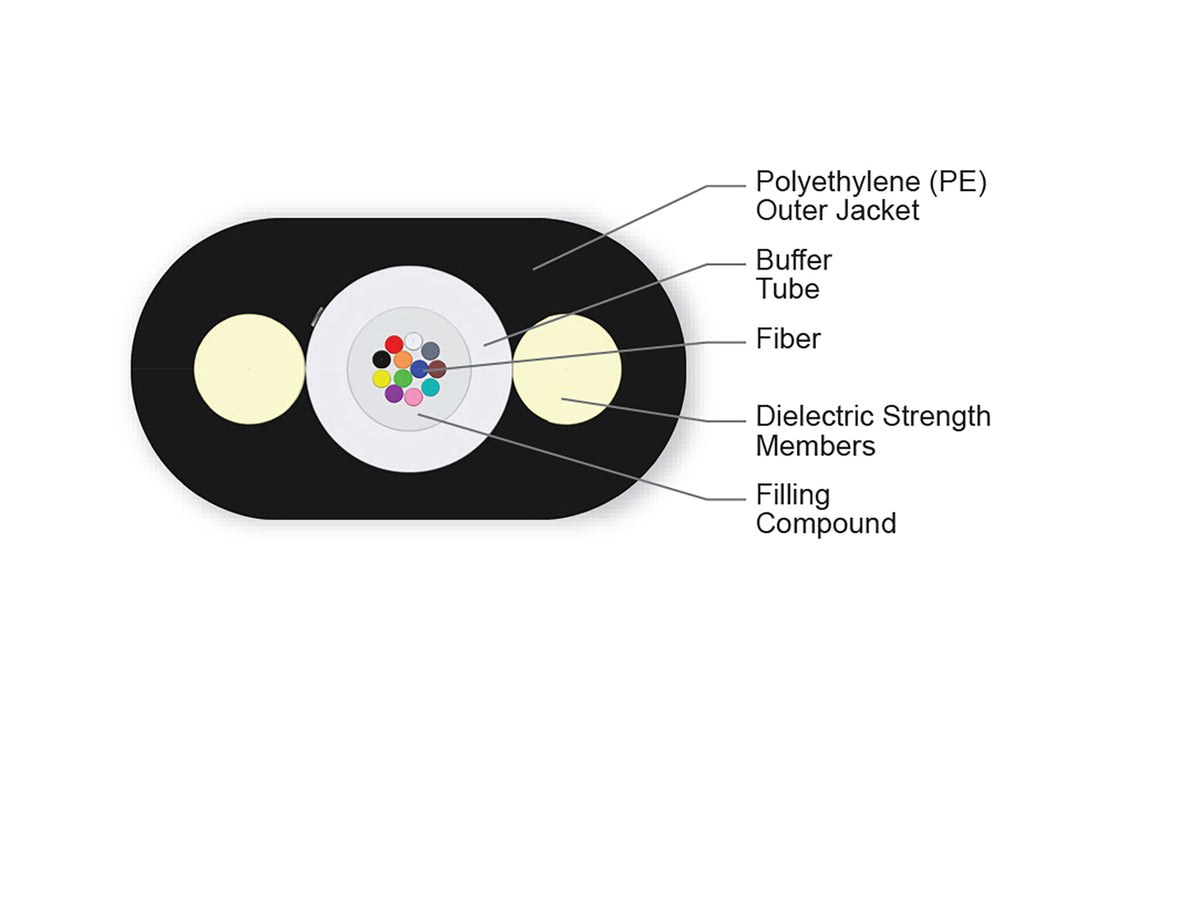

| Cable Design | - |
| Fiber Count | 12 |
| Buffer Tube Color Coding | Natural |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Buffer Tube Diameter | 3 mm (0.12 in) |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 400 N (89.92 lbf) |
| Max. Tensile Strength, Short-Term | 1350 N (303.49 lbf) |
| Min. Bend Radius Operation | 80 mm (3.15 in) |
| Nominal Outer Diameter | 8.1 mm x 4.5 mm (0.32 in x 0.18 in ) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 30 kg/km (20.16 lb/1000 ft) |
| Convenient Contractor-sized Packaging Length | 609.6 m (2000 ft) gross weight 65 lbs., no specialized equipment needed |
| Fiber Count | 12 |
| Application | Outdoor |
| Type | Outdoor Direct Burial Cable |
| Transmission Mode | Singlemode |
| Fiber Type | OS2 |
| Jacket Material | Polyethylene |
| Jacket Color | Black |
| Outside Diameter | 0.32 x 0.17 in. (8.1 x 4.5mm) |
| Water Blocking | Gel-filled |
| Construction | Buffer Tube, Gel Filled |
