Corning 012EC8-14101-20 | Ribbon Cable, Plenum
Regular price
$4.02
Unit price
Brand: Corning
|
SKU:
370-COROS2-RIBD-12
Regular price
$4.02
Unit price
Description
Description

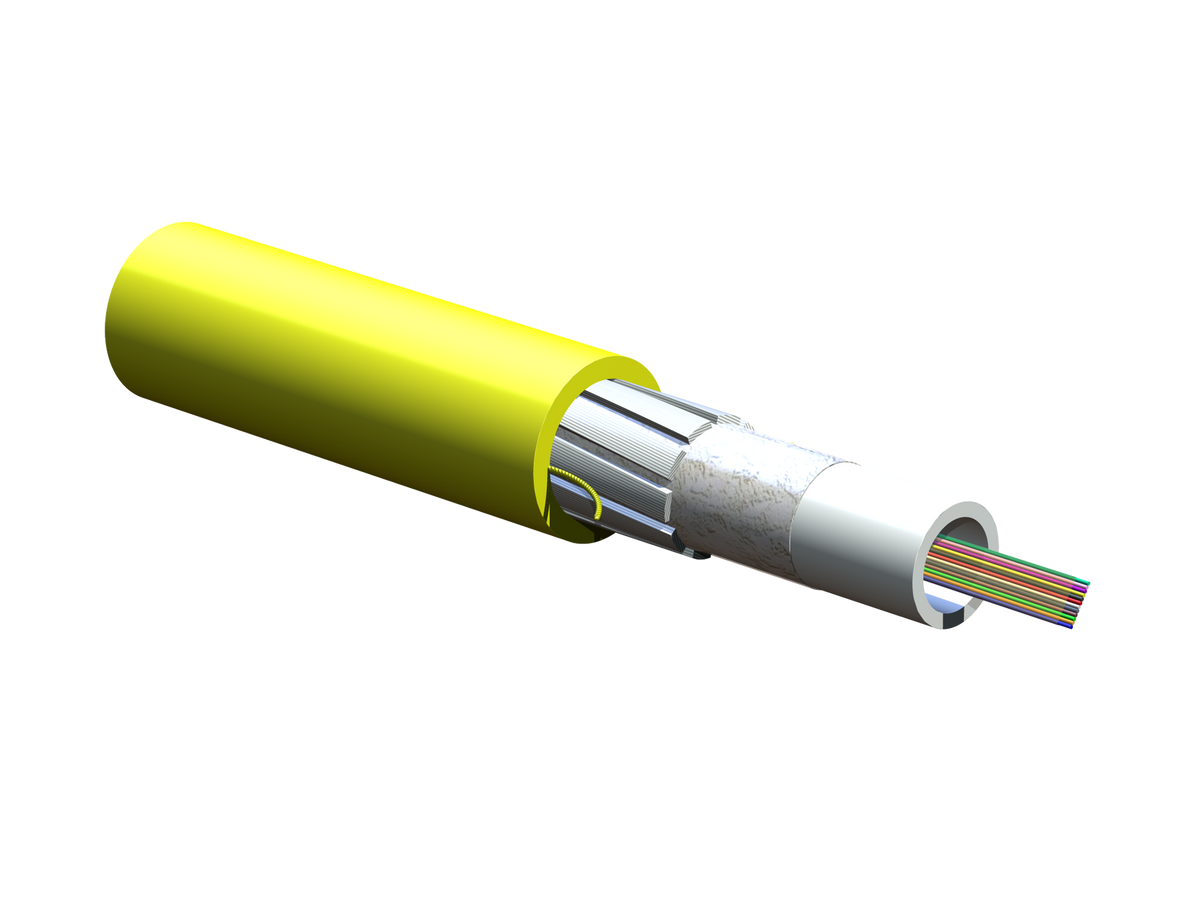

Corning 012EC8-14101-20 | Ribbon Cable, Plenum 12 F, Single-mode (OS2)
Corning - 012EC8-14101-20 - Features
- Precise fiber and ribbon geometries
- Excellent mass splicing yields
- Ribbon ID numbers and fiber colors
- Easily identifiable
- Flame-retardant jacket
- Rugged and durable
- Available with interlocking armor
- Additional mechanical durability
- Common installations
- Indoor plenum, riser and general building applications
Specifications
Specifications
Corning - 012EC8-14101-20 - Product Categories
- Shop by Manufacturer/Corning
- Data Communications and Networking
- Fiber Optic Cable
- Fiber Optic Indoor Cable
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 012EC8-14101-20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 012EC8-14101-20 |
| EAN Code | 4056418198897 |
| Environment | Indoor |
| Cable Type | Ribbon |
| Product Type | Distribution |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Plenum (OFNP) |
| Application | Plenum, General Purpose Horizontal, Vertical Riser |
| Fiber Count | 12 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNP |
| Design and Test Criteria | ANSI/ICEA S-83-596, NFPA-262, CSA-FT-6 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 0 °C (32 °F to 32 °F ) |
| Temperature Range, Operation | 0 °C to 0 °C (32 °F to 32 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |

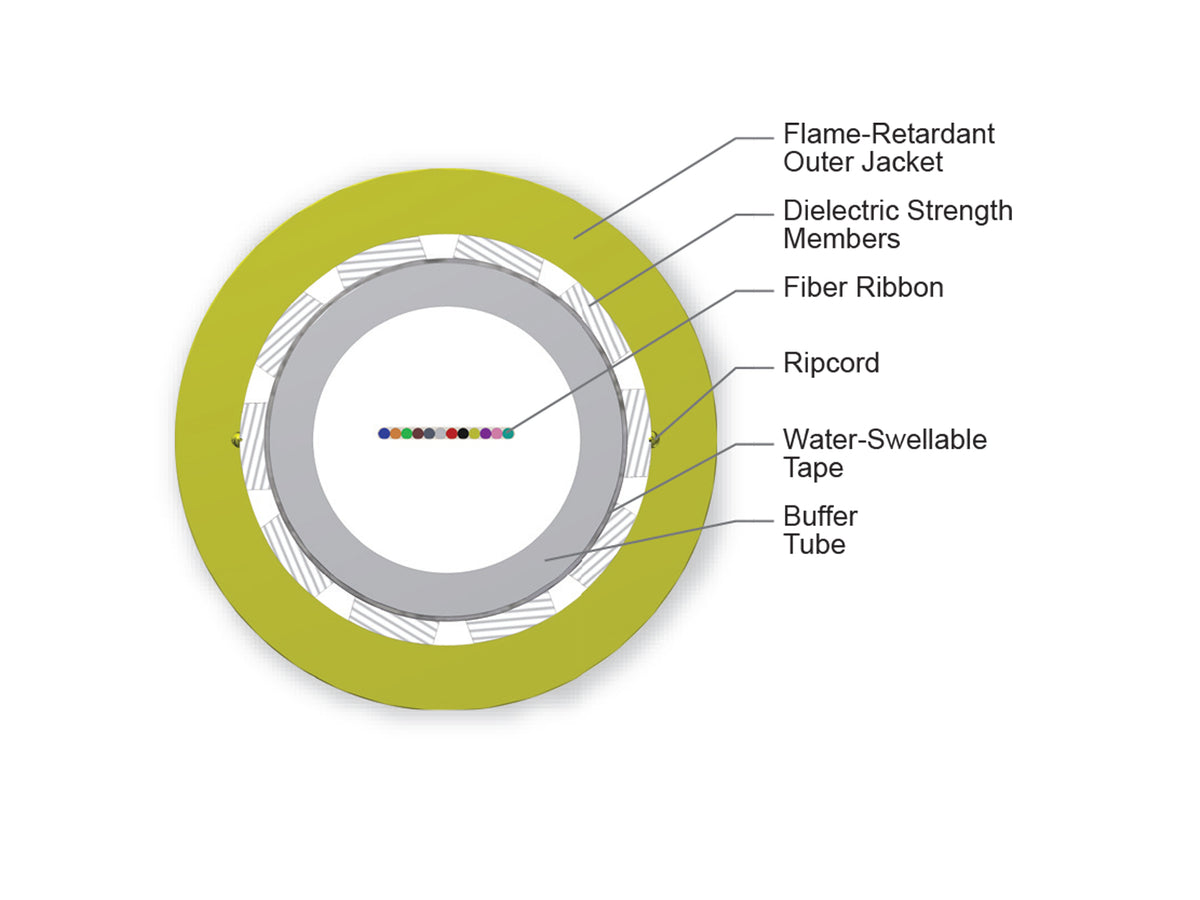

| Cable Design | - |
| Buffer Tube Color | Natural |
| Fiber Count | 12 |
| Buffer Tube Diameter | 81 mm (3.19 in) |
| Number of Ripcords | 2 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Outer Jacket Color | Yellow |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tape | Water-swellable |
| Ribbons per Tube | 1 |
| Fibers per Ribbon | 12 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 400 N (89.92 lbf) |
| Max. Tensile Strength, Short-Term | 400 N (89.92 lbf) |
| Min. Bend Radius Installation | 146 mm (5.75 in) |
| Min. Bend Radius Operation | 97 mm (3.82 in) |
| Nominal Outer Diameter | 9.7 mm (0.38 in ) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 99 kg/km (66.52 lb/1000 ft) |
| Type | Indoor Distribution Fiber Optic Cable |
| Application | Indoor |
| Transmission Mode | Singlemode |
| Fiber Type | OS2 |
| Jacket Flame Rating | OFNP FT6 |
| Jacket Color | Yellow |
| Fiber Count | 12 |
| Speed | (G.652.D) |
| Outside Diameter | 0.38 in. (9.7mm) |
| Armored | Yes |
