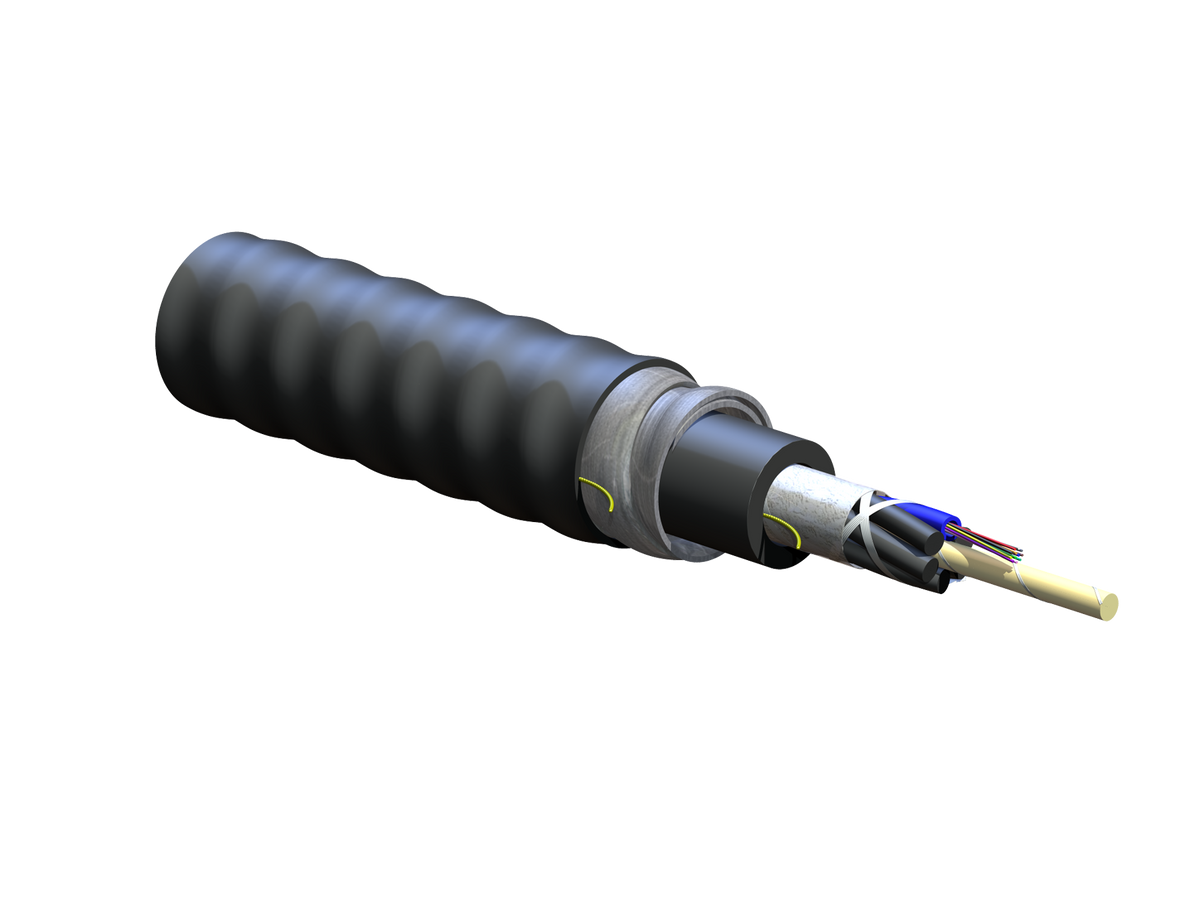

Corning 012ESP-T4101DA3 | FREEDM Loose Tube, Gel-Free, Interlocking Armored Cable, Plenum 12 F, Single-mode (OS2)
Corning - 012ESP-T4101DA3 - Features
- Gel-free waterblocking technology
- Craft-friendly cable preparation
- Loose tube design
- Stable performance and compatibility with all common fiber types
- Color-coded tubes and fibers
- Quick and easy identification
- Flexible interlocking armor
- Up to seven times the crush protection compared to non-armored cables
- Common installations
- Outdoor aerial and duct
Specifications
Specifications
Corning - 012ESP-T4101DA3 - Product Categories
- Shop by Manufacturer/Corning
- Data Communications and Networking
- Fiber Optic Cable
- Fiber Optic Indoor | Outdoor Cable
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor Plenum Cables
Corning - 012ESP-T4101DA3 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 012ESP-T4101DA3 |
| EAN Code | 4056418198835 |
| Environment | Indoor/Outdoor |
| Cable Type | Loose Tube |
| Product Type | Interlocking Armor |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Plenum (OFCP) |
| Application | Aerial, Direct Buried, Duct, General Purpose Horizontal |
| Fiber Count | 12 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNP |
| Common Installations | Outdoor aerial and duct, indoor vertical riser and general purpose horizontal according to National Electrical Code (NEC) Article 770 |
| Design and Test Criteria | ANSI/ICEA S-104-696, CSA FT-6 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 0 °C (32 °F to 32 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |

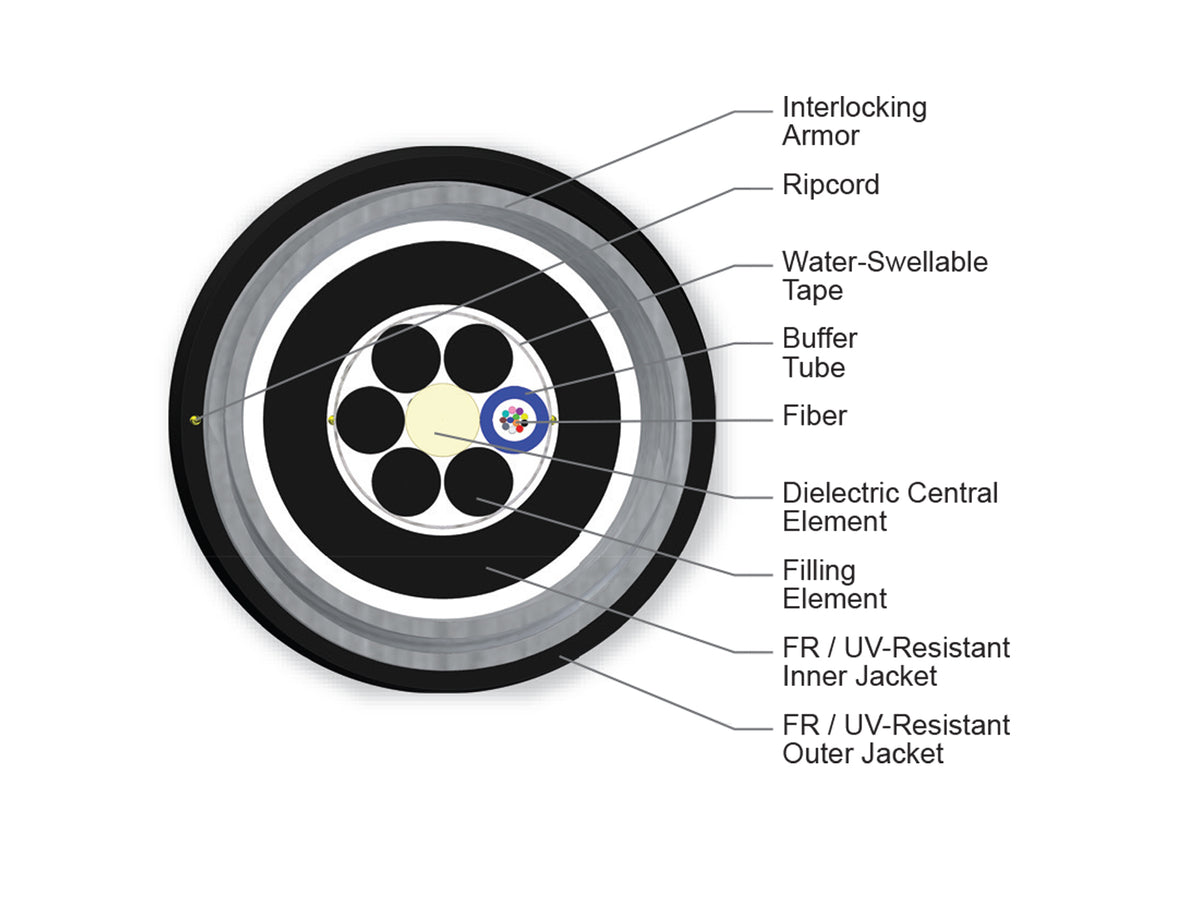

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 12 |
| Buffer Tube Color Coding | Blue |
| Number of Ripcords | 2 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Interlocking Armor |
| Buffer Tube Color | Blue |
| Buffer Tube Diameter | 3 mm (0.12 in) |
| Inner Jacket Material | Flame-Retardant, UV-Resistant |
| Number of Active Tubes | 1 |
| Number of Filling Elements | 5 |
| Number of Tube Positions | 6 |
| Tape | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 400 N (89.92 lbf) |
| Max. Tensile Strength, Short-Term | 1350 N (303.49 lbf) |
| Min. Bend Radius Installation | 299 mm (11.77 in) |
| Min. Bend Radius Operation | 199 mm (7.83 in) |
| Nominal Outer Diameter | 14.3 mm (0.56 in ) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 1924 kg/km (1292.87 lb/1000 ft) |
| Type | Indoor Outdoor Cable |
| Application | Indoor/Outdoor |
| Cable Type | Loose Tube |
| Transmission Mode | Singlemode |
| Fiber Type | OS2 |
| Jacket Flame Rating | OFCP FT6 |
| Jacket Material | Flame Retardant, UV-Resistant |
| Jacket Color | Black |
| Fiber Count | 12 |
| Outside Diameter | 0.56 in. (14.3mm) |
| Armored | Yes |
| Armor Type | Interlocking Aluminum |
| Water Blocking | Gel-free |
| Construction | Loose Tube, Gel-Free |
