Brand: Corning
|
SKU:
372-COROS2-LTAF8-12

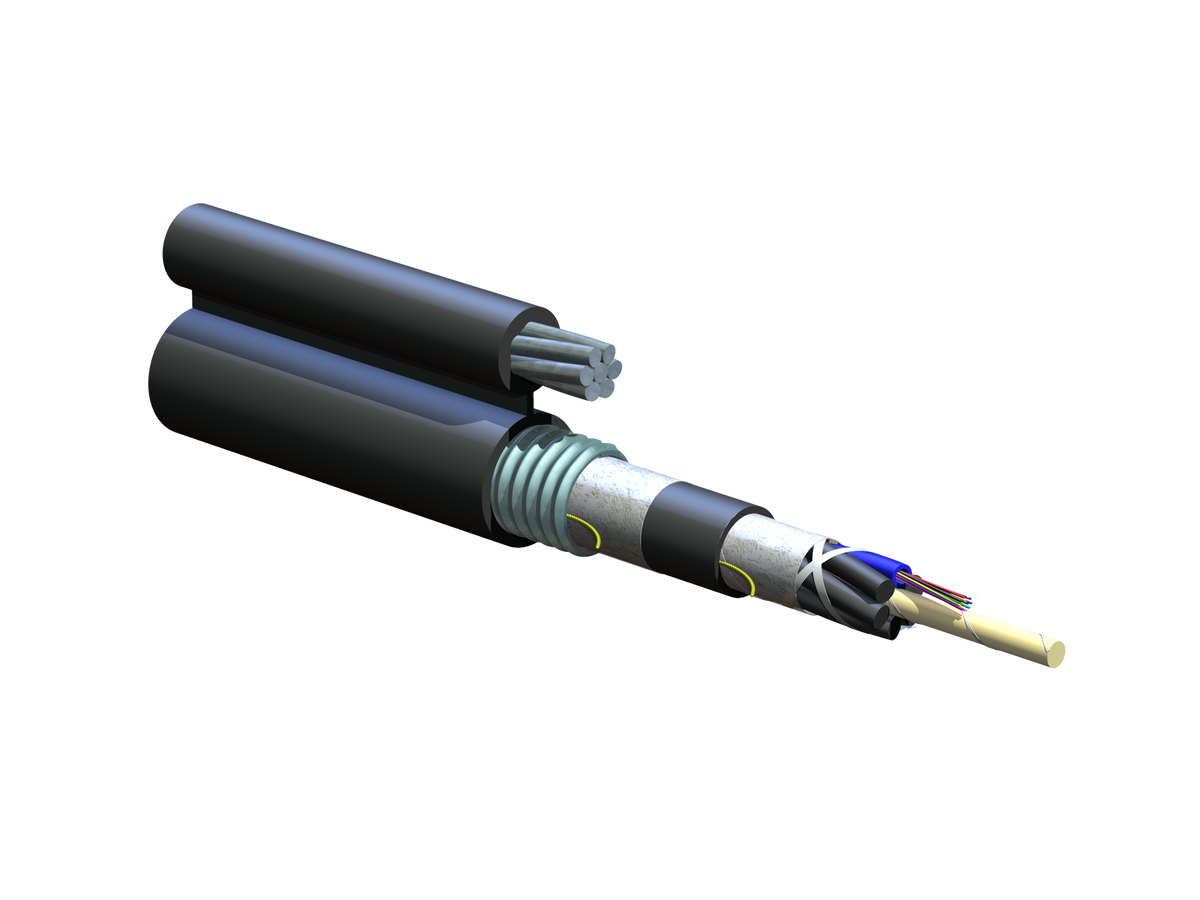

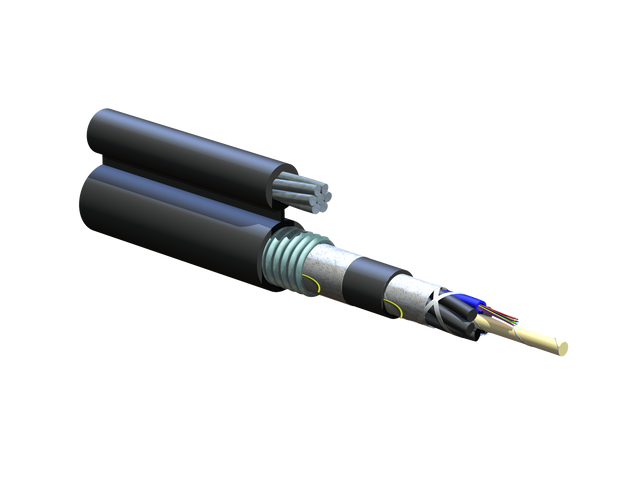

Corning 012EUB-T4101D20 | ALTOS Figure-8 Loose Tube, Gel-Free Armored Cable
Regular price
$4.06
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 012EUB-T4101D20 | ALTOS Figure-8 Loose Tube, Gel-Free Armor...
Regular price
$4.06
Unit price
Brand: Corning
|
SKU:
372-COROS2-LTAF8-12
Regular price
$4.06
Unit price
Shipping calculated at checkout.
Description
Description
Corning 012EUB-T4101D20 | ALTOS Figure-8 Loose Tube, Gel-Free Armored Cable 12 F, Single-mode (OS2)
Corning - 012EUB-T4101D20 - Features
- Gel-free waterblocking technology
- Craft-friendly cable preparation
- Polyethylene jacket
- Rugged, durable and easy to strip (while providing superior protection against UV radiation, fungus, abrasion and other environmental factors)
- Figure-8 cable design
- Easy, one-step installation
Specifications
Specifications
Corning - 012EUB-T4101D20 - Product Categories
- Shop by Manufacturer/Corning
- Wire & Cable
- Voice and Data Cable
- Outdoor Fiber Optic Cable
- Fiber Optic Cables
- Outdoor
- Outdoor Aerial Cables
Corning - 012EUB-T4101D20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 012EUB-T4101D20 |
| EAN Code | 4056418182360 |
| Environment | Outdoor |
| Cable Type | Loose Tube |
| Product Type | Self-Supporting |
| Fiber Category | Single-mode (OS2) |
| Application | Aerial, Self-Supporting |
| Fiber Count | 12 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Common Installations | Outdoor self-supporting aerial |
| Design and Test Criteria | ANSI/ICEA S-87-640 |
| Environmental Conditions | - |
| Temperature Range, Installation | -30 °C to 70 °C (-22 °F to 158 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Notes | Corning recommends storing cable in a proper temperature environment prior to installation to allow the cable temperature to meet installation temperature range specifications for best installation results. |

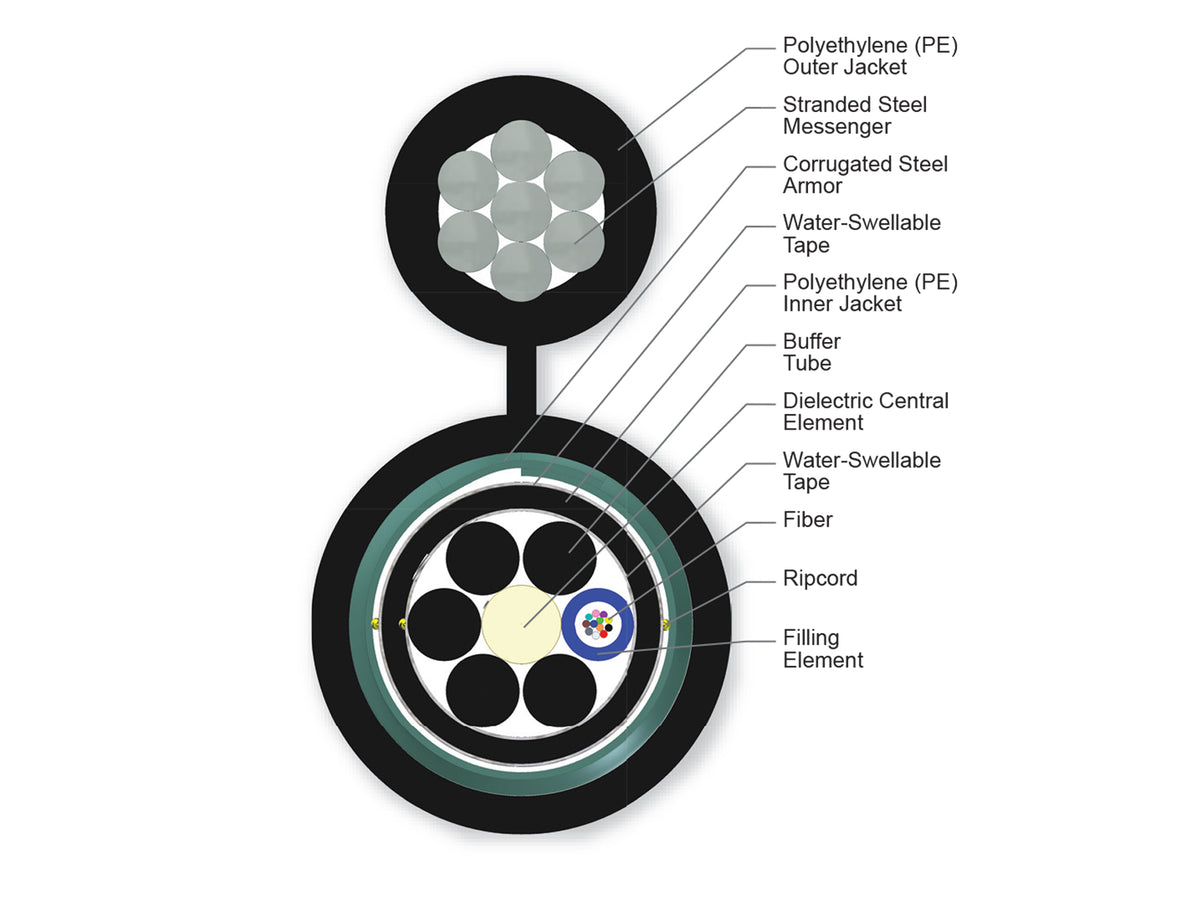

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 12 |
| Buffer Tube Color Coding | Blue |
| Number of Ripcords | 3 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Tensile Strength Elements and/or Armoring - Layer 1 | Corrugated steel tape armor |
| Buffer Tube Color | Blue |
| Buffer Tube Diameter | 2.5 mm (0.1 in) |
| Inner Jacket Material | Polyethylene (PE) |
| Messenger | Stranded steel |
| Number of Active Tubes | 1 |
| Number of Filling Elements | 5 |
| Number of Tube Positions | 6 |
| Tape | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Mechanical Specifications | - |
| Min. Bend Radius Installation | 215 mm (8.46 in) |
| Min. Bend Radius Operation | 143 mm (5.63 in) |
| Nominal Cable Height | 25.9 mm (1.02 in) |
| Nominal Outer Diameter | 14.3 mm (0.56 in ) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 396 kg/km (266.1 lb/1000 ft) |
| All-Dielectric | NO |
| Armored | YES |
| Cable Type | LOOSE TUBE |
| Fiber Count | 12 |
| Fiber Type | OS2 SINGLE-MODE |
| Rodent Protected | NO |
| Self-Support | NO |
| UNSPSC Code | 26121637 |
