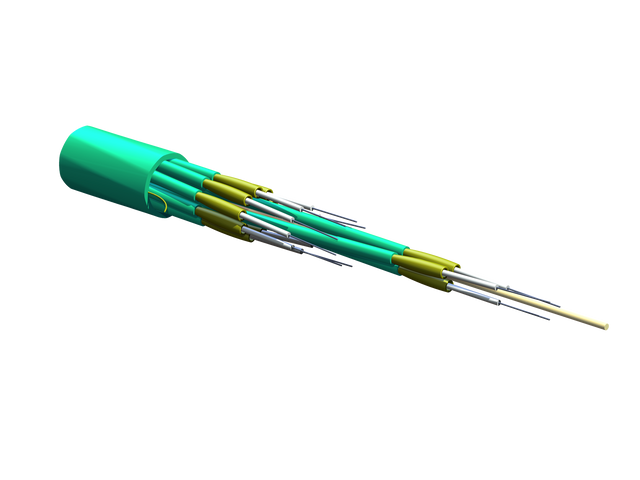

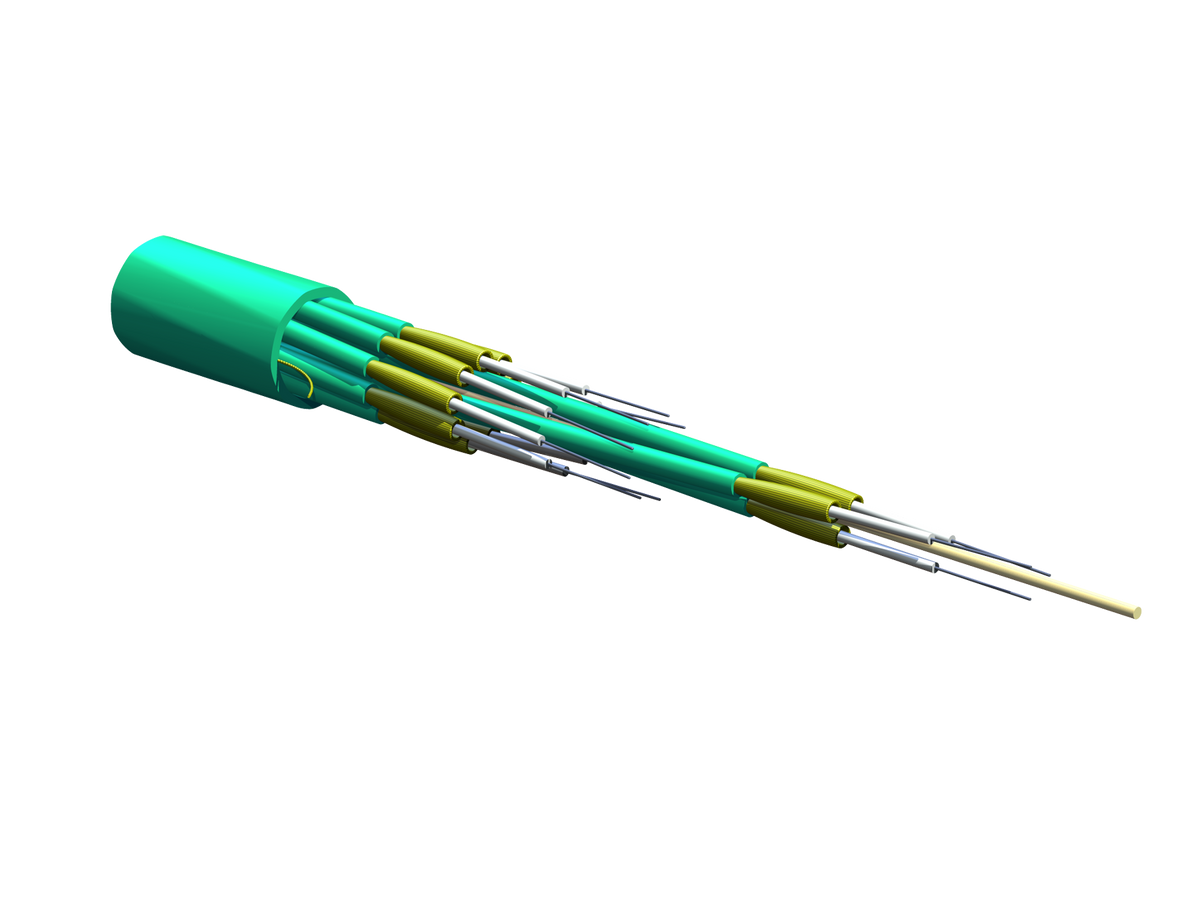

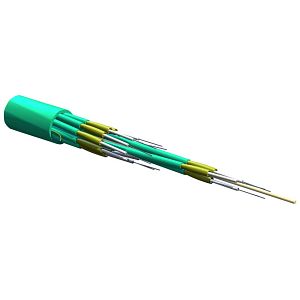

Corning 012T68-31380-29 | Fan-Out Tight-Buffered Cable, Plenum
Regular price
$7.09
Unit price
Brand: Corning
|
SKU:
370-COROM3-TBDFO2-12
Regular price
$7.09
Unit price
Description
Description
Corning 012T68-31380-29 | Fan-Out Tight-Buffered Cable, Plenum 12 F, 2.0 mm Subunits, 50 µm multimode (OM3)
Corning - 012T68-31380-29 - Features
- 900 µm buffered fibers
- Easy, consistent stripping
- Temperature- and water-resistant
- Superior protection
- All-dielectric construction
- Requires no grounding or bonding
Specifications
Specifications
Corning - 012T68-31380-29 - Product Categories
- Shop by Manufacturer/Corning
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 012T68-31380-29 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 012T68-31380-29 |
| EAN Code | 4056418173160 |
| Environment | Indoor |
| Cable Type | Tight-Buffered |
| Product Type | Distribution |
| Fiber Category | 50 µm MM (OM3) |
| Flame Rating | Plenum (OFNP) |
| Application | General Purpose Horizontal, Plenum, Vertical Riser |
| Fiber Count | 12 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNP, CSA FT-6, ICEA S-83-596 |
| Flame Test Method | UL-1666 (for riser and general building applications) |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 60 °C (32 °F to 140 °F ) |
| Temperature Range, Operation | 0 °C to 70 °C (32 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

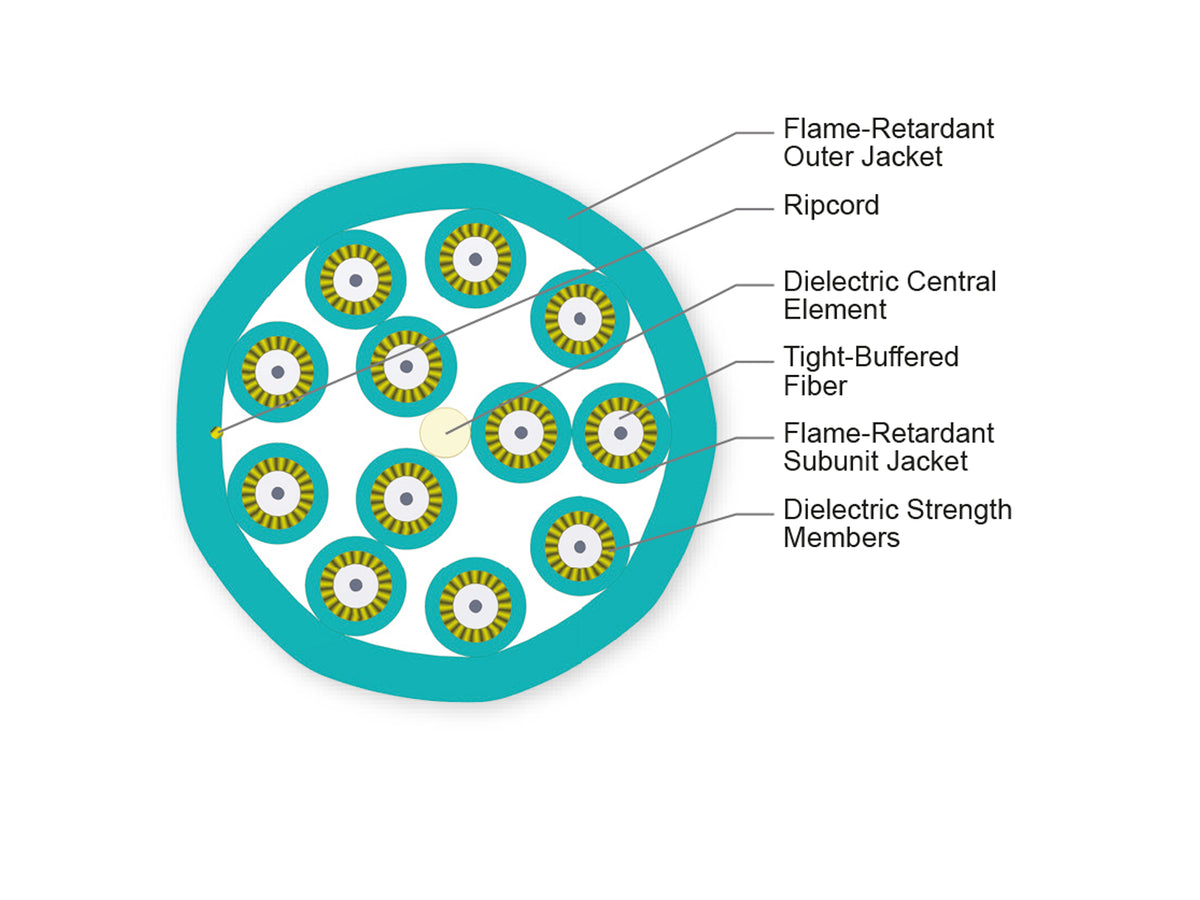

| Cable Design | - |
| Central Element | GRP |
| Fiber Count | 12 |
| Number of Ripcords | 1 |
| Outer Jacket Color | Aqua |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tensile Strength Elements and/or Armoring - Layer 2 | Dielectric strength members |
| Number of Subunits Layer 1 | 3 |
| Number of Subunits Layer 2 | 9 |
| Subunit Color | Aqua |
| Subunit Diameter | 2 mm (0.08 in) |
| Subunit Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 3 | Dielectric strength members |
| Tight Buffer Color | White |
| Flame Rating | Plenum (OFNP) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Short-Term | 440 N (98.92 lbf) |
| Min. Bend Radius Installation | 158 mm (6.22 in) |
| Min. Bend Radius Operation | 105 mm (4.13 in) |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 80 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 2000 MHz*km / - |
| Maximum Attenuation | 2.8 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 1500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 300 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM3 |
| Ordering Information | - |
| Weight | 99 kg/km (66.52 lb/1000 ft) |
| ECCN | 5A991.d |
| Country of Origin | US - United States |
| UNSPSC | 26121607 |
| Fiber Category | Multimode - OM3 |
| Fiber Count | 12 |
