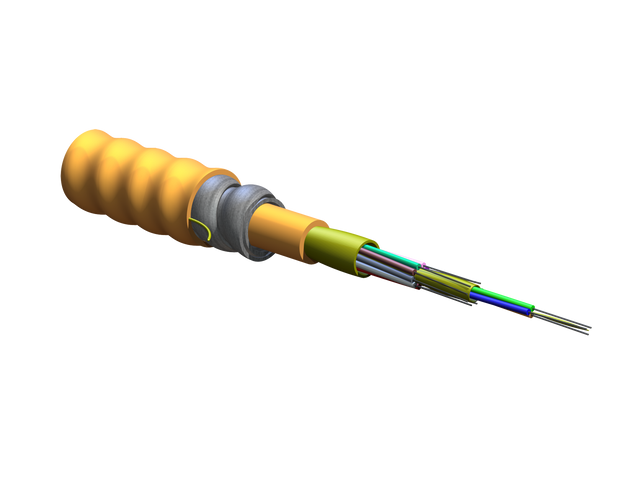

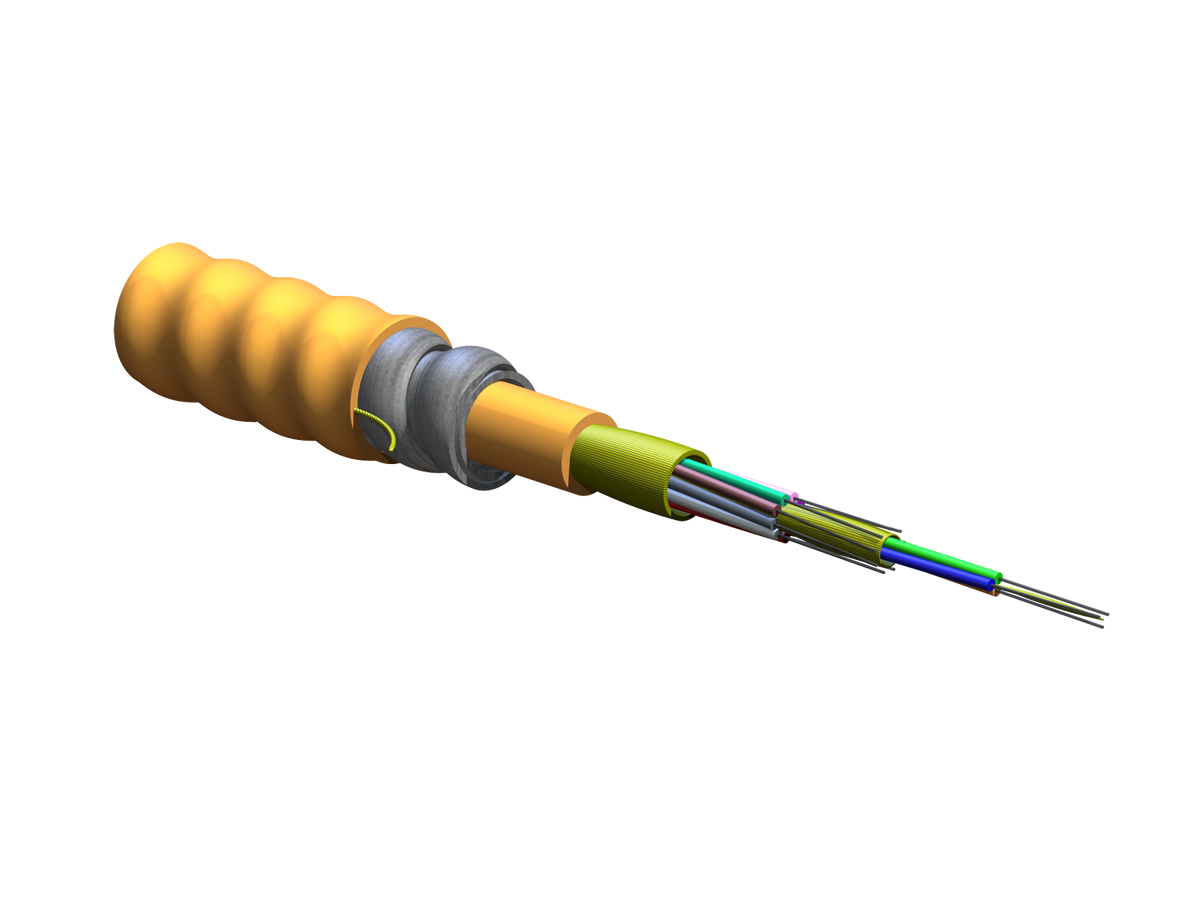

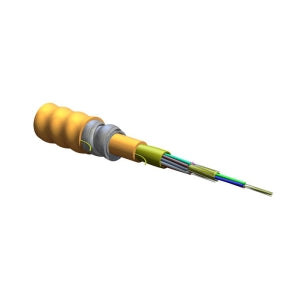

Corning 012T88-33131-A3 | MIC Tight-Buffered, Interlocking Armored Cable, Plenum
Regular price
$4.59
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 012T88-33131-A3 | MIC Tight-Buffered, Interlocking Armored ...
Regular price
$4.59
Unit price
Brand: Corning
|
SKU:
370-COROM2-TBA-12
Regular price
$4.59
Unit price
Description
Description
Corning 012T88-33131-A3 | MIC Tight-Buffered, Interlocking Armored Cable, Plenum 12 F, 50 µm multimode (OM2)
Corning - 012T88-33131-A3 - Features
- Flexible, interlocking armor design
- Seven times crush protection compared to non-armored cables
- TBII buffered fibers
- Easy, consistent stripping
- Flame-retardant jacket
- Rugged and durable
Specifications
Specifications
Corning - 012T88-33131-A3 - Product Categories
- Shop by Manufacturer/Corning
- Data Communications and Networking
- Fiber Optic Cable
- Fiber Optic Indoor Cable
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 012T88-33131-A3 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 012T88-33131-A3 |
| EAN Code | 4056418181301 |
| Environment | Indoor |
| Cable Type | Tight-Buffered |
| Product Type | Interlocking Armor |
| Fiber Category | 50 µm MM (OM2) |
| Flame Rating | Plenum (OFCP) |
| Application | General Purpose Horizontal, Plenum, Vertical Riser |
| Fiber Count | 12 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFCP, CSA FT-6, ICEA S-83-596 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 60 °C (32 °F to 140 °F ) |
| Temperature Range, Operation | 0 °C to 70 °C (32 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

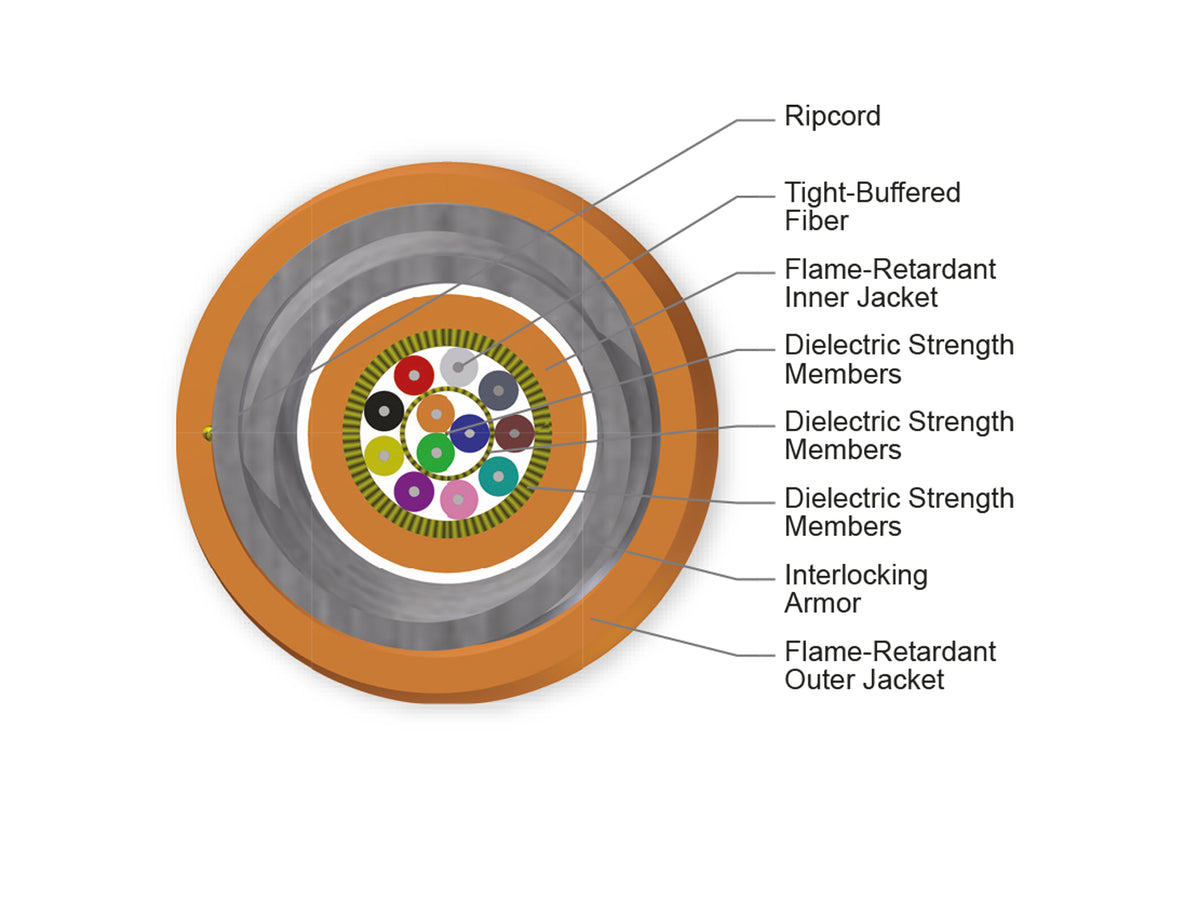

| Cable Design | - |
| Central Element | Yarn |
| Fiber Count | 12 |
| Number of Ripcords | 2 |
| Outer Jacket Color | Orange |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tensile Strength Elements and/or Armoring - Layer 2 | Dielectric strength members |
| Inner Jacket Material | Flame-retardant |
| Tight Buffer Color | Blue, Orange, Green |
| Tight Buffer Color, Layer 2 | Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Flame Rating | Plenum (OFCP) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term, ?12F | 132 N (29.67 lbf) |
| Max. Tensile Strength, Long-Term, >12F | 200 N (44.96 lbf) |
| Max. Tensile Strength, Long-Term | 132 N (29.67 lbf) |
| Max. Tensile Strength, Short-Term, ?12F | 440 N (98.92 lbf) |
| Max. Tensile Strength, Short-Term, >12F | 660 N (148.37 lbf) |
| Max. Tensile Strength, Short-Term | 440 N (98.92 lbf) |
| Min. Bend Radius Installation | 170 mm (6.69 in) |
| Min. Bend Radius Operation | 113 mm (4.45 in) |
| Nominal Inner Cable Diameter | 6 mm (0.24 in) |
| Nominal Outer Diameter | 11.3 mm (0.44 in ) |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 31 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 950 MHz*km/ - |
| Maximum Attenuation | 2.8 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 700 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 750 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 150 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM2 |
| Ordering Information | - |
| Weight | 113 kg/km (75.93 lb/1000 ft) |
| Type | Indoor Cable |
| Application | Indoor |
| Cable Type | Tight Buffered |
| Transmission Mode | Multimode |
| Jacket Flame Rating | OFCP FT6 |
| Jacket Material | Fire Retardant |
| Jacket Color | Orange |
| Fiber Count | 12 |
| Speed | 50um |
| Outside Diameter | 0.5 in. (12.6mm) |
| Armored | Yes |
| Construction | Tight Buffer |
