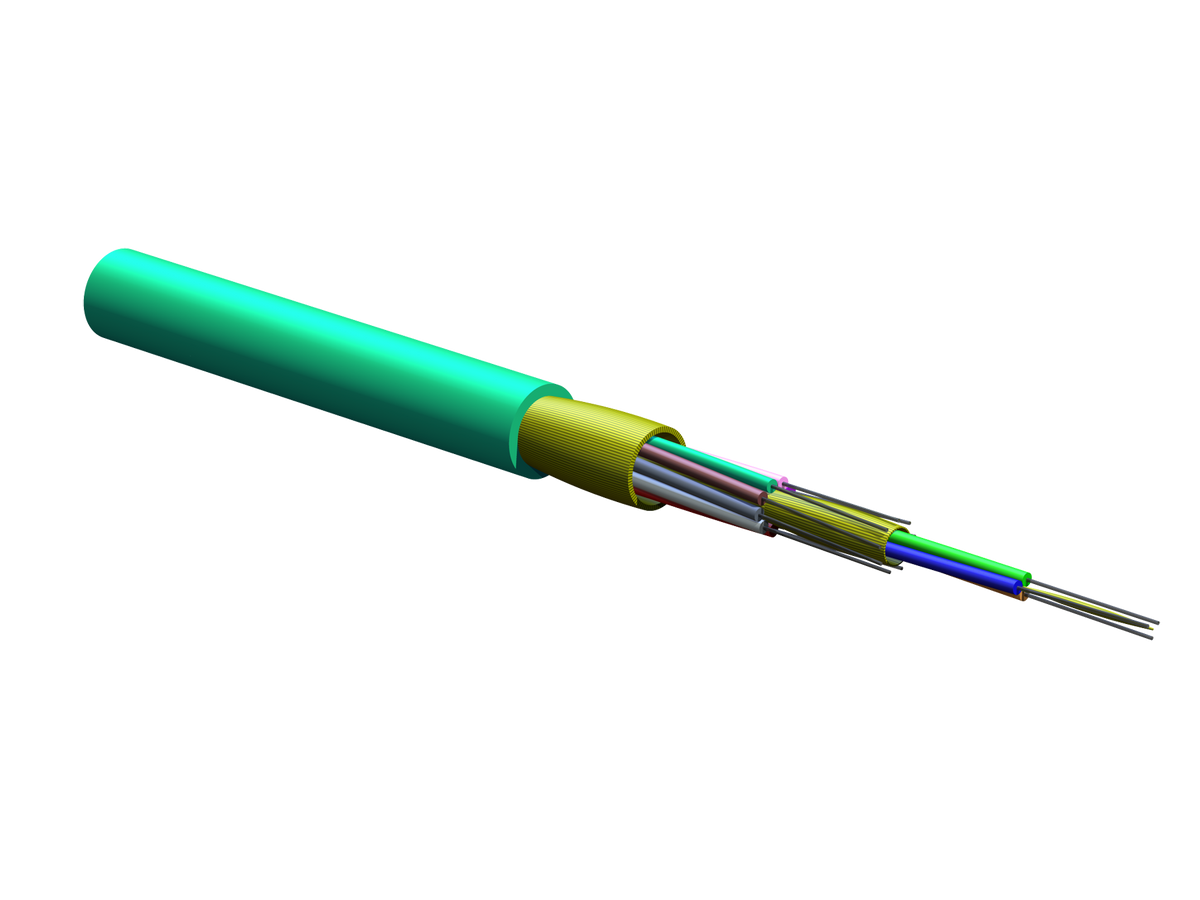

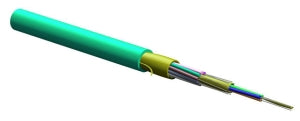

Corning 012T88-33190-29 | MIC Tight-Buffered Cable, Plenum
Regular price
$4.06
Unit price
Brand: Corning
|
SKU:
370-COROM4-TBD-12
Regular price
$4.06
Unit price
Description
Description
Corning 012T88-33190-29 | MIC Tight-Buffered Cable, Plenum 12 F, 50 µm multimode (OM4)
Corning - 012T88-33190-29 - Features
- 900 µm buffered fibers
- Easy, consistent stripping
- All-dielectric construction
- Requires no grounding or bonding
- Flame-retardant jacket
- Rugged and durable
- 900 um buffered fibers
- Easy, consistent stripping All-dielectric construction
- Requires no grounding or bonding Flame-retardant jacket
- Rugged and durable
Specifications
Specifications
Corning - 012T88-33190-29 - Product Categories
- Shop by Manufacturer/Corning
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 012T88-33190-29 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 012T88-33190-29 |
| EAN Code | 4056418180786 |
| Environment | Indoor |
| Cable Type | Tight-Buffered |
| Product Type | Distribution |
| Fiber Category | 50 µm MM (OM4) |
| Flame Rating | Plenum (OFNP) |
| Application | General Purpose Horizontal, Plenum, Vertical Riser |
| Fiber Count | 12 |
| Standards | - |
| Approvals and Listings | National Electrical Code (NEC) OFNP, NFPA 262, CSA FT-6, ICEA S-83-596 |
| Flame Test Method | NFPA 262 and CSA FT-6 (for plenum, riser and general building applications), ICEA S-83-596 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 60 °C (32 °F to 140 °F ) |
| Temperature Range, Operation | 0 °C to 70 °C (32 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

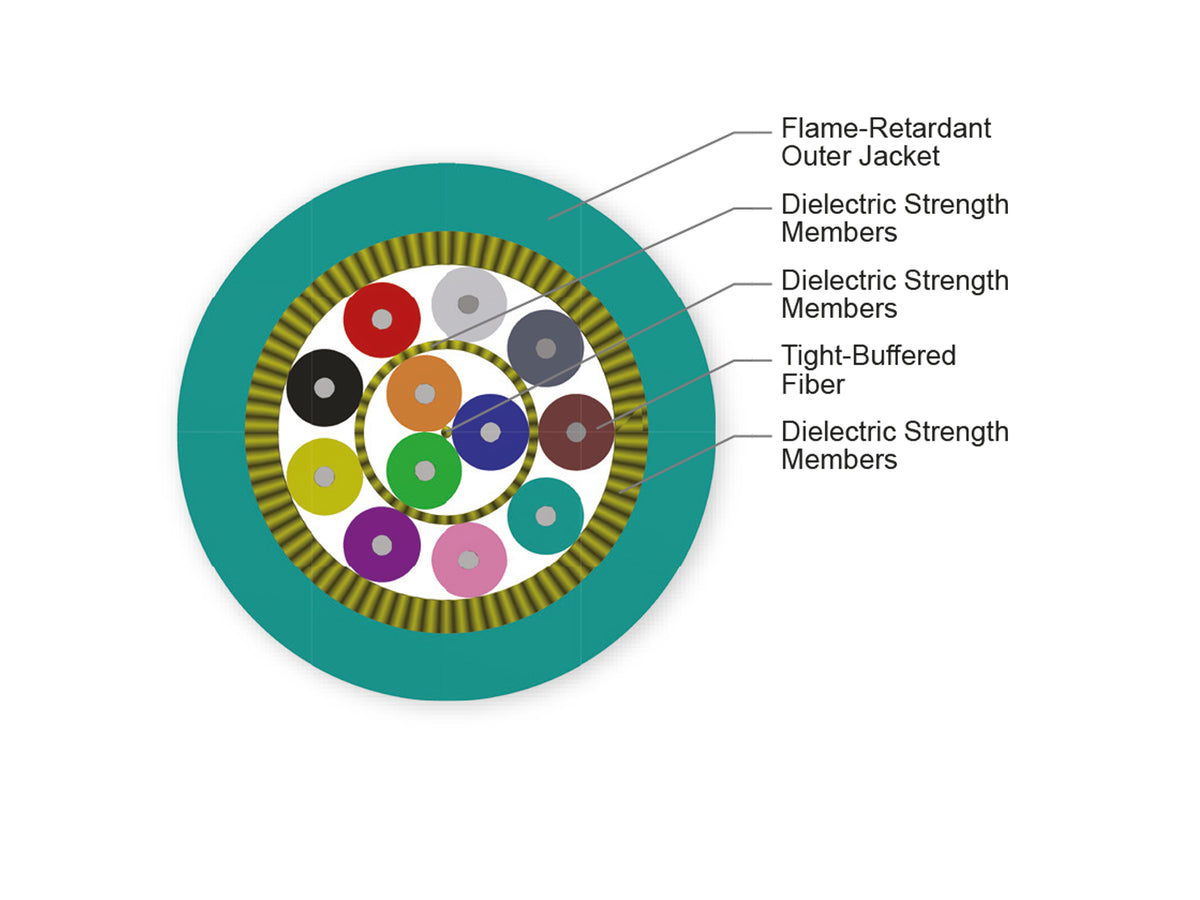

| Cable Design | - |
| Central Element | Yarn |
| Fiber Count | 12 |
| Outer Jacket Color | Aqua |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tensile Strength Elements and/or Armoring - Layer 2 | Dielectric strength members |
| Tight Buffer Color | Blue, Orange, Green |
| Tight Buffer Color, Layer 2 | Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Flame Rating | Plenum (OFNP) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term, ?12F | 132 N (29.67 lbf) |
| Max. Tensile Strength, Long-Term, >12F | 200 N (44.96 lbf) |
| Max. Tensile Strength, Short-Term, ?12F | 440 N (98.92 lbf) |
| Max. Tensile Strength, Short-Term, >12F | 660 N (148.37 lbf) |
| Min. Bend Radius Installation | 92 mm (3.62 in) |
| Min. Bend Radius Operation | 60 mm (2.36 in) |
| Nominal Outer Diameter | 6 mm (0.24 in ) |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 90 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 4700 MHz*km / - |
| Maximum Attenuation | 2.8 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 3500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 550 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM4 |
| Ordering Information | - |
| Weight | 3.38 kg/km (2.27 lb/1000 ft) |
