Corning 012T88-33190-D3 | MIC DX Tight-Buffered Armored Cable, Plenum
Description
Description

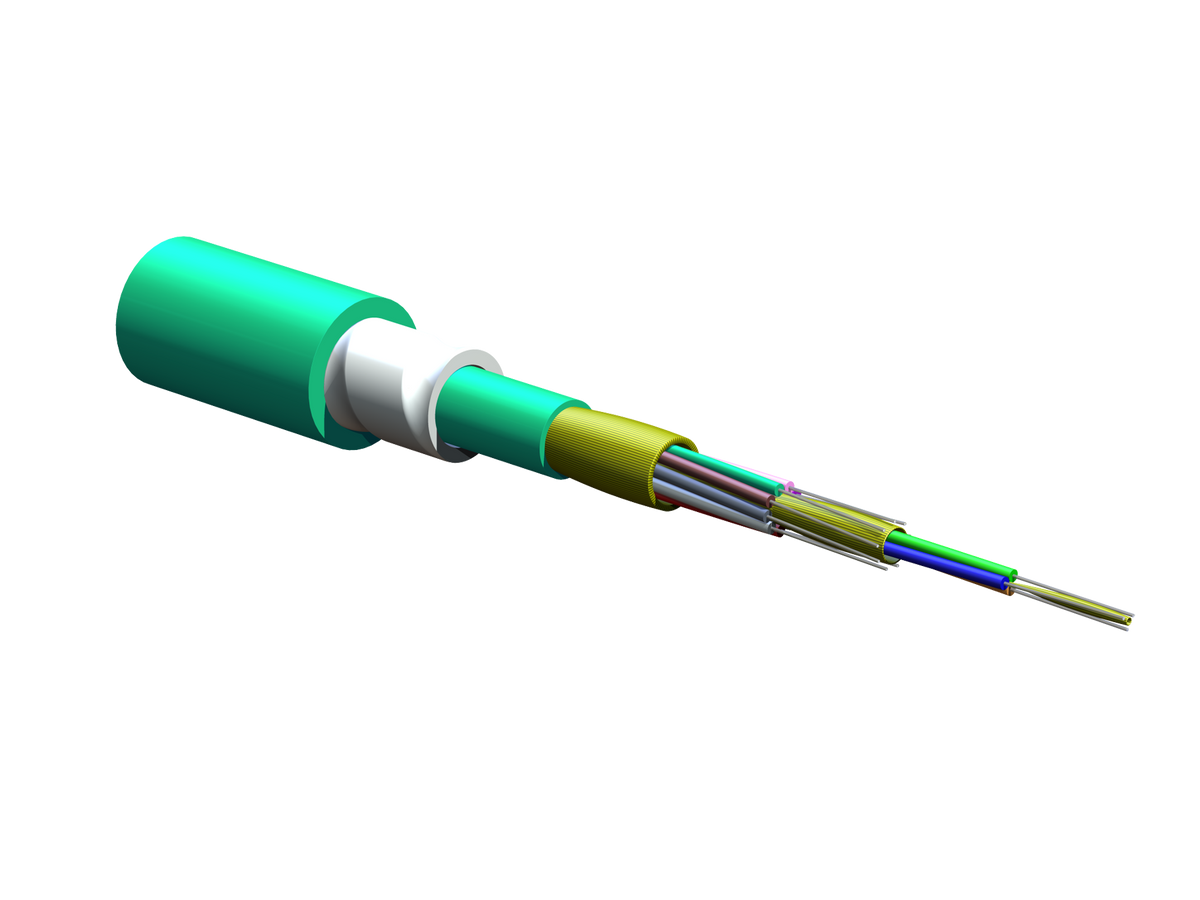

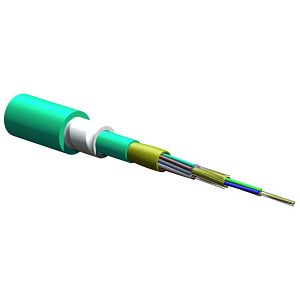

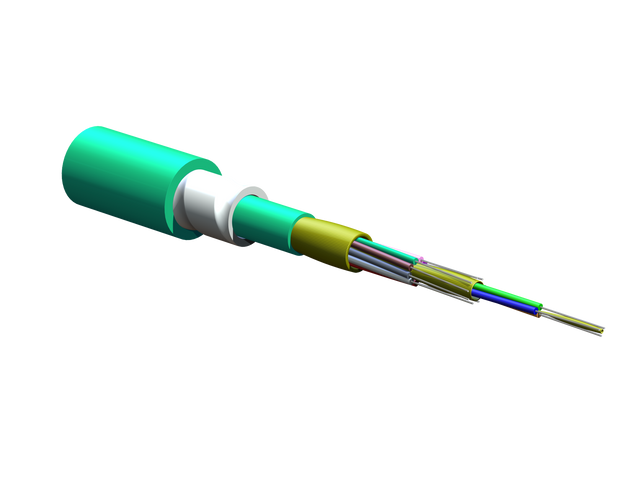

The Fiber are stranded around a dielectric central member that is protected by a flexible, all -dielectric armor offering easy, one -step installation and over four times the crush protection of unarmored cables. With a flame - retardant outer jacket, this cable is particularly useful for heavy traffic or more challenging mechanical exposure conditions and applications requiring extra rugged cables.
Standards Approvals and Listings: National Electrical Code (NEC) OFNP, CSA FT-6, ICEA S-83-596 Flame Resistance: NFPA 262 (for plenum, riser and general building applications) RoHS: Compliant
Corning - 012T88-33190-D3 - Features
- Dielectric armor
- Four times crush protection compared to unarmored
- TBII buffered fibers
- Easy, consistent stripping
- Flame-retardant jacket
- Rugged and durable
- Easy armor removal
- Increased safety and speed at installation
- Dielectric armor
- TBII buffered Fiber
- Flame-retardant jacket
- Easy armor removal
Specifications
Specifications
Corning - 012T88-33190-D3 - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Indoor Fiber Optic Cable
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 012T88-33190-D3 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 012T88-33190-D3 |
| EAN Code | 4056418171999 |
| Environment | Indoor |
| Cable Type | Tight-Buffered |
| Product Type | Dielectric armor |
| Fiber Category | 50 µm MM (OM4) |
| Flame Rating | Plenum (OFNP) |
| Application | General Purpose Horizontal, Plenum |
| Fiber Count | 12 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNP, NFPA 262, CSA FT-6, ICEA S-83-596 |
| Flame Test Method | Flame retardant according to IEC 60332-1-2 (single cable) and IEC 60332-3-24 (bunch of cables), Reaction to fire according to EN 50575 and EN 13501-6, Low smoke according to IEC 61034 and zero halogen to IEC 60754-1, Non-corrosive according to IEC 60754-2 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 60 °C (32 °F to 140 °F ) |
| Temperature Range, Operation | 0 °C to 70 °C (32 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

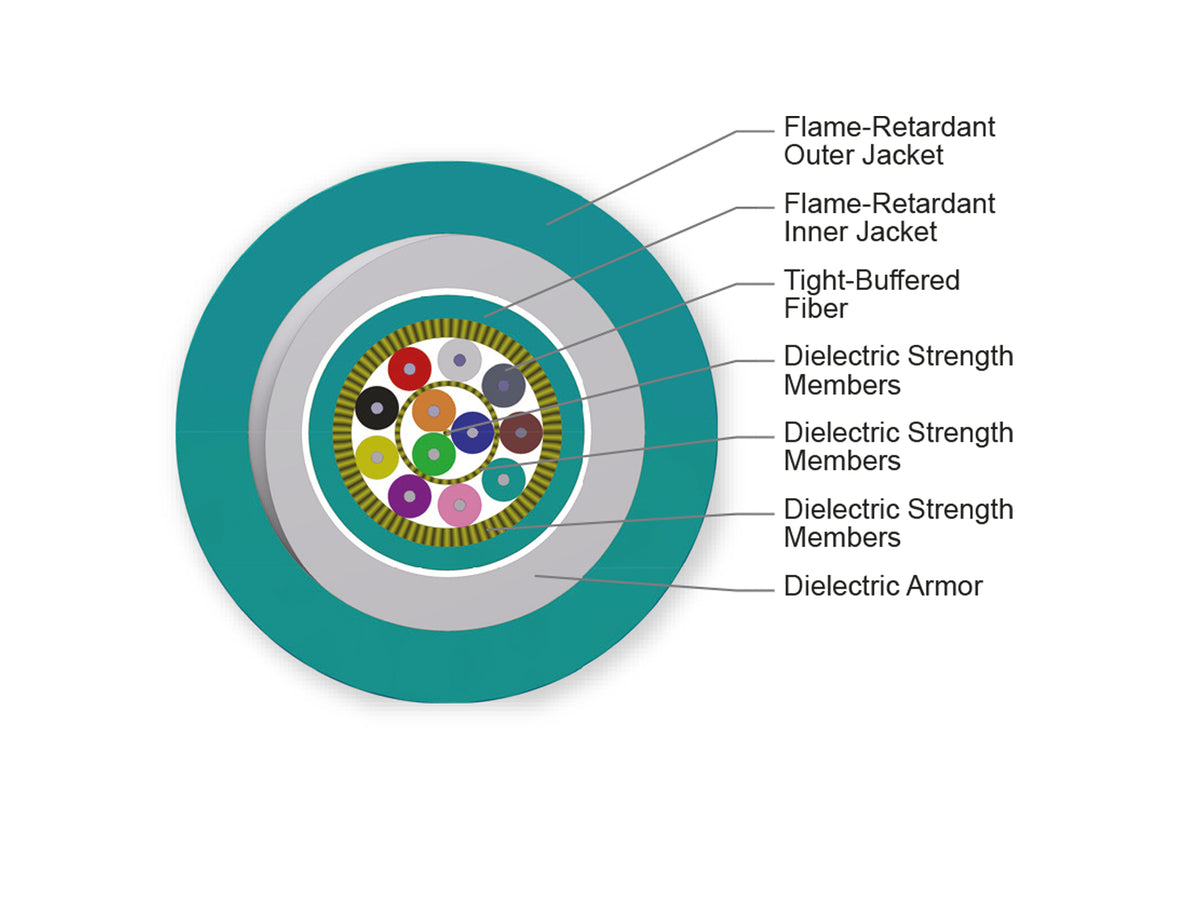

| Cable Design | - |
| Fiber Count | 12 |
| Outer Jacket Color | Aqua |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tensile Strength Elements and/or Armoring - Layer 2 | Dielectric strength members |
| Inner Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 3 | Dielectric armor |
| Tight Buffer Color | Blue, Orange, Green |
| Tight Buffer Color, Layer 2 | Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Flame Rating | Plenum (OFNP) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 593 N (133.31 lbf) |
| Max. Tensile Strength, Short-Term | 1000 N (224.81 lbf) |
| Min. Bend Radius Installation | 173 mm (6.81 in) |
| Min. Bend Radius Operation | 115 mm (4.53 in) |
| Nominal Inner Cable Diameter | 5.6 mm (0.22 in) |
| Nominal Outer Diameter | 11.5 mm (0.45 in ) |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 90 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 4700 MHz*km / - |
| Maximum Attenuation | 3.0 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 3500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 550 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM4 |
| Ordering Information | - |
| Weight | 1.433 kg/km (0.96 lb/1000 ft) |
| ECCN | 5A991.d |
| Country of Origin | US - United States |
| UNSPSC | 26121607 |
| Brand | MIC |
| Flammability Rating | Plenum |
| Fiber Count | 12 |
