Brand: Corning
|
SKU:
10126288
Corning 012T8F-31180-A1 | FREEDM One Tight-Buffered, Interlocking Armored Cable, Riser
Regular price
$5.85
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 012T8F-31180-A1 | FREEDM One Tight-Buffered, Interlocking A...
Regular price
$5.85
Unit price
Brand: Corning
|
SKU:
10126288
Regular price
$5.85
Unit price
Description
Description

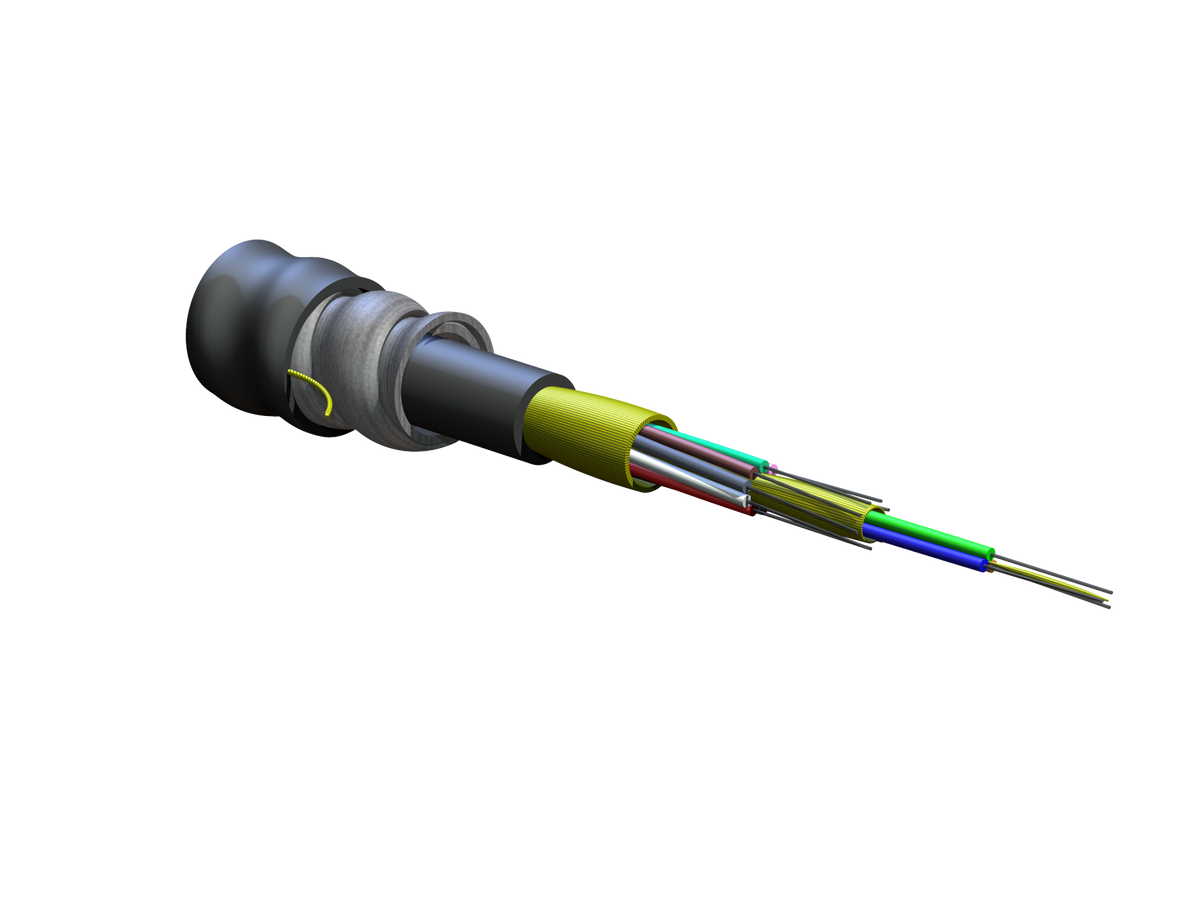

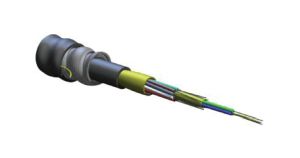

Corning 012T8F-31180-A1 | FREEDM One Tight-Buffered, Interlocking Armored Cable, Riser 12 F, 50 µm multimode (OM3)
Corning - 012T8F-31180-A1 - Features
- Waterblocking technology
- OSP (outdoor) applications
- Flexible, interlocking armor design
- Seven times crush protection compared to non-armored cables
- UV-resistant, flame-retardant jacket
- Rugged, durable and easy to strip
Specifications
Specifications
Corning - 012T8F-31180-A1 - Product Categories
- Shop by Manufacturer/Corning
- Data Communications and Networking
- Fiber Optic Cable
- Fiber Optic Indoor | Outdoor Cable
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor Riser Cables
Corning - 012T8F-31180-A1 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 012T8F-31180-A1 |
| EAN Code | 4056418175119 |
| Environment | Indoor/Outdoor |
| Cable Type | Tight-Buffered |
| Product Type | Interlocking Armor |
| Fiber Category | 50 µm MM (OM3) |
| Flame Rating | Riser (OFCR) |
| Application | Aerial, Direct Buried, Duct, General Purpose Horizontal, Vertical Riser |
| Fiber Count | 12 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFCR, UL 1666, CSA FT-4, ICEA S-104-696 |
| Environmental Conditions | - |
| Temperature Range, Installation | -10 °C to 60 °C (14 °F to 140 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

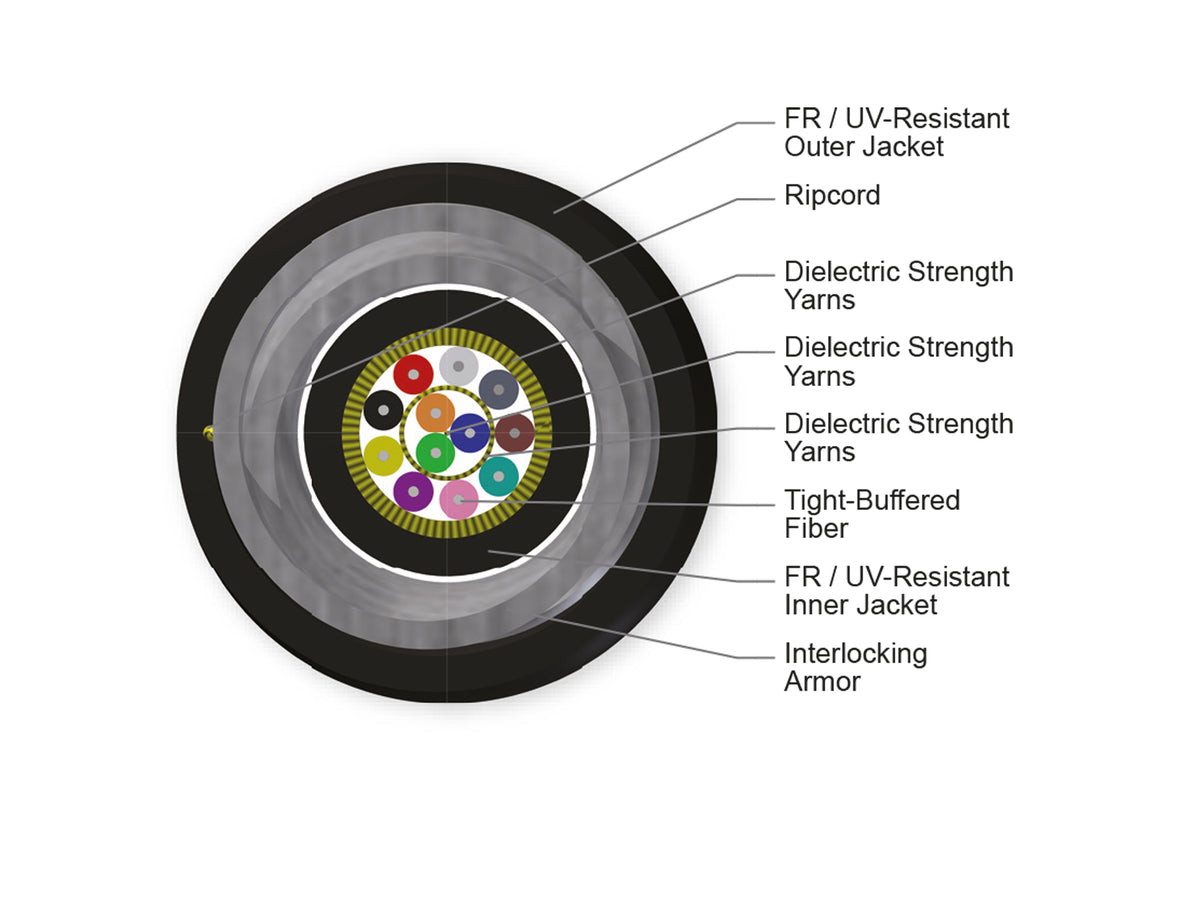

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 12 |
| Number of Ripcords | 2 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Water-swellable strength members |
| Tensile Strength Elements and/or Armoring - Layer 2 | Interlocking Armor |
| Inner Jacket Material | Flame-Retardant, UV-Resistant |
| Tight Buffer Color | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Flame Rating | Riser (OFCR) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Short-Term | 675 N (151.75 lbf) |
| Min. Bend Radius Installation | 177 mm (6.97 in) |
| Min. Bend Radius Operation | 118 mm (4.65 in) |
| Nominal Outer Diameter | 11.8 mm (0.46 in ) |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 80 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 2000 MHz*km / - |
| Maximum Attenuation | 2.8 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 1500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 300 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM3 |
| Ordering Information | - |
| Weight | 1143 kg/km (768.06 lb/1000 ft) |
| Type | Indoor Outdoor Fiber Cable |
| Application | Indoor/Outdoor |
| Cable Type | Tight Buffered |
| Transmission Mode | Multimode |
| Fiber Type | OM3 |
| Jacket Flame Rating | OFCR FT4 |
| Jacket Color | Black |
| Fiber Count | 12 |
| Speed | 50um |
| Outside Diameter | 0.46 in. (11.8mm) |
| Armored | Yes |
| Armor Type | Interlocking Aluminum |
| Construction | Tight Buffer |
