Corning 012TC8-14190-A3 | Ribbon Interlocking Armored Cable, Plenum
Description
Description

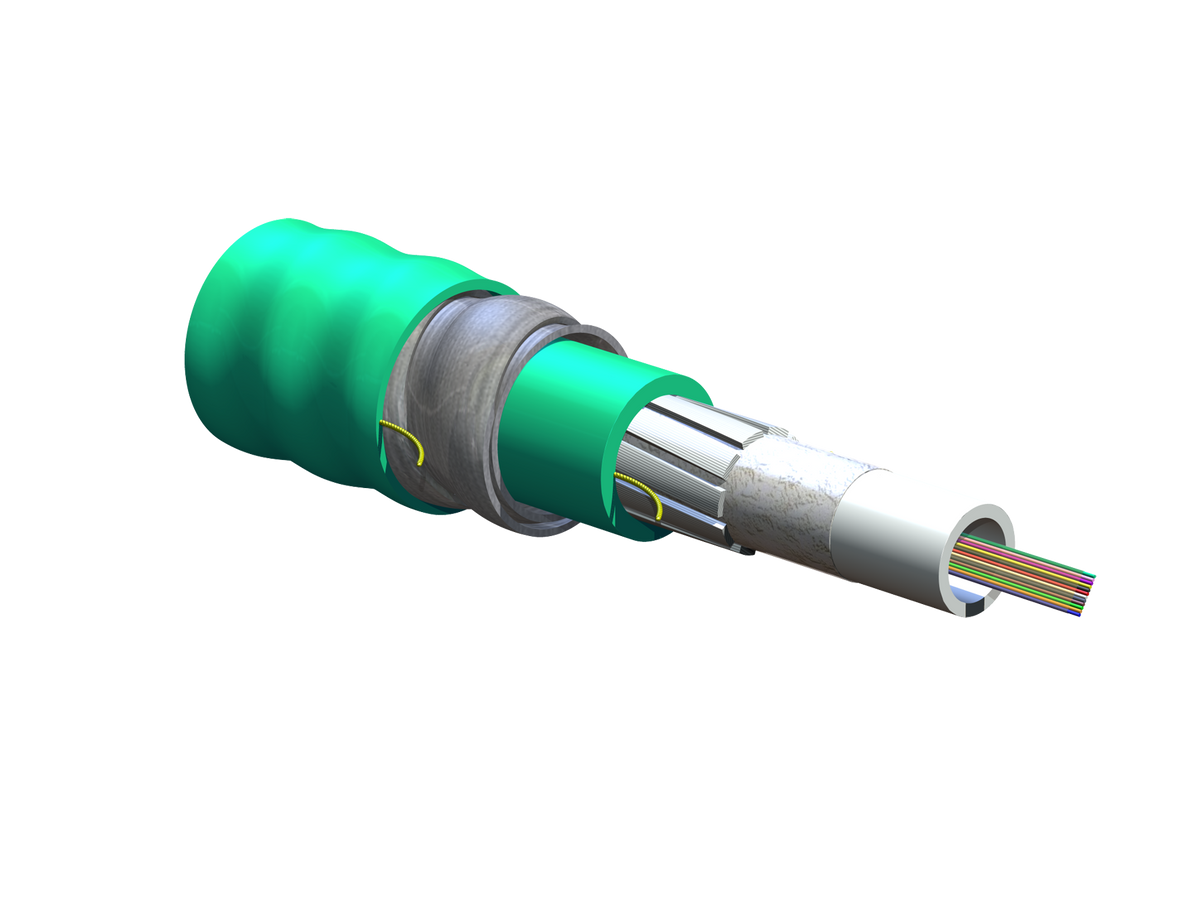

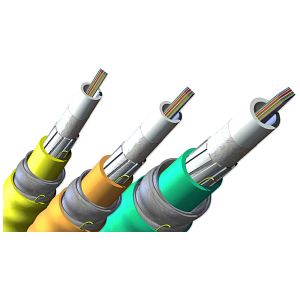

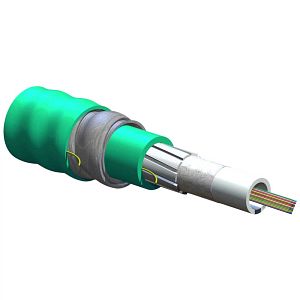

Ideal for heavy traffic or more challenging mechanical exposure conditions, this cable design consists of Fiber organized into 12-fiber ribbons inside a central tube surrounded by dielectric strength members to provide tensile strength. The flexible interlocking armor offers up to seven times the crush protection of nonarmored cables, while a specially formulated flame-retardant outer jacket allows the design to meet the requirements of the NFPA 262 flame test. The 12-fiber ribbons have readily identifiable ribbon ID numbers and fiber colors with easy access to individual Fiber.
Standards Listings: National Electrical Code (NEC) OFNP Design Criteria: CSA FT-6 Test Criteria: ANSI/ICEA S-83-596 RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Corning - 012TC8-14190-A3 - Features
- Ribbon ID numbers and fiber colors
- Easily identifiable
- Precise fiber and ribbon geometries
- Excellent mass splicing yields
- Flame-retardant jacket
- Rugged and durable
- Flexible interlocking armor
- Up to seven times the crush protection compared to non-armored cables
- Common installations
- Indoor plenum, riser and general building applications
- Ribbon ID numbers and fiber colors
- Precise fiber and ribbon geometries
- Flame-retardant jacket
- Flexible interlocking armor
- Common installations
Specifications
Specifications
Corning - 012TC8-14190-A3 - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Indoor Fiber Optic Cable
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 012TC8-14190-A3 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 012TC8-14190-A3 |
| EAN Code | 4056418161716 |
| Environment | Indoor |
| Cable Type | Ribbon |
| Product Type | Interlocking Armor |
| Fiber Category | 50 µm MM (OM4) |
| Flame Rating | Plenum (OFCP) |
| Application | Vertical Riser, Plenum, General Purpose Horizontal |
| Fiber Count | 12 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFCP, FT-6, ICEA S-83-596 |
| Design and Test Criteria | ANSI/ICEA S-83-596, CSA FT-6 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 0 °C (32 °F to 32 °F ) |
| Temperature Range, Operation | 0 °C to 0 °C (32 °F to 32 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |

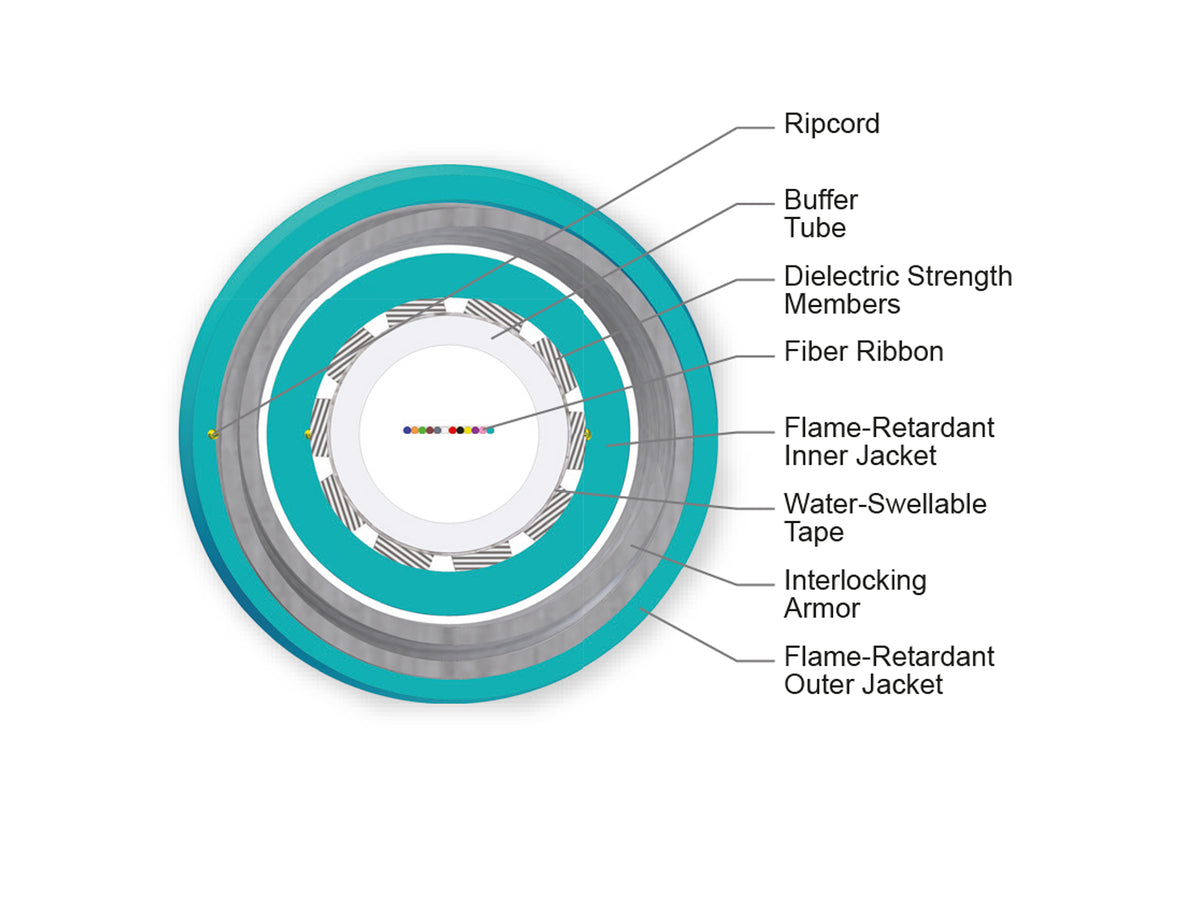

| Cable Design | - |
| Buffer Tube Color | Natural |
| Fiber Count | 12 |
| Buffer Tube Diameter | 81 mm (3.19 in) |
| Number of Ripcords | 2 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Outer Jacket Color | Aqua |
| Outer Jacket Material | Flame-retardant |
| Inner Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tape | Water-swellable |
| Tensile Strength Elements and/or Armoring - Layer 3 | Interlocking Armor |
| Ribbons per Tube | 1 |
| Fibers per Ribbon | 12 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 400 N (89.92 lbf) |
| Max. Tensile Strength, Short-Term | 400 N (89.92 lbf) |
| Min. Bend Radius Installation | 2355 mm (92.72 in) |
| Min. Bend Radius Operation | 157 mm (6.18 in) |
| Nominal Outer Diameter | 15.7 mm (0.62 in ) |
| Nominal Inner Cable Diameter | 97 mm (3.82 in) |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 90 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 4700 MHz*km / - |
| Maximum Attenuation | 3.0 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 3500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1100 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 550 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM4 |
| Ordering Information | - |
| Weight | 215.15 kg/km (144.57 lb/1000 ft) |
| ECCN | 5A991.d |
| Country of Origin | US - United States |
| Flammability Rating | Plenum |
| Fiber Count | 12 |
