Brand: Corning
|
SKU:
370-COROM3-LTD-12

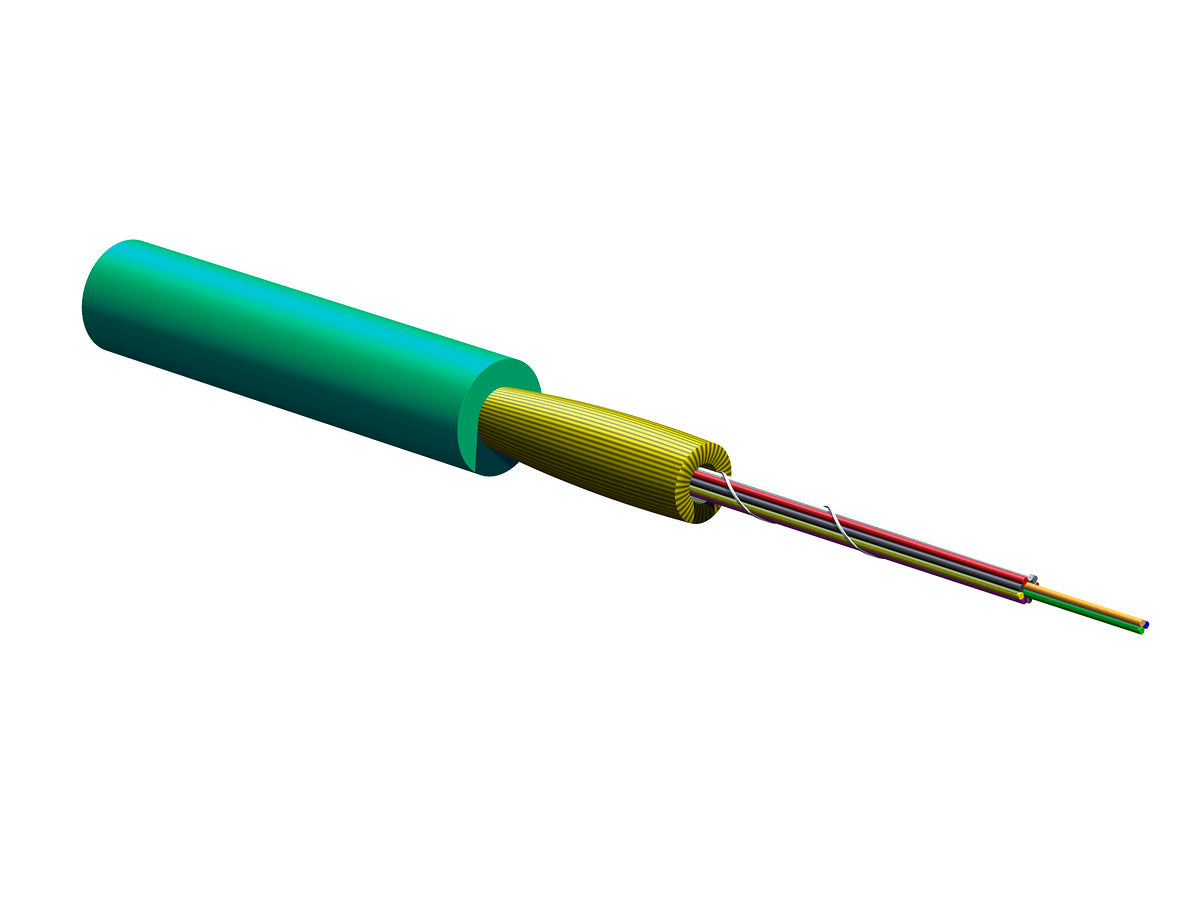

Corning 012TD8-31380-20 | MIC 250 Distribution Cable, Plenum 12 F, 50 µm multimode (OM3)
Regular price
$4.44
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 012TD8-31380-20 | MIC 250 Distribution Cable, Plenum 12 F,...
Regular price
$4.44
Unit price
Brand: Corning
|
SKU:
370-COROM3-LTD-12
Regular price
$4.44
Unit price
Description
Description
Corning 012TD8-31380-20 | MIC 250 Distribution Cable, Plenum 12 F, 50 µm multimode (OM3)
Specifications
Specifications
Corning - 012TD8-31380-20 - Product Categories
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 012TD8-31380-20 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 012TD8-31380-20 |
| Item Description | MIC 250 Distribution Cable, Plenum 12 F, 50 µm multimode (OM3) |
| General Specifications | - |
| Product Number | 012TD8-31380-20 |
| EAN Code | 4056418778242 |
| Environment | Indoor |
| Cable Type | Loose Tube |
| Product Type | Distribution |
| Fiber Category | 50 µm MM (OM3) |
| Flame Rating | Plenum (OFNP) |
| Application | General Purpose Horizontal, Plenum, Vertical Riser |
| Fiber Count | 12 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNP, CSA FT-6, ICEA S-83-596 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0°C to 60°C (32°F to 140°F ) |
| Temperature Range, Operation | 0°C to 70°C (32°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |
| Cable Design | - |
| Fiber Count | 12 |
| Outer Jacket Color | Aqua |

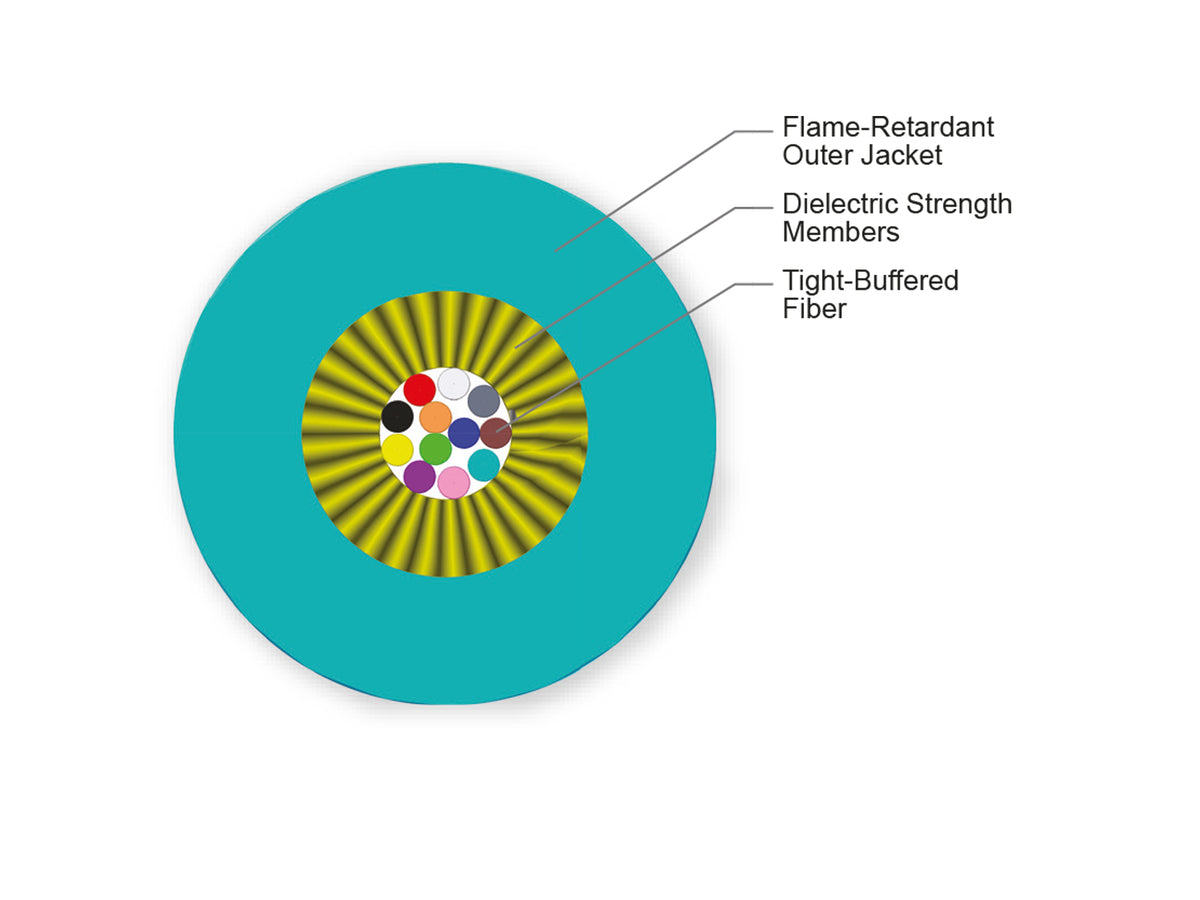

| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Subunit | 12 |
| Subunit Color | Aqua |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 132N (29.67lbf) |
| Max. Tensile Strength, Short-Term | 440N (98.92lbf) |
| Min. Bend Radius Installation | 66mm (2.6in) |
| Min. Bend Radius Operation | 44mm (1.73in) |
| Nominal Outer Diameter | 4.4mm (0.17in) |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 80 |
| Fiber Core Diameter | 50µm |
| Minimum Effective Modal Bandwidth (EMB) | 2000 MHz*km / - |
| Maximum Attenuation | 3.0 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 1500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 300 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM3 |
| Dimensions | - |
| Cable Weight | 20.1kg/km (13.51lb/1000 ft) |
