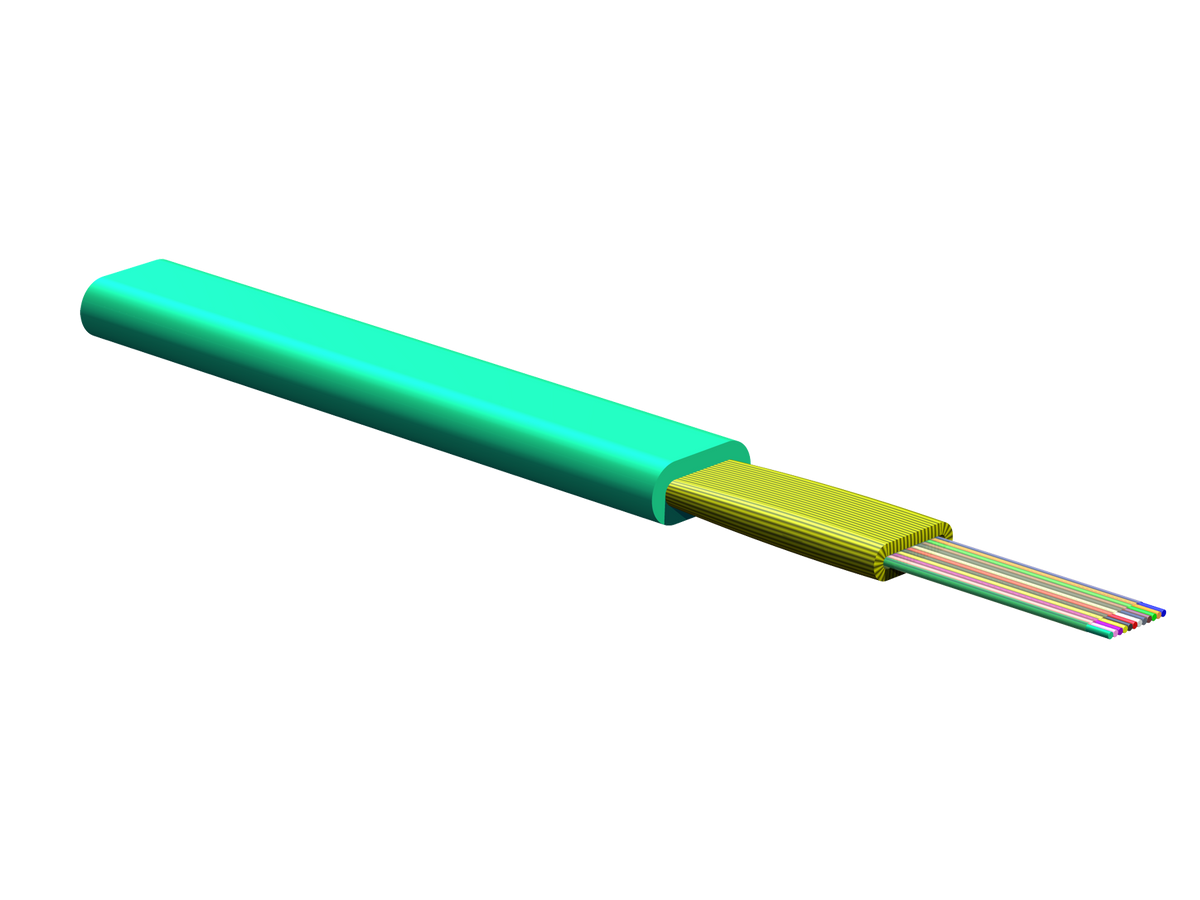

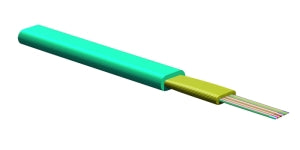

Corning 012TJ8-T3180-0F | Ribbon Interconnect Cable, Plenum
Regular price
$3.44
Unit price
Brand: Corning
|
SKU:
370-COROM3-RIBIC-12
Regular price
$3.44
Unit price
Description
Description
Corning 012TJ8-T3180-0F | Ribbon Interconnect Cable, Plenum 12 F, 50 µm multimode (OM3)
Corning - 012TJ8-T3180-0F - Features
- All-dielectric strength member
- Mechanical durability
- All-dielectric strength member
- Mechanical durability
- TEMPEST applications
- Interference prevention
Specifications
Specifications
Corning - 012TJ8-T3180-0F - Product Categories
- Shop by Manufacturer/Corning
- Data Communications and Networking
- Fiber Optic Cable
- Fiber Optic Indoor Cable
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 012TJ8-T3180-0F - Specifications
| General Specifications | - |
|---|---|
| Product Number | 012TJ8-T3180-0F |
| EAN Code | 4056418180939 |
| Environment | Indoor |
| Cable Type | Ribbon |
| Product Type | Interconnect |
| Fiber Category | 50 µm MM (OM3) |
| Flame Rating | Plenum (OFNP) |
| Application | General Purpose Horizontal, Vertical Riser, Plenum |
| Fiber Count | 12 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNP, CSA FT-6, ICEA S-83-596 |
| Environmental Conditions | - |
| Temperature Range, Operation | 0 °C to 0 °C (32 °F to 32 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |

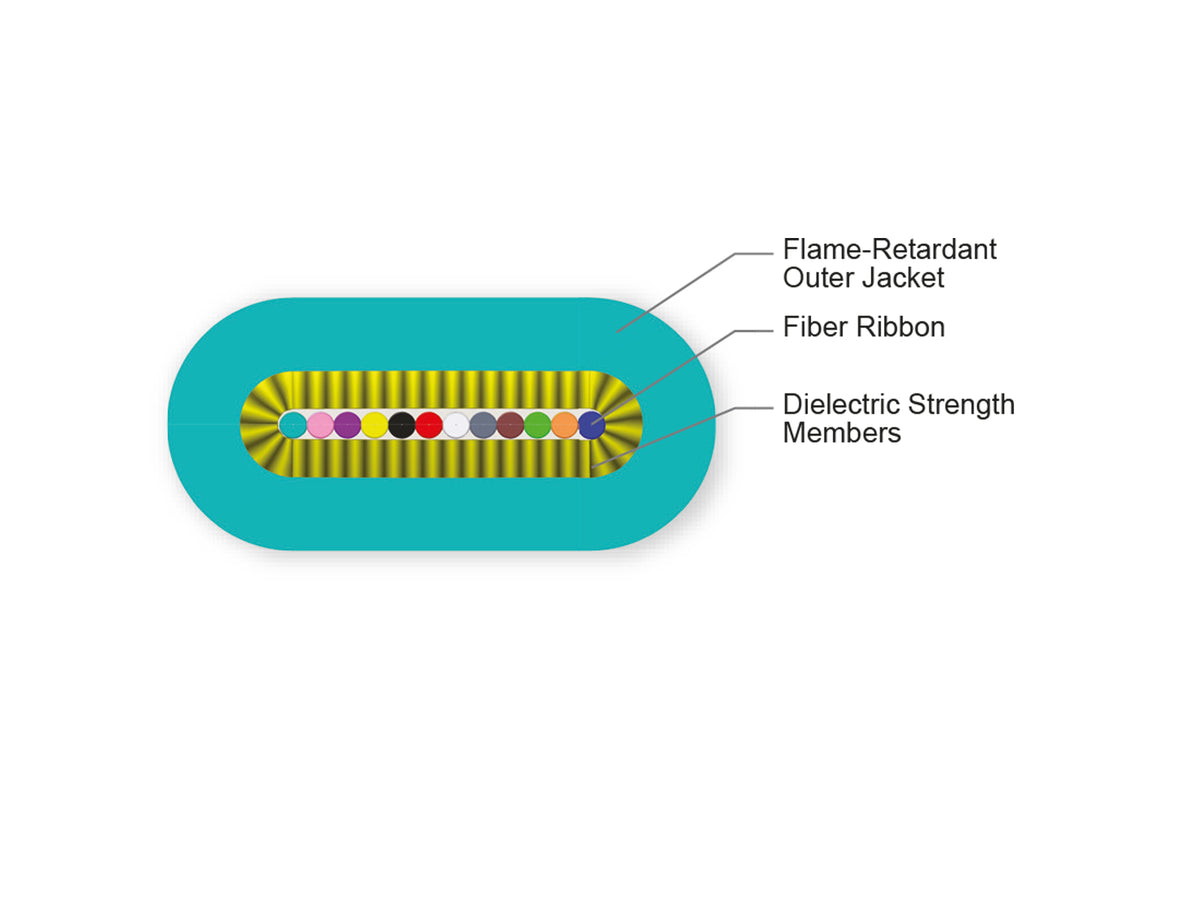

| Cable Design | - |
| Fiber Count | 12 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Outer Jacket Color | Aqua |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Number of Ribbons | 1 |
| Fibers per Ribbon | 12 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 66 N (14.84 lbf) |
| Max. Tensile Strength, Short-Term | 66 N (14.84 lbf) |
| Min. Bend Radius Installation | 50 mm (1.97 in) |
| Min. Bend Radius Operation | 25 mm (0.98 in) |
| Nominal Outer Diameter | 4.2 mm (0.17 in ) |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 80 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 2000 MHz*km / - |
| Maximum Attenuation | 3.0 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 1500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 300 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM3 |
| Ordering Information | - |
| Weight | 106 kg/km (71.23 lb/1000 ft) |
| Type | Interconnect Cable |
| Application | Indoor |
| Transmission Mode | Multimode |
| Fiber Type | OM3 |
| Jacket Flame Rating | OFNP FT6 |
| Jacket Material | Flame Retardant |
| Jacket Color | Aqua |
| Fiber Count | 12 |
| Speed | 50um |
| Outside Diameter | 0.16 x 0.09 in. (4.2 x 2.2mm) |
| Construction | Ribbon |
