Brand: Corning
|
SKU:
372-COROM3-LTD-12

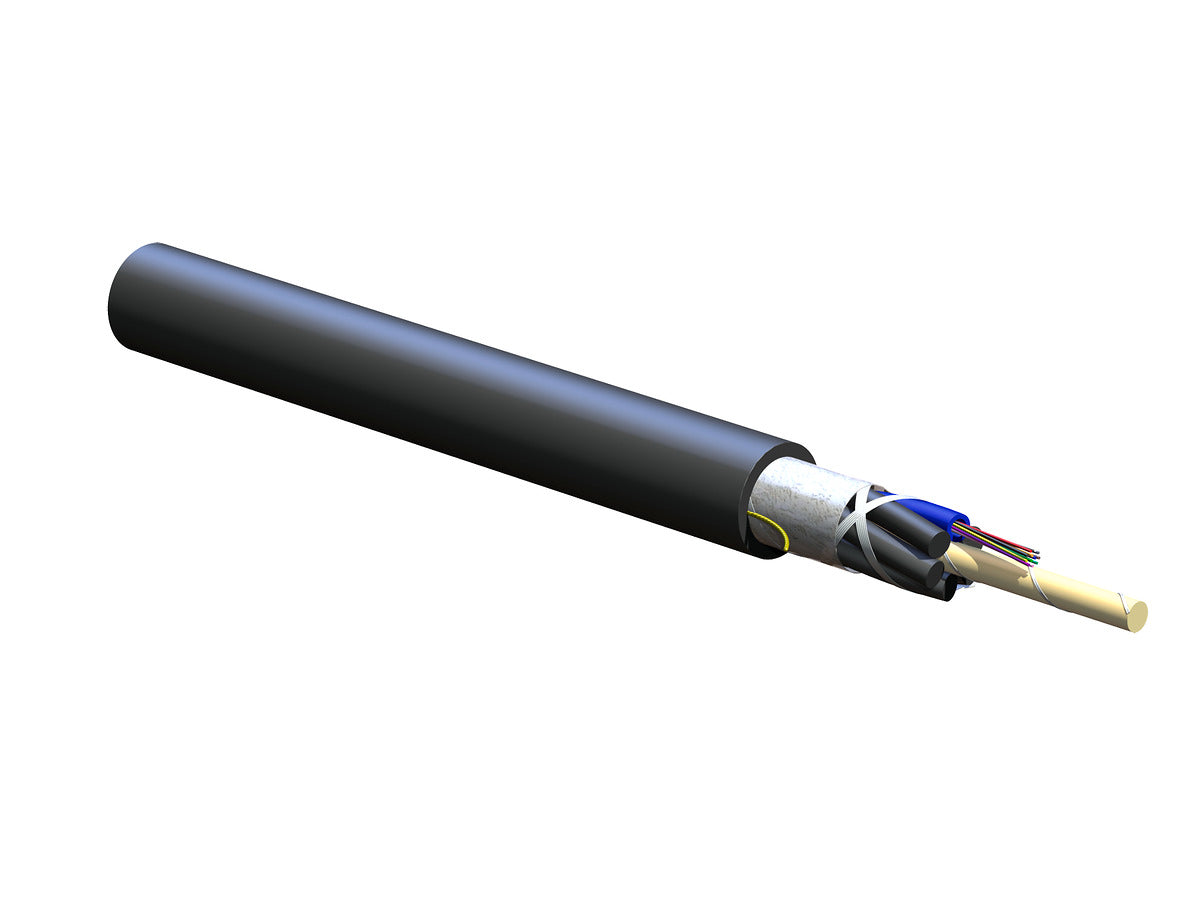

Corning 012TU4-T4180D20 | ALTOS Loose Tube, Gel-Free Cable 12 F, 50 µm multimode (OM3)
Regular price
$5.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 012TU4-T4180D20 | ALTOS Loose Tube, Gel-Free Cable 12 F, 5...
Regular price
$5.29
Unit price
Brand: Corning
|
SKU:
372-COROM3-LTD-12
Regular price
$5.29
Unit price
Shipping calculated at checkout.
Description
Description
Corning 012TU4-T4180D20 | ALTOS Loose Tube, Gel-Free Cable 12 F, 50 µm multimode (OM3)
Specifications
Specifications
Corning - 012TU4-T4180D20 - Product Categories
- Fiber Optic Cables
- Outdoor
- Outdoor Duct Cables
Corning - 012TU4-T4180D20 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 012TU4-T4180D20 |
| Item Description | ALTOS Loose Tube, Gel-Free Cable 12 F, 50 µm multimode (OM3) |
| General Specifications | - |
| Product Number | 012TU4-T4180D20 |
| EAN Code | 4056418177199 |
| Environment | Outdoor |
| Cable Type | Loose Tube |
| Product Type | Dielectric |
| Fiber Category | 50 µm MM (OM3) |
| Application | Aerial, Duct |
| Fiber Count | 12 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Common Installations | Outdoor lashed aerial and duct, indoor when installed according to National Electrical Code (NEC) Article 770 |
| Design and Test Criteria | ANSI/ICEA S-87-640 |
| Environmental Conditions | - |
| Temperature Range, Installation | -30°C to 70°C (-22°F to 158°F ) |
| Temperature Range, Operation | -40°C to 70°C (-40°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |
| Notes | Corning recommends storing cable in a proper temperature environment prior to installation to allow the cable temperature to meet installation temperature range specifications for best installation results. |

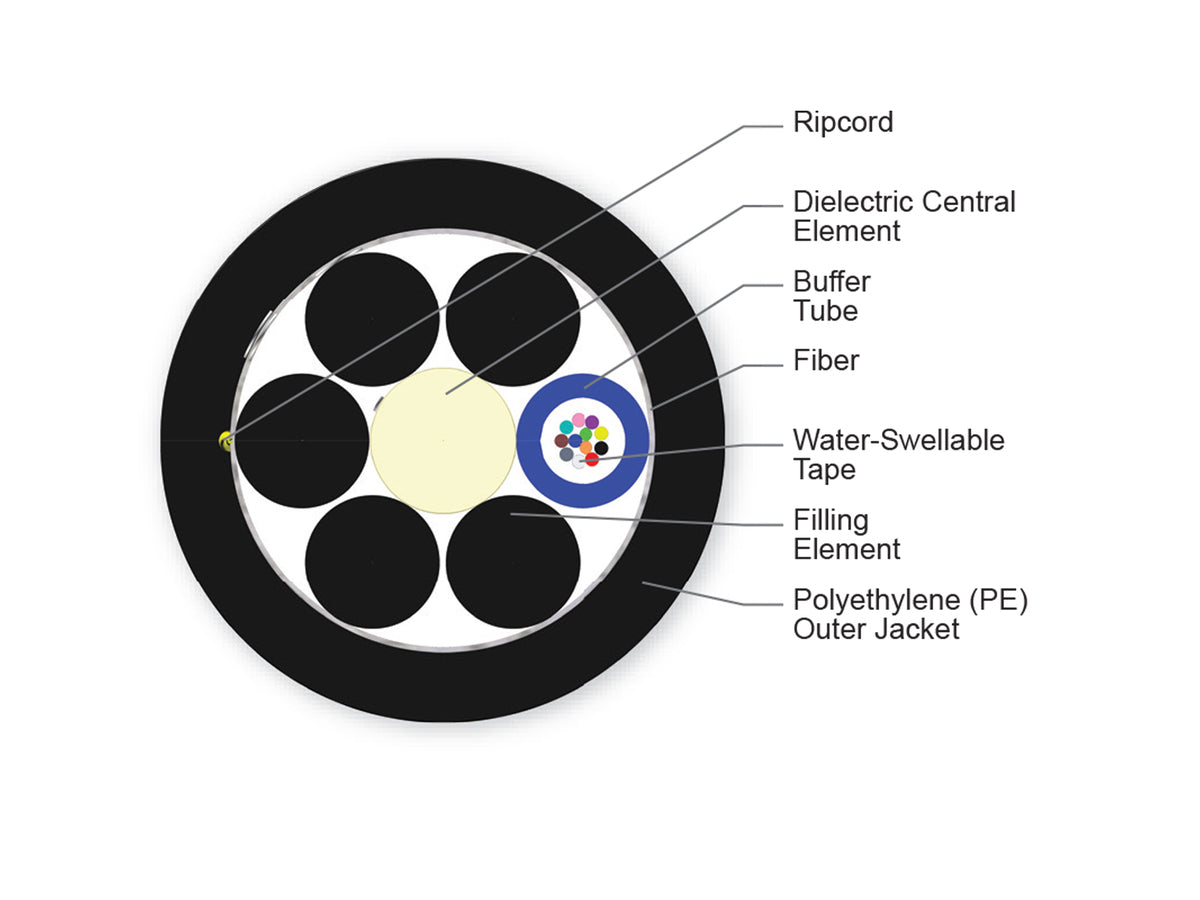

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 12 |
| Number of Ripcords | 1 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Buffer Tube Color | Blue |
| Buffer Tube Diameter | 2.5mm (0.1in) |
| Number of Active Tubes | 1 |
| Number of Filling Elements | 5 |
| Number of Tube Positions | 6 |
| Tape | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Color Code Standards | Telcordia |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 890N (200.08lbf) |
| Max. Tensile Strength, Short-Term | 2700N (606.98lbf) |
| Nominal Outer Diameter | 10.5mm (0.41in) |
| Min. Bend Diameter Installation | 316mm (12.44in) |
| Min. Bend Diameter Operation | 210mm (8.27in) |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 80 |
| Fiber Core Diameter | 50µm |
| Minimum Effective Modal Bandwidth (EMB) | 2000 MHz*km / - |
| Maximum Attenuation | 3.0 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 1500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 300 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM3 |
| Dimensions | - |
| Cable Weight | 73kg/km (49.05lb/1000 ft) |
