Brand: Corning
|
SKU:
372-COROS2-ADSSD-12

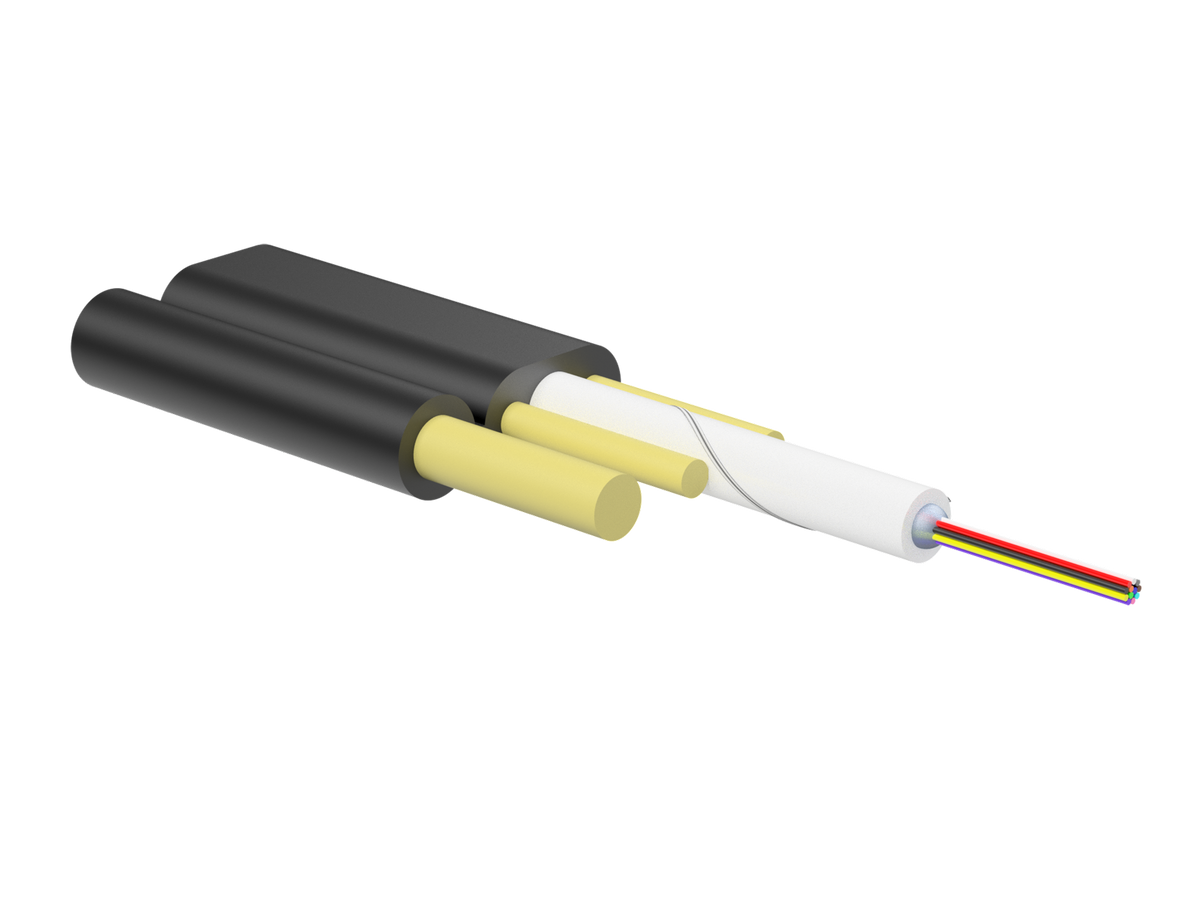

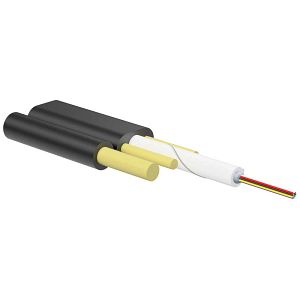

Corning 012ZBA-14101A20 | SST-Drop Single-Tube, Self-Supporting, Gel-Filled Cable
Regular price
$1.36
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 012ZBA-14101A20 | SST-Drop Single-Tube, Self-Supporting, Ge...
Regular price
$1.36
Unit price
Brand: Corning
|
SKU:
372-COROS2-ADSSD-12
Regular price
$1.36
Unit price
Shipping calculated at checkout.
Description
Description
Corning 012ZBA-14101A20 | SST-Drop Single-Tube, Self-Supporting, Gel-Filled Cable 12 F, SMF-28 Ultra fiber, Single-mode (OS2)
(ADSS) cables offer the ease of installation of standard ALTOS cable in an easy-access, single-tube design.
Corning - 012ZBA-14101A20 - Features
- Standard ALTOS Cable tube design in single-tube design
- Standard practices and hardware compatibility
- Crush resistance
- Fiber protection and signal integrity
- All-dielectric self-supporting
- No support or messenger wire required
- Compatible with field-installable OptiTap
- Strength element easily removed for field terminations
- RDUP (RUS) Listed
- Material acceptability
- Standard ALTOS Cable tube design in single tube design - Standard practices and hardware compatibility
- Crush resistance - Fiber protection and signal integrity
- All-dielectric self-supporting - No support or messenger wire required
- Compatible with field-installable OptiTap - Strength element easily removed for field terminations
- RDUP (RUS) Listed - Material acceptability
Specifications
Specifications
Corning - 012ZBA-14101A20 - Product Categories
- Shop by Manufacturer/Corning
- Wire & Cable
- Voice and Data Cable
- Outdoor Fiber Optic Cable
- DataComm
- Communications Cable
- Fiber Optic Cable
- Fiber Optic Cables
- Outdoor
- Outdoor Aerial Cables
Corning - 012ZBA-14101A20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 012ZBA-14101A20 |
| Environment | Outdoor |
| Cable Type | Drop |
| Product Type | Self-Supporting |
| Fiber Category | SMF-28 Ultra fiber |
| Application | Self-Supporting |
| Fiber Count | 12 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | USDA Rural Development Programs |
| Design and Test Criteria | ANSI/ICEA S-110-717, Telcordia GR-20-CORE |
| Environmental Conditions | - |
| Temperature Range, Installation | -30 °C to -30 °C (-22 °F to -22 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |
| Cable Design | - |
| Fiber Count | 12 |
| Buffer Tube Color Coding | Natural |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Buffer Tube Color | Natural |
| Buffer Tube Diameter | 3 mm (0.12 in) |
| Tensile Strength Elements and/or Armoring | Dielectric strength members |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 400 N (89.92 lbf) |
| Max. Tensile Strength, Short-Term | 1350 N (303.49 lbf) |
| Min. Bend Radius Operation | 135 mm (5.31 in) |
| Nominal Outer Diameter | 12.3 mm x 4.4 mm (0.48 in x 0.17 in ) |
| Optical Characteristics | - |
| Fiber Code | Z |
| Fiber Name | SMF-28 Ultra fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | ITU-T G.657.A1 |
| Ordering Information | - |
| Weight | 525 kg/km (352.78 lb/1000 ft) |
