Description
Description

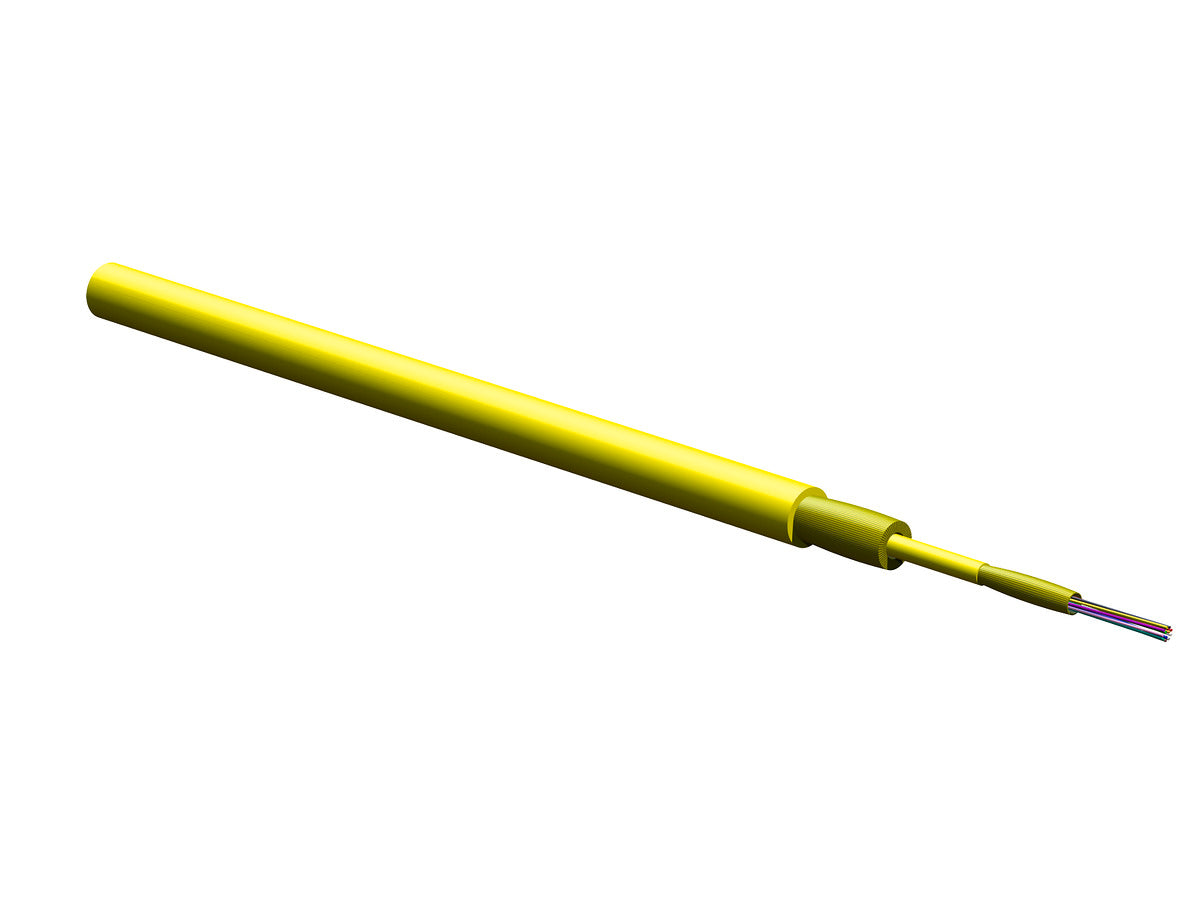

Corning 012ZD9-T1301-M2 | MIC 250 2.0 Cable 12 F, SMF-28 Ultra fiber, Single-mode (OS2)
Specifications
Specifications
Corning - 012ZD9-T1301-M2 - Product Categories
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 012ZD9-T1301-M2 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 012ZD9-T1301-M2 |
| Item Description | MIC 250 2.0 Cable 12 F, SMF-28 Ultra fiber, Single-mode (OS2) |
| General Specifications | - |
| Product Number | 012ZD9-T1301-M2 |
| Environment | Indoor |
| Cable Type | Loose Tube |
| Product Type | Distribution |
| Fiber Category | SMF-28 Ultra fiber |
| Application | General Purpose Horizontal, Plenum, Vertical Riser |
| Fiber Count | 12 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNP, CSA FT-6, ICEA S-83-596 |
| Design and Test Criteria | NFPA 262 (for plenum, riser and general building applications) |
| Environmental Conditions | - |
| Temperature Range, Installation | 0°C to 60°C (32°F to 140°F ) |
| Temperature Range, Operation | 0°C to 70°C (32°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |
| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 12 |
| Outer Jacket Color | Yellow |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Buffer Tube Diameter | 2mm (0.08in) |
| Fiber Bundle Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Number of Active Tubes | 1 |
| Fibers per Tube | 12 |
| Color Code Standards | Telcordia |
| Mechanical Specifications | - |
| Max. Tensile Strength, Short-Term | 440N (98.92lbf) |
| Min. Bend Radius Installation | 82.5mm (3.25in) |
| Min. Bend Radius Operation | 55mm (2.17in) |
| Nominal Outer Diameter | 5.5mm (0.22in) |
| Optical Characteristics | - |
| Fiber Code | Z |
| Fiber Name | SMF-28 Ultra fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 01 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | ITU-T G.657.A1 |
| Dimensions | - |
| Cable Weight | 31.7kg/km (21.3lb/1000 ft) |
