Brand: Corning
|
SKU:
9993116

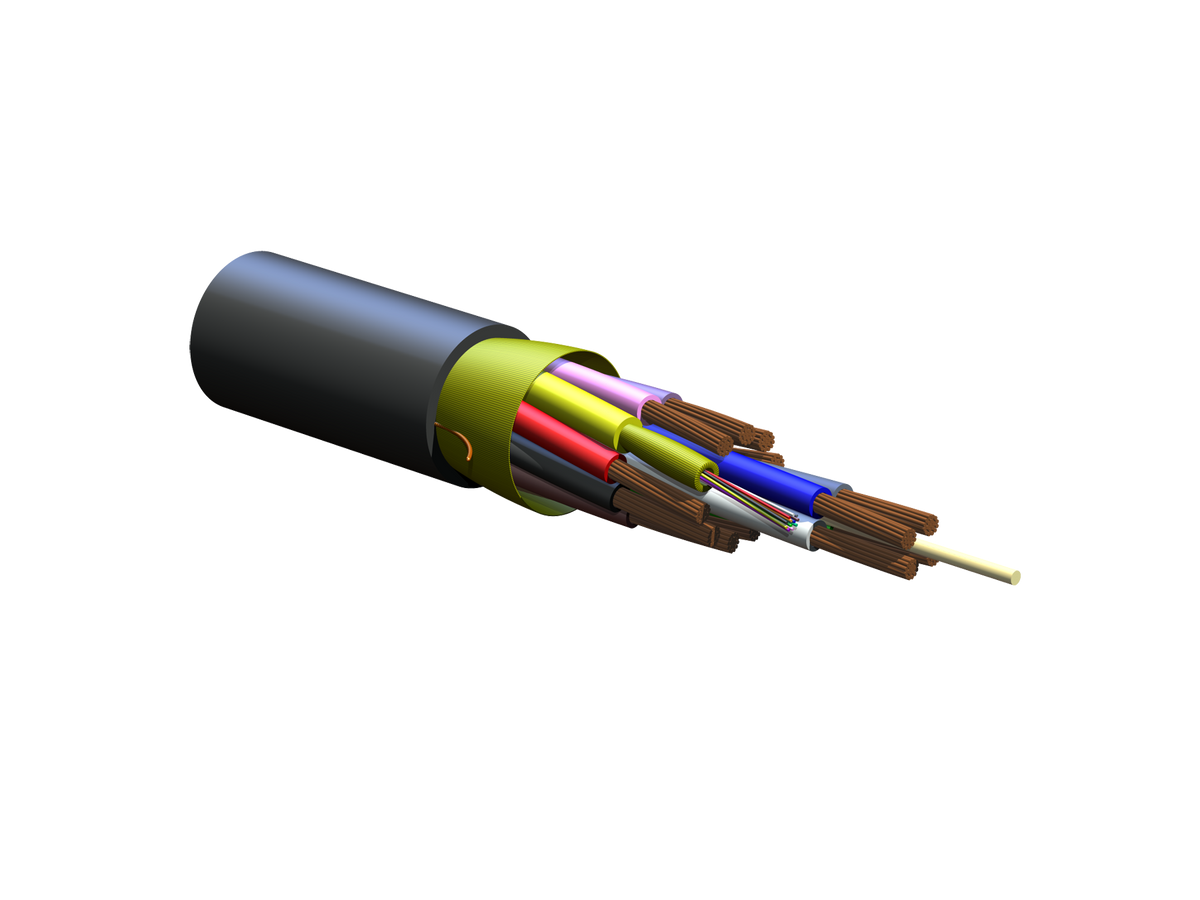

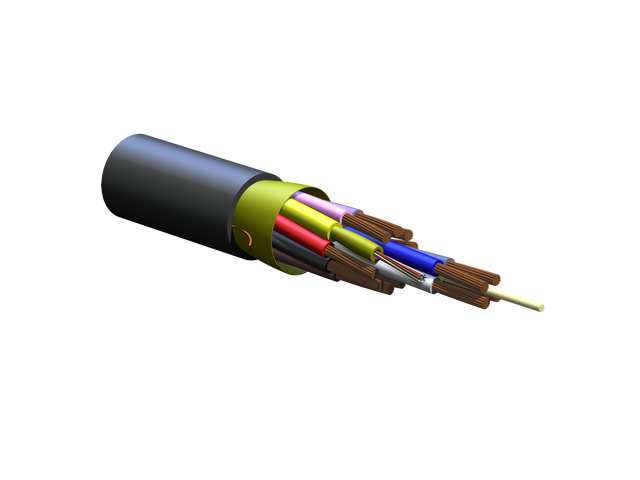

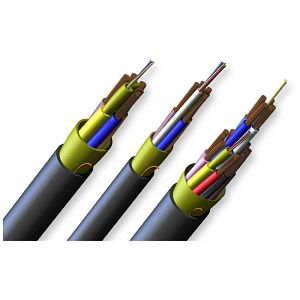

Corning 012ZDF-M1W01M20 | ActiFi Composite Cable, Loose Tube, Indoor/Outdoor, FREEDM Riser
Regular price
$15.83
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 012ZDF-M1W01M20 | ActiFi Composite Cable, Loose Tube, Indoo...
Regular price
$15.83
Unit price
Description
Description
Corning 012ZDF-M1W01M20 | ActiFi Composite Cable, Loose Tube, Indoor/Outdoor, FREEDM Riser 12 F, 12 Cu Conductor, 12AWG
Corning - 012ZDF-M1W01M20 - Features
- 12, 14, 16, 18, or 20 AWG copper conductors
- Power transmission with flexibility in design
- 2, 4, 6, 8, 12 or 24 ClearCurve
- Ultra fibers
- Individual fibers
- Easily accessible for termination
- Mutual capacitance between adjacent conductors
- <50 pF/ft
- 2-in-1 composite cable design
- One cable meets power and signal needs
- Conductor color code
- Closely follows Telcordia fiber color code
- Conductor insulation material and thickness
- PVC insulation, thickness varies depending on AWG size
- Common Installations
- Compliant with
Specifications
Specifications
Corning - 012ZDF-M1W01M20 - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Copper Cabling Infrastructure
- Voice and Data Cable
- Wire and Cable
- Composite Cable
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor Riser Cables
Corning - 012ZDF-M1W01M20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 012ZDF-M1W01M20 |
| Environment | Indoor/Outdoor |
| Cable Type | Loose Tube |
| Fiber Category | SMF-28 Ultra fiber |
| Flame Rating | Riser-CL3R |
| Application | Vertical Riser |
| Fiber Count | 12 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) Article 800 |
| Design and Test Criteria | ICEA S-120-742, UL 13, 300 VAC, 80 C, ICEA S-83-596 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 0 °C (32 °F to 32 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |

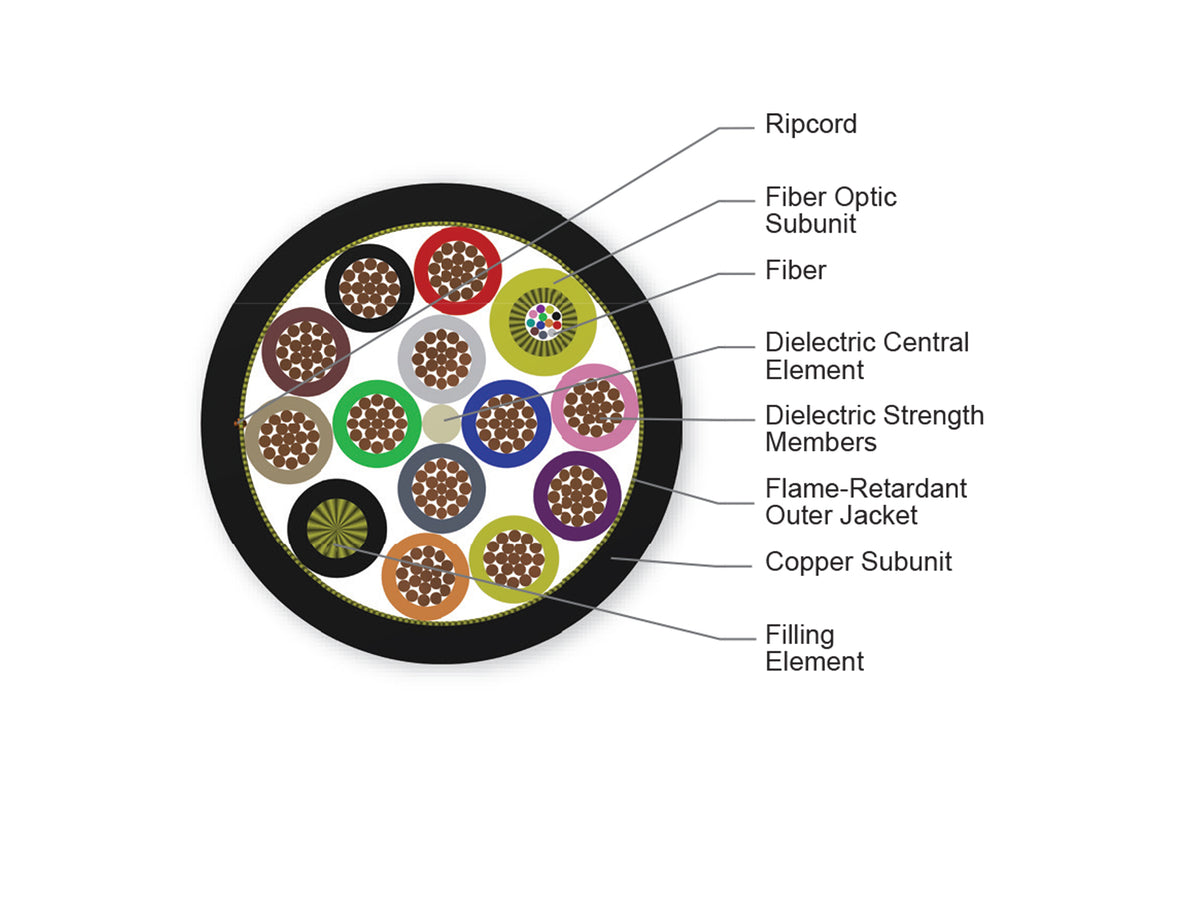

| Cable Design | - |
| Central Element | GRP |
| Fiber Count | 12 |
| Buffer Tube Color Coding | Yellow |
| Number of Ripcords | 1 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-retardant |
| Buffer Tube Color | Yellow |
| Buffer Tube Diameter | 3 mm (0.12 in) |
| Conductor | 12 AWG |
| Number of Active Tubes | 1 |
| Number of Conductors | 12 |
| Number of Tube Positions | 2 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Short-Term | 1334 N (299.9 lbf) |
| Min. Bend Radius Installation | 267 mm (10.51 in) |
| Min. Bend Radius Operation | 177.8 mm (7 in) |
| Nominal Outer Diameter | 17.9 mm (0.7 in ) |
| Optical Characteristics | - |
| Fiber Code | Z |
| Fiber Name | SMF-28 Ultra fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | ITU-T G.657.A1 |
| Ordering Information | - |
| Weight | 52834 kg/km (35502.81 lb/1000 ft) |
