Corning 012ZM4-T3F22A20 | MiniXtend Cable with Binderless FastAcces...
Description
Description
This cable design reduces the cable diameter by 50 percent that improves fiber density for duct applications and can reduce install cost.

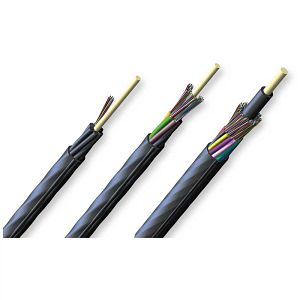

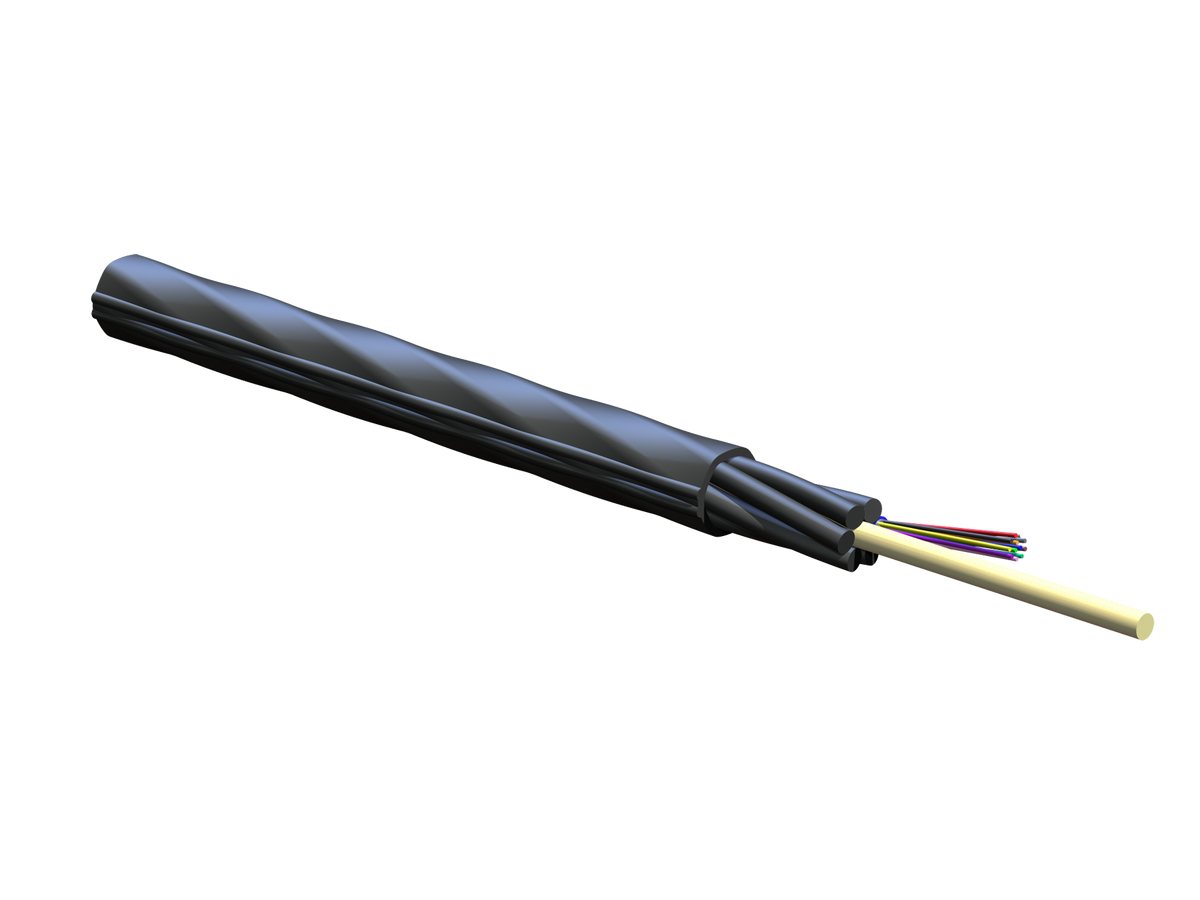

The MiniXtend Cable design reduces the cable diameter by up to 50 percent (versus traditional loose tube cables) which improves fiber density for duct applications and also enables new applications which can reduce total install cost by up to 60 percent. This cable also features Corning SMF -28 Ultra single -mode fiber which combines industry -leading attenuation and improved macrobend performance in one fiber. SMF -28 Ultra fiber is ITU -T Recommendation G.652.D compliant and also exceeds the requirements of the ITU -T Recommendation G.657.A1 standard.
Corning - 012ZM4-T3F22A20 - Features
- Binderless* FastAccess Technology
- Innovative cable design that reduces cable access time up to 70 percent and lowers the risk of inadvertent fiber damage
- Improved cable and fiber density
- Small cable OD enables higher density and lower deployment cost; up to 96 fibers in 8 mm ID duct and up to 144 fibers in 10 mm ID duct
- Optimized for air-assisted install in microducts
- Capable of installation distances greater than 2000 m (6560 ft) at speeds up to 150 m/min (490 ft/min)
- Mid-span express buffer tube performance
- Meets the Telcordia GR-20 and RDUP/RUS PE-90 requirements for mid-span express buffer tube storage
- SMF-28 Ultra fiber
- Ultra fibre
- Fully waterblocked loose tube, gel-filled design
- Meets industry standard waterblocking requirements for outdoor cable
- Improved cable and fiber density
- Optimized for air-assisted install in microducts
- Mid-span express buffer tube performance
- Fully waterblocked loose tube, gel-filled design
Specifications
Specifications
Corning - 012ZM4-T3F22A20 - Product Categories
- Shop by Manufacturer/Corning
- DataComm
- Communications Cable
- Fiber Optic Cable
- Fiber Optic Cables
- Outdoor
- Outdoor Duct Cables
Corning - 012ZM4-T3F22A20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 012ZM4-T3F22A20 |
| EAN Code | 4056418140261 |
| Environment | Outdoor |
| Cable Type | Stranded Loose Tube Micro Cable |
| Product Type | Dielectric |
| Fiber Category | SMF-28 Ultra fiber |
| Application | Microduct |
| Fiber Count | 12 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Common Installations | Outdoor microduct, indoor when installed according to National Electrical Code (NEC) Article 770 |
| Design and Test Criteria | IEC 60794-5-10 |
| Corning Recommendations | This cable should be placed in microduct for all applications, including aerial. |
| Environmental Conditions | - |
| Temperature Range, Installation | -15 °C to -15 °C (5 °F to 5 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |

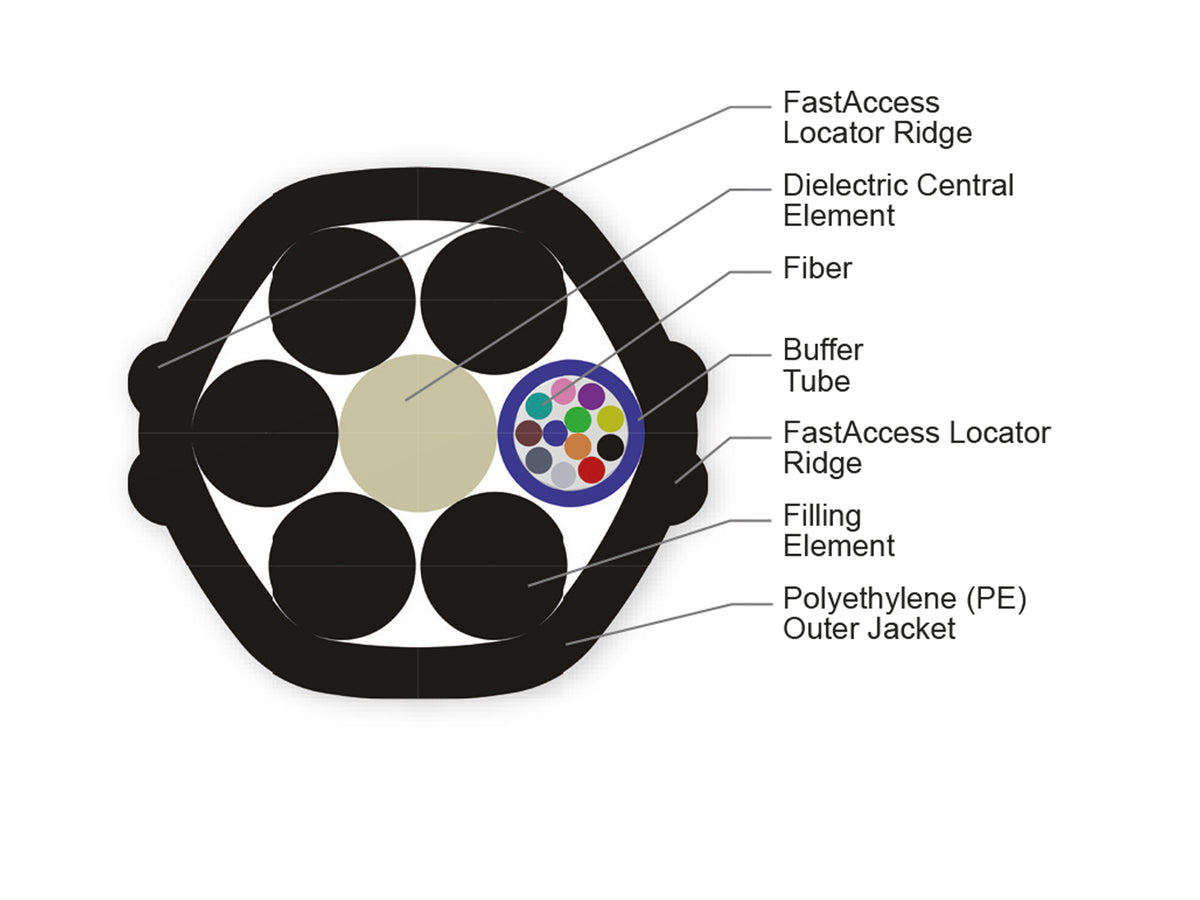

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 12 |
| Buffer Tube Color Coding | Blue |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Buffer Tube Color | Blue |
| Buffer Tube Diameter | 1.4 mm (0.06 in) |
| Number of Active Tubes | 1 |
| Number of Filling Elements | 5 |
| Number of Tube Positions | 6 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Short-Term | 890 N (200.08 lbf) |
| Min. Bend Radius Installation | 108 mm (4.25 in) |
| Min. Bend Radius Operation | 82 mm (3.23 in) |
| Nominal Outer Diameter | 5.4 mm (0.21 in ) |
| Optical Characteristics | - |
| Fiber Code | Z |
| Fiber Name | SMF-28 Ultra fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 22 |
| Maximum Attenuation | 0.34 dB/km / 0.34 dB/km / 0.22 dB/km |
| Typical Attenuation | 0.32 / 0.32 / 0.18 |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D/G.657.A1 |
| Ordering Information | - |
| Weight | 23 kg/km (15.46 lb/1000 ft) |
