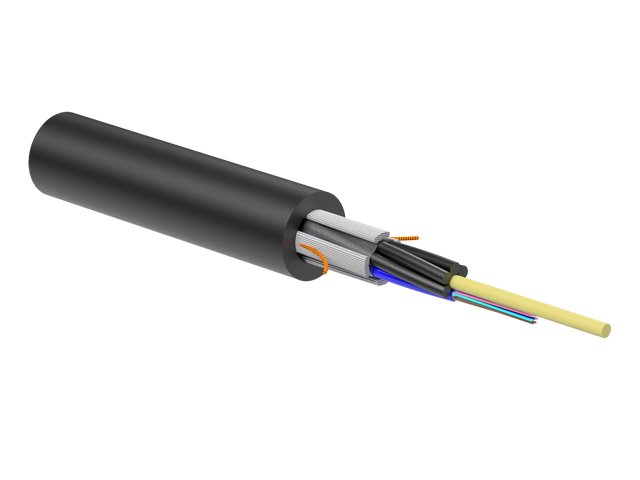

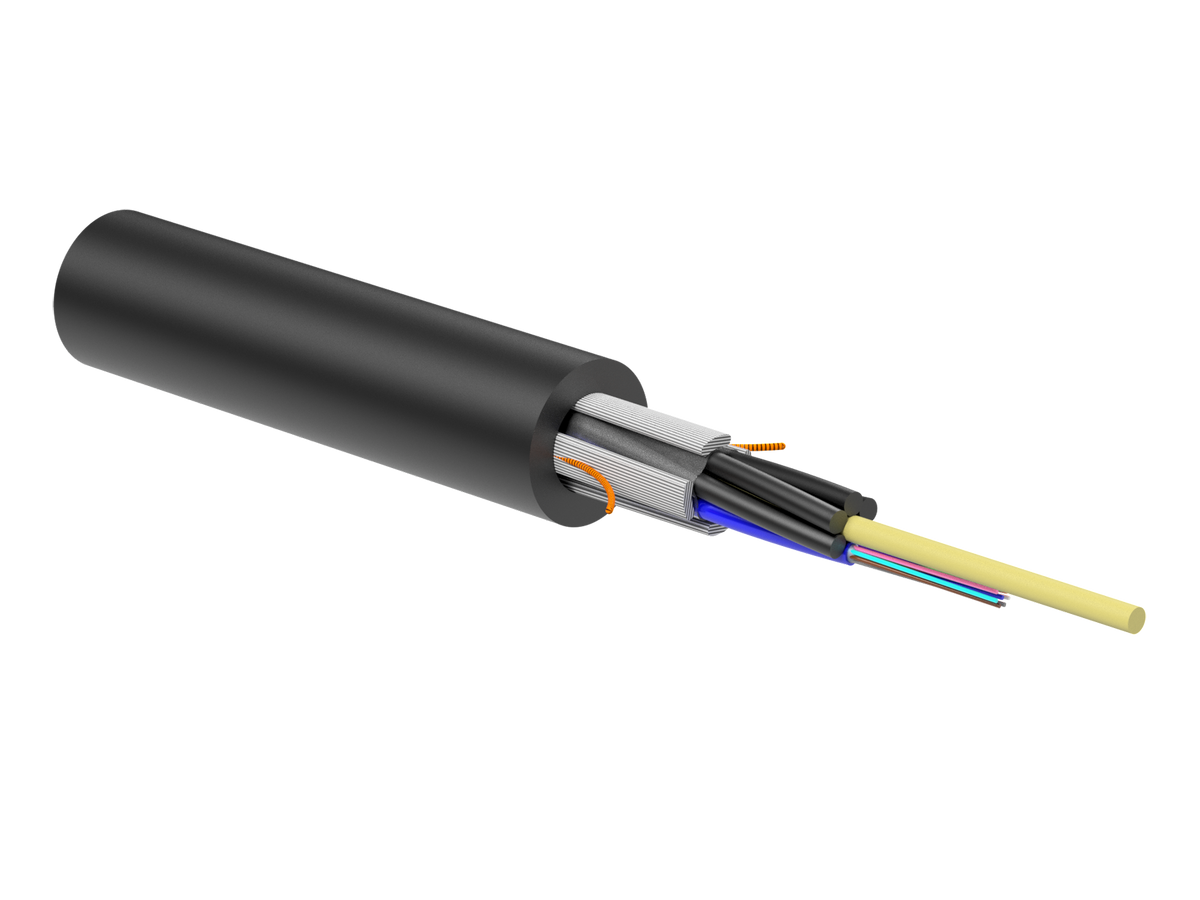

Corning 012ZMF-T4101A20 | MiniXtend Indoor/Outdoor Cable, Riser
Regular price
$3.00
Unit price
Brand: Corning
|
SKU:
10178554
Regular price
$3.00
Unit price
Description
Description
Corning 012ZMF-T4101A20 | MiniXtend Indoor/Outdoor Cable, Riser 12 F, SMF-28 Ultra fiber, Single-mode (OS2)
Corning - 012ZMF-T4101A20 - Features
- Improved cable and fiber density
- Small cable OD enables higher density and lower deployment cost
- Color-coded tubes and fibers
- Quick and easy identification
- All-dielectric construction
- Requires no grounding or bonding
- Common Installations
- Indoor/Outdoor microduct
Specifications
Specifications
Corning - 012ZMF-T4101A20 - Product Categories
- Shop by Manufacturer/Corning
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor Riser Cables
Corning - 012ZMF-T4101A20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 012ZMF-T4101A20 |
| Environment | Indoor/Outdoor |
| Cable Type | Stranded Loose Tube Micro Cable |
| Product Type | Dielectric |
| Fiber Category | SMF-28 Ultra fiber |
| Flame Rating | Riser (OFNR) |
| Application | Microduct |
| Fiber Count | 12 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNR |
| Common Installations | Indoor/Outdoor microduct; indoor vertical riser and general purpose horizontal according to National Electrical Code (NEC) Article 770 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 0 °C (32 °F to 32 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |

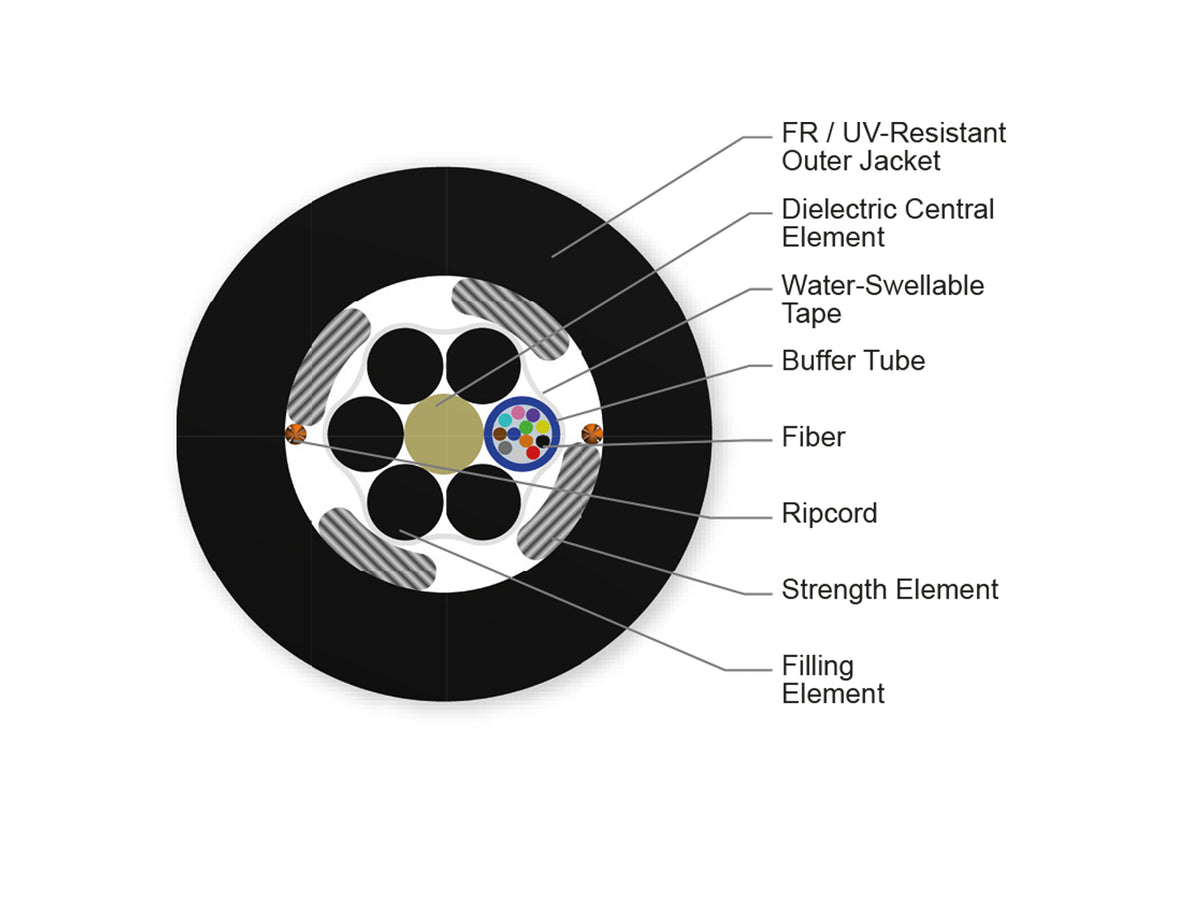

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 12 |
| Buffer Tube Color Coding | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Number of Ripcords | 3 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Buffer Tube Color | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Buffer Tube Diameter | 1.4 mm (0.06 in) |
| Number of Active Tubes | 1 |
| Number of Tube Positions | 6 |
| Tape | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 400 N (89.92 lbf) |
| Max. Tensile Strength, Short-Term | 1320 N (296.75 lbf) |
| Min. Bend Radius Installation | 146 mm (5.75 in) |
| Min. Bend Radius Operation | 97 mm (3.82 in) |
| Nominal Outer Diameter | 9.7 mm (0.38 in ) |
| Optical Characteristics | - |
| Fiber Code | Z |
| Fiber Name | SMF-28 Ultra fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | ITU-T G.657.A1 |
