Brand: Corning
|
SKU:
815287

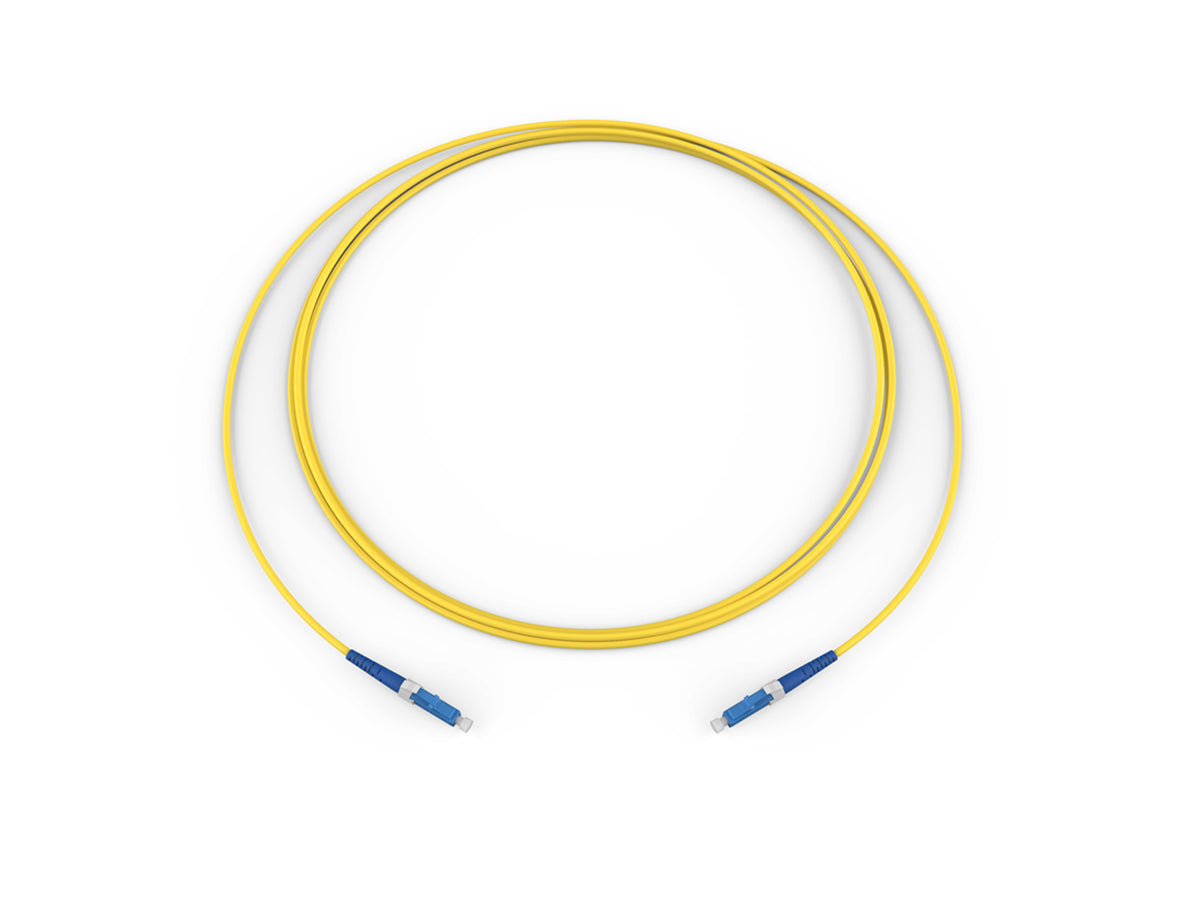

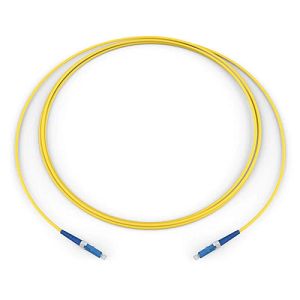

Corning 020201G2131002M | Fiber Optic Jumper, 1 F, LC to LC, Tight-Buffered Cable, Riser, 2.0 mm
Regular price
$18.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 020201G2131002M | Fiber Optic Jumper, 1 F, LC to LC, Tight-...
Regular price
$18.45
Unit price
Description
Description
Corning 020201G2131002M | Fiber Optic Jumper, 1 F, LC to LC, Tight-Buffered Cable, Riser, 2.0 mm Standard LCUPC Simplex SM / Standard LCUPC Simplex SM, SMF Ultra, 1F, Single Fiber Riser, Standard Yellow Jacket 2 Meters
LC to LC, Simplex, Yellow, Singlemode - OS2, 2 m, 2
Corning - 020201G2131002M - Features
- Flame-retardant jacket
- Rugged and durable
- Superior Performance Testing
- Every termination is tested to ensure the highest in network performance
- State-Of-The-Art Manufacturing Processes
- Corning proprietary manufacturing processes and advanced technology result in unsurpassed product consistency
- Corning advantage
- Integrated developer and manufacturer of cable, connectors and fiber to ensure overall cable assembly performance
Specifications
Specifications
Corning - 020201G2131002M - Product Categories
- Shop by Manufacturer/Corning
- DataComm
- Patch Cables
- Fiber Patch Cables
- Fiber Optic Cable Assemblies
- Indoor Cable Assemblies
- Simplex Indoor Cable Assemblies
Corning - 020201G2131002M - Specifications
| General Specifications | - |
|---|---|
| Product Number | 020201G2131002M |
| EAN Code | 4056418602615 |
| Flame Rating | Riser (OFNR) |
| Fiber Category | SMF-28 Ultra fiber |
| Cable Assembly Type | Single fiber |
| Application | General Building Applications, Vertical Riser |
| Cable Type | Tight-Buffered |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Fiber Count | 1 |
| Outer Jacket Color | Yellow |
| Optical Characteristics | - |
| Fiber Code | G |
| Fiber Type | Single-Mode Ultra-Bendable Fiber |
| Fiber Compliance | ITU-T G.652.D and ITU-T G.657.A1 |
| Fiber Core Diameter | 8.2 µm |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Serial 1 Gigabit Ethernet | 5000 MHz*km / - / - |
| Serial 10 Gigabit Ethernet | 10000 MHz*km / - / 40000 MHz*km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | OS2 |
| Specifications - Connector A | - |
| Reflectance, Typical | ? -58 dB |
| Polish | UPC |
| Insertion Loss, Typical | 0.15 dB |
| Boot Color | Blue |
| Connector Type | LC |
| Ferrule Material | Ceramic |
| Housing Color | Blue |
| Housing Material | Composite |
| Specifications - Connector B | - |
| Reflectance, Typical | ? -58 dB |
| Polish | UPC |
| Insertion Loss, Typical | 0.15 dB |
| Boot Color | Blue |
| Connector Type | LC |
| Ferrule Material | Ceramic |
| Housing Color | Blue |
| Housing Material | Composite |
| Ordering Information | - |
| Units per Delivery | 1/1" |
