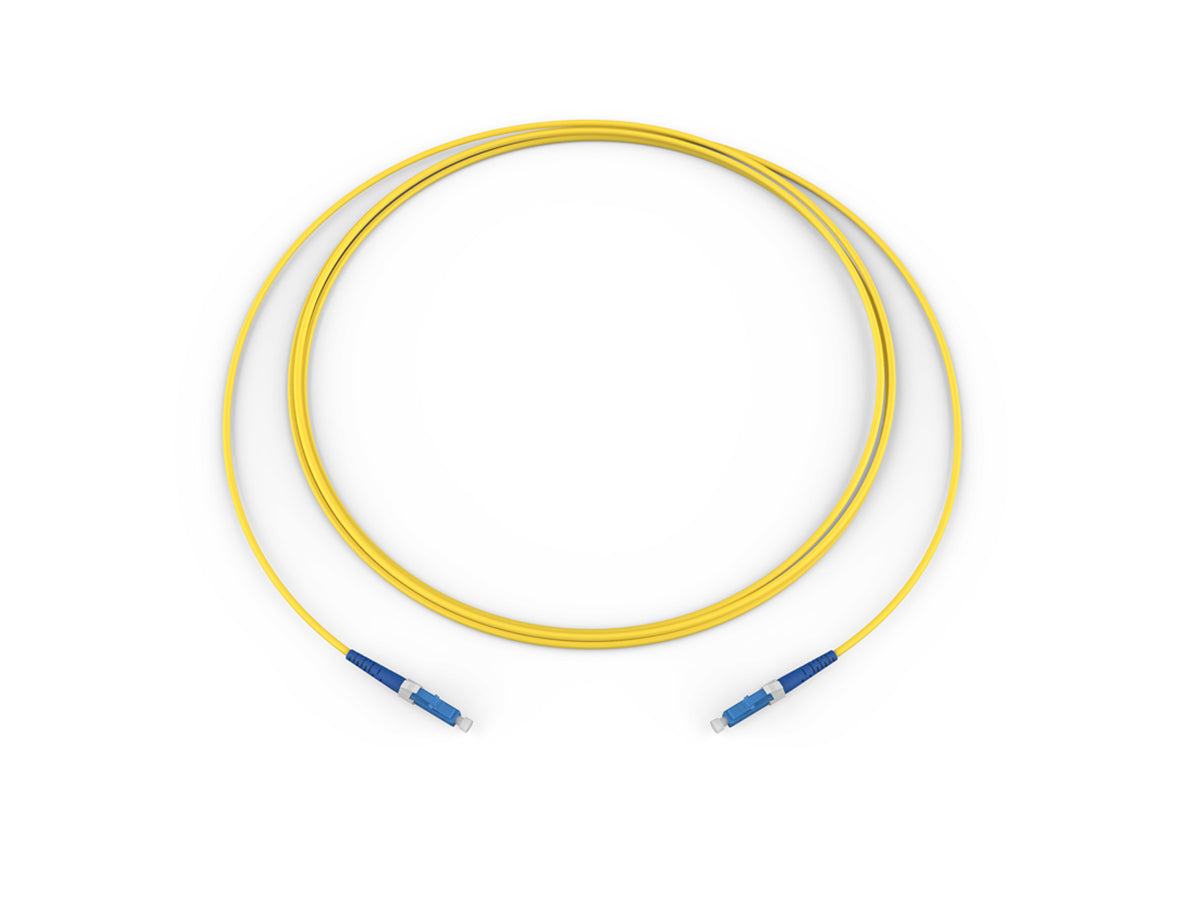

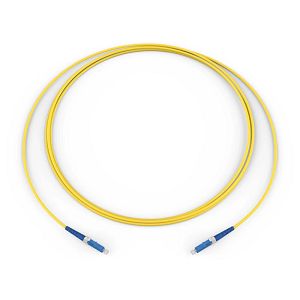

Corning 020201G2131005M | Fiber Optic Jumper, 1 F, LC to LC, Tight-Buffered Cable, Riser, 2.0 mm
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 020201G2131005M | Fiber Optic Jumper, 1 F, LC to LC, Tight-...
Description
Description
Cable assemblies are an often overlooked, critical component of your inside plant connectivity portfolio. These products are the component that enables port replication and the ability to cost effectively transmit and receive services between the active electronics and end users. As the industry’s leading supplier of cable assemblies, Corning’s state-of-the-art manufacturing process ensures reliable connector performance with products that meet or exceed all industry standards for reflectance and insertion loss. Our ability to scale to meet your deployment needs is what sets us apart, along with the highest-quality fiber and factory-tested connectors. All assemblies undergo rigorous performance testing to ensure optimal quality in every connector. Constant process improvements offer a variety of options in fiber, cable, and connector types to meet your network’s ever-evolving needs.
Corning - 020201G2131005M - Features
- Flame-retardant jacket
- Rugged and durable
- Superior Performance Testing
- Every termination is tested to ensure the highest in network performance
- State-Of-The-Art Manufacturing Processes
- Corning proprietary manufacturing processes and advanced technology result in unsurpassed product consistency
- Corning advantage
- Integrated developer and manufacturer of cable, connectors and fiber to ensure overall cable assembly performance
- Advanced technology results in unsurpassed product consistency and quality
- Mitigates trade barriers or supply disruptions
- Choice of materials for strength elements and fiber properties for various application requirements
- Each termination is tested to ensure the highest network performance
Specifications
Specifications
Corning - 020201G2131005M - Product Categories
- Shop by Manufacturer/Corning
- DataComm
- Patch Cables
- Fiber Patch Cables
- Fiber Optic Cable Assemblies
- Indoor Cable Assemblies
- Simplex Indoor Cable Assemblies
Corning - 020201G2131005M - Specifications
| General Specifications | - |
|---|---|
| Product Number | 020201G2131005M |
| EAN Code | 4056418602639 |
| Flame Rating | Riser (OFNR) |
| Fiber Category | SMF-28 Ultra fiber |
| Cable Assembly Type | Single fiber |
| Application | General Building Applications, Vertical Riser |
| Cable Type | Tight-Buffered |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Fiber Count | 1 |
| Outer Jacket Color | Yellow |
| Optical Characteristics | - |
| Fiber Code | G |
| Fiber Type | Single-Mode Ultra-Bendable Fiber |
| Fiber Compliance | ITU-T G.652.D and ITU-T G.657.A1 |
| Fiber Core Diameter | 8.2 µm |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Serial 1 Gigabit Ethernet | 5000 MHz*km / - / - |
| Serial 10 Gigabit Ethernet | 10000 MHz*km / - / 40000 MHz*km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | OS2 |
| Specifications - Connector A | - |
| Reflectance, Typical | ? -58 dB |
| Polish | UPC |
| Insertion Loss, Typical | 0.15 dB |
| Boot Color | Blue |
| Connector Type | LC |
| Ferrule Material | Ceramic |
| Housing Color | Blue |
| Housing Material | Composite |
| Specifications - Connector B | - |
| Reflectance, Typical | ? -58 dB |
| Polish | UPC |
| Insertion Loss, Typical | 0.15 dB |
| Boot Color | Blue |
| Connector Type | LC |
| Ferrule Material | Ceramic |
| Housing Color | Blue |
| Housing Material | Composite |
| Ordering Information | - |
| Units per Delivery | 1/1" |
