Corning 024ED8-T1301-A3 | MIC 250 Interlocking Armored Distribution...
Description
Description

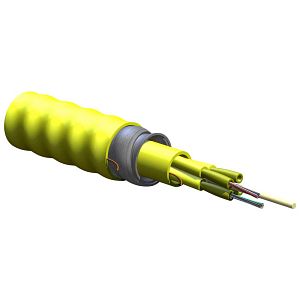

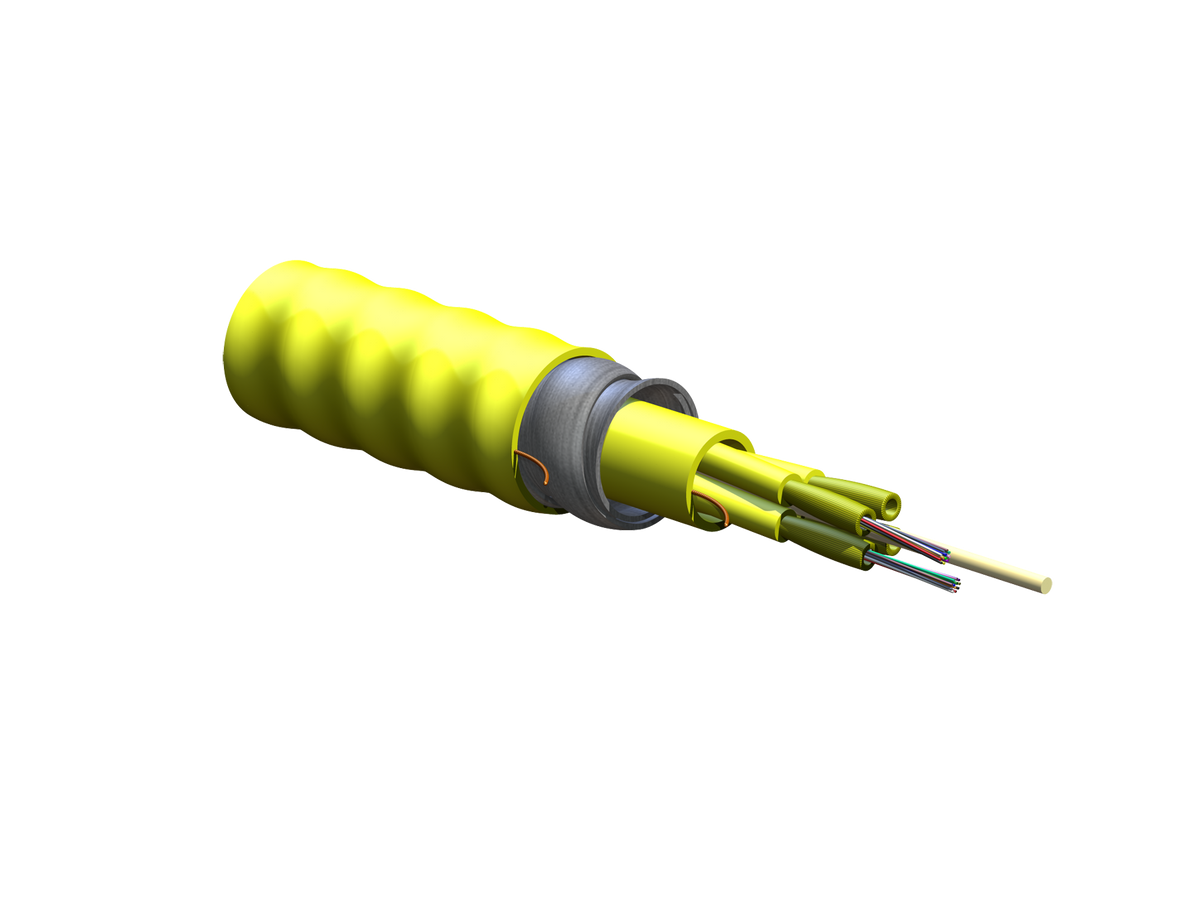

The flexible, flame -retardant jacket and non -preferential bend axis allow easy installation in space -constrained areas. The core is protected by a flexible, spirally -wrapped, aluminum interlocking armor that offers easy, one -step installation.
Standards Listings: National Electrical Code (NEC) OFCP, FT-6, ICEA S-83-596 Design and Test Criteria: CSA FT-6 Flame Resistance: NFPA 262 (for plenum, riser and general building applications) RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Corning - 024ED8-T1301-A3 - Features
- Color-coded fibers
- Quick and easy identification
- 12-fibre groupings
- Compatibility with multifibre connectors
Specifications
Specifications
Corning - 024ED8-T1301-A3 - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Indoor Fiber Optic Cable
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 024ED8-T1301-A3 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 024ED8-T1301-A3 |
| Environment | Indoor |
| Cable Type | Loose Tube |
| Product Type | Distribution |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Plenum (OFNP) |
| Application | General Purpose Horizontal, Plenum, Vertical Riser |
| Fiber Count | 24 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFCP, FT-6, ICEA S-83-596 |
| Design and Test Criteria | CSA FT-6 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 60 °C (32 °F to 140 °F ) |
| Temperature Range, Operation | 0 °C to 70 °C (32 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

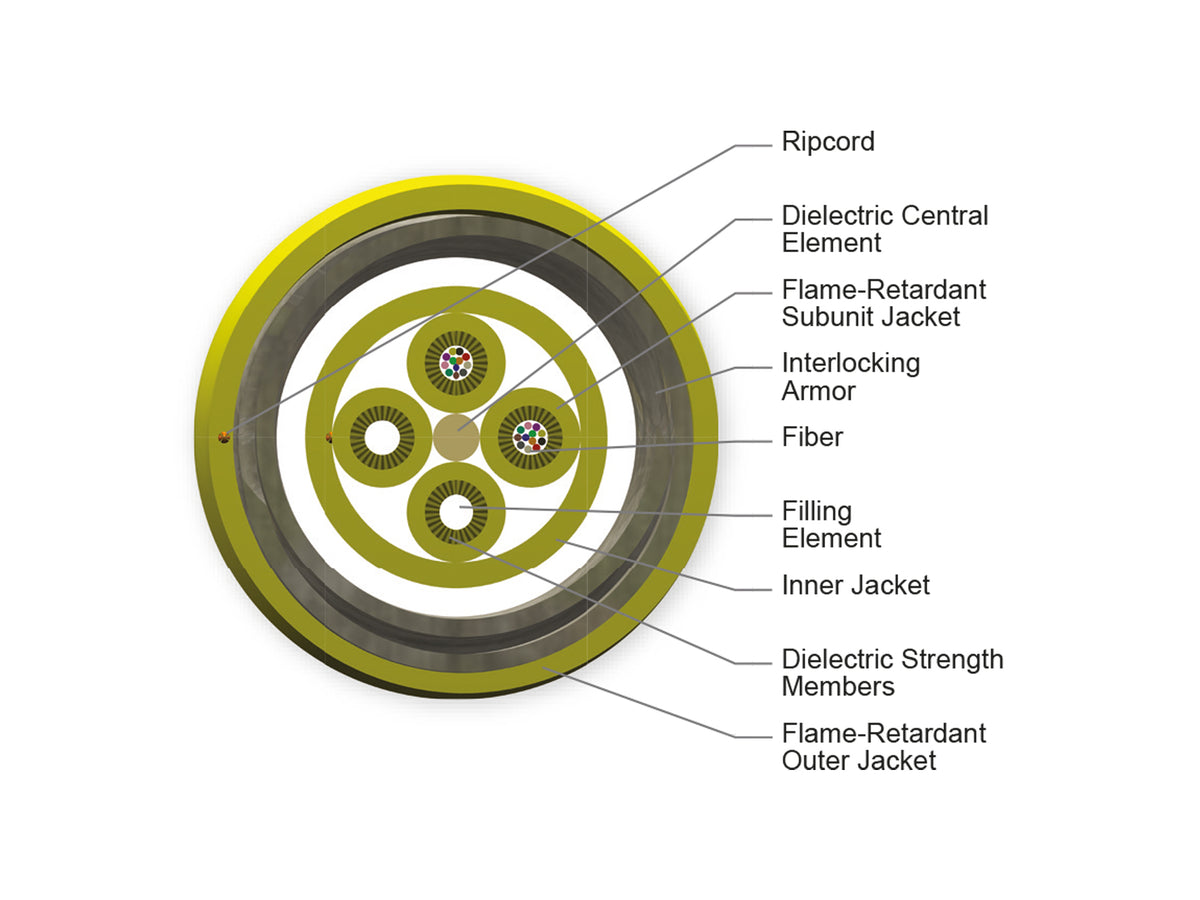

| Cable Design | - |
| Central Element | Yarn |
| Fiber Count | 24 |
| Number of Ripcords | 1 |
| Outer Jacket Color | Yellow |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Subunit | 12 |
| Number of Filling Elements | 2 |
| Number of Subunits | 4 |
| Subunit Color | Yellow |
| Subunit Jacket Material | Flame-retardant |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 200 N (44.96 lbf) |
| Max. Tensile Strength, Short-Term | 660 N (148.37 lbf) |
| Min. Bend Radius Installation | 235.5 mm (9.27 in) |
| Min. Bend Radius Operation | 157 mm (6.18 in) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 20282 kg/km (13628.87 lb/1000 ft) |
| ECCN | 5A991.d |
| Country of Origin | US - United States |
| Brand | MIC |
| Flammability Rating | Plenum |
| Fiber Count | 24 |
