Corning 024EN4-T4S01A20 | SOLO ADSS Short-Span, Loose Tube, Gel-Fil...
Description
Description

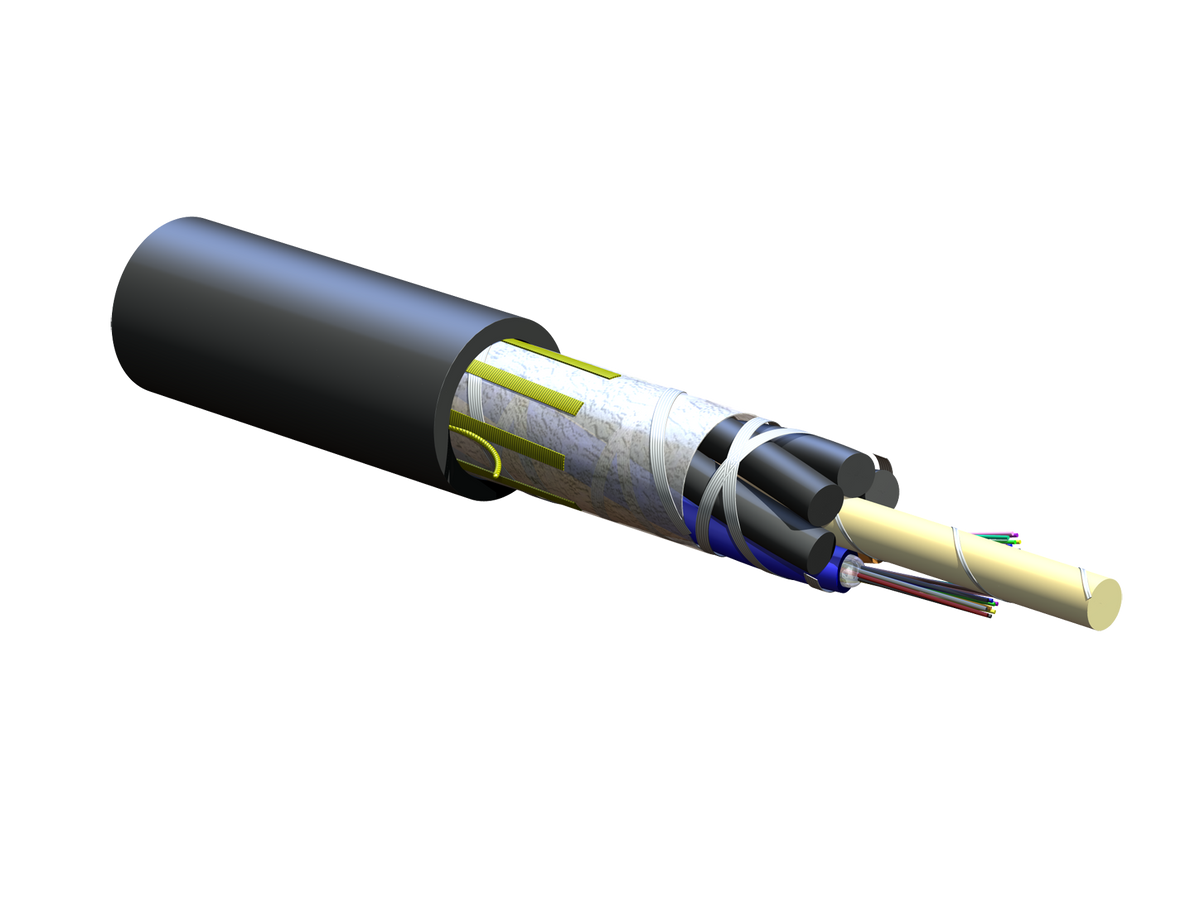

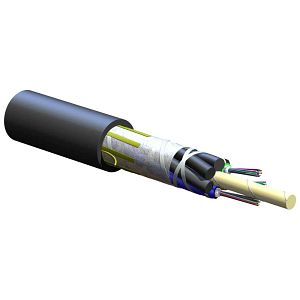

Corning Cable Systems SOLO ADSS Short-Span Cables are all-dielectric, self-supporting cables designed for easy and economical one-step installation in campus backbones self-supporting installations where metallic messengers cannot be used.
The loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunications-grade optical fiber. The economical single-jacket design can span distances of 600 ft in NESC light conditions, 500 ft in NESC medium conditions and 300 ft in NESC heavy conditions.
Corning - 024EN4-T4S01A20 - Features
- Loose tube design
- Mechanical ruggedness and environmental durability
- Self-supporting
- Easy, one-step installation
- Track-resistant polyethylene (TRPE) jacket available
- Suitable for installations up to 25 kV electric field potential
- Innovative waterblocking design
- Provides efficient and craft-friendly cable preparation
- Self-supporting
- Track-resistant polyethylene (TRPE) jacket available
- Innovative waterblocking design
Specifications
Specifications
Corning - 024EN4-T4S01A20 - Product Categories
- Shop by Manufacturer/Corning
- DataComm
- Communications Cable
- Fiber Optic Cable
- Fiber Optic Cables
- Outdoor
- Outdoor Aerial Cables
Corning - 024EN4-T4S01A20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 024EN4-T4S01A20 |
| EAN Code | 4056418198484 |
| Environment | Outdoor |
| Cable Type | Loose Tube |
| Product Type | Self-Supporting |
| Fiber Category | Single-mode (OS2) |
| Application | Self-Supporting |
| Fiber Count | 24 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | RDUP 7 CFR 1755.900 (formerly RUS) |
| Common Installations | Outdoor self-supporting aerial |
| Design and Test Criteria | ANSI/ICEA S-87-640 |
| Environmental Conditions | - |
| Temperature Range, Installation | -30 °C to 70 °C (-22 °F to 158 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

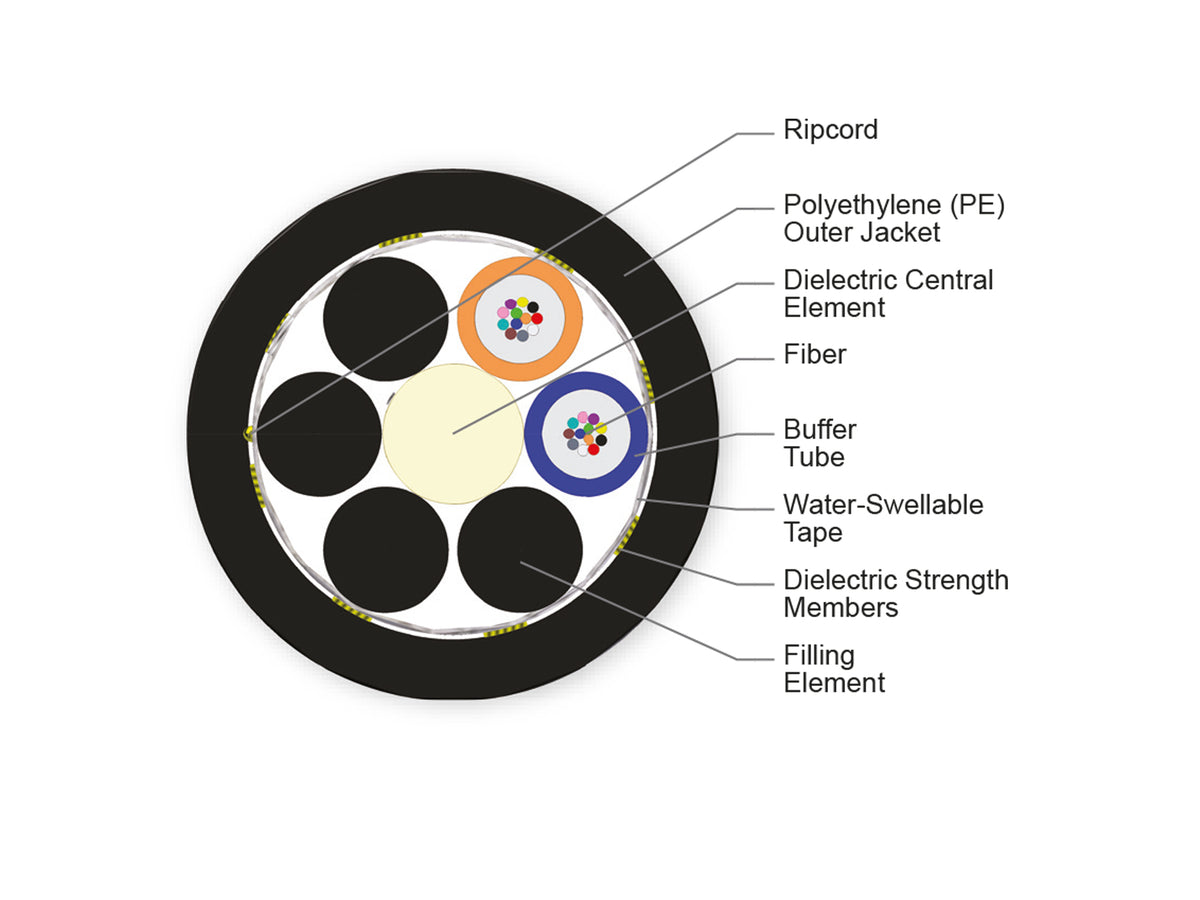

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 24 |
| Number of Ripcords | 1 |
| Buffer Tube Color Coding, Layer 1 | Blue, Orange |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Buffer Tube Diameter | 2.5 mm (0.1 in) |
| Number of Active Tubes | 2 |
| Number of Filling Elements | 4 |
| Number of Tube Positions | 6 |
| Tape | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Mechanical Specifications | - |
| Min. Bend Radius Installation | 164 mm (6.46 in) |
| Min. Bend Radius Operation | 109 mm (4.29 in) |
| Nominal Outer Diameter | 10.9 mm (0.43 in ) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 92 kg/km (61.82 lb/1000 ft) |
