Brand: Corning
|
SKU:
372-COROS-LTA-24
Corning 024EU5-T4101D20 | ALTOS Loose Tube, Gel-Free, Double-Jacket, Single-Armored Cable
Regular price
$2.62
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 024EU5-T4101D20 | ALTOS Loose Tube, Gel-Free, Double-Jacket...
Regular price
$2.62
Unit price
Brand: Corning
|
SKU:
372-COROS-LTA-24
Regular price
$2.62
Unit price
Shipping calculated at checkout.
Description
Description

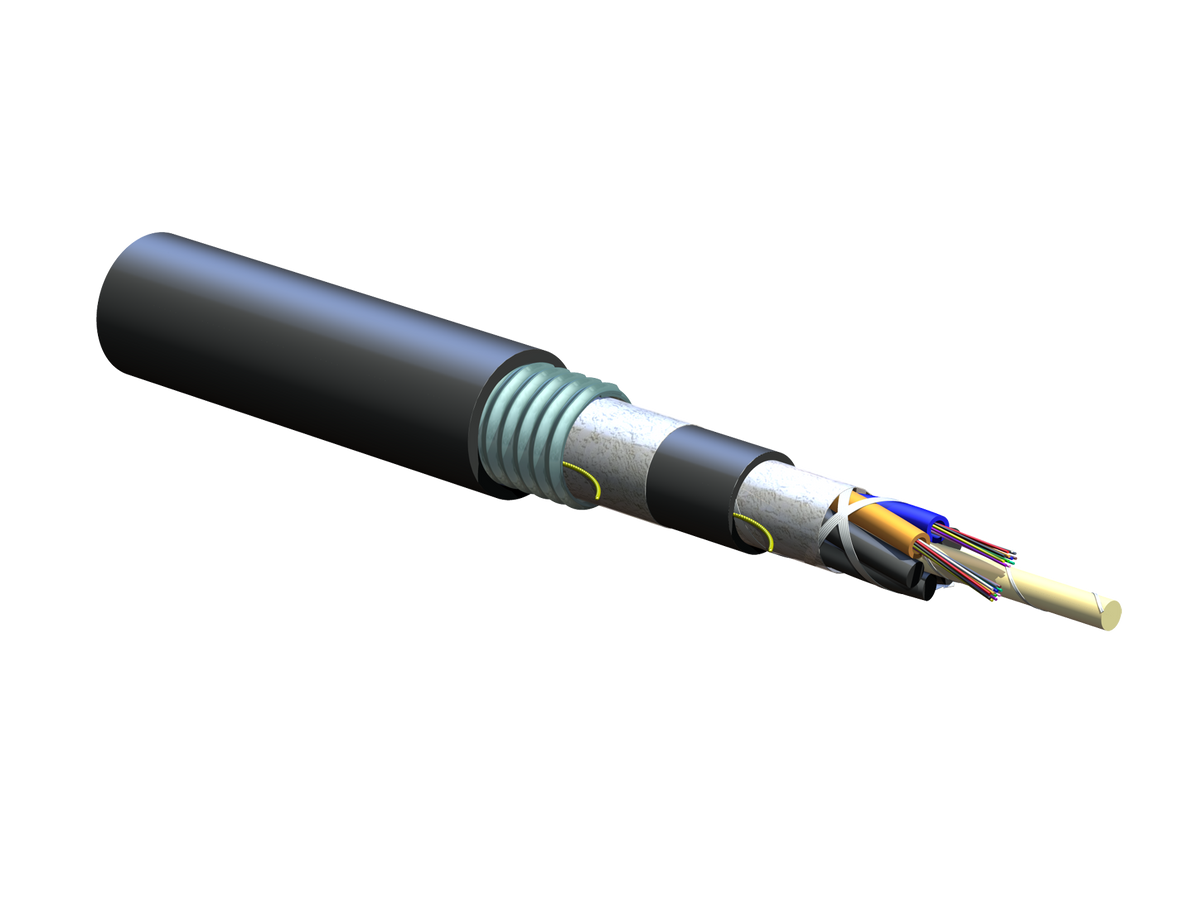

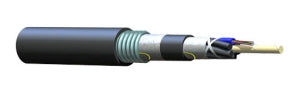

Corning 024EU5-T4101D20 | ALTOS Loose Tube, Gel-Free, Double-Jacket, Single-Armored Cable 24 F, Single-mode (OS2)
Corning - 024EU5-T4101D20 - Features
- Gel-free waterblocking technology
- Craft-friendly cable preparation
- Corrugated steel tape armor
- Provides rodent resistance for direct-buried applications
- Flexible, craft-friendly buffer tubes
- Facilitate easy routing in closures
- SZ-stranded, loose tube design
- Isolates fibers from installation and environmental rigors and facilitates mid-span access
- Dielectric central strength member
- No preferential bend and requires no bonding or grounding
- Polyethylene jacket
- Rugged, durable and easy to strip (while providing superior protection against UV radiation, fungus, abrasion and other environmental factors)
Specifications
Specifications
Corning - 024EU5-T4101D20 - Product Categories
- Shop by Manufacturer/Corning
- Wire & Cable
- Voice and Data Cable
- Outdoor Fiber Optic Cable
- Data Communications and Networking
- Fiber Optic Cables
- Outdoor
- Outdoor Direct Buried Cables
Corning - 024EU5-T4101D20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 024EU5-T4101D20 |
| EAN Code | 4056418184791 |
| Environment | Outdoor |
| Cable Type | Loose Tube |
| Product Type | Armored |
| Fiber Category | Single-mode (OS2) |
| Application | Aerial, Direct Buried |
| Fiber Count | 24 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | USDA Rural Development Programs |
| Design and Test Criteria | Telcordia GR-20, ICEA-640 |
| Environmental Conditions | - |
| Temperature Range, Installation | -30 °C to -30 °C (-22 °F to -22 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |
| Notes | Corning recommends storing cable in a proper temperature environment prior to installation to allow the cable temperature to meet installation temperature range specifications for best installation results. |

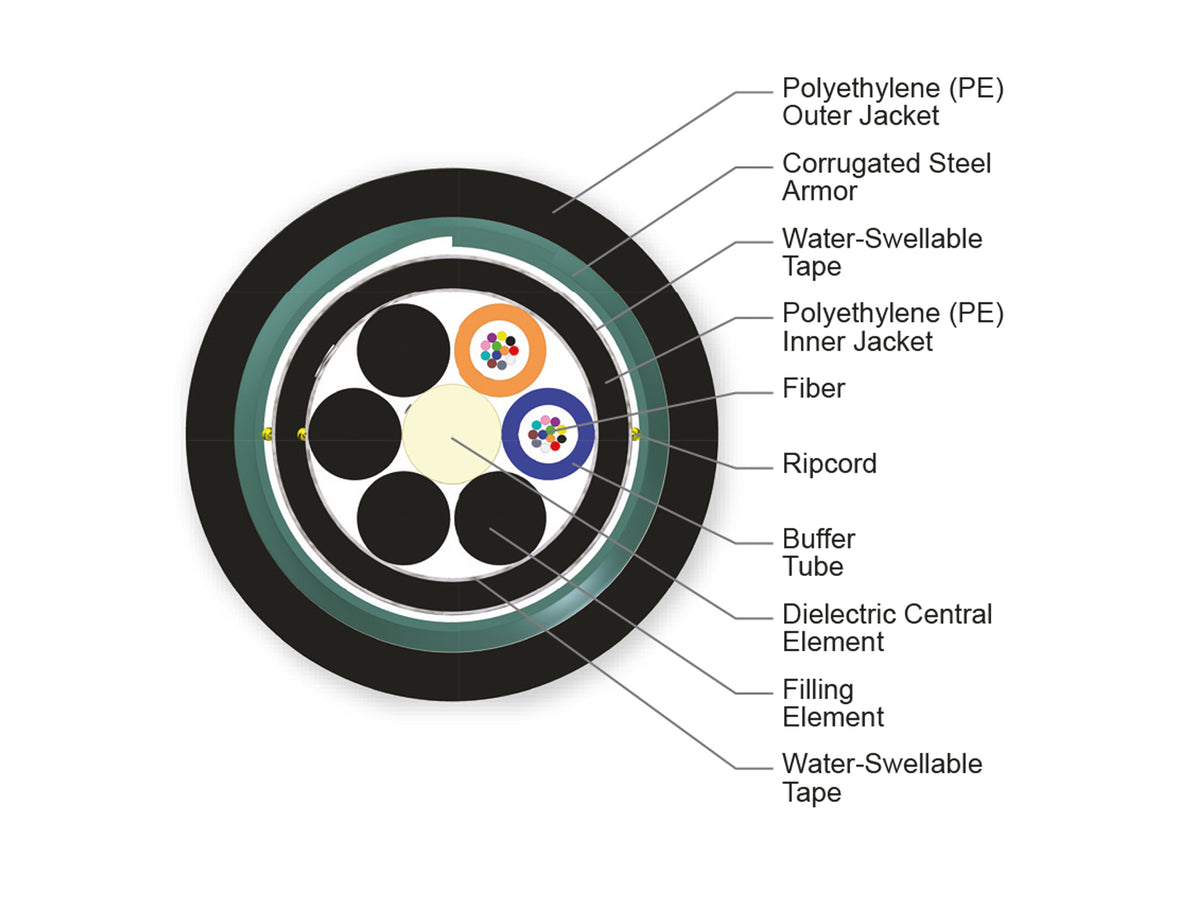

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 24 |
| Buffer Tube Color Coding | Blue, Orange |
| Number of Ripcords | 3 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Tensile Strength Elements and/or Armoring - Layer 1 | Corrugated steel tape armor |
| Buffer Tube Color | Blue, Orange |
| Buffer Tube Diameter | 2.5 mm (0.1 in) |
| Inner Jacket Material | Polyethylene (PE) |
| Number of Active Tubes | 2 |
| Number of Filling Elements | 4 |
| Number of Tube Positions | 6 |
| Tape | Water-swellable |
| Tape, Layer 2 | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 890 N (200.08 lbf) |
| Max. Tensile Strength, Short-Term | 2700 N (606.98 lbf) |
| Min. Bend Radius Installation | 215 mm (8.46 in) |
| Min. Bend Radius Operation | 143 mm (5.63 in) |
| Nominal Outer Diameter | 14.3 mm (0.56 in ) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 179 kg/km (120.28 lb/1000 ft) |
| Fiber Count | 24 |
| Application | Outdoor |
| Outside Diameter | 0.56 in. (14.3mm) |
| Type | Outdoor Direct Burial Cable |
| Cable Type | Loose Tube |
| Transmission Mode | Singlemode |
| Fiber Type | OS2 |
| Jacket Material | Polyethylene |
| Jacket Color | Black |
| Armored | Yes |
| Armor Type | Single Armored |
| Water Blocking | Gel-free |
| Construction | Loose Tube, Gel-Free |
