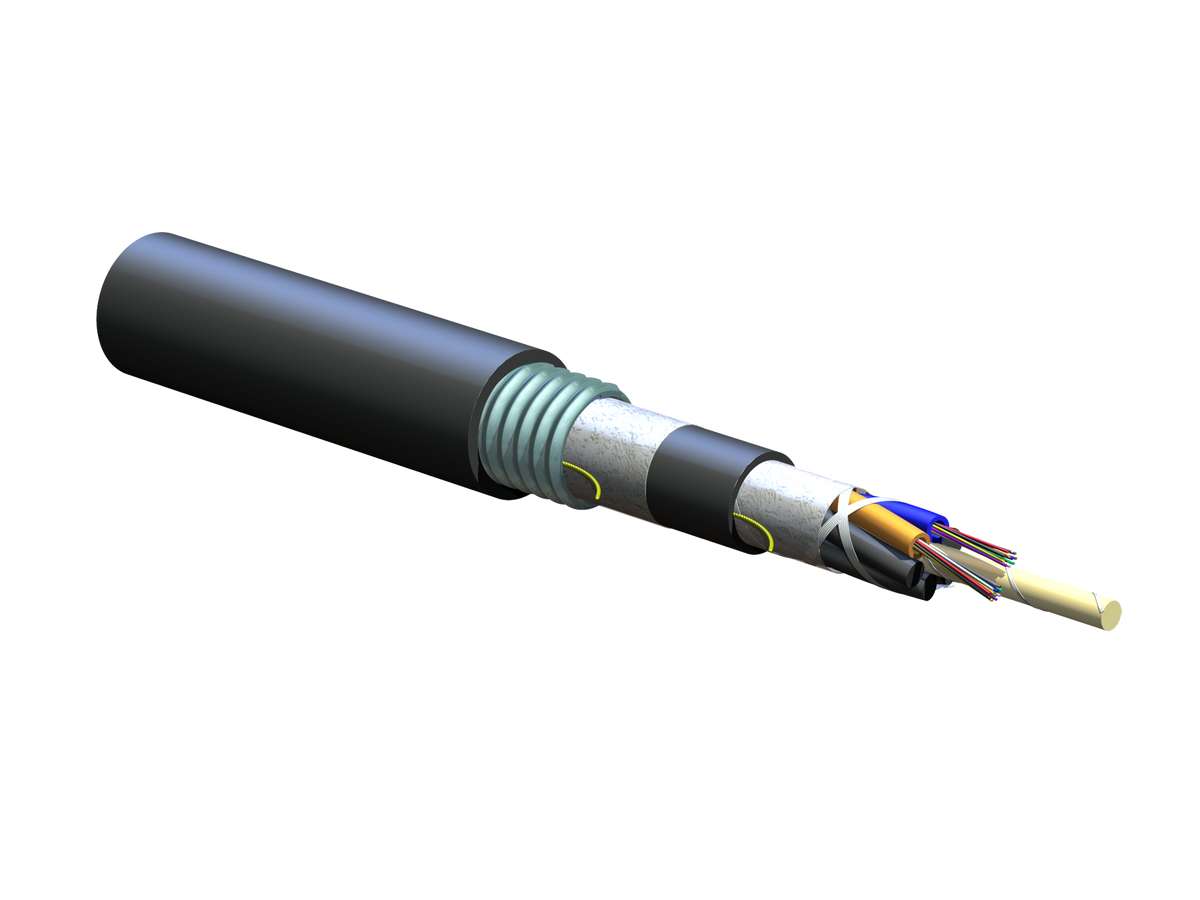

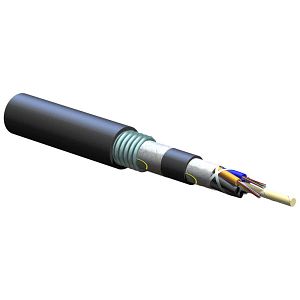

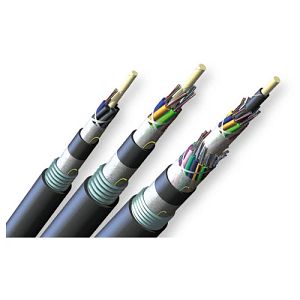

Corning 024EU5-T4101F20 | ALTOS Low-Temperature, Loose Tube, Gel-Free, Double-Jacket, Single-Armored Cable 24 F, Single-mode (OS2)
Corning ALTOS gel-free, low-temperature cables are designed for extreme cold temperature environments with an extended operating range of -50º to +70ºC (-58º to +158ºF). Armored jackets allow for duct, direct-buried or aerial (lashed) installation.
Corning - 024EU5-T4101F20 - Features
- Extended operating temperature range of -50º to +70ºC (-58º to +158ºF)
- Allows for operation at extreme low temperatures
- Flexible, craft-friendly buffer tubes
- Facilitate easy routing in closures
- Gel-free waterblocking technology
- Craft-friendly cable preparation
- Dielectric central strength member
- No preferential bend and requires no bonding or grounding
- Polyethylene jacket
- Rugged, durable and easy to strip (while providing superior protection against UV radiation, fungus, abrasion and other environmental factors)
Specifications
Specifications
Corning - 024EU5-T4101F20 - Product Categories
- Shop by Manufacturer/Corning
- Fiber Optic Cables
- Outdoor
- Outdoor Direct Buried Cables
Corning - 024EU5-T4101F20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 024EU5-T4101F20 |
| EAN Code | 4056418161303 |
| Environment | Outdoor |
| Cable Type | Loose Tube |
| Product Type | Armored |
| Fiber Category | Single-mode (OS2) |
| Application | Aerial, Direct Buried |
| Fiber Count | 24 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | USDA Rural Development Programs |
| Design and Test Criteria | ANSI/ICEA S-87-640 |
| Environmental Conditions | - |
| Temperature Range, Installation | -30 °C to -30 °C (-22 °F to -22 °F ) |
| Temperature Range, Operation | -50 °C to 70 °C (-58 °F to 158 °F ) |
| Temperature Range, Storage | -50 °C to -50 °C (-58 °F to -58 °F ) |
| Notes | Corning recommends storing cable in a proper temperature environment prior to installation to allow the cable temperature to meet installation temperature range specifications for best installation results. |

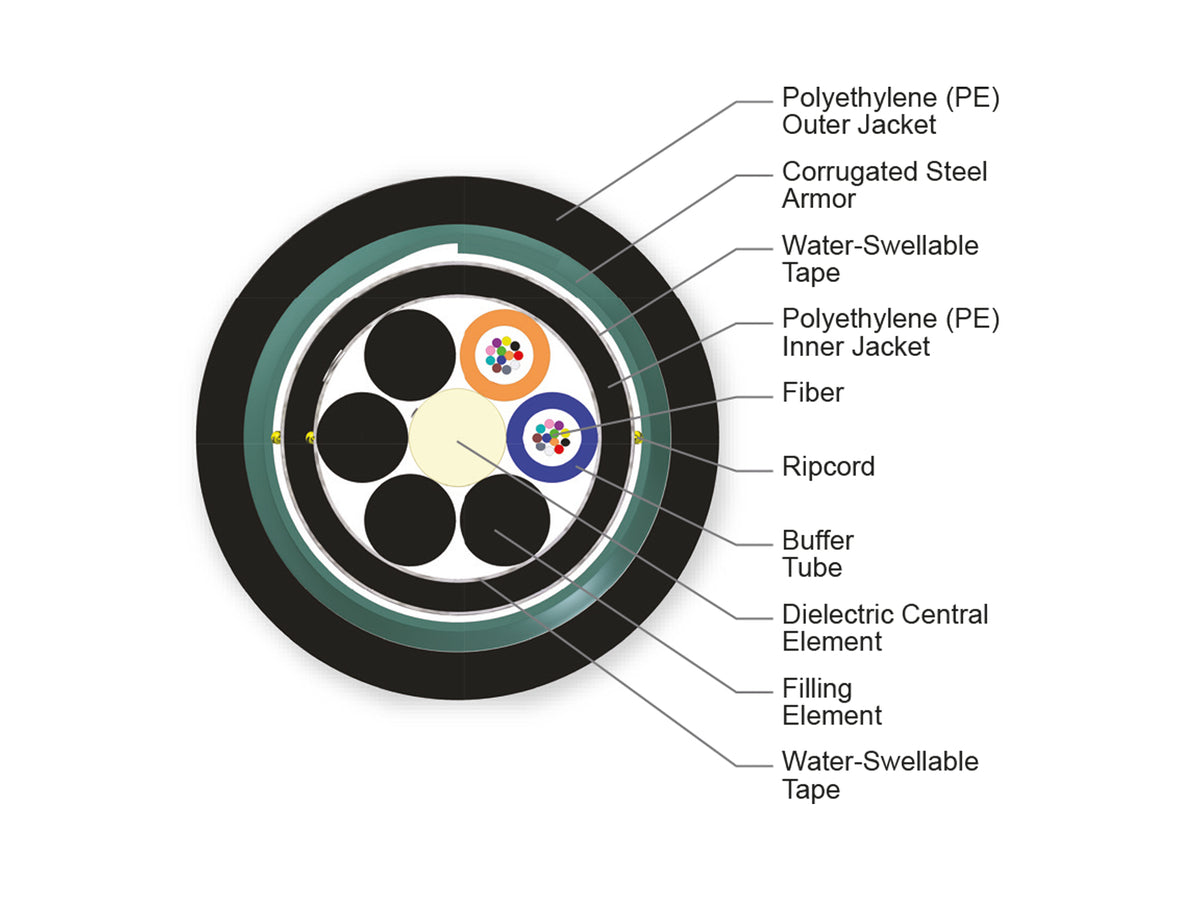

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 24 |
| Buffer Tube Color Coding | Blue, Orange |
| Number of Ripcords | 3 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Tensile Strength Elements and/or Armoring - Layer 1 | Corrugated steel tape armor |
| Buffer Tube Color | Blue, Orange |
| Buffer Tube Diameter | 2.5 mm (0.1 in) |
| Inner Jacket Material | Polyethylene (PE) |
| Number of Active Tubes | 2 |
| Number of Filling Elements | 4 |
| Number of Tube Positions | 6 |
| Tape | Water-swellable |
| Tape, Layer 2 | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 890 N (200.08 lbf) |
| Max. Tensile Strength, Short-Term | 2700 N (606.98 lbf) |
| Min. Bend Radius Installation | 215 mm (8.46 in) |
| Min. Bend Radius Operation | 143 mm (5.63 in) |
| Nominal Outer Diameter | 14.3 mm (0.56 in ) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 172 kg/km (115.58 lb/1000 ft) |
| ECCN | 5A991.d |
| Country of Origin | US - United States |
| UNSPSC | 26121607 |
