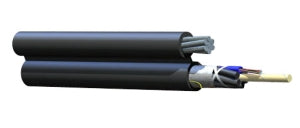

Corning 024EUA-T4101D20 | ALTOS Figure-8 Loose Tube, Gel-Free Cable 24 F, Single-mode (OS2)
Corning - 024EUA-T4101D20 - Features
- Gel-free waterblocking technology
- Craft-friendly cable preparation
- Polyethylene jacket
- Rugged, durable and easy to strip (while providing superior protection against UV radiation, fungus, abrasion and other environmental factors)
- Figure-8 cable design
- Easy, one-step installation
Specifications
Specifications
Corning - 024EUA-T4101D20 - Product Categories
- Shop by Manufacturer/Corning
- Wire & Cable
- Voice and Data Cable
- Outdoor Fiber Optic Cable
- Data Communications and Networking
- Fiber Optic Cables
- Outdoor
- Outdoor Aerial Cables
Corning - 024EUA-T4101D20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 024EUA-T4101D20 |
| EAN Code | 4056418183770 |
| Environment | Outdoor |
| Cable Type | Loose Tube |
| Product Type | Self-Supporting |
| Fiber Category | Single-mode (OS2) |
| Application | Aerial, Self-Supporting |
| Fiber Count | 24 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Common Installations | Outdoor self-supporting aerial |
| Design and Test Criteria | ANSI/ICEA S-87-640 |
| Environmental Conditions | - |
| Temperature Range, Installation | -30 °C to 70 °C (-22 °F to 158 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Notes | Corning recommends storing cable in a proper temperature environment prior to installation to allow the cable temperature to meet installation temperature range specifications for best installation results. |

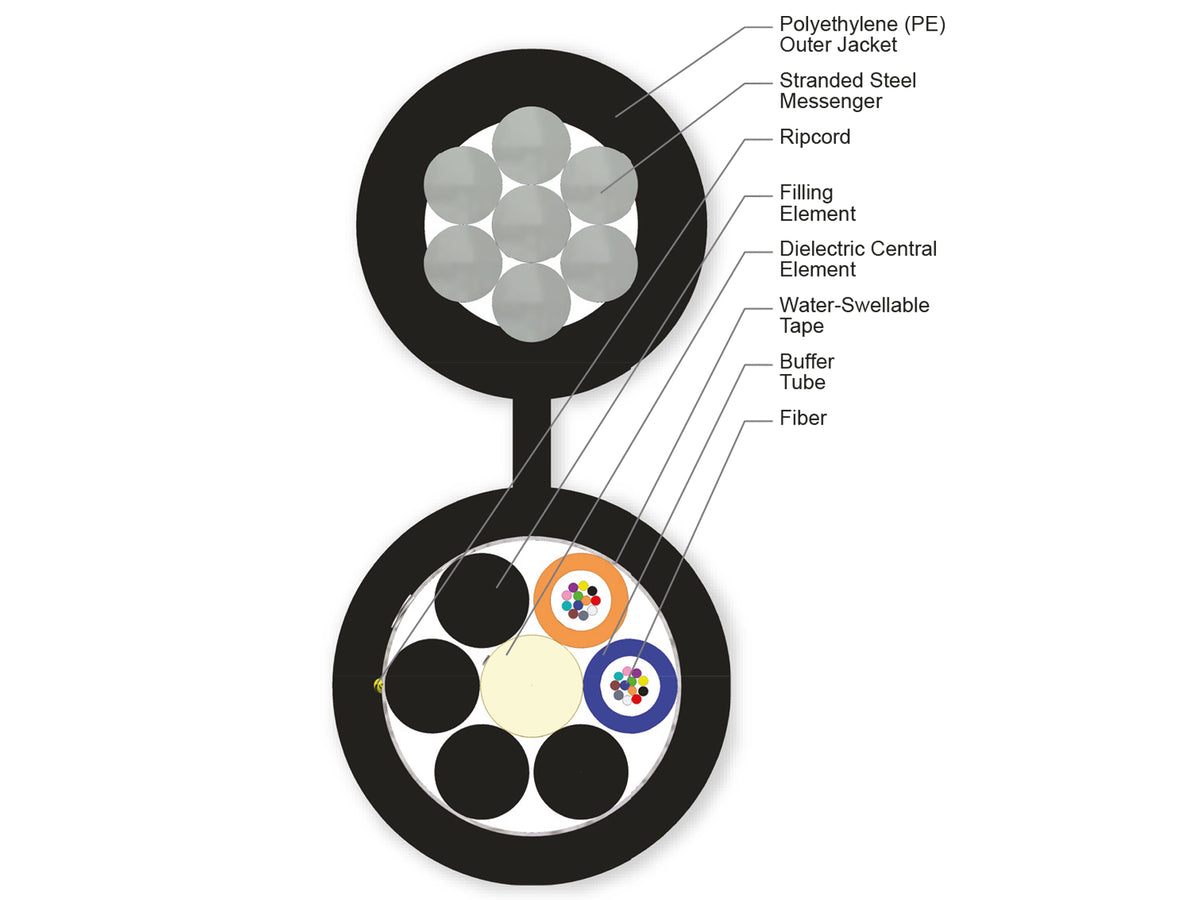

| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 24 |
| Buffer Tube Color Coding | Blue, Orange |
| Number of Ripcords | 1 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Buffer Tube Color | Blue, Orange |
| Buffer Tube Diameter | 2.5 mm (0.1 in) |
| Messenger | Stranded steel |
| Number of Active Tubes | 2 |
| Number of Filling Elements | 4 |
| Number of Tube Positions | 6 |
| Tape | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Mechanical Specifications | - |
| Min. Bend Radius Installation | 158 mm (6.22 in) |
| Min. Bend Radius Operation | 105 mm (4.13 in) |
| Nominal Cable Height | 22.1 mm (0.87 in) |
| Nominal Outer Diameter | 10.5 mm (0.41 in ) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 297 kg/km (199.57 lb/1000 ft) |
| Type | Outdoor Cable |
| Application | Outdoor |
| Cable Type | Loose Tube |
| Transmission Mode | Singlemode |
| Fiber Type | OS2 |
| Jacket Material | Polyethylene |
| Jacket Color | Black |
| Fiber Count | 24 |
| Outside Diameter | 0.41 in. (10.41mm) |
| Armored | No |
| Water Blocking | Gel-free |
| Construction | Loose Tube, Gel-Free |
