Brand: Corning
|
SKU:
370-COROM1-TBAD-24

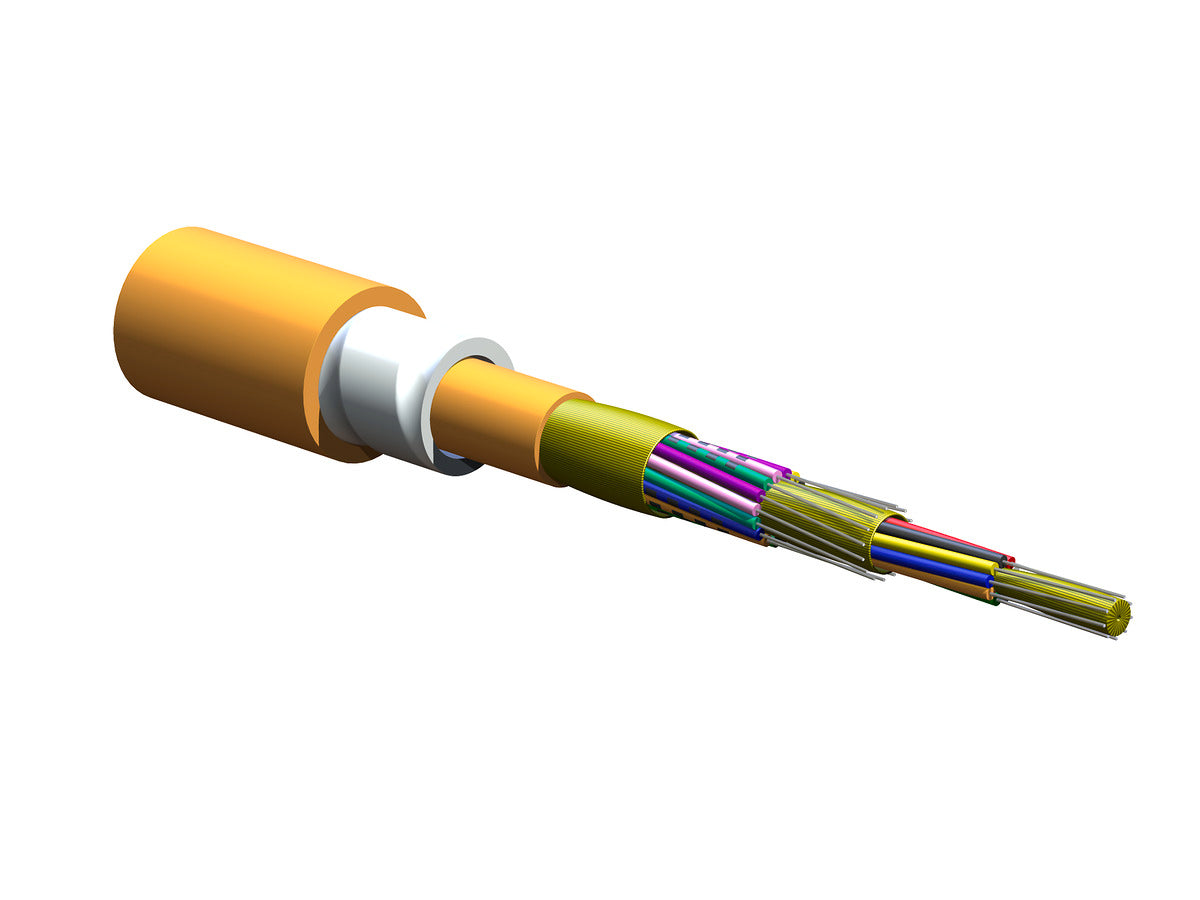

Corning 024K88-33130-D3 | MIC DX Tight-Buffered Armored Cable, Plenum 24 F, 62.5 µm multimode (OM1)
Regular price
$9.07
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 024K88-33130-D3 | MIC DX Tight-Buffered Armored Cable, Plen...
Regular price
$9.07
Unit price
Brand: Corning
|
SKU:
370-COROM1-TBAD-24
Regular price
$9.07
Unit price
Shipping calculated at checkout.
Description
Description
Corning 024K88-33130-D3 | MIC DX Tight-Buffered Armored Cable, Plenum 24 F, 62.5 µm multimode (OM1)
Specifications
Specifications
Corning - 024K88-33130-D3 - Product Categories
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 024K88-33130-D3 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 024K88-33130-D3 |
| Item Description | MIC DX Tight-Buffered Armored Cable, Plenum 24 F, 62.5 µm multimode (OM1) |
| General Specifications | - |
| Product Number | 024K88-33130-D3 |
| EAN Code | 4056418181127 |
| Environment | Indoor |
| Cable Type | Tight-Buffered |
| Product Type | Dielectric armor |
| Fiber Category | 62.5 µm MM (OM1) |
| Flame Rating | Plenum (OFNP) |
| Application | General Purpose Horizontal, Plenum |
| Fiber Count | 24 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNP, NFPA 262, CSA FT-6, ICEA S-83-596 |
| Flame Test Method | Flame retardant according to IEC 60332-1-2 (single cable) and IEC 60332-3-24 (bunch of cables), Reaction to fire according to EN 50575 and EN 13501-6, Low smoke according to IEC 61034 and zero halogen to IEC 60754-1, Non-corrosive according to IEC 60754-2 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0°C to 60°C (32°F to 140°F ) |
| Temperature Range, Operation | 0°C to 70°C (32°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |

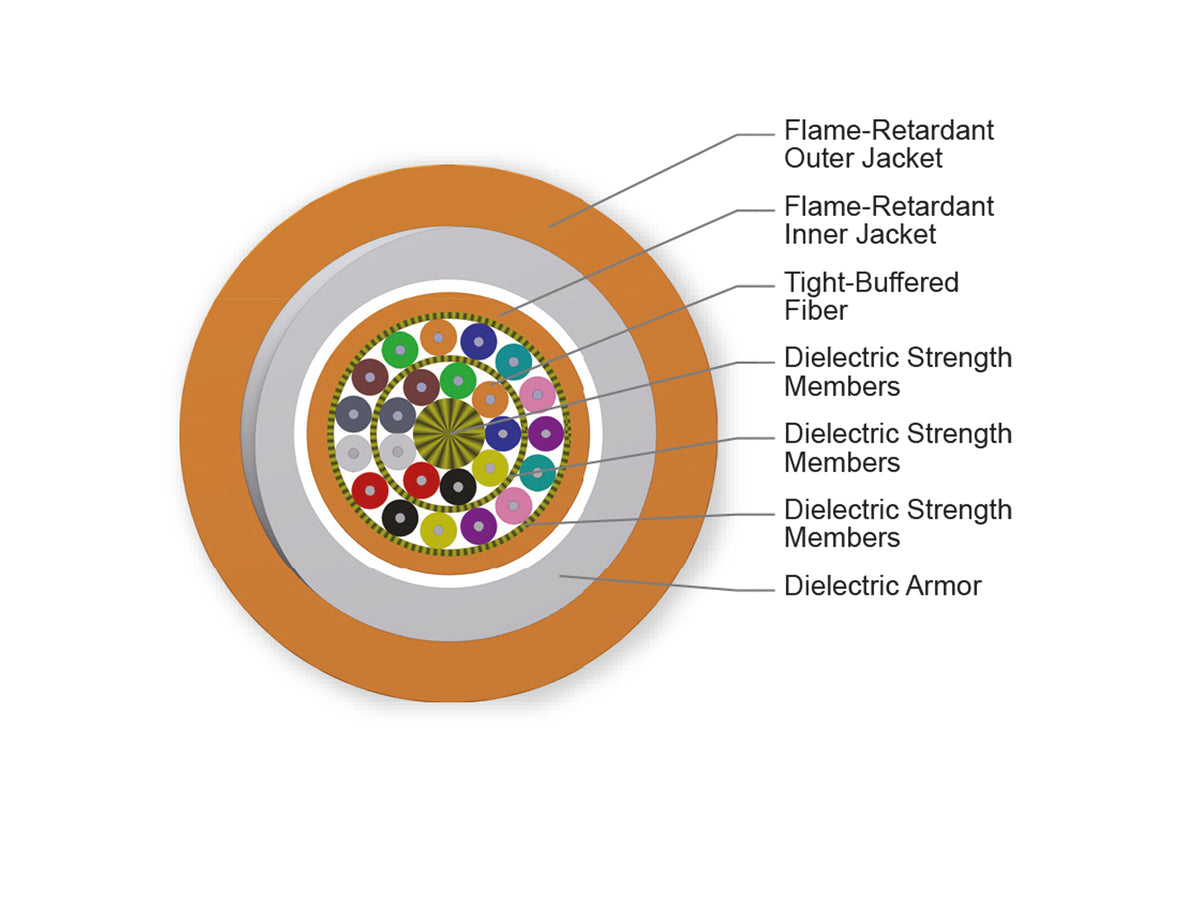

| Cable Design | - |
| Fiber Count | 24 |
| Outer Jacket Color | Orange |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tensile Strength Elements and/or Armoring - Layer 2 | Dielectric strength members |
| Inner Jacket Material | Flame-retardant |
| Tight Buffer Color | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow |
| Tight Buffer Color, Layer 2 | Violet, Rose, Aqua, Blue*, Orange*, Green*, Brown*, Slate*, White *, Red*, Black*, Yellow*, Violet*, Rose*, Aqua* |
| Flame Rating | Plenum (OFNP) |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 867N (194.91lbf) |
| Max. Tensile Strength, Short-Term | 2600N (584.5lbf) |
| Min. Bend Radius Installation | 197mm (7.76in) |
| Min. Bend Radius Operation | 131mm (5.16in) |
| Nominal Inner Cable Diameter | 6.8mm (0.27in) |
| Nominal Outer Diameter | 13.1mm (0.52in) |
| Optical Characteristics | - |
| Fiber Code | K |
| Fiber Name | 62.5 µm MM (OM1) |
| Performance Option Code | 30 |
| Fiber Core Diameter | 62.5µm |
| Minimum Effective Modal Bandwidth (EMB) | 220 MHz |
| Maximum Attenuation | 3.4 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 200 MHz / 500 MHz |
| Serial 1 Gigabit Ethernet | 300 m / 550 m |
| Serial 10 Gigabit Ethernet | 33 m / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM1 |
| Dimensions | - |
| Cable Weight | 1887kg/km (1268.01lb/1000 ft) |
