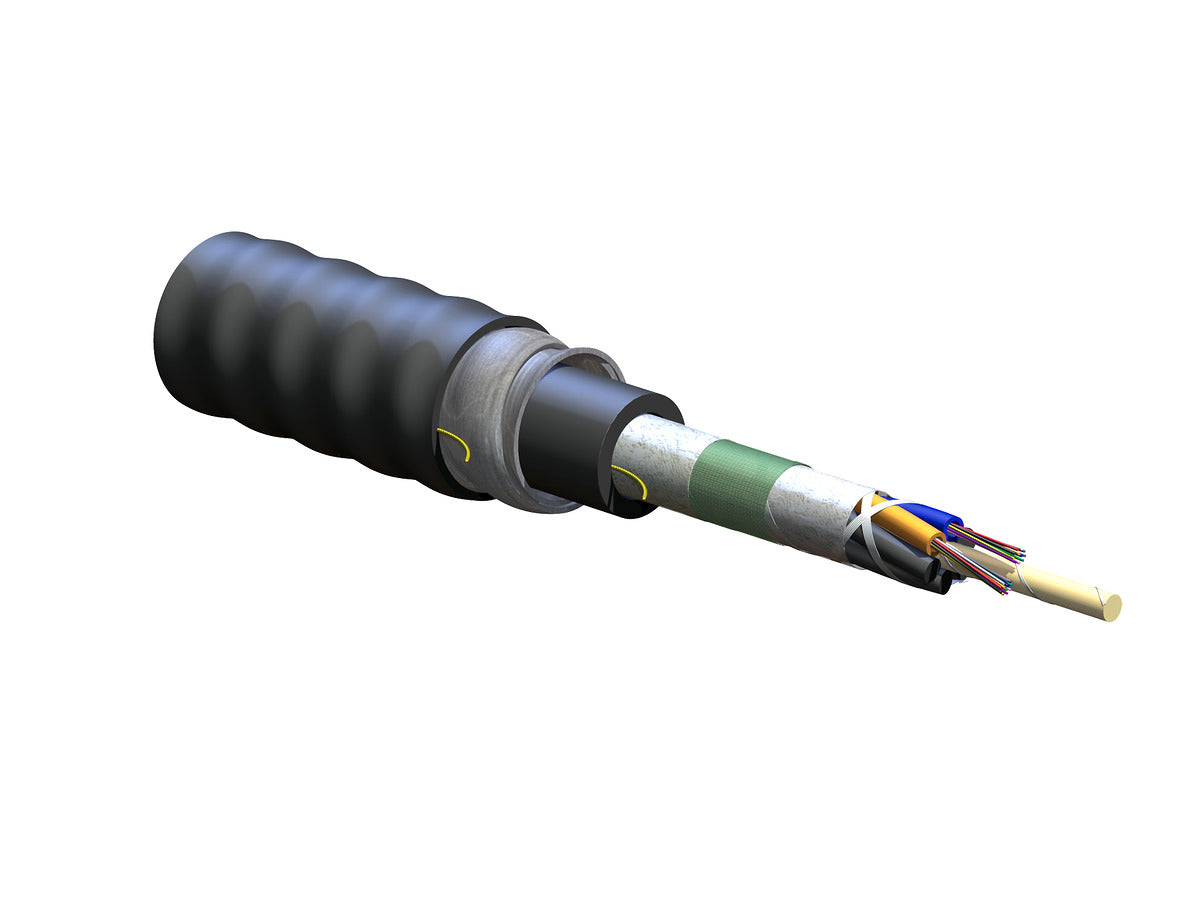

Corning 024KUZ-T4130DAN | Armored Cable 24F 62.5 µm Multimode OM1
Regular price
$14.76
Unit price
Brand: Corning
|
SKU:
10712573
Regular price
$14.76
Unit price
Description
Description
Corning 024KUZ-T4130DAN | Armored Cable 24F 62.5 µm Multimode OM1
Corning - 024KUZ-T4130DAN - Features
- Low-smoke, zero-halogen sheath
- Key life-safety benefit
- Meets cyclic impact and chemical resistance test
- Superior performance
- Interlocking armor
- Mechanical protection
- Common installations
- Outdoor aerial and duct
Specifications
Specifications
Corning - 024KUZ-T4130DAN - Specifications
| Product Number | 024KUZ-T4130DAN |
|---|---|
| Installation Methods | Aerial, Direct Buried, Duct, Tray-Rated |
| Cable Type | Loose Tube |
| Environment | Indoor/Outdoor |
| Product Type | Interlocking Armor |
| Fiber Category | 62.5 µm MM (OM1) |
| Flame Rating | LSZH (OFC-LS) |
| Cable Geometry | Round |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals And Listings | NFPA 130, National Electrical Code® (NEC®) OFN-LS, Sunlight Resistant (SUN RES), IEEE-1202 flame test, Suitable for Direct Burial (DIR BUR), IEC 60332-3, IEC 60754-2, IEC 61034 |
| Common Installations | Outdoor aerial and duct; indoor general purpose horizontal according to NEC Article 770 |
| Design And Test Criteria | ANSI/ICEA S-104-696, UL 13, UL 444, UL 1277, UL 1685, CSA C22.2, No. 230 and No. 232, CSA OFC (FT-4-S1) |
