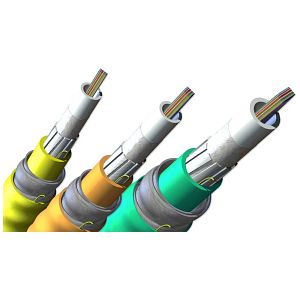

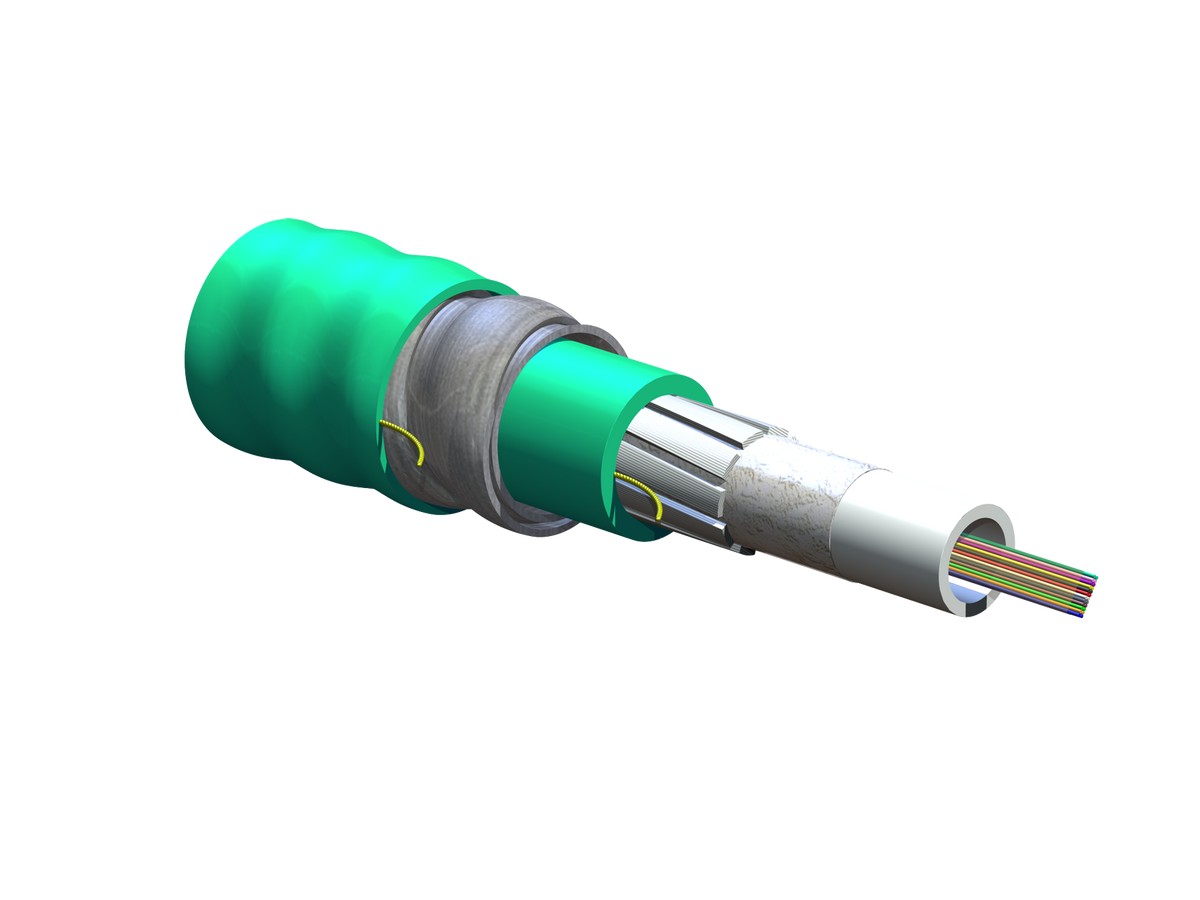

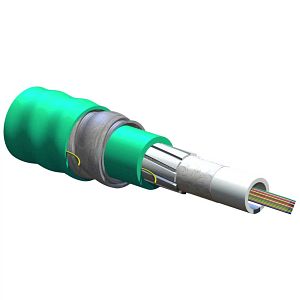

Corning 024TC7-14190-A1 | Ribbon Interlocking Armored Cable, Riser
Regular price
$13.10
Unit price
Brand: Corning
|
SKU:
371-COROM4-RIBA-24
Regular price
$13.10
Unit price
Description
Description
Corning 024TC7-14190-A1 | Ribbon Interlocking Armored Cable, Riser 24 F, 50 µm multimode (OM4)
Standards RoHS: Free of hazardous substances according to RoHS 2011/65/EU Approvals and Listings: National Electrical Code (NEC) OFNP Design and Test Criteria: ANSI/ICEA S-83-596, CSA FT-6
Corning - 024TC7-14190-A1 - Features
- Ribbon ID numbers and fiber colors
- Easily identifiable
- Precise fiber and ribbon geometries
- Excellent mass splicing yields
- Flame-retardant jacket
- Rugged and durable
- Flexible interlocking armor
- Up to seven times the crush protection compared to non-armored cables
- Common installations
- Indoor vertical riser and general purpose horizontal according to National Electrical Code (NEC) Article 770
- Ribbon ID numbers and fiber colors - Easily identifiable
- Precise fiber and ribbon geometries - Excellent mass splicing yields
- Flame-retardant jacket - Rugged and durable
- Flexible interlocking armor - Up to seven times the crush protection compared to non-armored cables
- Common installations - Indoor vertical riser and general purpose horizontal according to National Electrical Code (NEC) Article 770
Specifications
Specifications
Corning - 024TC7-14190-A1 - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Indoor Fiber Optic Cable
- Fiber Optic Cables
- Indoor
- Indoor Riser Cables
Corning - 024TC7-14190-A1 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 024TC7-14190-A1 |
| EAN Code | 4056418236728 |
| Environment | Indoor |
| Cable Type | Ribbon |
| Product Type | Interlocking Armor |
| Fiber Category | 50 µm MM (OM4) |
| Flame Rating | Riser (OFCR) |
| Application | General Purpose Horizontal, Vertical Riser |
| Fiber Count | 24 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design and Test Criteria | ANSI/ICEA S-83-596, CSA FT-6 |
| Approvals and Listings | National Electrical Code (NEC) OFNP |
| Environmental Conditions | - |
| Temperature Range, Installation | -10 °C to -10 °C (14 °F to 14 °F ) |
| Temperature Range, Operation | -20 °C to -20 °C (-4 °F to -4 °F ) |
| Temperature Range, Storage | -40 °C to -40 °C (-40 °F to -40 °F ) |

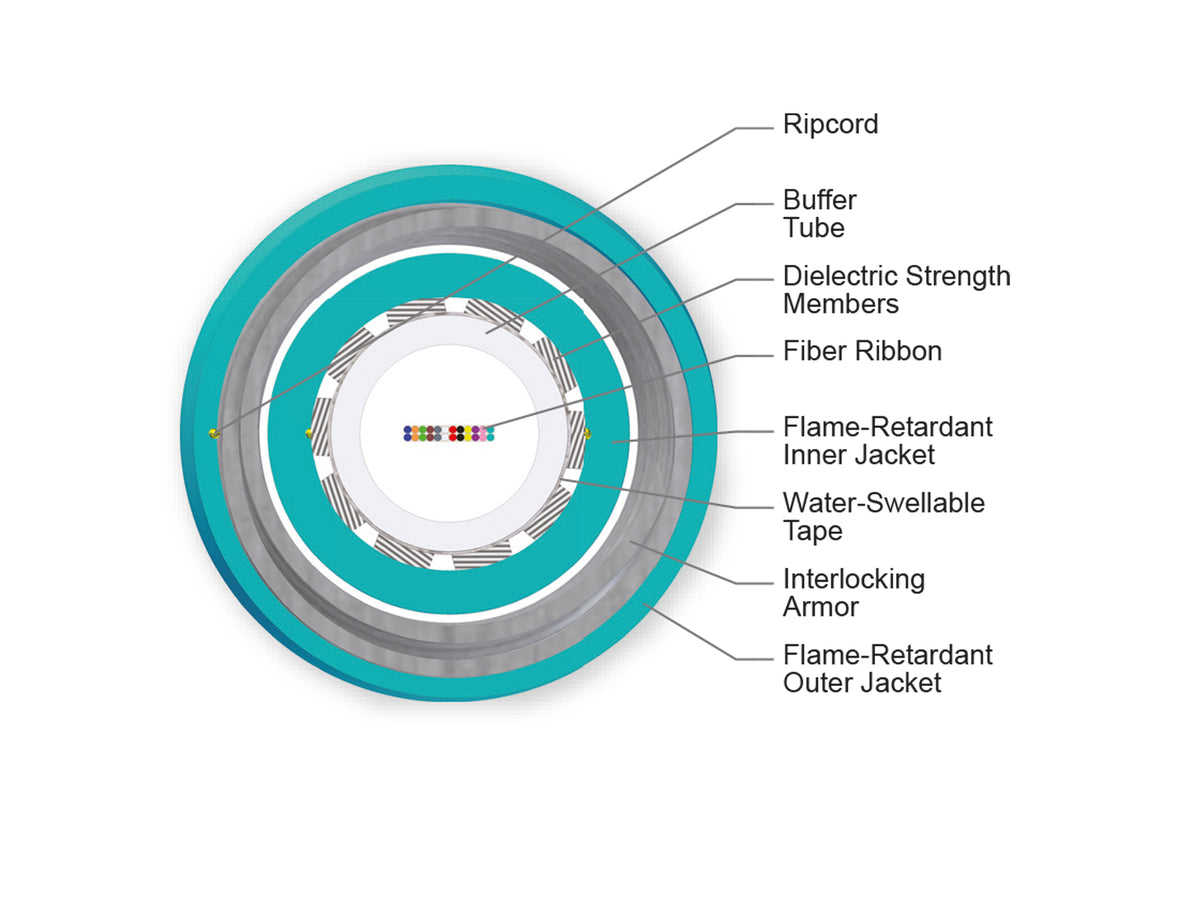

| Cable Design | - |
| Buffer Tube Color | Natural |
| Fiber Count | 24 |
| Buffer Tube Diameter | 81 mm (3.19 in) |
| Number of Ripcords | 2 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Outer Jacket Color | Aqua |
| Outer Jacket Material | Flame-retardant |
| Inner Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tape, Layer 1 | Water-swellable |
| Tensile Strength Elements and/or Armoring - Layer 3 | Interlocking Armor |
| Ribbons per Tube | 2 |
| Fibers per Ribbon | 12 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 400 N (89.92 lbf) |
| Max. Tensile Strength, Short-Term | 400 N (89.92 lbf) |
| Min. Bend Radius Installation | 236 mm (9.29 in) |
| Min. Bend Radius Operation | 157 mm (6.18 in) |
| Nominal Outer Diameter | 15.7 mm (0.62 in ) |
| Nominal Inner Cable Diameter | 92 mm (3.62 in) |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 90 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 4700 MHz*km / - |
| Maximum Attenuation | 3.0 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 3500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1100 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 550 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM4 |
| Ordering Information | - |
| Weight | 212 kg/km (142.46 lb/1000 ft) |
| Units per Delivery | 1/1" |
| Flammability Rating | Riser |
| Fiber Count | 24 |
