Corning 024TD8-T1380-A3 | MIC 250 Interlocking Armored Distribution...
Regular price
$8.83
Unit price
Description
Description

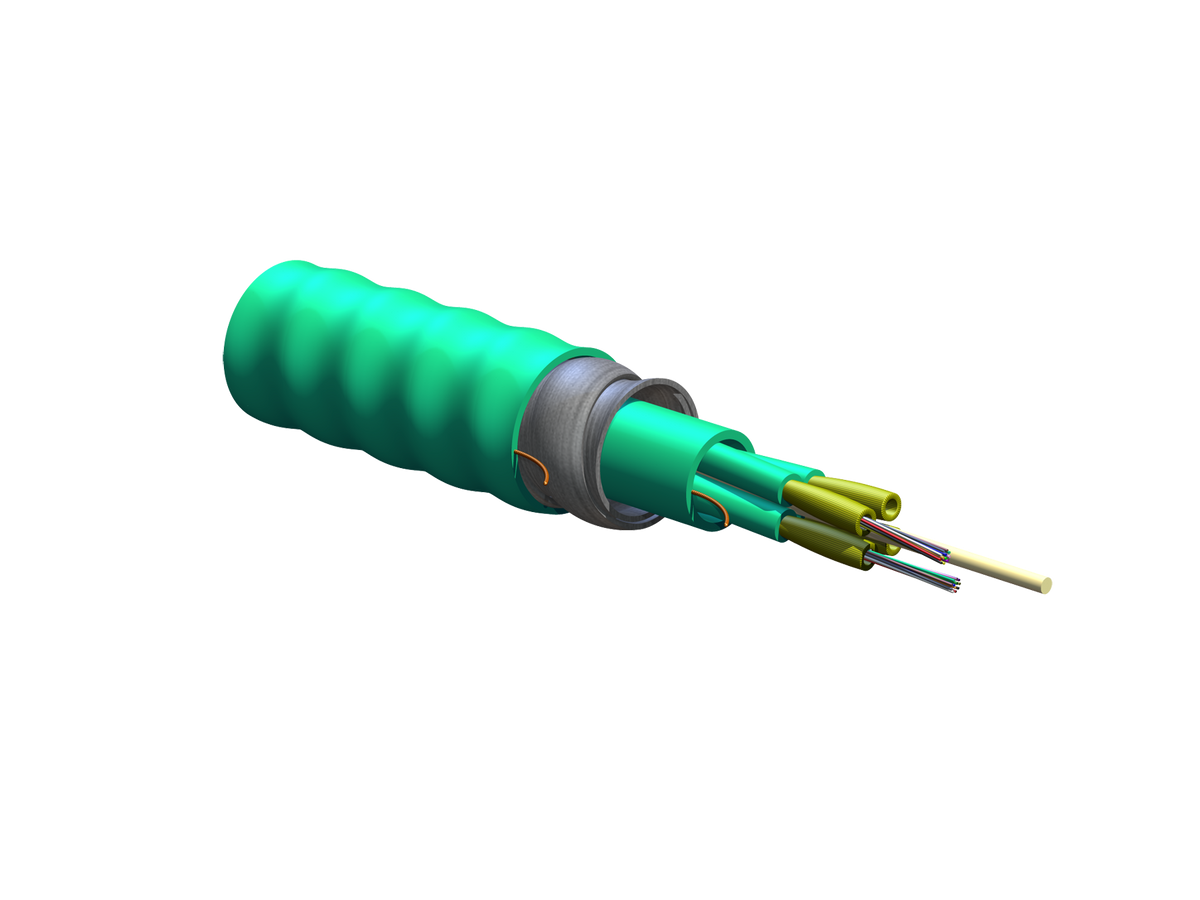

Corning 024TD8-T1380-A3 | MIC 250 Interlocking Armored Distribution Cable, Plenum 24 F, 50 µm multimode (OM3)
Corning - 024TD8-T1380-A3 - Features
- Color-coded fibers
- Quick and easy identification
- 12-fibre groupings
- Compatibility with multifibre connectors
Specifications
Specifications
Corning - 024TD8-T1380-A3 - Product Categories
- Shop by Manufacturer/Corning
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 024TD8-T1380-A3 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 024TD8-T1380-A3 |
| EAN Code | 4056418173917 |
| Environment | Indoor |
| Cable Type | Loose Tube |
| Product Type | Distribution |
| Fiber Category | 50 µm MM (OM3) |
| Flame Rating | Plenum (OFNP) |
| Application | General Purpose Horizontal, Plenum, Vertical Riser |
| Fiber Count | 24 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFCP, FT-6, ICEA S-83-596 |
| Design and Test Criteria | CSA FT-6 |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 60 °C (32 °F to 140 °F ) |
| Temperature Range, Operation | 0 °C to 70 °C (32 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

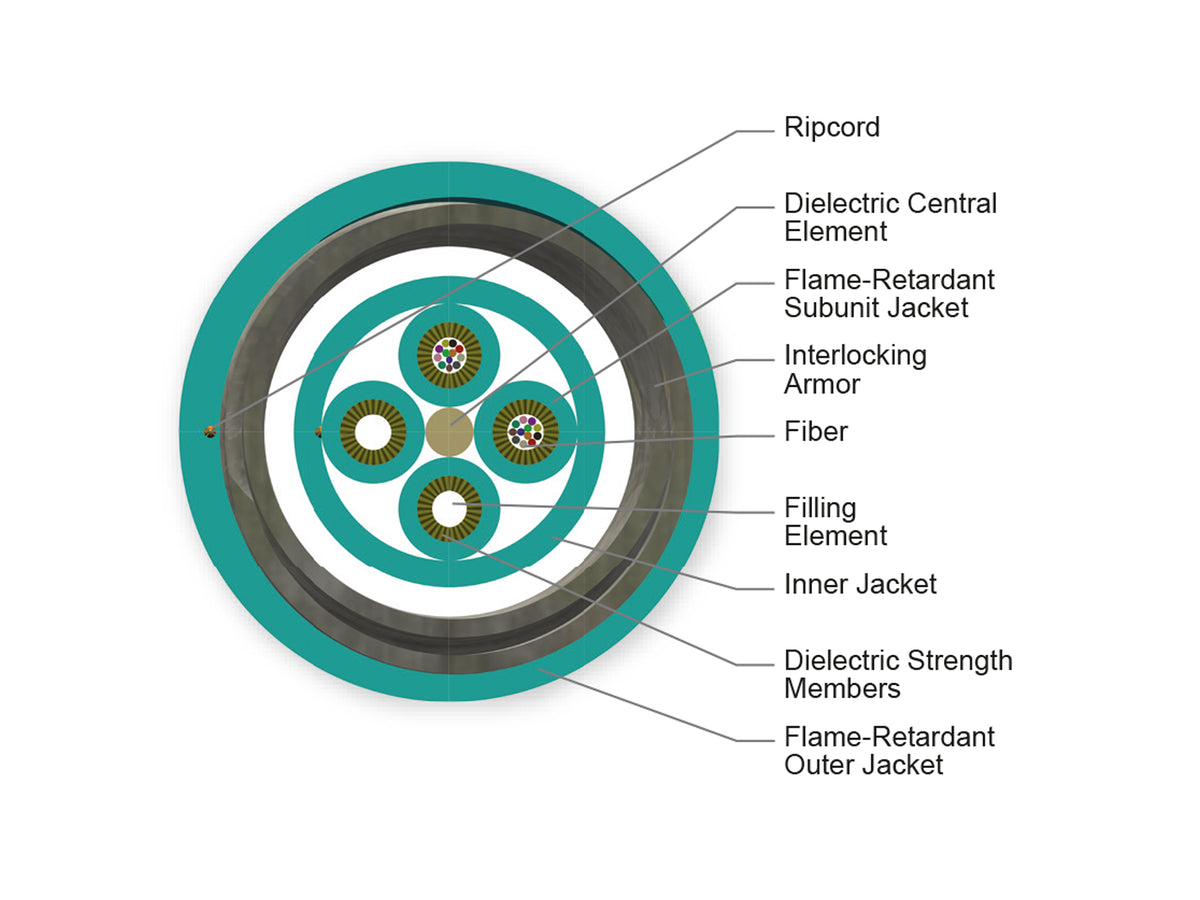

| Cable Design | - |
| Central Element | Yarn |
| Fiber Count | 24 |
| Number of Ripcords | 1 |
| Outer Jacket Color | Aqua |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Subunit | 12 |
| Number of Filling Elements | 1 |
| Number of Subunits | 2 |
| Subunit Color | Aqua |
| Subunit Jacket Material | Flame-retardant |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 200 N (44.96 lbf) |
| Max. Tensile Strength, Short-Term | 660 N (148.37 lbf) |
| Min. Bend Radius Installation | 235.5 mm (9.27 in) |
| Min. Bend Radius Operation | 157 mm (6.18 in) |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 80 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 2000 MHz*km / - |
| Maximum Attenuation | 3.0 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 1500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 300 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM3 |
| Ordering Information | - |
| Weight | 20282 kg/km (13628.87 lb/1000 ft) |
