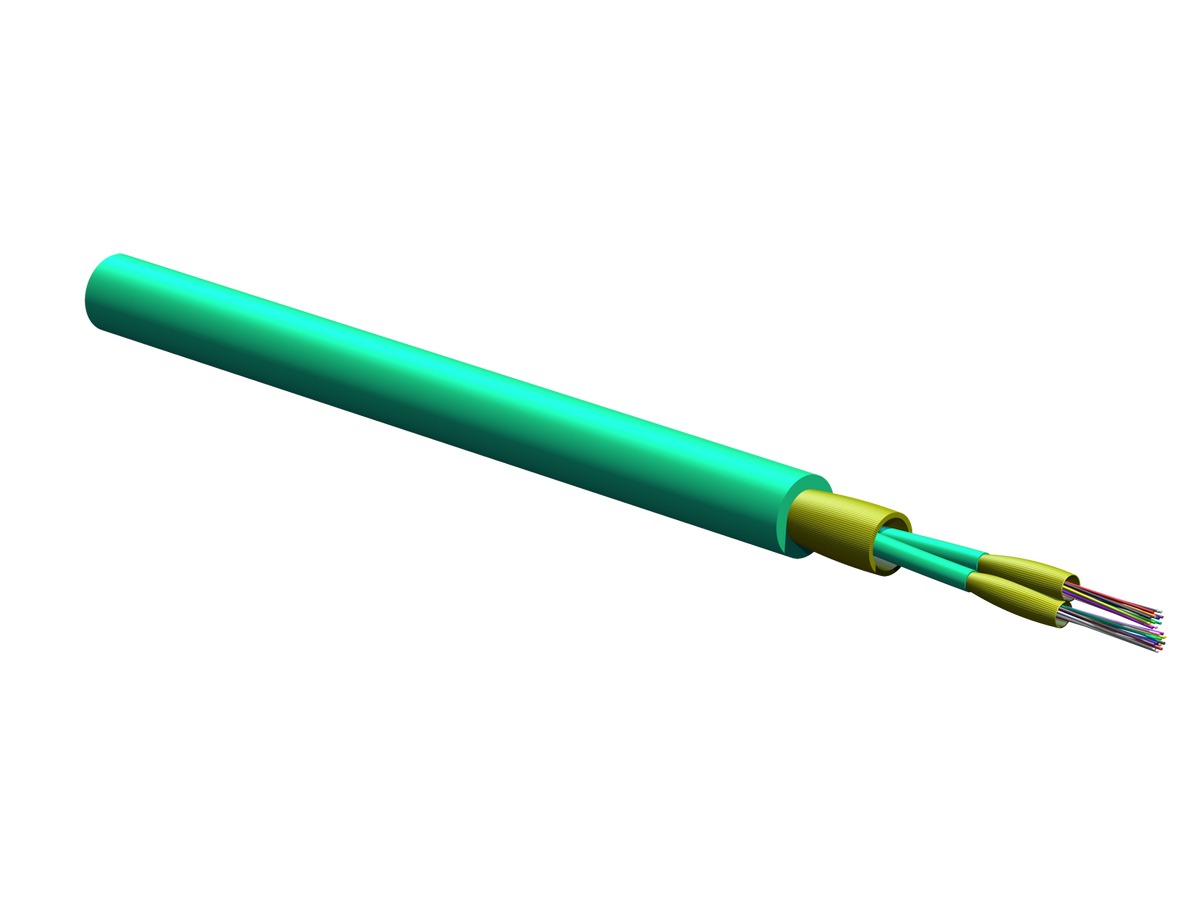

Corning 024TD9-T1390-M2 | MIC 250 2.0 Cable
Regular price
$6.76
Unit price
Brand: Corning
|
SKU:
370-COROM4-LT250-24
Regular price
$6.76
Unit price
Description
Description
Corning 024TD9-T1390-M2 | MIC 250 2.0 Cable 24 F, 50 µm multimode (OM4)
Corning - 024TD9-T1390-M2 - Features
- Color-coded fibers
- Quick and easy identification
- Small design
- Alternative to traditional indoor cables when smaller diameter required
- All-dielectric construction
- Requires no grounding or bonding
- Compatible with CCH pigtailed cassettes
- Ideal for splicing 250 µm to 250 µm fibers
Specifications
Specifications
Corning - 024TD9-T1390-M2 - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Indoor Fiber Optic Cable
- Fiber Optic Cables
- Indoor
- Indoor Plenum Cables
Corning - 024TD9-T1390-M2 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 024TD9-T1390-M2 |
| Environment | Indoor |
| Cable Type | Loose Tube |
| Product Type | Distribution |
| Fiber Category | 50 µm MM (OM4) |
| Application | General Purpose Horizontal, Plenum, Vertical Riser |
| Fiber Count | 24 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Environmental Conditions | - |
| Temperature Range, Installation | 0 °C to 60 °C (32 °F to 140 °F ) |
| Temperature Range, Operation | 0 °C to 70 °C (32 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Cable Design | - |
| Central Element | Dielectric |
| Fiber Count | 24 |
| Buffer Tube Color Coding | Aqua |
| Outer Jacket Color | Aqua |
| Outer Jacket Material | Flame-retardant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Buffer Tube Diameter | 2 mm (0.08 in) |
| Fiber Bundle Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Number of Active Tubes | 2 |
| Fibers per Tube | 12 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Short-Term | 660 N (148.37 lbf) |
| Min. Bend Radius Operation | 38.5 mm (1.52 in) |
| Nominal Outer Diameter | 7.7 mm (0.3 in ) |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 90 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 4700 MHz*km / - |
| Maximum Attenuation | 3.0 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 3500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 550 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM4 |
| Ordering Information | - |
| Weight | 378 kg/km (254 lb/1000 ft) |
| Armored | NO |
| Cable Type | LOOSE TUBE |
| Fiber Count | 24 |
| Fiber Type | OM4 LAZER-OPTIMIZED 50 MICRON, 10 GIG TO 550 METER |
| Fire Rating | PLENUM |
| UNSPSC Code | 26121607 |
