Brand: Corning
|
SKU:
373-COROM4-LTD-24

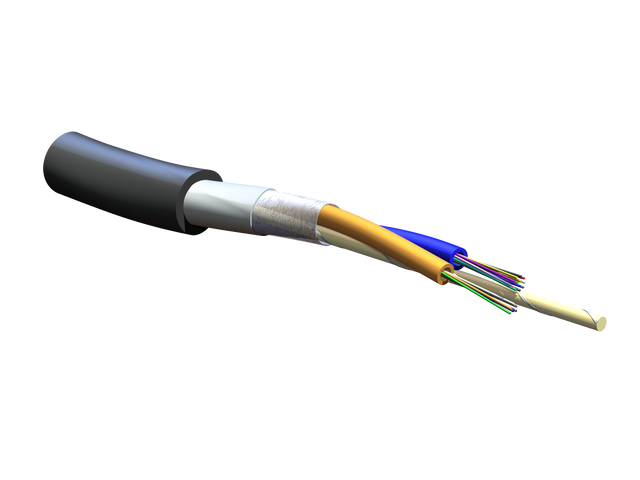

Corning 024TSF-T4190D20 | FREEDM LST Loose Tube, Gel-Free Cable, Riser
Regular price
$12.16
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog

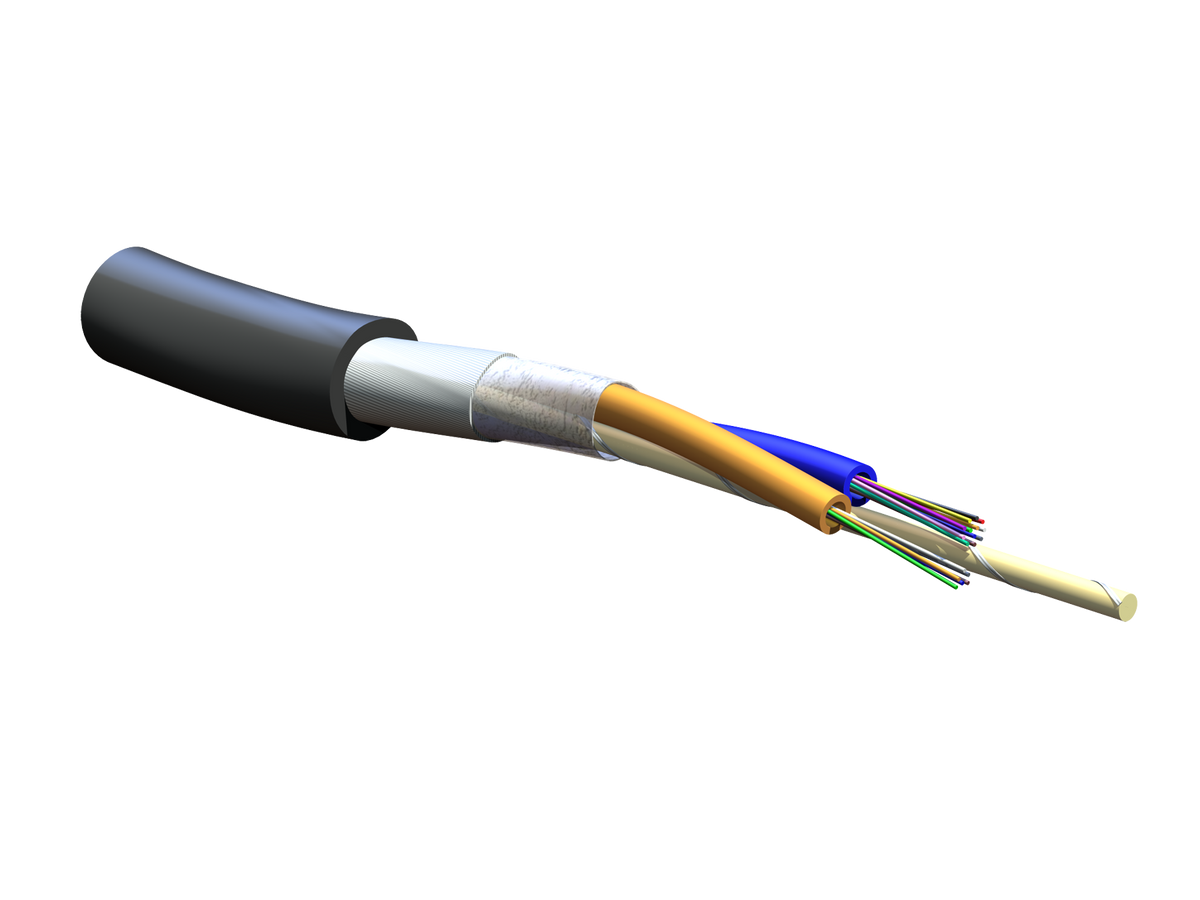

Corning 024TSF-T4190D20 | FREEDM LST Loose Tube, Gel-Free Cable, Riser
Regular price
$12.16
Unit price
Brand: Corning
|
SKU:
373-COROM4-LTD-24
Regular price
$12.16
Unit price
Shipping calculated at checkout.
Description
Description
Corning 024TSF-T4190D20 | FREEDM LST Loose Tube, Gel-Free Cable, Riser 24 F, 50 µm multimode (OM4)
Corning - 024TSF-T4190D20 - Features
- Riser rating
- No transition splices when entering buildings
- Gel-free waterblocking technology
- Craft-friendly cable preparation
- Color-coded fibers
- Quick and easy identification
- All-dielectric construction
- Requires no grounding or bonding
- UV-resistant, flame-retardant jacket
- Rugged, durable and easy to strip
- Common installations
- Outdoor aerial and duct
Specifications
Specifications
Corning - 024TSF-T4190D20 - Product Categories
- Shop by Manufacturer/Corning
- Wire & Cable
- Voice and Data Cable
- Indoor - Outdoor Fiber Optic Cable
- Data Communications and Networking
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor Riser Cables
Corning - 024TSF-T4190D20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 024TSF-T4190D20 |
| EAN Code | 4056418175966 |
| Environment | Indoor/Outdoor |
| Cable Type | Loose Tube |
| Product Type | Dielectric |
| Fiber Category | 50 µm MM (OM4) |
| Flame Rating | Riser (OFNR) |
| Application | Aerial, Direct Buried, Duct, General Purpose Horizontal |
| Fiber Count | 24 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNR, CSA OFN FT-4 |
| Common Installations | Outdoor aerial and duct, indoor vertical riser and general purpose horizontal according to National Electrical Code (NEC) Article 770 |
| Design and Test Criteria | ANSI/ICEA S-104-696 |
| Environmental Conditions | - |
| Temperature Range, Installation | -10 °C to 60 °C (14 °F to 140 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Notes | Operation: -40°C (-40°F) minimum operation temperature for 50 ?m multimode optical fiber types |

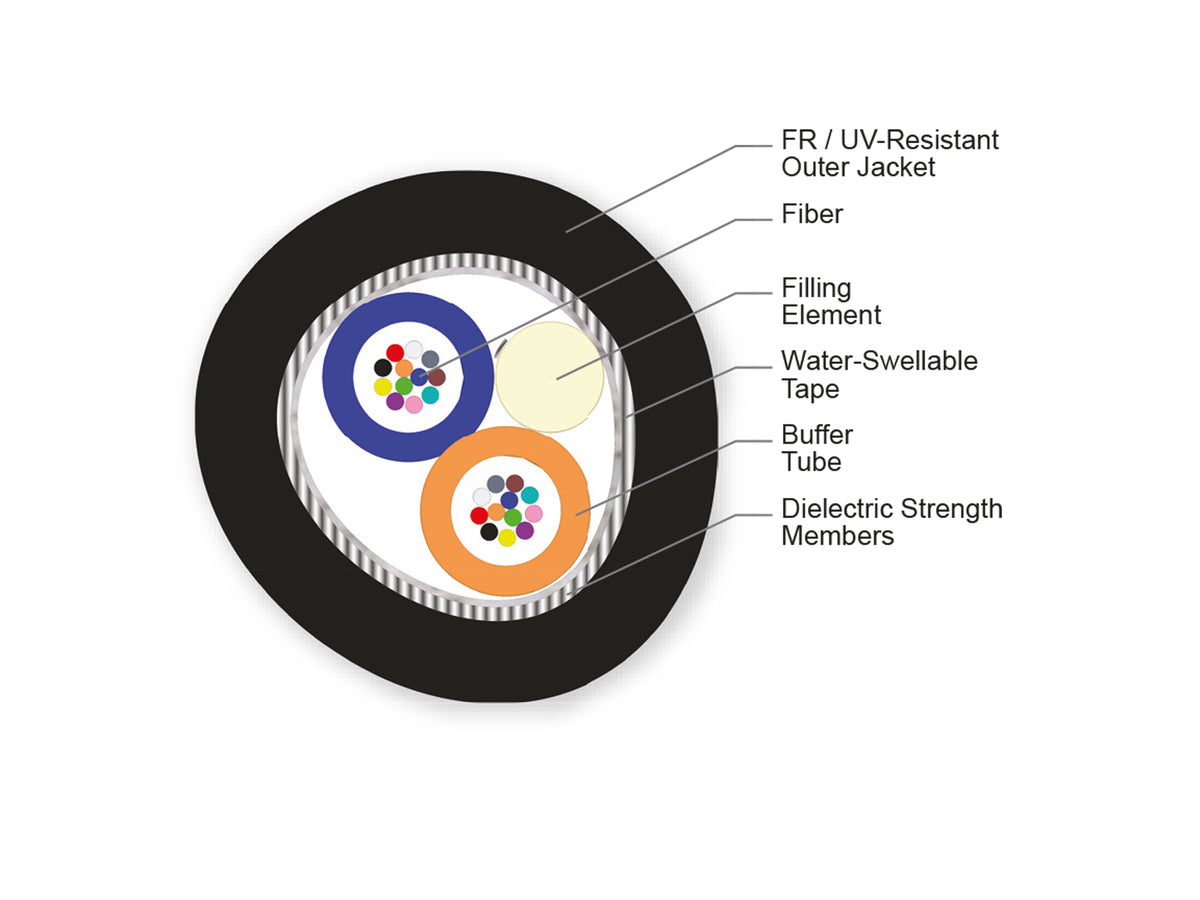

| Cable Design | - |
| Fiber Count | 24 |
| Buffer Tube Color Coding | Blue, Orange |
| Number of Ripcords | 1 |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tensile Strength Elements and/or Armoring - Layer 2 | Dielectric strength members |
| Buffer Tube Color | Blue, Orange |
| Number of Active Tubes | 2 |
| Number of Tube Positions | 2 |
| Tape | Water-swellable |
| Tape, Layer 1 | Water-swellable |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 810 N (182.1 lbf) |
| Max. Tensile Strength, Short-Term | 2700 N (606.98 lbf) |
| Min. Bend Radius Installation | 146 mm (5.75 in) |
| Min. Bend Radius Operation | 97 mm (3.82 in) |
| Nominal Outer Diameter | 9.7 mm (0.38 in ) |
| Notes | Actual cable outer diameter may vary ± 0.3 mm |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 90 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 4700 MHz*km / - |
| Maximum Attenuation | 3.0 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 3500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1100 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 550 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM4 |
| Ordering Information | - |
| Weight | 78 kg/km (52.41 lb/1000 ft) |
| Type | Indoor Outdoor Cable |
| Application | Indoor/Outdoor |
| Cable Type | Loose Tube |
| Transmission Mode | Multimode |
| Fiber Type | OM4 |
| Jacket Flame Rating | OFNR FT4 |
| Jacket Material | Flame Retardant, UV-Resistant |
| Jacket Color | Black |
| Fiber Count | 24 |
| Speed | 50um |
| Outside Diameter | 0.38 in. (9.7mm) |
| Water Blocking | Gel-free |
| Construction | Loose Tube, Gel-Free |
